Indledning
This manual provides essential instructions for the installation, operation, and maintenance of your Rosewill VMG 1000W 80+ Gold ATX 3.1 Full Modular Power Supply. Please read this manual thoroughly before installation and retain it for future reference. This power supply unit (PSU) is designed to deliver stable and efficient power to your personal computer system, featuring ATX 3.1 and PCIe 5.1 compatibility for modern hardware.
Image: Rosewill VMG1000 Fully Modular ATX Power Supply overview banner, highlighting low noise, premium reliability, and 80 Plus efficiency.
Sikkerhedsforanstaltninger
- Tag altid netledningen ud af stikkontakten, før du installerer, fjerner eller rengør strømforsyningen.
- This power supply is designed for use in personal computers only. Using it for other purposes may cause damage and void the warranty.
- Åbn ikke strømforsyningen casing. Høj volumentages are present inside, and opening the unit will void the warranty and pose a risk of electric shock.
- Ensure proper grounding of your system to prevent electrical hazards.
- Installer strømforsyningen i et godt ventileret område, væk fra varmekilder og fugt.
Opsætning og installation
Pakkens indhold
- Rosewill VMG 1000W Power Supply Unit
- Modular Cable Set (including 12V-2x6 PCIe 5.1 cable)
- AC strømledning
- Monteringsskruer
- Brugermanual
Fysisk installation
- Sørg for, at din computer er slukket, og at netledningen er taget ud af stikkontakten.
- Åbn din computerkasse.
- Locate the power supply mounting area, typically at the top or bottom rear of the case.
- Carefully place the Rosewill VMG 1000W PSU into the designated slot, ensuring the fan faces the correct direction for optimal airflow (usually facing downwards if there's a bottom vent, or inwards if top-mounted).
- Fastgør strømforsyningen til kabinettet med de medfølgende monteringsskruer.
Billede: Top-down view of the Rosewill VMG 1000W power supply, showcasing its fan grille and modular cable connection ports.
Kabelforbindelser
The Rosewill VMG 1000W is a full modular power supply, allowing you to connect only the cables necessary for your system, which helps improve airflow and cable management.
Billede: Detaljeret view of the modular cable connection panel on the Rosewill VMG 1000W power supply, showing labeled ports for MB, CPU/PCI-E, PERIF/SATA, and the orange 12V-2x6 connector.
Image: A diagram illustrating the various modular connectors included with the Rosewill VMG1000 power supply, such as 24-pin Motherboard, 4+4 pin CPU, 6+2 pin PCI-E, 12+4 pin PCI-E 5, SATA, and 4-pin Molex.
- 24-Pin Motherboard Cable: Connect the large 24-pin cable to the corresponding port on your motherboard.
- CPU Power Cable (4+4 Pin): Connect the 4+4 pin CPU cable to the CPU power connector(s) on your motherboard. Modern motherboards may require one or two such connectors.
- PCIe Power Cables (6+2 Pin): For graphics cards requiring 6-pin or 8-pin PCIe power, use the 6+2 pin PCIe cables. Connect the appropriate end to the PSU and the other to your graphics card.
- 12V-2x6 PCIe 5.1 Cable: This dedicated cable provides up to 600W of power for compatible PCIe 5.1 graphics cards. Connect the orange 12V-2x6 connector from the PSU to your graphics card's 12V-2x6 port. Ensure a firm connection.
Image: A close-up showing the vibrant orange 12V-2x6 connector on the Rosewill VMG 1000W power supply, designed for instant identification and secure engagement with compatible graphics cards.
- SATA-strømkabler: Tilslut SATA-strømkabler til dine SSD'er, harddiske og optiske drev.
- Perifere (Molex) kabler: Use Molex cables for any other peripherals that require this type of power connector.
- Once all necessary components are connected, organize your cables for optimal airflow and aesthetics.
- Luk computerens kabinet.
- Tilslut netledningen til strømforsyningen og derefter til en jordet stikkontakt.
Betjeningsvejledning
Powering On Your System
- Ensure all cables are securely connected and the power supply's main switch (located on the rear of the PSU) is in the 'ON' (I) position.
- Tryk på tænd/sluk-knappen på computerens kabinet.
- The power supply fan will activate, and your system should begin its boot sequence.
Powering Off Your System
- Always shut down your operating system properly before turning off the main power switch on the PSU or disconnecting the AC power cord.
- For complete power removal, switch the PSU's main switch to the 'OFF' (O) position and disconnect the AC power cord from the wall outlet.
Opretholdelse
Regelmæssig vedligeholdelse er med til at sikre strømforsyningens levetid og optimale ydeevne.
Rensning
- Periodically inspect the power supply's fan and ventilation grilles for dust accumulation.
- With the system powered off and unplugged, use compressed air to gently clear dust from the fan blades and vents. Hold the fan blades to prevent them from spinning rapidly during cleaning, which can damage the bearings.
- Do not use liquid cleaners or solvents on the power supply.
Billede: Top view of the Rosewill VMG 1000W power supply, showing the 120mm FDB fan through its protective grille, which is crucial for cooling.
Fejlfinding
If you encounter issues with your Rosewill VMG 1000W power supply, refer to the following common problems and solutions:
Ingen strøm
- Tjek strømforbindelser: Ensure the AC power cord is securely plugged into both the power supply and a working wall outlet. Verify the 24-pin motherboard and 4+4 pin CPU cables are firmly seated.
- PSU-switch: Confirm the power supply's main switch on the rear is in the 'ON' (I) position.
- Stikkontakt: Test the wall outlet with another device to ensure it is supplying power.
- Interne forbindelser: Double-check all modular cables are correctly connected to both the PSU and the components.
System Instability or Random Shutdowns
- Overbelastningsbeskyttelse: The power supply features multiple protection circuits (OCP, OPP, OTP, OVP, SCP, UCP) to prevent damage. If your system is drawing too much power, the PSU may shut down. Ensure your system's power requirements do not exceed the PSU's capacity.
- Component Issues: Instability can also be caused by other faulty components (e.g., RAM, CPU, GPU). Test components individually if possible.
- Ventilation: Ensure adequate airflow within your PC case to prevent overheating of components, including the PSU.
Image: Diagram illustrating the advanced protection suite of the Rosewill VMG1000 power supply, detailing OCP (Over Current Protection), OPP (Over Power Protection), OTP (Over Temperature Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), and UCP (Under Current Protection).
Overdreven blæserstøj
- Støvophobning: Clean the fan and vents as described in the Maintenance section.
- Indlæs: Fan speed increases with load and temperature. Ensure your system is not under excessive load or experiencing high ambient temperatures.
If problems persist after attempting these solutions, please contact Rosewill customer support.
Specifikationer

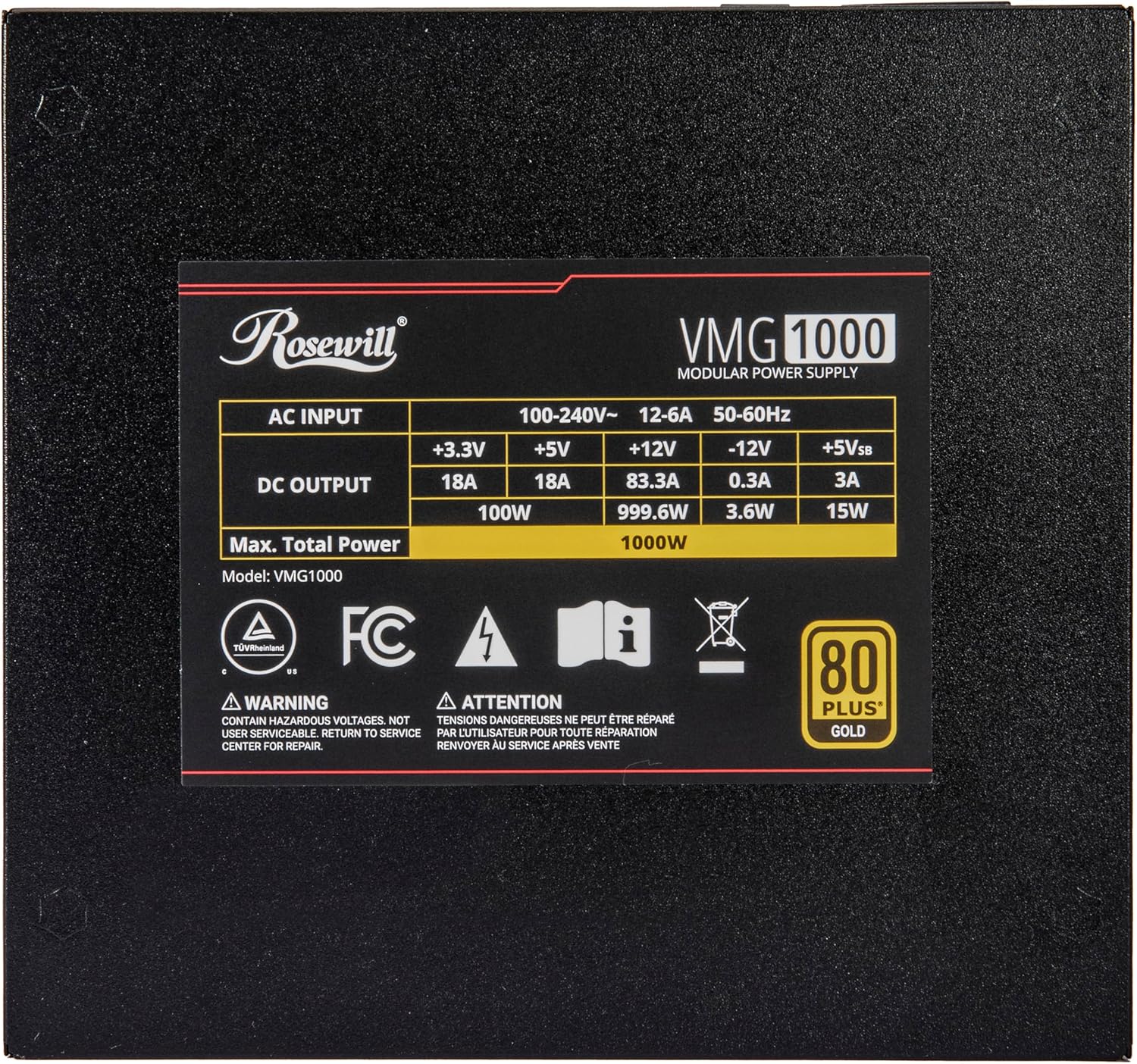

Image: The rating label on the Rosewill VMG 1000W power supply, detailing AC input, DC output for +3.3V, +5V, +12V, -12V, +5Vsb, and maximum total power of 1000W.
| Feature | Detalje |
|---|---|
| Modelnavn | VMG1000 |
| Output Wattage | 1000 watt |
| 80 PLUS certificering | Guld |
| Formfaktor | ATX |
| ATX-standard | ATX 3.0 & 3.1 Compatible |
| PCIe standard | PCIe 5.1 (with 12V-2x6 Connector) |
| Modularitet | Fuldt modulært |
| Fan type | 120mm FDB (Fluid Dynamic Bearing) Silent Fan |
| Kondensatorer | 100% japanske elektrolytiske kondensatorer |
| Beskyttelsesfunktioner | OCP, OPP, OTP, OVP, SCP, UCP |
| Produktmål (L x B x H) | 5.51 x 5.9 x 3.38 tommer (140 x 150 x 86 mm) |
| Varens vægt | 5.5 pund |
| Kompatible enheder | Personlig computer |
Garantioplysninger
The Rosewill VMG 1000W Power Supply comes with a 5 års garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from accident, misuse, abuse, neglect, improper installation, unauthorized repair or modification, or external causes such as power surges or lightning strikes.
To claim warranty service, please retain your proof of purchase. For detailed warranty terms and conditions, or to initiate a warranty claim, please contact Rosewill customer support.
Kundesupport
For technical assistance, troubleshooting, or warranty inquiries regarding your Rosewill VMG 1000W Power Supply, please visit the official Rosewill website or contact their customer support team. Contact information can typically be found on the Rosewill webwebstedet eller på produktemballagen.
Rosewill Official Webwebsted: www.rosewill.com
