EVIL ENERGY 1 Gallon Air Compressor Tank Kit Instruction Manual

1. Produktet er slutview

The EVIL ENERGY 1 Gallon Air Compressor Tank Kit is a robust and versatile solution designed for various pneumatic applications. Built from reinforced steel with anti-corrosion coating and precision welding, this kit ensures lasting durability and safe operation. It features five 1/4" NPT ports for flexible setup and expansion, and is rated for up to 150 PSI.

EVIL ENERGY 1 Gallon Air Compressor Tank Kit with all components — Figure 1: Complete EVIL ENERGY 1 Gallon Air Compressor Tank Kit including tank, compressor, and accessories.

Nøglefunktioner:

Reinforced Steel Construction: Built from military-grade steel with anti-corrosion coating and precision welding for lasting durability and high-pressure resistance.
Universal 1/4" NPT Ports: Features five 1/4" NPT ports for flexible setup and expansion with various pneumatic tools and systems.
150 PSI Rated: Designed to prevent accidental overpressure, ensuring safe air storage.
Kompakt design: Measuring 11.22" × 7.09" × 5.51" and weighing 1.99kg, it is ideal for tight spaces.
Integreret luftkompressor: Provides instant air boost for maximum power.

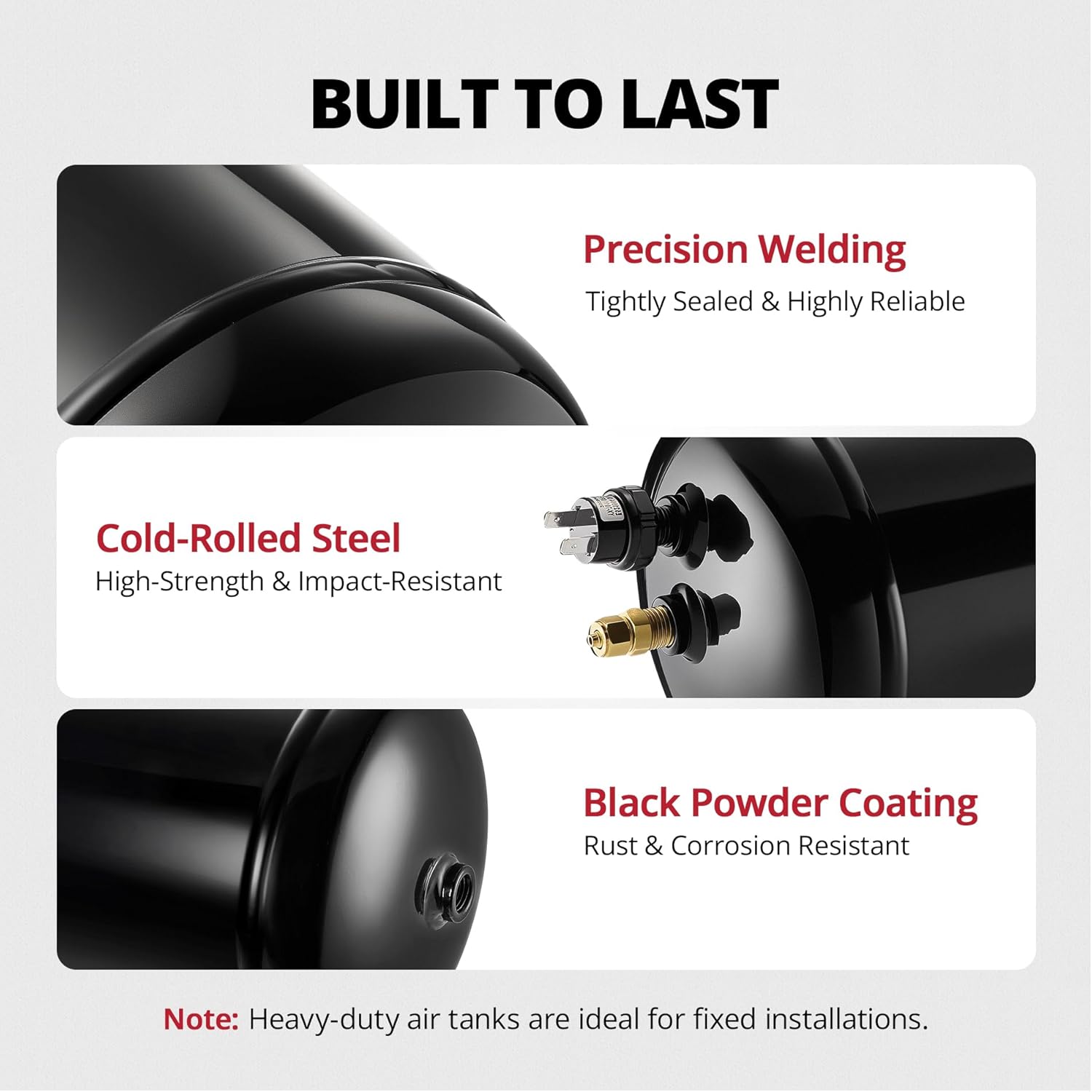

Close-up of air tank construction details — Figure 2: Details of the tank's construction, highlighting precision welding, cold-rolled steel, and black powder coating for durability.

2. Sikkerhedsoplysninger

Always prioritize safety when installing and operating the air compressor tank kit. Failure to follow safety guidelines can result in injury or damage to equipment.

Ensure professional installation for reliable performance and to prevent tubing leaks.
Always wear appropriate personal protective equipment (PPE), such as safety glasses, during installation and operation.
Overskrid ikke det maksimale driftstryk på 150 PSI.
Hold hænder og tøj væk fra bevægelige dele under drift.
Ensure the unit is disconnected from power before performing any maintenance or adjustments.
Operate in a well-ventilated area to prevent heat buildup.

3. Opsætning og installation

This kit includes all essential accessories for a quick setup. Please confirm the size and mounting location before purchase to ensure proper fit and function.

Inkluderede komponenter:

1 gallon lufttank
Kompressor
Afløbsventil
Luftslange
Trådforseglingstape
Monteringshardware

Diagram of complete installation kit components — Figure 3: Visual representation of all components included in the EVIL ENERGY 1 Gallon Air Compressor Tank Kit.

Installationstrin:

Vælg monteringssted: Select a secure and stable location for the air tank and compressor, ensuring it is protected from extreme temperatures and moisture.
Monter tanken: Use the provided mounting hardware to securely fasten the air tank.
Installer afløbsventil: Attach the drain valve to the bottom port of the tank. This is crucial for regular moisture drainage.
Connect Compressor: Connect the integrated air compressor to the tank using the provided air hose. Ensure all connections are tight and sealed with thread seal tape to prevent leaks.
Elektrisk tilslutning: Connect the 12V power source to the compressor. Refer to your vehicle's electrical system diagram or consult a professional for proper wiring.
Tilslut tilbehør: Utilize the 1/4" NPT ports to connect your desired pneumatic tools, air horns, or suspension systems.

Video 1: En overview of the EVIL ENERGY Air Compressor Tank Kit, demonstrating its components and basic assembly. This video highlights the heavy-duty cold-rolled steel, black powder-coated surface, precision welding, bottom drain valve, 1/4" NPT ports, integrated air compressor, high-pressure nylon air hose, and intelligent pressure control. It also shows applications like air horns and tire inflation, emphasizing its universal air backup solution capabilities.

4. Betjeningsvejledning

The air compressor tank kit is designed for efficient and reliable air delivery for various applications.

Trykkontrol:

The system features intelligent pressure control. The actual working pressure may vary with connected devices. Please adjust pressure and check compatibility before use.

Diagram showing 90-120 PSI pressure control — Figure 4: Illustration of the 90-120 PSI pressure control mechanism, indicating that actual working pressure may vary.

Ansøgninger:

This air tank compressor is ideal for a wide range of uses, including:

Air Horns (louder and clearer sound)
Suspension Systems (faster response, smoother ride)
Tire Inflation (quick fills for cars, trucks, tools)
DIY Pneumatic Tools (custom air-powered builds)

Examples of wide applications for the air compressor kit — Figur 5: Eksamples of the wide applications for the air compressor kit, including vehicle horns, air suspension, pneumatic tools, and tire inflation.

5. Vedligeholdelse

Regular maintenance is crucial to ensure the longevity and safe operation of your EVIL ENERGY Air Compressor Tank Kit.

Drain Weekly: To keep your air tank in top condition and prevent moisture buildup, drain it weekly using the bottom drain valve. Moisture can lead to corrosion and reduce the lifespan of the tank.
Tjek forbindelser: Periodically inspect all air hose and NPT port connections for tightness and signs of wear or leaks. Re-apply thread seal tape if necessary.
Rengør enhed: Keep the exterior of the tank and compressor clean and free from dirt and debris.

6. Fejlfinding

If you encounter issues with your air compressor tank kit, refer to the following common troubleshooting steps:

Problem	Mulig årsag	Løsning
Kompressoren tænder ikke	Ingen strøm, løse ledninger, defekt kontakt	Check 12V power supply, inspect all electrical connections, test pressure switch.
Air leaks from tank or connections	Loose fittings, damaged hose, worn seals	Tighten all NPT connections, inspect air hose for damage, replace worn seals or O-rings. Use thread seal tape.
Lavt lufttryksoutput	Air leaks, clogged filter, compressor issue	Check for leaks, clean or replace air filter, contact customer support if compressor is faulty.
Overdreven støj under drift	Loose mounting, internal component issue	Ensure unit is securely mounted. If noise persists, contact customer support.

7. Specifikationer

Detailed technical specifications for the EVIL ENERGY 1 Gallon Air Compressor Tank Kit.

Specifikation	Værdi
Mærke	OND ENERGI
Modelnavn	Air Compressor Tank 1 Gallon
Varenummer	EV25-00075BK-012-L
Kapacitet	1 gallon
Tankvolumen	1 gallons
Maksimalt driftstryk	150 pund pr. kvadrattomme
Voltage	12 volt
Strømkilde	12V
Produktmål (L x B x H)	11.22 cm x 7.09 cm x 5.51 cm
Varens vægt	6.84 pund
Farve	Sort
Inkluderede komponenter	1 gallon air tank, compressor, drain valve, air hose, thread seal tape, mounting hardware
Særlige funktioner	Durable, Easy installation, High pressure resistance, Precision welding, Prevents leaks

Dimensions of the 1 Gallon Air Tank — Figure 6: Detailed dimensions of the 1 Gallon Air Tank, indicating its compact size for tight installations.

Kompressor specifikationer — Figure 7: Specifications for the integrated compressor, including working voltage, max working pressure, max current draw, and duty cycle.

8. Garanti og support

EVIL ENERGY is committed to providing high-quality products and excellent customer service.

While specific warranty terms are not detailed in this manual, EVIL ENERGY offers reliable customer support for any installation or usage questions you may have. Please do not hesitate to reach out if you require assistance.

For support, please visit the official EVIL ENERGY store or contact their customer service department through the platform where you purchased the product.

We recommend keeping your purchase receipt for any potential support inquiries.
