Brugermanual til AUTO-VOX trådløst bakkamerasæt

1.Overview

The AUTO-VOX Wireless Backup Camera Kit provides a reliable and convenient solution for enhanced visibility when operating RVs, trucks, and trailers. This system features a 5-inch HD monitor, a magnetic-mount camera with solar charging capabilities, and supports dual-channel display for comprehensive rear and front views. Designed for quick installation and robust performance, it includes essential components for immediate use.

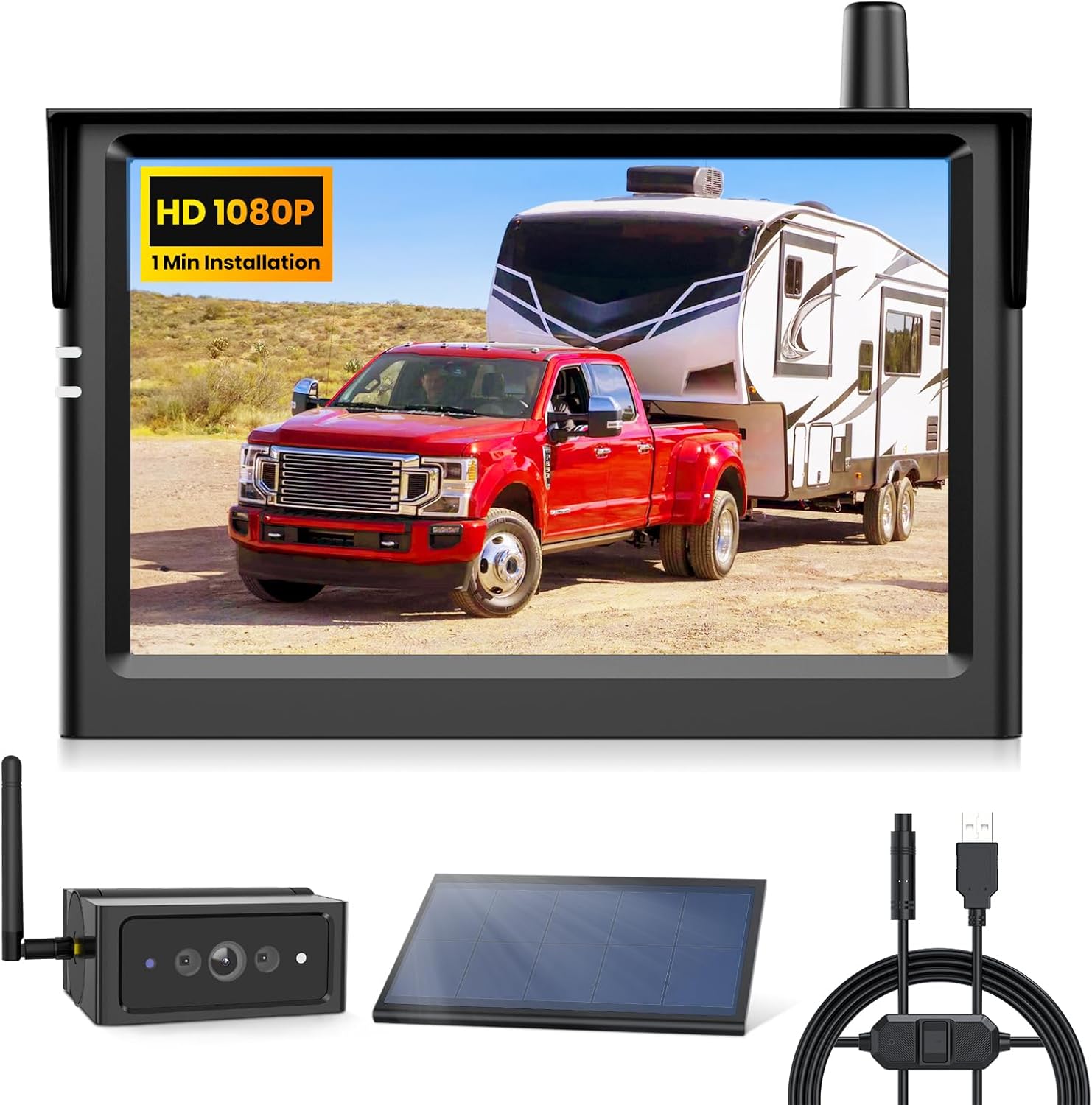

Figure 1: AUTO-VOX Wireless Backup Camera Kit components including the 5-inch HD monitor, magnetic camera, solar panel, and various power cables.

2. Pakkens indhold

• 5" HD Monitor
• Trådløst backup-kamera
• Power Cable (for monitor)
• Solar Panel/USB Charging Cable (for camera)
• Opbevaringspose

3. Produktfunktioner

• 1-Minute Magnetic Installation: The camera features a rubber-coated magnetic base for quick, tool-free attachment to metal surfaces, protecting vehicle paint. An optional iron sheet base is included for non-metallic surfaces.
• Strong & Reliable Wireless Signal: Equipped with an upgraded 2.4GHz chip, providing a stable signal up to 50ft, suitable for RVs, campers, and heavy-duty vehicles.
• Forlænget batterilevetid: The camera offers over 15 hours of runtime per charge, with a smart sleep mode and auto-wake function for instant use.
• 1080P Night Vision & Wide-Angle View: Dual IR LEDs and a wide-angle lens ensure clear night vision. The system supports dual-channel display for front and rear views, enhancing safety and blind spot coverage.
• Fleksible strømmuligheder: Includes a solar panel for continuous charging and a USB 5V to 12V cable, eliminating the need for a cigarette lighter port.

4. Opsætning og installation

4.1 Kamerainstallation

The wireless backup camera is designed for quick and easy installation. It features a strong magnetic base with a rubber coating to prevent scratches on your vehicle's paint. For non-metallic surfaces, an iron sheet base is provided for secure mounting.

1. Oplad kameraet: Before first use, ensure the camera's internal battery is fully charged using the provided USB cable or by exposing the solar panel to direct sunlight.
2. Fastgør kameraet: Securely attach the camera to a suitable metallic surface at the rear of your vehicle (e.g., trailer hitch, bumper). If mounting on a non-metallic surface, first attach the included iron sheet base using screws, then attach the camera magnetically to the base.
3. Juster kameravinkel: The camera unit allows for manual tilting to achieve the desired viewvinkel.

Figure 2: Easy three-step installation process for the camera's magnetic base.

Figure 3: The magnetic camera attached to a trailer hitch, with the monitor displaying the view inside the vehicle.

4.2 Skærmplacering

The 5-inch HD monitor can be placed on your vehicle's dashboard or windshield using the provided suction cup mount. Ensure the monitor is positioned where it does not obstruct your view af vejen.

1. Fastgør montering: Secure the suction cup mount to a clean, smooth surface (dashboard or windshield).
2. Tilslut skærm: Attach the monitor to the mount.
3. Tænd: Plug the monitor's power cable into a 12V power outlet in your vehicle. The power adapter includes an additional USB port for charging other devices.

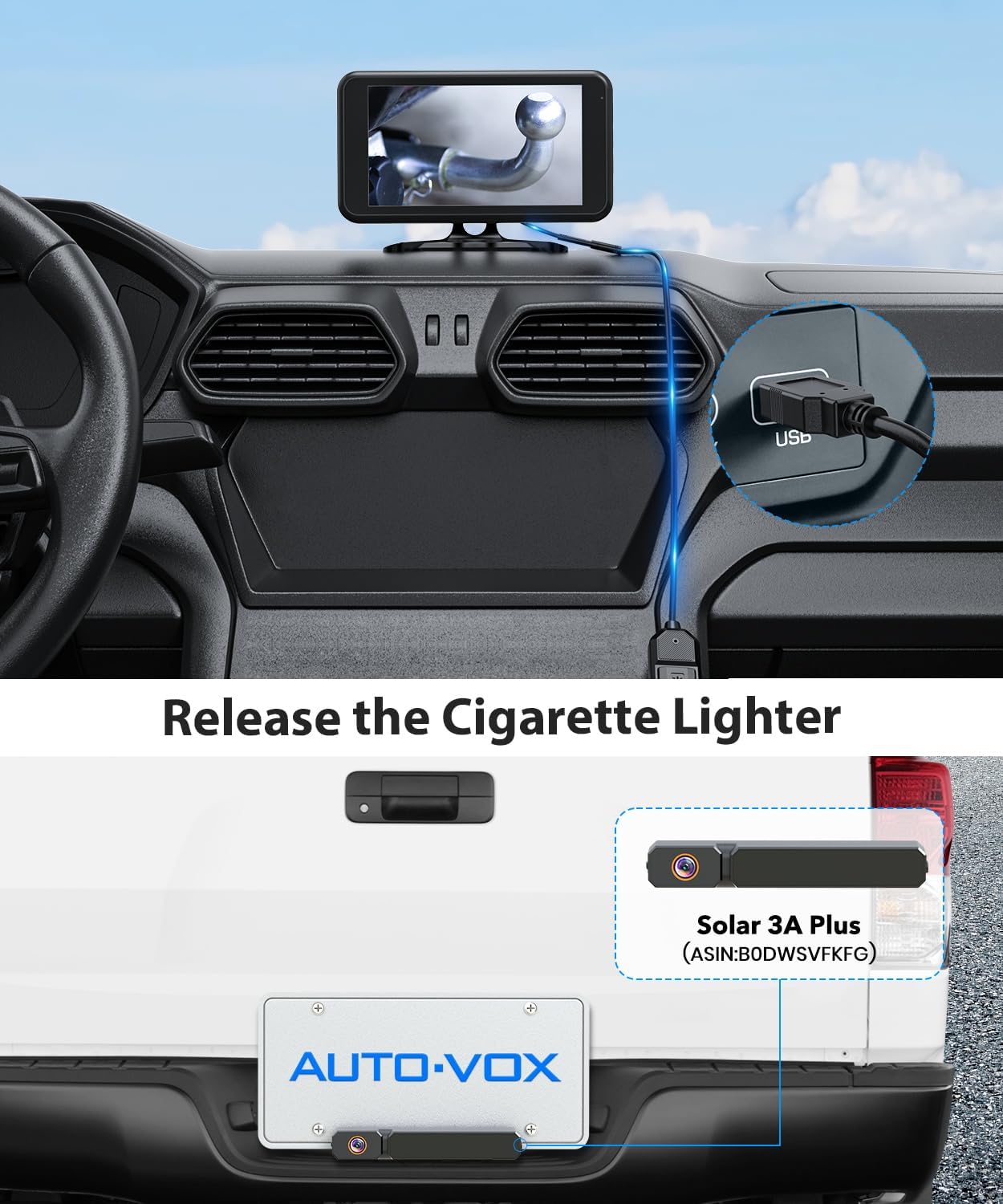

Figure 4: The USB 5V to 12V cable connected to a vehicle's USB port, providing power to the monitor and camera, freeing up the cigarette lighter.

5. Betjeningsvejledning

5.1 Grundlæggende betjening

Once the monitor is powered on and the camera is charged and activated, the video feed should automatically display. The system is designed for instant use with its auto-wake feature.

• Power knap: Use the power button on the monitor to turn the display on/off.
• Menu navigation: The monitor features buttons for navigating settings such as brightness, contrast, and display options.
• Dual-Channel Display: If an additional camera is paired, the monitor can display both feeds simultaneously or switch between them.

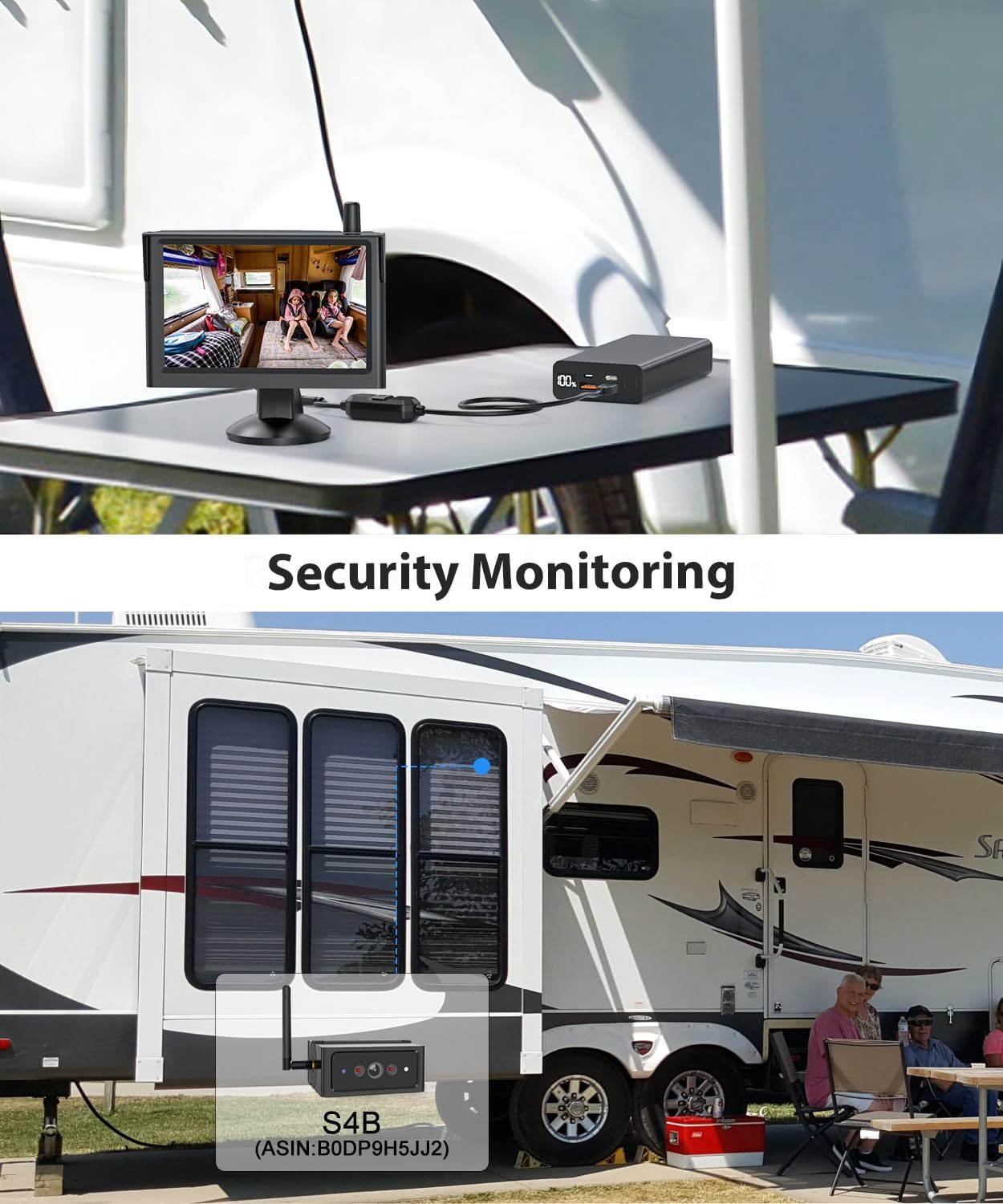

Figure 5: The monitor displaying security footage from a camera mounted on an RV, showing the interior for monitoring.

Figure 6: The monitor displaying a rear view from an RV, highlighting the system's capability to observe surroundings from anywhere.

6. Vedligeholdelse

To ensure optimal performance and longevity of your AUTO-VOX Wireless Backup Camera Kit, follow these maintenance guidelines:

• Solopladning: Position the camera's solar panel to receive maximum sunlight exposure for continuous charging.
• USB-opladning: If solar charging is insufficient (e.g., during prolonged periods of low light), use the provided USB cable to charge the camera's internal battery.
• Rensning: Rengør kameralinsen og solpanelet regelmæssigt med en blød klud.amp cloth to ensure clear vision and efficient charging.
• Vandtæt vurdering: The camera has an IP69K waterproof rating, making it resistant to high-pressure water jets and dust. However, avoid prolonged submersion.

Figure 7: The wireless camera highlighting its long battery life, smart sleep mode, and auto-wake features for energy efficiency.

Figure 8: The solar panel connected to the camera, illustrating continuous charging for nonstop power.

7. Fejlfinding

• Intet signal: Ensure both the camera and monitor are powered on and within range (up to 50ft). Check for any obstructions that might interfere with the 2.4GHz wireless signal.
• Dårlig billedkvalitet: Clean the camera lens. Ensure the camera is fully charged. Adjust brightness and contrast settings on the monitor.
• Batteriet aflades hurtigt: Verify the solar panel is receiving adequate sunlight. If not, charge the camera via USB. Ensure smart sleep mode is active.
• Skærmen tænder ikke: Check the 12V power connection. Ensure the vehicle's power outlet is functional.

8. Specifikationer

9. Garanti og support

For garantioplysninger og teknisk support henvises til den officielle AUTO-VOX website or contact customer service directly. Warranty details may also be available on the product packaging or included documentation.
