Blackstone 2386 22" Omnivore Flexfold stegepande brugsanvisning

1. Introduktion

This manual provides essential information for the safe and efficient use of your Blackstone 2386 22" Omnivore Flexfold Griddle. This griddle is designed for versatile outdoor cooking, featuring a spacious cooking surface and portable design. Please read all instructions carefully before assembly and operation.

Image: The Blackstone 2386 22" Omnivore Flexfold Griddle in Alpine Green, showcasing its compact design and griddle top.

2. Sikkerhedsoplysninger

Følg altid disse sikkerhedsretningslinjer for at forhindre skader eller skader:

• Brug kun stegepladen udendørs i et godt ventileret område.
• Keep the griddle away from combustible materials.
• Ensure all gas connections are tight and leak-free before operation.
• Do not store propane cylinders indoors.
• Keep children and pets away from the hot griddle.
• Brug altid beskyttelseshandsker, når du håndterer varme overflader.
• Efterlad aldrig stegepladen uden opsyn, mens den er i brug.
• Refer to the included user manual for detailed safety warnings.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før monteringen påbegyndes:

• Blackstone 22" Omnivore Flexfold Griddle Unit
• Grillplade
• Flexfold Legs with Wheels
• Beskyttende hætte
• Sidehylde
• Rear Grease Management System Components
• Brugermanual

4. Opsætning

Assembly is required for this griddle. Follow these general steps:

1. Pak alle komponenter ud, og sørg for, at ingen dele mangler eller er beskadigede.
2. Attach the Flexfold legs to the main griddle unit. The 'Roll & Go' design allows for easy setup and takedown.
3. Secure the griddle top onto the main unit.
4. Install the side shelf and the rear grease management system.
5. Connect the propane tank (not included) to the griddle's gas inlet. Ensure a secure connection to prevent leaks.

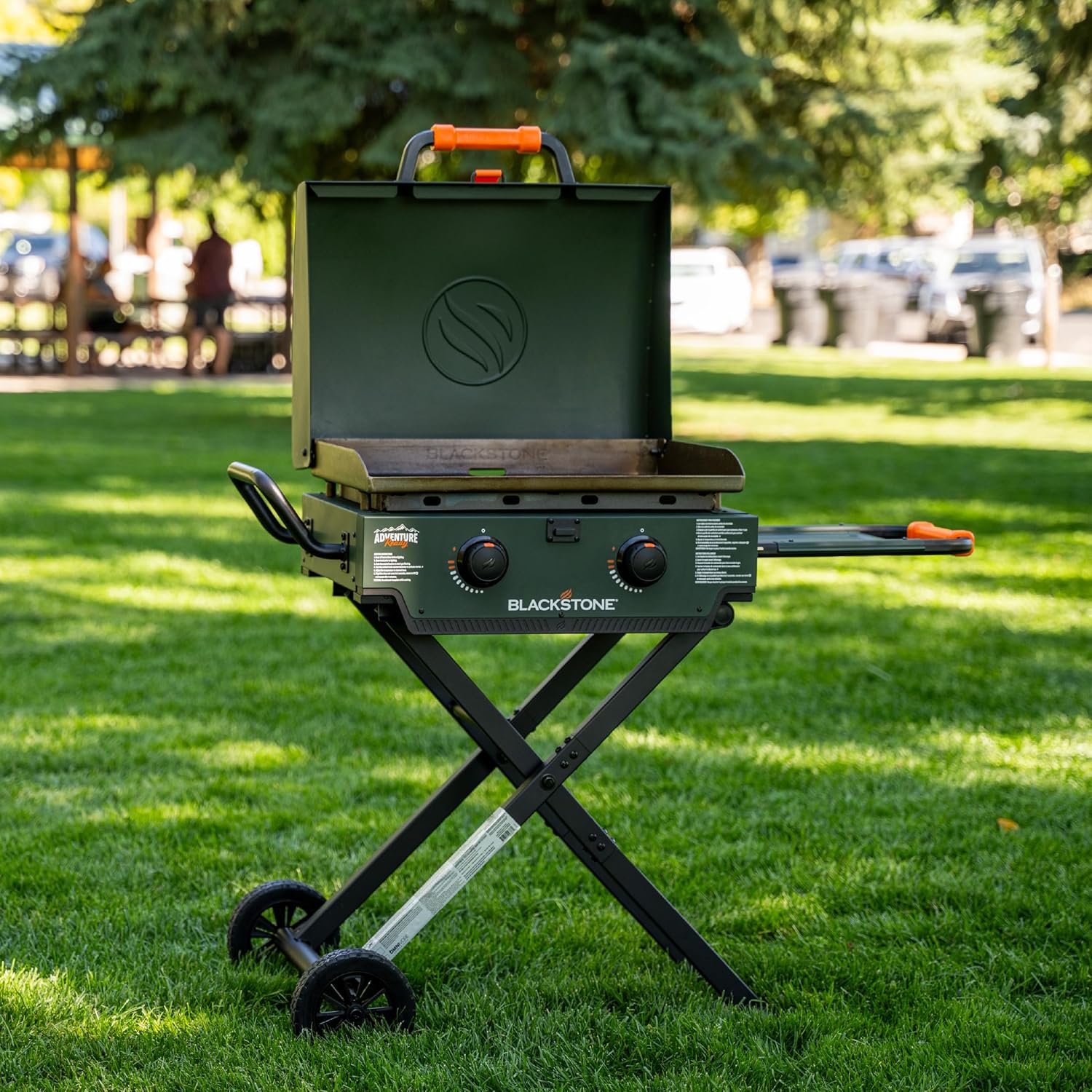

Image: The Blackstone 22" Omnivore Flexfold Griddle fully assembled and ready for use in an outdoor setting.

Image: A detailed diagram highlighting key features such as the 22" Omnivore Griddle Plate, Rear Grease Management, Protective Hood, Secure Latch for Travel, Flexfold Legs, Side Shelf, Non-Slip Handles, and Piezo Ignition.

5. Seasoning the Griddle

Before first use, and periodically thereafter, it is crucial to season the griddle top. This process creates a natural non-stick surface and protects against rust.

1. Clean the griddle surface thoroughly with hot, soapy water and rinse completely. Dry immediately.
2. Apply a thin, even layer of high-heat cooking oil (such as flaxseed, grapeseed, or a dedicated griddle seasoning product) to the entire griddle surface.
3. Heat the griddle on high until the oil smokes and burns off, turning the surface dark.
4. Repeat steps 2 and 3 several times until a dark, even, non-stick layer is formed.

6. Betjeningsvejledning

Your Blackstone griddle features two independently controlled burners, allowing for multiple heat zones and versatile cooking.

1. Sørg for, at propantanken er tilsluttet, og at gasforsyningen er åben.
2. Turn the control knob for the desired burner to the 'HIGH' position and push the igniter button.
3. Once lit, adjust the heat to your desired cooking temperature.
4. The Omnivore Griddle Plate is designed for even heat distribution and efficient fuel use.
5. Use the spacious 361 square inch cooking surface to prepare various meals simultaneously.

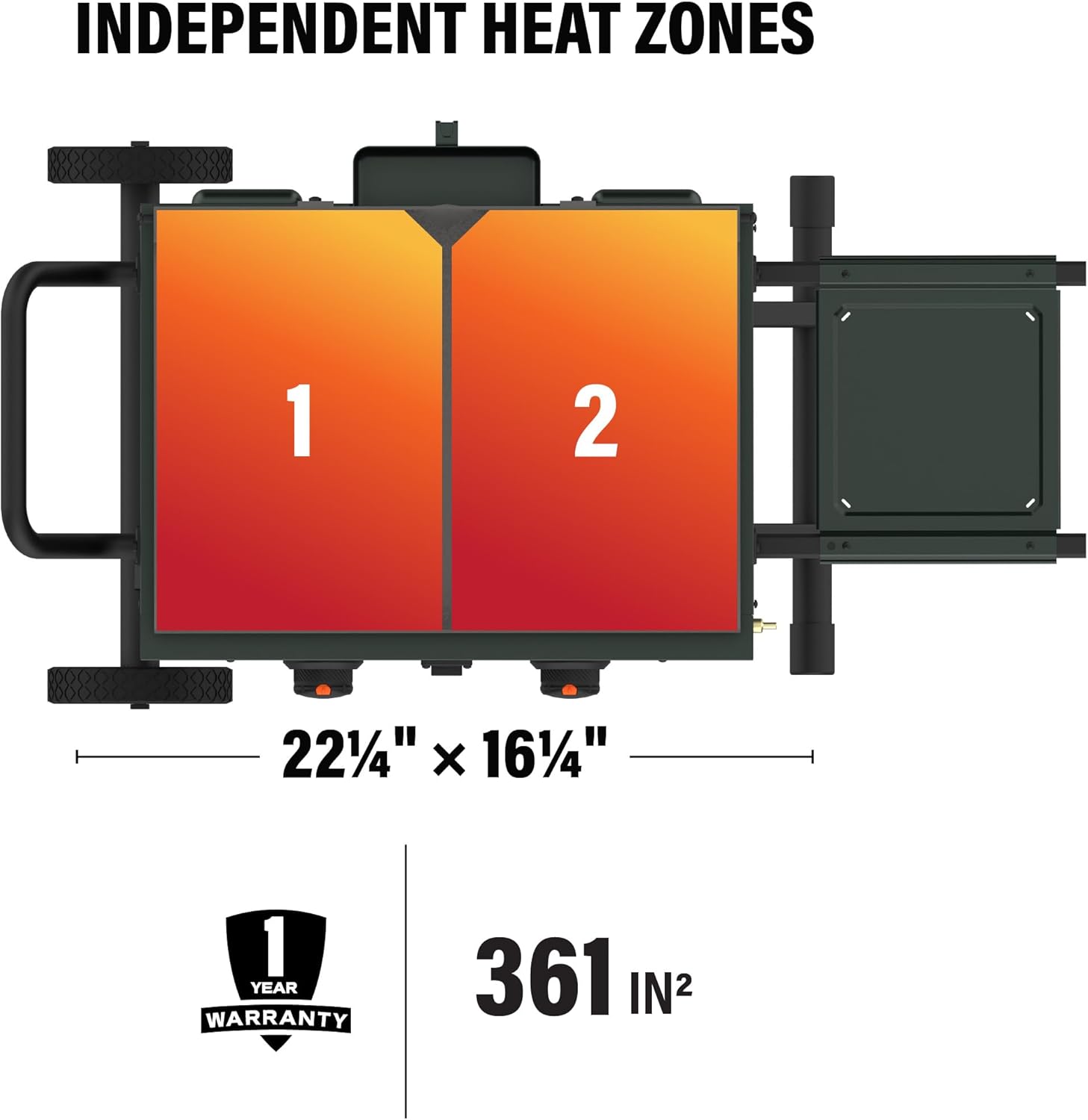

Image: An illustration demonstrating the two independent heat zones of the griddle, highlighting the 22¼" x 16¼" cooking area and 361 square inches of total cooking space.

Image: A visual guide to the griddle's capacity, showing it can accommodate 33 bacon slices, 23 fried eggs, 10 pancakes, 60 hot dogs, 14 burgers, or 12 NY strips.

7. Rengøring og vedligeholdelse

Proper cleaning and maintenance extend the life of your griddle and ensure optimal cooking performance.

• After each use, scrape food residue from the griddle surface.
• Utilize the Blackstone-patented Rear Grease Management System for easy disposal of cooking grease.
• Wipe the griddle surface clean with a paper towel while it is still warm.
• Reapply a thin layer of cooking oil to maintain seasoning and prevent rust.
• Rengør de udvendige overflader med adamp klud og mildt rengøringsmiddel.
• The built-in hood protects the griddle top from scratching and keeps it clean between uses.

8. Opbevaring

The Flexfold legs and 'Roll & Go' design make storing and transporting your griddle convenient.

• Allow the griddle to cool completely before folding and storing.
• Fold the Flexfold legs for compact storage.
• Use the 'Roll & Go' feature to easily move the griddle to its storage location.
• Ensure the secure latch for travel is engaged to keep the griddle stable during transport.
• Store the griddle in a dry, protected area.

Image: A person demonstrating the 'Roll & Go' feature, easily transporting the folded griddle across a grassy area.

9. Fejlfinding

If you encounter issues with your griddle, refer to these common troubleshooting tips:

• Brænderen tændes ikke: Check propane tank level, ensure gas valve is fully open, and verify igniter is sparking. Clean burner ports if clogged.
• Ujævn varme: Ensure the griddle is level. Clean burner tubes and griddle surface.
• Lugt af gaslækage: Immediately turn off the gas supply. Check all connections for tightness. Do not operate if a leak is suspected.
• Overdreven røg: This may indicate too much oil or grease on the griddle. Reduce oil application and clean the surface.

Ved vedvarende problemer, kontakt kundesupport.

10. Specifikationer

Image: The Blackstone 22" Omnivore Flexfold Griddle with key dimensions (44½ inches width, 38½ inches height, 23¾ inches depth) indicated.

11. Garanti og support

North Atlantic Imports, the manufacturer of Blackstone products, offers a 1-year warranty on most outdoor cooking equipment that is not consumable. For more details, please visit the official Blackstone website kl blackstoneproducts.com/pages/warranty.

For customer support, product inquiries, or assistance with troubleshooting, please refer to the contact information provided in your product packaging or on the official Blackstone webwebsted.
