Indledning
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your DIERYA DK68E 60% Mechanical Gaming Keyboard. Please read this manual thoroughly to ensure proper use and to maximize your keyboard's performance and longevity.
Hvad er der i æsken
- DIERYA DK68E Mekanisk tastatur
- USB-C til USB-A-kabel
- Keycap aftrækker
- Brugervejledning (dette dokument)
Image: The DIERYA DK68E keyboard with its detachable USB-C cable.
Opsætning
- Pak tastaturet ud: Tag forsigtigt tastaturet og alt tilbehør ud af emballagen.
- Tilslut USB-kablet: Insert the USB-C end of the provided cable into the port on the keyboard. Connect the USB-A end to an available USB port on your computer.
- Førstegangsanerkendelse: Din computer burde automatisk registrere og installere de nødvendige drivere til tastaturet. Denne proces kan tage et par øjeblikke.
- Placering: Position the keyboard comfortably on your desk. The keyboard features two-stage adjustable feet for ergonomic typing angles.
Image: Illustration of the USB-C port on the keyboard and the USB-A connector for the computer.
Image: Detail of the keyboard's adjustable feet and anti-slip pads for customized tilt.
Betjeningsvejledning
Grundlæggende tastaturfunktioner
The DIERYA DK68E is a 60% layout keyboard, meaning some keys are accessed via function (Fn) layer combinations. Refer to the keycaps for secondary functions, typically indicated on the front or side of the key.
RGB-baggrundsbelysningskontrol
The keyboard features 16.8 million colors and 20 pre-set RGB lighting effects. These can be customized directly on the keyboard or through the web-baseret driver.
- Skift lyseffekt: Use the designated Fn key combination (e.g., Fn + \) to cycle through pre-set effects.
- Juster lysstyrke: Use Fn key combinations to increase or decrease backlight brightness.
- Sluk baggrundsbelysning: A specific Fn key combination will typically toggle the backlight on/off.
Dedicated Volume Knob
The multi-functional knob located on the top right of the keyboard provides convenient media control:
- Rotere: Justerer systemets lydstyrke.
- Trykke: Toggles play/pause for media.
- Tryk og hold: May mute/unmute audio (refer to specific keyboard documentation for exact function).
Image: The multi-function metal knob for volume and media control.
Web-based Driver (KeyFlow WebOS)
The DIERYA DK68E features a driver-free, web-based customization tool. This allows for advanced personalization without software installation, compatible with Windows, Mac, and Linux.
- Adgang: Åbn a web browser and navigate to the official DIERYA web driver portal (URL typically provided in a quick start guide or on the manufacturer's webwebsted).
- Funktioner: Inden for web interface, you can perform:
- Nøgleomlægning
- Complex macro recording
- Quick shortcuts assignment
- Per-key RGB personalization
Image: The KeyFlow WebOS interface for programming and RGB customization.
Nøglefunktioner overview
- Hot-swap-design: Supports both 3-pin and 5-pin mechanical switches, allowing for easy customization of typing feel and sound without soldering.
- Pakningsmonteringsstruktur: Provides a flexible typing feel and contributes to a satisfying acoustic profile.
- Pre-Lubed Linear Switches: Factory-lubricated for smooth and consistent keystrokes, rated for 50 million keystrokes.
- 5-Layer Sound-DampEning Skum: Reduces hollow sounds and minimizes noise for an enhanced typing experience.
- Dobbelt-Shot-taster: Constructed with double-shot injection molding to ensure legends never fade from wear.
- 1000Hz pollinghastighed: Ensures ultra-responsive gaming and typing with lightning-fast command execution.
Billede: Overview of the DIERYA DK68E's core features.

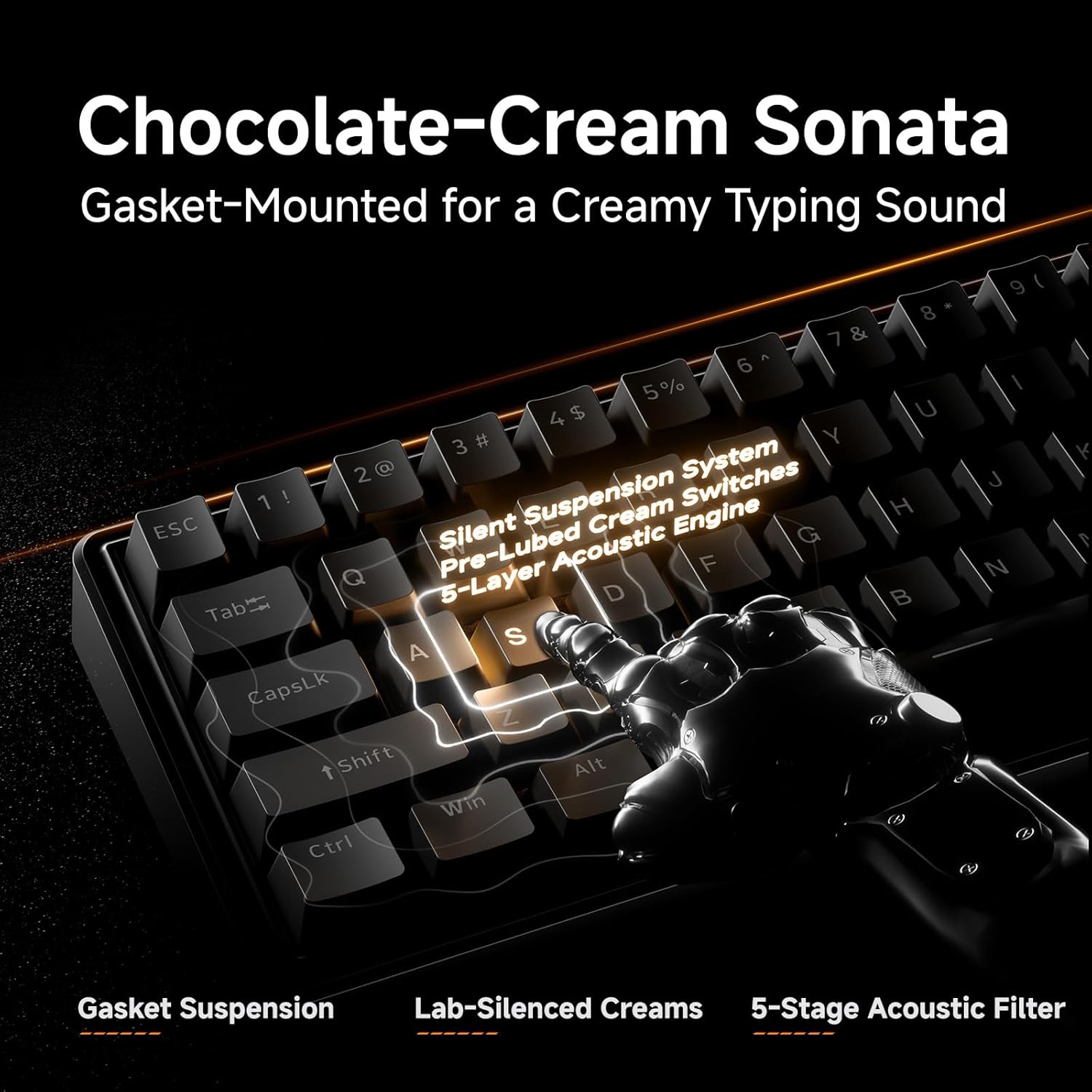

Billede: Detaljeret view of the gasket-mounted design and internal dampening lag.
Image: Demonstration of the hot-swappable switch system.

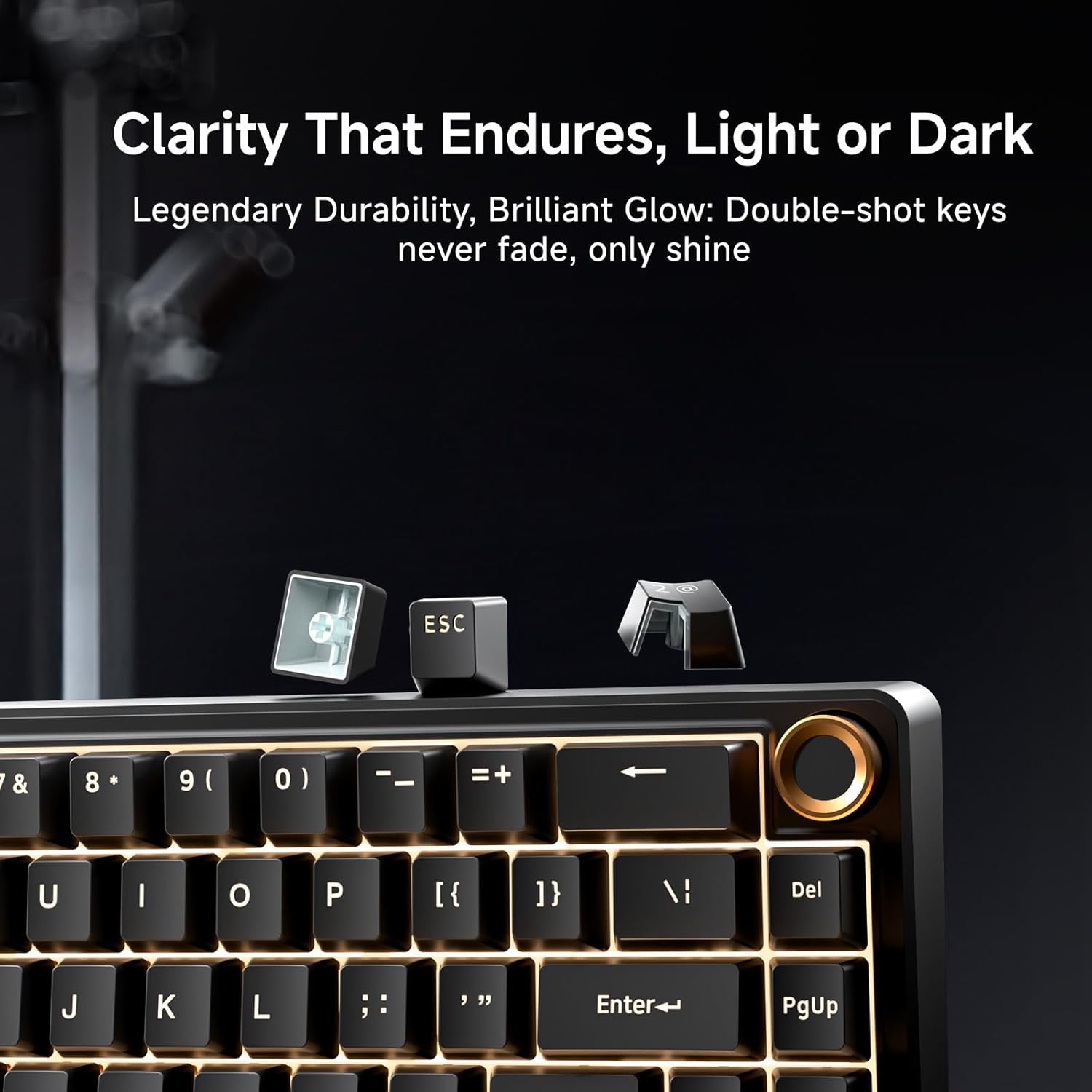

Image: Examination of the durable double-shot keycaps.

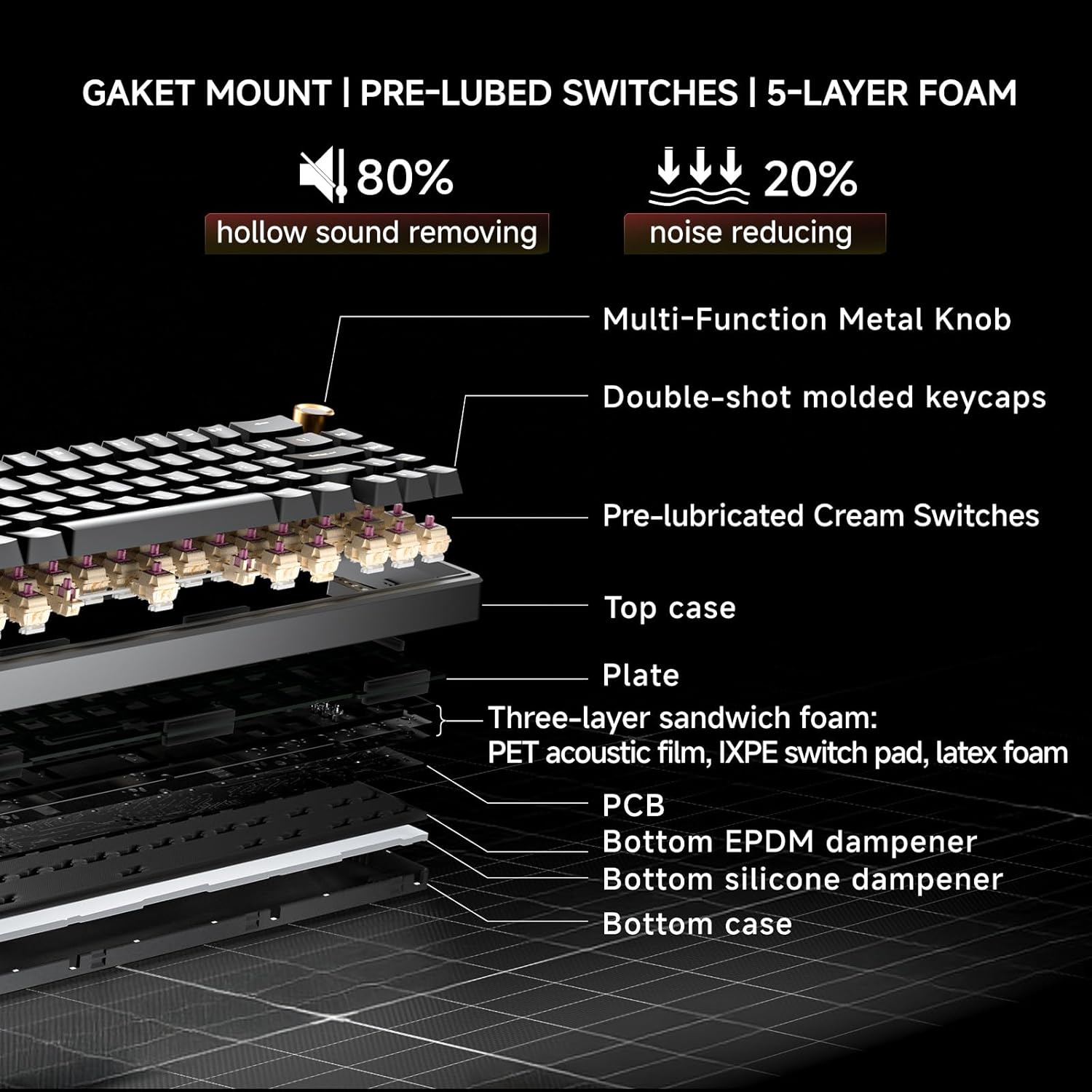

Image: Cross-section diagram detailing the gasket mount, pre-lubed switches, and 5-layer foam construction.
Opretholdelse
Rensning
- Generel rengøring: Use a soft, dry cloth to wipe the keyboard surface. For dust between keycaps, use compressed air.
- Dyb rengøring (taster): Use the provided keycap puller to carefully remove keycaps. Clean the keycaps with mild soap and water, then ensure they are completely dry before reattaching. Clean the exposed switch stems and plate with a brush or compressed air.
Udskiftning af kontakt (hot-swap)
The DK68E's hot-swappable sockets allow for easy switch replacement without soldering.
- Fjern tastehætte: Brug tastehætteaftrækkeren til forsigtigt at fjerne tastehætten fra den switch, du vil udskifte.
- Fjern kontakt: Use a switch puller (often integrated with the keycap puller) to grasp the top and bottom clips of the switch. Gently pull the switch straight up to remove it from the PCB.
- Indsæt ny kontakt: Align the pins of the new switch with the holes on the PCB. Ensure the pins are straight to avoid bending. Press the switch firmly until it clicks into place.
- Sæt nøglekappen på igen: Sæt tastaturet tilbage på den nye switch-stilk.
Forsigtighed: Ensure the keyboard is unplugged before performing any maintenance involving switch or keycap removal to prevent accidental inputs or damage.
Fejlfinding
- Tastaturet reagerer ikke:
- Sørg for, at USB-kablet er korrekt tilsluttet til både tastaturet og computeren.
- Prøv at tilslutte tastaturet til en anden USB-port på din computer.
- Test tastaturet på en anden computer, hvis det er muligt, for at udelukke et computerspecifikt problem.
- RGB-lys virker ikke/forkert:
- Check the Fn key combinations for RGB control (e.g., brightness, mode change).
- Få adgang til web-based driver to verify or reset RGB settings.
- Nøgler registreres ikke eller dobbelttastes:
- For hot-swappable switches, carefully remove the keycap and then the switch. Reinsert the switch firmly to ensure proper contact with the PCB.
- Rengør omkring den berørte kontakt for at fjerne eventuelt snavs.
- Computer Wakes Up from Sleep When Keyboard is Connected:
- This can sometimes occur due to USB power settings. In your computer's Device Manager (Windows) or System Information (Mac), locate the USB Root Hubs or keyboard entry. In the power management tab, uncheck "Allow this device to wake the computer."
- Alternatively, unplug the keyboard's USB-C cable when putting the computer to sleep.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | DK68E |
| Mærke | DIERYA |
| Tastaturbeskrivelse | Spil, Mekanisk |
| Layout | 60% (68 taster) |
| Forbindelsesteknologi | Kablet (USB-A, USB-C) |
| Afbrydere | Pre-Lubed Linear, Hot-Swappable (3-pin & 5-pin compatible) |
| Monteringsstil | Pakningsmontering |
| Dampslutning | 5-Layer Sound-Dampening Skum |
| tasterne | Double-Shot Molded |
| Baggrundsbelysning | RGB (16.8 million colors, 20 pre-set effects) |
| Programmerbarhed | Web-based Driver (KeyFlow WebOS) |
| Afstemningsfrekvens | 1000 Hz |
| Kompatible enheder | Laptop, PC |
| Materiale | Plast |
| Varens vægt | 1.65 pund |
| Pakkedimensioner | 14.8 x 4.72 x 1.93 tommer |
Garanti og support
Warranty information for your DIERYA DK68E keyboard is typically included with your purchase documentation. Please refer to those materials for specific terms and conditions.
For further assistance, technical support, or to access the latest drivers and firmware updates, please visit the official DIERYA webwebstedet eller kontakt deres kundesupport direkte. Du kan også besøge DIERYA Store on Amazon for produktinformation og supportressourcer.
