Indledning
This manual provides detailed instructions for the safe installation, operation, and maintenance of your BvenuBigLite 52-inch Outdoor Ceiling Fan with Light. Please read this manual thoroughly before installation and keep it for future reference. Proper installation and use will ensure optimal performance and longevity of your fan.
Sikkerhedsoplysninger
- Elektrisk sikkerhed: Always disconnect power at the circuit breaker before installation or servicing. Ensure all electrical connections comply with local codes and ordinances.
- Montering: The fan must be mounted to a structure capable of supporting the fan's weight (minimum 35 lbs). Use only the provided mounting hardware.
- Klingeafstand: Maintain a minimum clearance of 7 feet from the floor to the fan blades and 18 inches from the wall to the blade tips.
- Udendørs brug: This fan is IP44 rated for outdoor use in covered areas such as gazebos, patios, porches, and pergolas. Do not expose directly to heavy rain or standing water.
- Børn og kæledyr: Hold børn og kæledyr væk fra ventilatoren under drift.
- Professionel installation: Hvis du er usikker på nogen del af installationsprocessen, skal du kontakte en kvalificeret elektriker.
Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes.
Billede: Overview of the BvenuBigLite 52-inch outdoor ceiling fan, including the fan unit, remote control, and a smartphone displaying the control app.
- Ventilator motorhus
- Ventilatorblade (3)
- LED-lys sæt
- Downrod (various lengths may be included)
- Baldakin og monteringsbeslag
- Fjernbetjening med vægmontering
- Hardwarepakke (skruer, skiver, trådmøtrikker)
- Instruktionsmanual
Opsætning og installation
Follow these steps carefully for proper installation. It is recommended to have two people for certain steps.
Step 1: Assemble Fan Blades
Fastgør ventilatorbladene til motorhuset med de medfølgende skruer. Sørg for, at de er forsvarligt fastgjort.
Video: This video demonstrates the step-by-step installation process for the BvenuBigLite outdoor ceiling fan, including blade attachment and mounting.
Trin 2: Installer Downrod
Insert the downrod into the motor housing and secure it with the pin and screw. Ensure the wires are threaded through the downrod.
Trin 3: Monter beslaget
Secure the mounting bracket to a suitable ceiling joist or outlet box. Use appropriate hardware for your ceiling type.
Step 4: Hang the Fan and Make Electrical Connections
Carefully hang the fan assembly onto the mounting bracket. Connect the electrical wires (live, neutral, ground) according to the wiring diagram in the full manual. This fan is designed as a plug-in unit with a 16.5-foot cord for flexible placement.
Image: A diagram illustrating the fan's dimensions and electrical specifications, highlighting the 16.5-foot power cord for plug-in installation.
Step 5: Install LED Light Kit
Connect the LED light kit wires and secure the light assembly to the bottom of the fan motor housing. Ensure the light cover is properly attached.

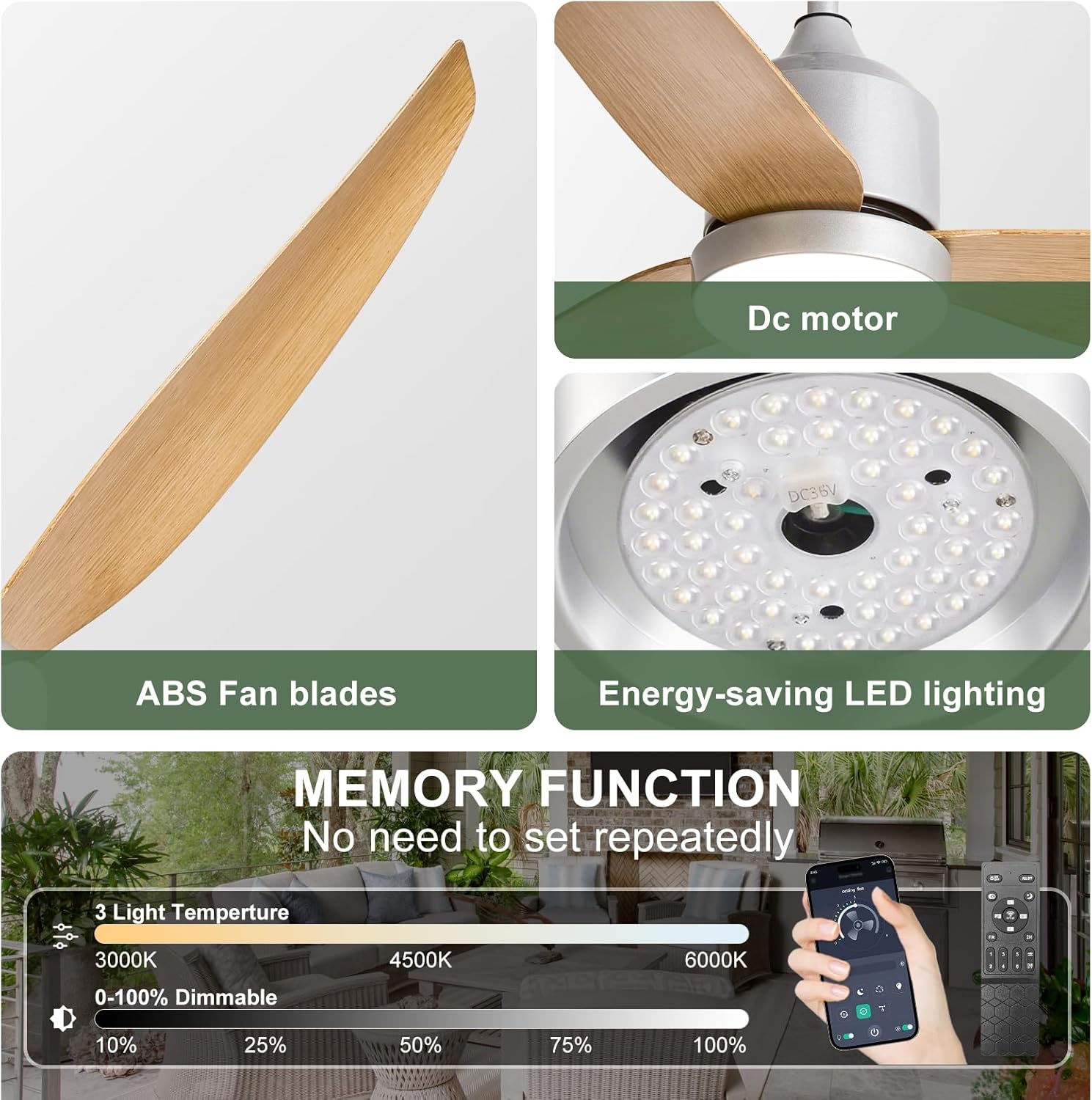

Billede: Detaljeret view of the fan's components, including the durable ABS blades, DC motor, and the energy-efficient LED light kit with its memory function for brightness and color temperature settings.
Betjeningsvejledning
Your BvenuBigLite ceiling fan can be controlled via the included remote or a smartphone application.
Fjernbetjeningsfunktioner
- Tænd/sluk: Tryk på tænd/sluk-knappen for at tænde eller slukke for ventilatoren og lyset.
- Blæserhastighed: Adjust between 6 fan speeds.
- Lysstyring: Turn the light on/off, adjust brightness (10%-100%), and change color temperature (3000K-6000K).
- Vendbar motor: Switch between summer (downward airflow for cooling) and winter (upward airflow for air circulation) modes.
- Timer: Set the fan to turn off automatically after 1 or 2 hours.
- Hukommelsesfunktion: The fan remembers your last light and fan settings.

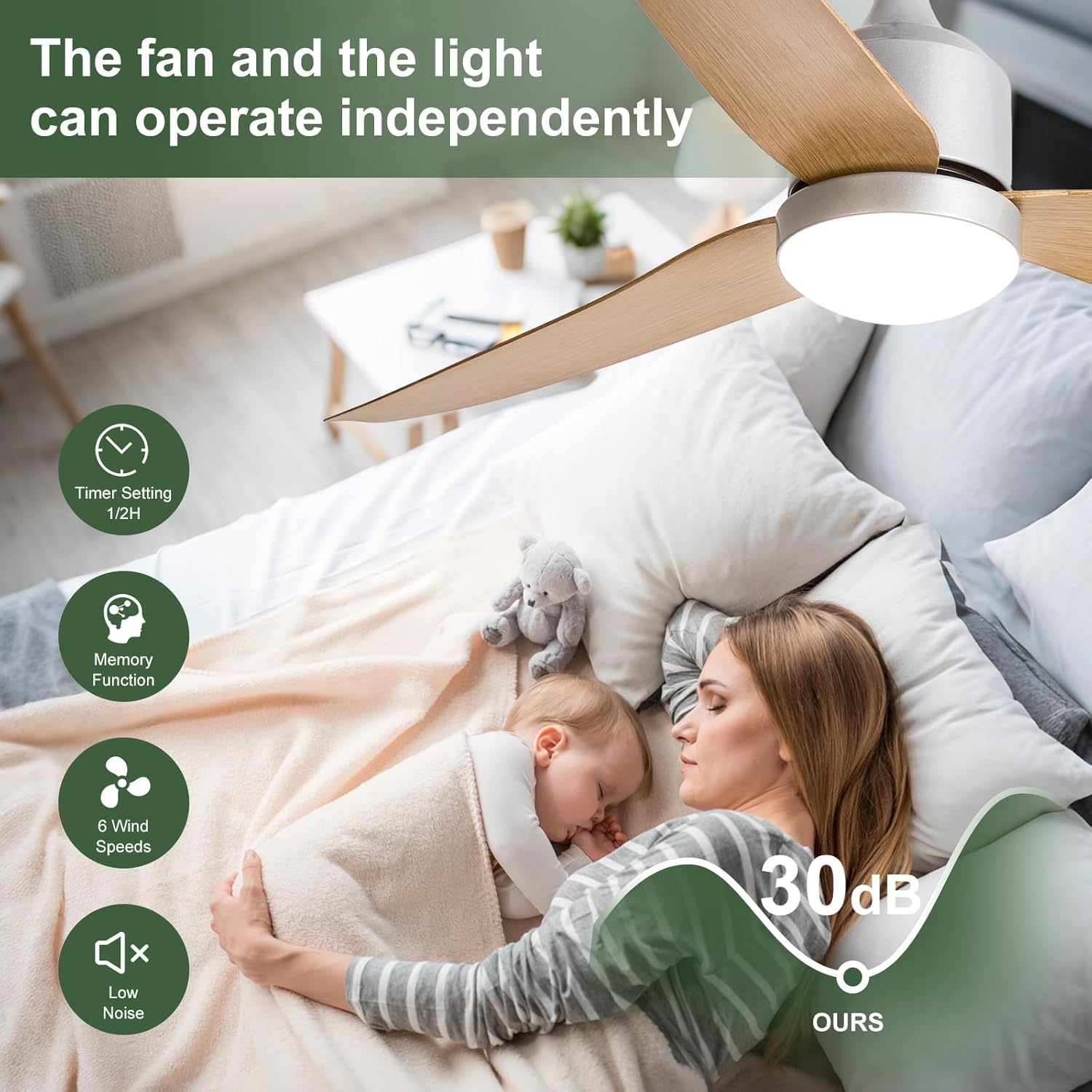

Image: Illustrates key features such as timer settings, memory function, 6 wind speeds, and quiet operation (below 30dB), ensuring a comfortable environment.
Image: Depicts the fan's reversible DC motor function, showing downward airflow for cooling in summer and upward airflow for improved air circulation in winter.
APP kontrol
Download the dedicated smartphone application to control your fan from your mobile device. The app offers all the functionalities of the remote control, including advanced scheduling options.
Image: The fan can be controlled via both the included remote and a smartphone application, offering convenient operation.
Opretholdelse
- Rensning: For at rengøre ventilatoren skal du tørre den af med en blød klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at strømmen er afbrudt før rengøring.
- Bladinspektion: Periodically check fan blades for any signs of damage or imbalance.
- Spænd skruer: Over time, screws may loosen. Periodically check and tighten all screws on the fan and mounting hardware.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilator starter ikke | Ingen strøm, løse ledninger, fjernbetjeningens batteri er dødt. | Check circuit breaker, ensure connections are secure, replace remote battery. |
| Blæseren slingrer | Loose blades, uneven blades, improper mounting. | Tighten blade screws, check for bent blades, ensure mounting bracket is secure. |
| Lys virker ikke | Loose wire connection, faulty LED kit. | Check light kit wiring, contact customer support if LED is faulty. |
| Fjernbetjening virker ikke | Fuldt batteri, fjernbetjening ikke parret. | Replace remote battery, refer to pairing instructions in the full manual. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | BvenuBigLite |
| Modelnavn | WS-FPZ184-18C-52NE-AP |
| Farve | Silver+Wood |
| Størrelse | 52 tommer |
| Produktdimensioner | 52" D x 52" B x 16.4" H |
| Strømkilde | DC |
| Voltage | 120 volt |
| Wattage | 24 watt |
| Særlige funktioner | LED Light, Quiet DC Motor, Reversible 6 Speed, Timer, Waterproof (IP44) |
| Kontrolmetode | App, fjernbetjening |
| Indendørs/Udendørs brug | Indendørs, Udendørs |
| Varens vægt | 9.93 pund |
Video: Demonstrates the waterproof capabilities and light features of the BvenuBigLite outdoor ceiling fan, highlighting its durability and adjustable lighting options.
Image: The BvenuBigLite outdoor ceiling fan is IP44 rated, ensuring waterproof performance for use in covered outdoor spaces.
Garanti og support
Your BvenuBigLite ceiling fan comes with a 5 års motorgaranti og en 2 års produktgaranti. For any questions, technical assistance, or warranty claims, please contact BvenuBigLite customer support. Our team is available 24/7 to assist you.
For mere information, besøg BvenuBigLite Store.
