Keenso Motorcycle Tachometer Speedometer Gauge User Manual

1. Produktet er slutview

The Keenso Motorcycle Tachometer Speedometer Gauge is a universal instrument designed for motorcycles, providing essential vehicle information through a clear LCD digital screen. It features comprehensive measurement functions including speed (0-199 km/h), engine RPM (0-10000 RPM), and oil level monitoring. The unit is built with good waterproofing and a durable housing, ensuring reliable performance in various conditions.

• Omfattende målefunktioner: Offers oil level monitoring, speed tracking (0-10000 RPM, 0-199 km/h), and can display in miles.
• Universal Fitment and Easy Installation: Designed for seamless integration with all motorcycles, featuring clear wiring instructions and a general mechanical speed line interface.
• Multifunctional and User-Friendly: Includes an intuitive ODO/trip function activated by a button.
• High Visibility LCD Display: Equipped with a bright and clear LCD digital screen for effortless readability in any lighting condition.
• Durable and Wearproof Design: Features excellent waterproofing and robust construction for long-lasting durability against harsh weather.

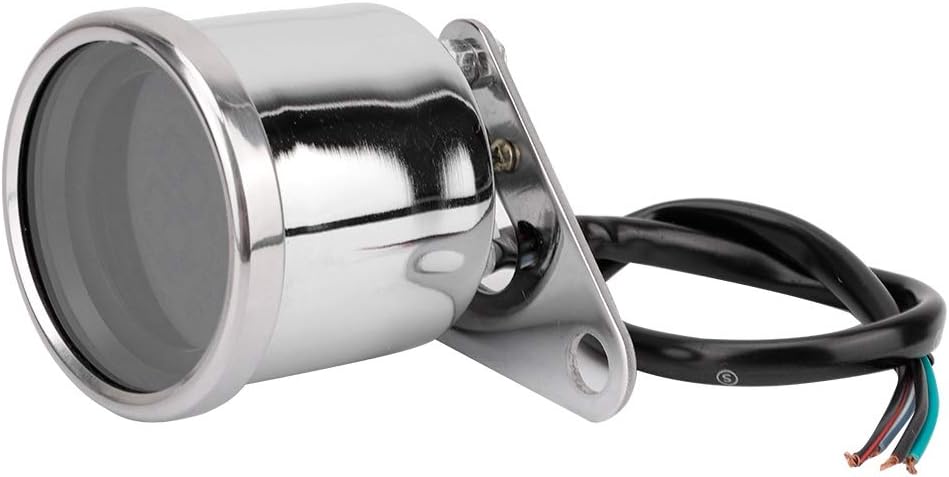

Figur 1: Forside view of the Keenso Motorcycle Tachometer Speedometer Gauge. This image shows the electrosilvering finish and the clear LCD display area.

2. Sikkerhedsoplysninger

Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in damage to the product, vehicle, or personal injury.

• Ensure the motorcycle's power is off before beginning installation to prevent electrical shock or short circuits.
• Brug altid passende sikkerhedsudstyr, såsom handsker og øjenbeskyttelse, under installationen.
• Verify all connections are secure and properly insulated to avoid electrical hazards.
• Do not attempt to modify the product. Unauthorized modifications may void the warranty and pose safety risks.
• Consult a qualified technician if you are unsure about any part of the installation process.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• 1 x Keenso Motorcycle Tachometer Speedometer Gauge

4. Specifikationer

5. Installationsvejledning

This tachometer is designed for universal fitment. Follow these steps for proper installation:

1. Mounting the Gauge: Securely attach the gauge to your motorcycle using the mounting bracket. The mounting hole diameter is approximately 8mm (0.31in). Ensure the gauge is positioned for clear visibility while riding.
2. Ledningsforbindelser:

   Refer to the wiring diagram and descriptions below for correct connections. It is crucial to connect wires accurately to prevent damage to the unit or the motorcycle's electrical system.



   Figur 2: Bagside view of the tachometer showing the wiring harness connection point and the ODO/trip button.



   Figure 3: Close-up of the wiring harness, showing the individual wire colors for connection.

   • Sort ledning: Tilslut til positive (+) pole of the 12V DC power supply.
   • Grøn ledning: Tilslut til negative (-) pole (jord).
   • Blue & White Wire: Tilslut til oil meter signal wire.
   • Yellow & Black Wire: Tilslut til tachometer signal wire (RPM signal).

   Ensure all connections are insulated properly to prevent short circuits and protect against moisture.

3. Speed Line Interface: The unit is designed with a general mechanical speed line interface. Connect your motorcycle's speed sensor cable to the appropriate input on the tachometer.
4. Endelig kontrol: After all connections are made, double-check them for security and correctness before restoring power to the motorcycle.

6. Betjeningsvejledning

Once installed and powered on, the LCD display will show current speed, RPM, and oil level.

• Hastighedsvisning: The speedometer displays speed in km/h, with a range of 0-199 km/h. The unit can also display speed in miles.
• RPM display: The tachometer displays engine revolutions per minute (RPM) with a range of 0-10000 RPM.
• Oil Level Display: The gauge provides an indication of the oil level.
• ODO/Trip Function: The ODO (Odometer) and Trip meter functions can be toggled using the black button located on the back of the meter. Press the button to switch between total distance (ODO) and trip distance.

7. Vedligeholdelse

To ensure the longevity and optimal performance of your Keenso Tachometer Speedometer Gauge, follow these maintenance guidelines:

• Rensning: Brug en blød, damp cloth to clean the display and housing. Avoid abrasive cleaners or solvents that could damage the surface.
• Vandtætning: While the unit is designed with good waterproofing, avoid submerging it in water or directing high-pressure water jets directly at the gauge.
• Ledningsinspektion: Periodically check all wiring connections for signs of wear, corrosion, or looseness. Secure any loose connections and replace damaged wiring as needed.
• Miljøbeskyttelse: Store the motorcycle in a sheltered area when not in use to protect the gauge from prolonged exposure to extreme weather conditions.

8. Fejlfinding

If you encounter issues with your Keenso Tachometer Speedometer Gauge, refer to the following common troubleshooting steps:

• Ingen skærm/strøm:
  • Check the 12V DC power connection (black wire to positive, green wire to negative/ground).
  • Ensure the motorcycle's battery is charged and providing power.
  • Inspect the fuse in the motorcycle's electrical system, if applicable.
• Forkert hastighedsaflæsning:
  • Verify the connection to the mechanical speed line interface is secure and functioning correctly.
  • Ensure the speed sensor on your motorcycle is working properly.
• Forkert omdrejningstal:
  • Check the connection of the yellow & black wire to the tachometer signal wire.
  • Ensure the RPM signal source from your motorcycle is operational.
• Oil Level Not Displaying:
  • Verify the connection of the blue & white wire to the oil meter signal wire.
  • Check the oil level sensor on your motorcycle for proper function.
• Water or Moisture Inside Display:
  • While waterproof, extreme conditions or improper installation can lead to moisture ingress. If moisture is present, disconnect power and allow the unit to dry in a warm, dry environment. If the issue persists, professional inspection may be required.

If these steps do not resolve the issue, please contact Keenso customer support for further assistance.

9. Garanti og support

Keenso products are manufactured to high-quality standards. For warranty information or technical support, please refer to the retailer where the product was purchased or visit the official Keenso webwebsted. Behold din købskvittering som købsbevis i tilfælde af garantikrav.

For additional assistance, you may contact Keenso customer service through their official channels.
