Indledning
This manual provides essential information for the safe operation and maintenance of your Suangrc K600GPS-B Drone. Please read this manual thoroughly before operating the drone to ensure proper usage and to prevent damage or injury. Keep this manual for future reference.
Pakkens indhold
The Suangrc K600GPS-B drone package includes the following items:
- Drone x1
- Fjernbetjening x1
- Batteri x1
- Propeller x4 (spare)
- Skruetrækker x1
- USB-kabel x1
- Bæretaske x1
- SD-kort (8 GB) x1
Produkt overview
The Suangrc K600GPS-B is a GPS-enabled drone featuring a 1080P HD camera and a dedicated remote control with a 4.5-inch LCD screen for live FPV (First Person View) transmission. It is designed for both beginners and experienced users, offering intelligent flight modes and stable performance.
Drone komponenter
- Foldbare arme: For compact storage and transport.

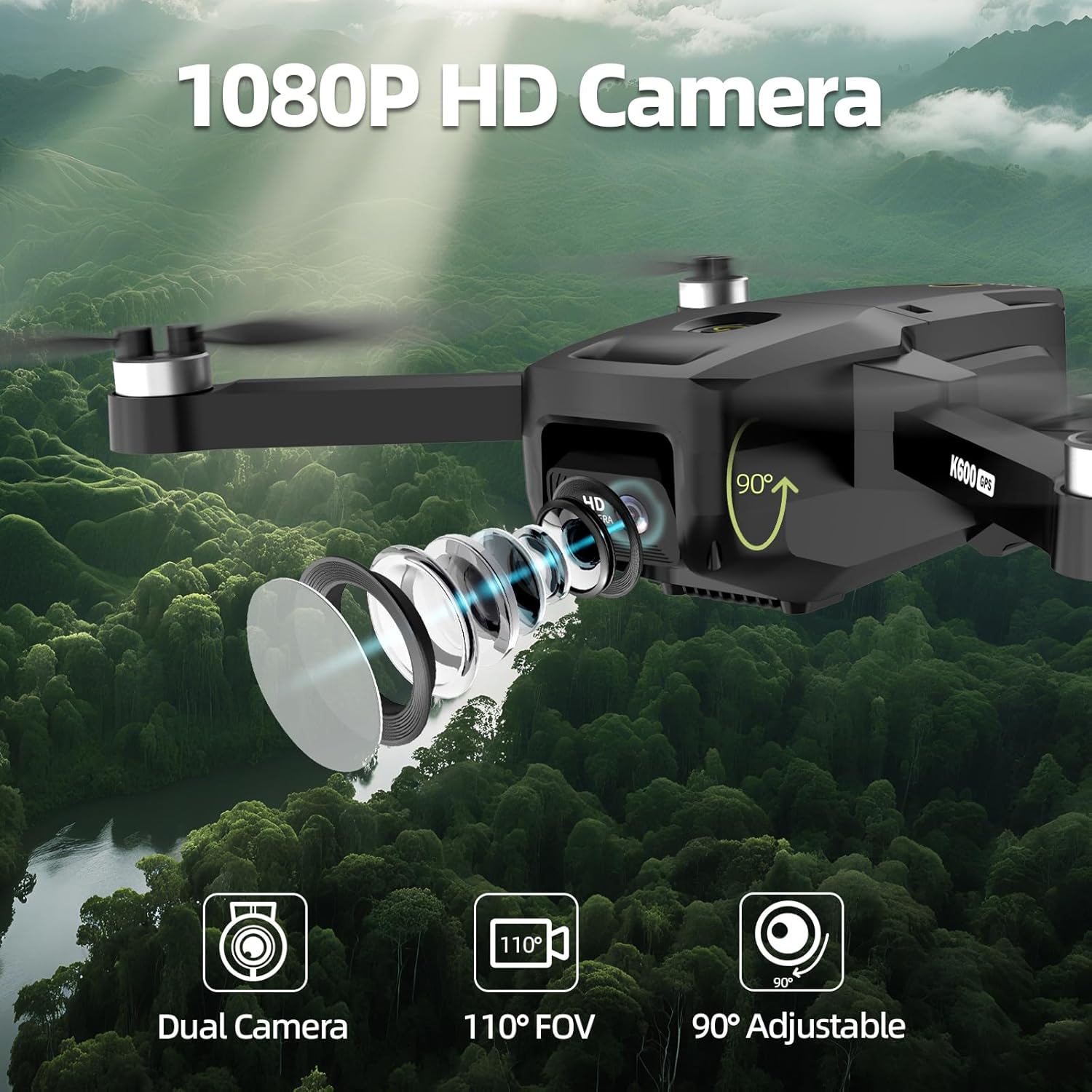

- 1080P HD-kamera: Dual camera system with 110° FOV and 90° adjustable angle for capturing photos and videos.
- Børsteløse motorer: Provides powerful thrust and stable flight with low noise.
- GPS-modul: Enables precise positioning, intelligent return functions, and advanced flight modes.
- Optisk flowpositionering: Assists with stable hovering, especially in environments where GPS signal may be weak.
- Batterirum: Houses the 2200mAh Li-Ion battery.
Fjernbetjening

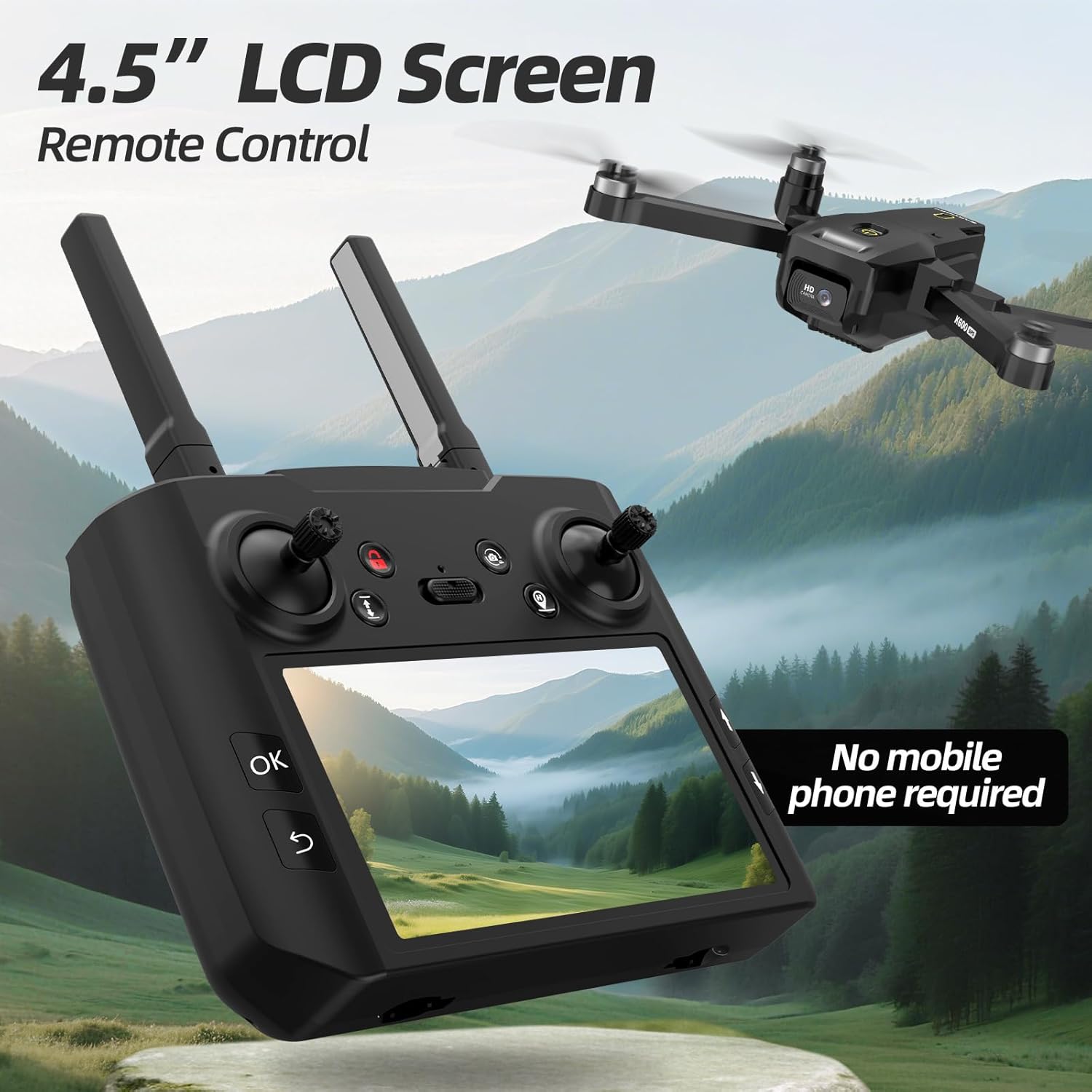

The remote control features a built-in 4.5-inch LCD screen, eliminating the need for a smartphone during flight. It provides real-time FPV transmission and displays critical flight data. The controller operates on 5GHz FPV transmission for a stable video feed.
- 4.5 tommer LCD-skærm: For live video feed and flight information.
- Kontrolpinde: For drone movement and altitude.
- Funktionsknapper: For various flight modes, photo/video capture, and return-to-home.
- Antenner: For stable signal transmission.
Opsætningsvejledning
1. Opladning af batteriet
Ensure the drone battery is fully charged before each flight. Use the provided USB cable to connect the battery to a suitable power source. The charging indicator will show the charging status.
2. Installing Drone Battery
Insert the charged battery into the drone's battery compartment. Ensure it clicks securely into place to prevent dislodgement during flight.
3. Installing Propellers
Attach the propellers to the drone's motors. Ensure each propeller is correctly oriented and securely fastened. Refer to the markings on the propellers and motor arms for correct installation (e.g., A to A, B to B).
4. Indsættelse af SD-kort
Locate the SD card slot on the drone. Insert the provided 8GB SD card (or a compatible card up to 32GB) into the slot until it clicks. This card is essential for storing photos and videos captured by the drone's camera.
5. Remote Control Preparation
Install the required batteries into the remote control. Extend the antennas for optimal signal range. Power on the remote control.
6. Kalibrering
Before the first flight and after any significant impact, calibrate the drone's gyroscope and compass. Follow the instructions in the quick start guide or on-screen prompts on the remote control's LCD for precise calibration. Proper calibration ensures stable flight and accurate GPS functions.
Betjeningsvejledning
1. Grundlæggende flyvekontrol
Familiarize yourself with the remote control sticks:
- Venstre stok: Controls altitude (up/down) and yaw (rotate left/right).
- Højre pind: Controls forward/backward movement and left/right strafing.
2. Start og landing
Place the drone on a flat, open surface. Power on the drone, then the remote control. Pair the devices. Use the one-key takeoff/landing button or manually control the left stick to ascend/descend.
3. Hastighedstilstande
The drone offers three speed modes (low, medium, high) to suit different flying conditions and skill levels. Adjust the speed using the dedicated button on the remote control.
4. GPS-funktioner
The K600GPS-B drone utilizes GPS for enhanced stability and intelligent flight features. Ensure a strong GPS signal before activating these modes.
- Tilbage til hjemmet (RTH): The drone will automatically return to its takeoff point if the signal is lost, battery is low, or the RTH button is pressed.
- Følg mig:
In Follow Me mode, the drone will track your movement, maintaining a set distance and capturing footage. This is ideal for hands-free recording during outdoor activities.
- Point of Interest: The drone will orbit a designated point, capturing a circular video or series of photos.
- Tap Fly (Waypoint Flight): Draw a desired flight path on the remote's screen, and the drone will follow it automatically.
5. Kamerabetjening
The drone is equipped with a 1080P HD camera. Use the dedicated buttons on the remote control to:
- Tag billeder: Press the photo button to take still images.
- Optag videoer: Press the video button to start/stop recording.
- Juster kameravinkel: Use the gimbal control on the remote to adjust the camera's vertical angle by 90 degrees during flight.
6. FPV Transmission
The 5GHz FPV transmission provides a clear, real-time video feed directly to the remote control's LCD screen. This allows for immersive flight experience and precise framing of shots.
Opretholdelse
1. Batteripleje
- Always use the original charger and cable.
- Undlad at overoplade eller overaflade batteriet.
- Opbevar batterier på et køligt, tørt sted væk fra direkte sollys.
- If not used for an extended period, charge the battery to approximately 50% capacity.
2. Rensning
- Use a soft, dry cloth to clean the drone and remote control.
- Avoid using solvents or harsh chemicals.
- Ensure the camera lens is clean for optimal image quality.
3. Udskiftning af propel
Inspect propellers for damage before each flight. If a propeller is bent, cracked, or chipped, replace it immediately using the spare propellers and screwdriver provided. Ensure correct propeller orientation (A/B) during installation.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Drone driver afsted under flyvning | Improper calibration; windy conditions | Recalibrate the drone; fly in calmer conditions. |
| Loss of signal/control | Out of range; interference; low battery | Fly within range; ensure clear line of sight; check drone and remote battery levels. Drone should initiate RTH. |
| Poor camera image/video quality | Dirty lens; insufficient lighting; no SD card; low light conditions | Clean the camera lens; ensure adequate lighting; insert SD card; avoid flying in very low light. |
| Drone does not take off | Low battery; propellers not installed correctly; drone not paired | Charge battery; check propeller installation; ensure drone and remote are paired. |
| GPS functions not working | Weak GPS signal; indoor flight | Fly in an open outdoor area with clear sky; wait for sufficient GPS satellites to connect. |
Specifikationer
Drone
- Model: K600GPS-B
- Vægt: 205.8 g
- Dimensioner (foldet): 22.5 x 18.5 x 5.5 cm
- Flyvetid: Cirka 20 minutter
- Batteri: 2200mAh Lithium Ion
- Motorer: Brushless (16277RPM/V)
- Placering: GPS, Optical Flow
- Materiale: Plast
Kamera
- Opløsning: 1080P HD
- Type: Dobbelt kamera
- Felt af View (FOV): 110°
- Justerbar vinkel: 90°
- Opbevaring: Supports SD Card (8GB included, up to 32GB)
Fjernbetjening
- Skærm: 4.5 tommer LCD
- Transmissionsfrekvens: 5GHz FPV
- Forbindelse: Wi-Fi
- Batterier: Not included (requires 1 non-standard battery type)
Sikkerhedsretningslinjer
- Always fly in open areas, away from people, animals, and obstacles.
- Maintain a safe distance from power lines, buildings, and airports.
- Flyv ikke i stærk vind, regn eller andre ugunstige vejrforhold.
- Keep the drone within your line of sight at all times.
- Ensure all propellers are securely attached and undamaged before flight.
- Do not operate the drone under the influence of alcohol or drugs.
- Respekter lokale regler og privatlivslove vedrørende droneoperation.
Support & Garanti
Suangrc is committed to providing professional after-sales service and technical support with an official warranty. For any inquiries, technical assistance, or warranty claims, please contact our support team.
- E-mail support: suangrc@gmail.com
- Garanti: Official technical support and warranty are provided. Please refer to your purchase documentation for specific warranty terms and duration.
