darkFlash DG240 All-in-one Liquid CPU Cooler User Manual

1. Introduktion

The darkFlash DG240 is an all-in-one liquid CPU cooler designed to provide efficient and reliable thermal management for your computer's central processing unit. This manual provides essential information regarding the installation, operation, maintenance, and troubleshooting of your DG240 AIO cooler. Please read this manual thoroughly before installation to ensure proper setup and optimal performance.

2. Nøglefunktioner

• Efficient & Durable High-Speed Pump: Features a 3-phase 6-pole motor for smooth and efficient operation, reaching up to 3000 RPM and handling up to 315W TDP. Equipped with a ceramic bearing for enhanced durability and resistance to heat and wear.
• Overlegen køleydelse: Delivers an airflow of up to 81.5 CFM with a low noise level of just 33dBA. PWM control allows for dynamic fan speed adjustment based on system load, ensuring optimal cooling when needed and quiet operation otherwise.
• Optimeret varmeafledning: Incorporates a high-density cooling radiator and a high polymer rubber hose protective water pipe, designed for low resistance and high cooling efficiency. The 400mm long pipe offers flexibility for various PC case layouts.



  This diagram illustrates the high-density cooling radiator and the dual-material (IIR+EPDM) protective water pipe, optimized for efficient heat transfer and pressure resistance.

• Dynamic ARGB Lighting: Supports 5V 3-pin ARGB sync via the motherboard, providing unified and vibrant lighting effects on both the fan and pump head with a soft 1600W color glow. Compatible with major motherboard ARGB Sync technologies including ASUS Aura Sync, Gigabyte RGB Fusion, and MSI Mystic Light Sync.
• Bred kompatibilitet: Supports a wide range of CPU cooling sockets, including Intel LGA 1200/115X/1700/1851 and AMD AM4/AM5. Includes all necessary mounting plates and fasteners for dual CPU platforms.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede i pakken, før du fortsætter installationen.

• darkFlash DG240 All-in-one Liquid CPU Cooler (240mm AIO)
• Mounting hardware for Intel LGA 1200/115X/1700/1851 sockets
• Monteringshardware til AMD AM4/AM5-sokler
• Thermal paste (pre-applied or in a small tube)
• Brugervejledning (dette dokument)

4. Specifikationer

5. Kompatibilitet

The darkFlash DG240 AIO cooler is compatible with the following CPU sockets:

• Intel: LGA 1200, LGA 115X (1150, 1151, 1155, 1156), LGA 1700, LGA 1851
• AMD: AM4, AM5

This image displays the two primary mounting brackets provided with the darkFlash DG240 cooler, one for Intel CPUs and one for AMD CPUs, illustrating the broad compatibility of the product.

6. Opsætning og installation

Proper installation is crucial for optimal cooling performance. Always refer to your motherboard and PC case manuals for specific guidance on component placement and cable routing. The following steps provide a general overview:

1. Prepare the CPU and Motherboard: Ensure your CPU is correctly seated in its socket. Clean the CPU surface thoroughly if old thermal paste is present.
2. Monter bagpladen: Fastgør den passende bagplade til din CPU-sokkel (Intel eller AMD) på bagsiden af ​​bundkortet.
3. Monter radiatoren: Secure the radiator and fans to an available mounting location in your PC case (e.g., top, front, or rear). Ensure fans are oriented for optimal airflow (intake or exhaust).
4. Påfør termisk pasta: If not pre-applied, apply a small amount of thermal paste to the center of your CPU's integrated heat spreader (IHS).
5. Install the Pump/Cold Plate: Carefully place the pump/cold plate assembly onto the CPU, aligning it with the mounting posts. Secure it using the provided screws, tightening them in a diagonal pattern to ensure even pressure.
6. Tilslut kabler:
   • Connect the pump's power cable to the designated AIO_PUMP or CPU_FAN header on your motherboard.
   • Connect the fan PWM cables to the CPU_FAN or SYS_FAN headers. The DG240 supports daisy chain connection for fans.
   • Connect the 5V 3-pin ARGB cable from the pump and fans to the motherboard's 5V ARGB header for lighting synchronization.
7. Kabelstyring: Før kablerne pænt for at sikre korrekt luftgennemstrømning og en ren konstruktion.

This image provides a full view of the darkFlash DG240 liquid CPU cooler, showcasing its radiator, two ARGB fans, and the illuminated pump head, illustrating the complete unit before installation.

This image shows the darkFlash DG240 AIO cooler installed inside a computer case, highlighting its ARGB lighting synchronized with other system components, demonstrating its aesthetic integration.

7. Betjeningsvejledning

7.1. Fan and Pump Control (PWM)

The DG240's fans and pump utilize Pulse Width Modulation (PWM) technology, allowing your motherboard to dynamically adjust their speeds based on CPU temperature and system load. This ensures efficient cooling when needed and quieter operation during lighter tasks.

• Access your motherboard's BIOS/UEFI settings to configure fan curves and pump speeds.
• Most motherboards offer automatic fan control profiles (e.g., Standard, Silent, Performance) that can be selected.
• For advanced users, custom fan curves can be set to fine-tune the balance between cooling performance and noise levels.

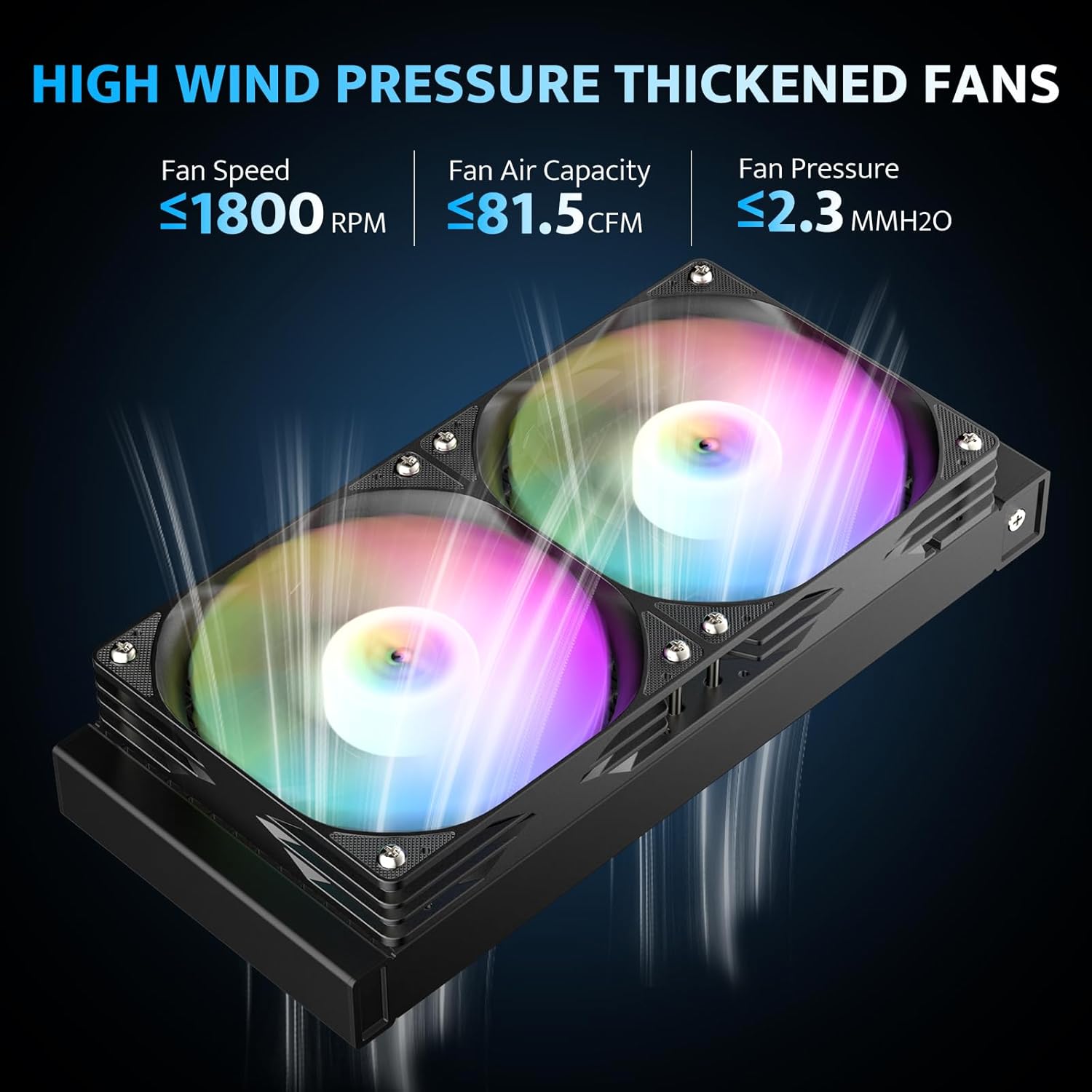

This image highlights the performance characteristics of the DG240's fans, including fan speed (≤1800 RPM), air capacity (≤81.5 CFM), and fan pressure (≤2.3 MMH2O), demonstrating their high wind pressure capabilities.

Dette billede giver en eksploderet view of the DG240's 3-phase 6-pole motor water pump, detailing its internal structure, ceramic bearing, and copper cold plate, emphasizing its high-performance design.

7.2. ARGB-lysstyring

The DG240 features Addressable RGB (ARGB) lighting on both the fans and the pump head, which can be synchronized with your motherboard's ARGB software.

• Ensure the 5V 3-pin ARGB cable is connected to the correct header on your motherboard.
• Install the corresponding ARGB control software for your motherboard brand (e.g., ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, ASRock Polychrome RGB).
• Use the software to customize lighting effects, colors, and synchronization with other ARGB components in your system.

8. Vedligeholdelse

Regelmæssig vedligeholdelse er med til at sikre din AIO-kølers levetid og optimale ydeevne.

• Støvrensning: Rengør regelmæssigt støv fra kølerribberne og ventilatorbladene med trykluft eller en blød børste. Ophobet støv kan hæmme luftstrømmen og reducere køleeffektiviteten.
• Ventilator inspektion: Kontrollér ventilatorbladene for eventuelle blokeringer eller tegn på slid. Sørg for, at ventilatorerne drejer frit og stille.
• Slange- og tilslutningskontrol: Inspect the rubber hoses and connections for any signs of leaks, kinks, or damage. While the system is sealed, visual checks are recommended.
• Thermal Paste (Long-Term): The thermal paste applied between the CPU and cold plate typically lasts for several years. If you notice a significant increase in CPU temperatures over time, reapplying fresh thermal paste might be necessary. This requires carefully removing the pump, cleaning both surfaces, and applying new paste.

9. Fejlfinding

If you encounter issues with your darkFlash DG240 AIO cooler, refer to the following common problems and solutions:

10. Garanti og support

darkFlash provides a 3 års garanti for the DG240 All-in-one Liquid CPU Cooler. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact darkFlash customer service through their official webwebstedet eller forhandleren, hvor produktet blev købt.

Gem venligst din købsbevis for at validere garantien.
