The Thermaltake MAGFloe 360 Ultra is an all-in-one (AIO) liquid CPU cooler designed for efficient thermal management of your computer's processor. It features a 360mm radiator, three 120mm SWAFAN EX fans, and a 3.95-inch square LCD display on the pump block for system monitoring and personalization.
Nøglefunktioner omfatter:
- 3.95-inch Square LCD Display: Customizable display for system information, images, and videos.
- SWAFAN EX Fans: Three 120mm fans with swappable blades for adjustable airflow direction and visible RGB lighting.
- MAGForce 2.0 Connection: Magnetic fan connections and daisy-chain cables for simplified installation and reduced cable clutter.
- Bred kompatibilitet: Supports Intel LGA 1851/1700/1200/1156/1155/1151/1150/2066/2011-3/2011 and AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 sockets.

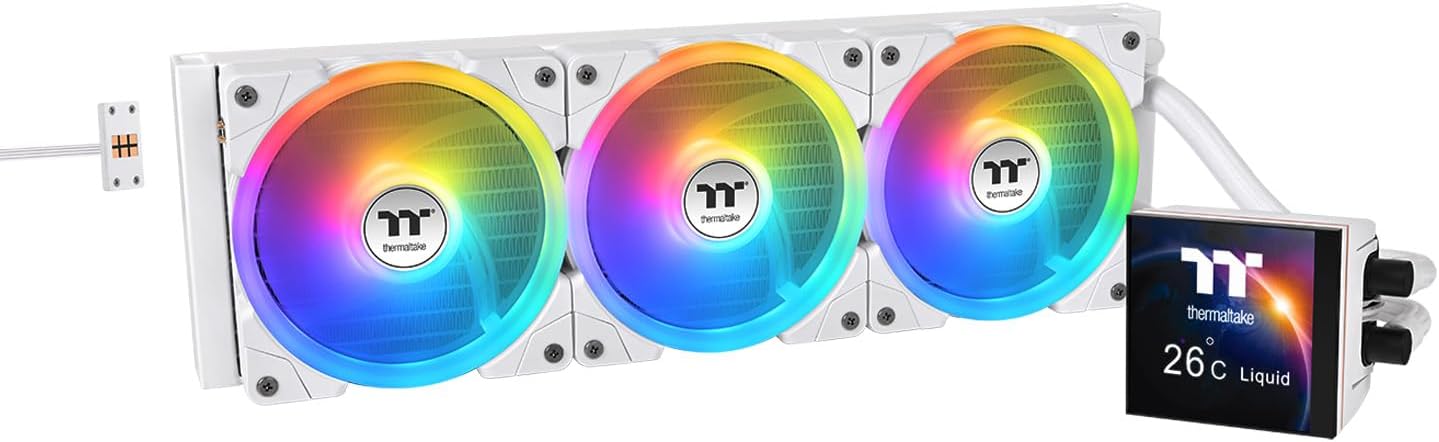

Image 1.1: The Thermaltake MAGFloe 360 Ultra CPU Liquid Cooler, showcasing its radiator, three RGB fans, and the LCD pump block.
2. Opsætning og installation
Før du starter installationen, skal du sørge for, at dit system er slukket og frakoblet strømkilden. Se bundkortets manual for specifikke oplysninger om CPU-sokkel.
2.1. Komponentkontrol
Verify all components are present in the package:
- 360mm Radiator with Pump/LCD Block
- 3x SWAFAN EX 120mm Fans
- Mounting Hardware for Intel and AMD Sockets
- Fan Controller/Cables
- Termisk pasta
- Additional Reverse Fan Blades
2.2. Installation af radiator og ventilator
- Determine the mounting location for the 360mm radiator within your PC case. Common locations include the top or front panel.
- Attach the SWAFAN EX fans to the radiator using the provided screws. Ensure the fan orientation aligns with your desired airflow (intake or exhaust).
- If you wish to change the airflow direction while maintaining the LED side visible, swap the fan blades. Gently pop out the installed blades and press in the reverse blades.
Image 2.1: Illustration of standard and reverse fan blade configurations, demonstrating how airflow direction can be altered.
2.3. CPU Block Installation
- Prepare your CPU socket by installing the appropriate backplate and standoffs for your Intel or AMD motherboard.
- Påfør en lille mængde termisk pasta i midten af din CPU's integrerede varmespreder (IHS).
- Carefully place the pump block onto the CPU, aligning the mounting holes. Secure it with the provided thumb screws or nuts, tightening in a diagonal pattern until snug.
2.4. Cable Management with MAGForce 2.0
The MAGForce 2.0 system simplifies fan connections:
- Connect the SWAFAN EX fans to each other using their magnetic daisy-chain connectors.
- Connect the final fan in the chain to the included fan controller.
- Connect the pump block's power and data cables to the motherboard and fan controller as instructed in the separate quick installation guide.
Image 2.2: Detail of the MAGForce 2.0 connector, highlighting the magnetic and pin-pad design for secure fan connections.
3. Betjeningsvejledning
3.1. Første opstart
After completing installation, power on your system. The LCD display on the pump block should initialize and show default information or animations.
3.2. Tilpasning af LCD-skærm
The 3.95-inch square LCD display can be customized to show various content:
- Systemoplysninger: Monitor CPU temperature, pump speed, fan speed, and other relevant system metrics.
- Personligt tilpasset indhold: Upload custom images (JPG, GIF, PNG) or videos (MP4, MOV, AVI) to display on the screen.
To customize the display, download and install the TT PlayLink app on your smartphone. The app allows you to upload visuals, capture live moments, and manage display settings.
Billede 3.1: Eks.amples of the customizable LCD display, showing system information and a personalized image.
Image 3.2: The TT PlayLink app interface on a smartphone, demonstrating the upload function for customizing the LCD display.
3.3. Blæserhastighedskontrol
Fan speeds can be adjusted via your motherboard's BIOS settings or compatible fan control software. The SWAFAN EX fans operate within a range of 500 to 2000 RPM.
4. Vedligeholdelse
4.1. Rengøring af ventilator
The SWAFAN EX fans feature swappable blades, making cleaning convenient:
- Power off your system and disconnect it from the power source.
- Gently pop out the fan blades from the fan frame.
- Clean the blades and fan frame using a soft cloth or compressed air to remove dust. For thorough cleaning, the blades can be rinsed with water. Ensure they are completely dry before reinstallation.
- If needed, apply the included bearing lubricant before reinserting the blades.
- Press the blades back into the fan frame until they click securely into place.
Image 4.1: A hand demonstrating the cleaning process by rinsing a detached fan blade under water.
4.2. Radiator Cleaning
Periodically inspect the radiator fins for dust buildup. Use compressed air to gently blow dust out of the fins. Avoid using liquids directly on the radiator.
4.3. Liquid Cooler System
The MAGFloe 360 Ultra is a closed-loop liquid cooling system. It does not require liquid refills or maintenance of the coolant level.
5. Fejlfinding
If you encounter issues with your MAGFloe 360 Ultra, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen visning på LCD-skærm | Loose or incorrect data/power cable connection. | Check all cables connecting the pump block to the motherboard and fan controller. Ensure they are securely seated. |
| Fans not spinning or RGB not lighting up | Loose MAGForce 2.0 connection or incorrect fan controller wiring. | Verify all MAGForce 2.0 connections between fans and to the controller. Ensure the fan controller is properly powered and connected to the motherboard. |
| Høje CPU-temperaturer | Insufficient thermal paste, improper pump block contact, or fan orientation issues. | Re-apply thermal paste. Ensure the pump block is securely mounted and making full contact with the CPU. Check fan airflow direction and ensure radiator is free of dust. |
| Unusual noises from pump or fans | Air bubbles in the loop (pump), or fan bearing issues. | Gently tilt your PC case to help dislodge air bubbles from the pump. If fan noise persists, inspect fan blades for obstructions or damage. |
6. Tekniske specifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | CL-W433-PL12SW-A |
| Radiator Dimensioner | 18"L x 8.1"W x 5.4"H (Overall Product Dimensions) |
| Afkølingsmetode | Vandkøling |
| Fan størrelse | 3x 120mm SWAFAN EX |
| Blæserhastighed | 500 - 2000 omdr./min. |
| Luftmængde kapacitet | 57.11 CFM (Standard), 56.26 CFM (Reverse) |
| Statisk tryk | 2.39mm H2O (Standard), 2.02mm H2O (Reverse) |
| Støjniveau | 25 decibel |
| Strømstik type | 4-benet |
| Voltage | 12 volt |
| Wattage | 16.18 watt |
| Materiale | Aluminium, kobber, plastik |
| Kompatible enheder | Desktop |
| CPU Socket-kompatibilitet | Intel LGA 1851/1700/1200/1156/1155/1151/1150/2066/2011-3/2011, AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
| LCD-skærmstørrelse | 3.95 inches (Square) |
| Varens vægt | 5.96 pund |
| UPC | 841163097823 |
7. Garanti og support
Thermaltake products are covered by a manufacturer's warranty. For specific warranty terms, duration, and support procedures, please refer to the official Thermaltake webwebstedet eller kontakt deres kundeservice direkte. Gem din købsbevis til garantikrav.
For further assistance, visit the official Thermaltake support page or contact their technical support team.
