Indledning
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Casta Diva CD-K030 Smart Toilet. Please read this manual thoroughly before installation and use to ensure proper function and safety. Retain this manual for future reference.
Image: The Casta Diva CD-K030 Smart Toilet, showcasing its sleek design and integrated remote control. A soft blue light illuminates the floor beneath the toilet.
Vigtige sikkerhedsoplysninger
Observe all safety warnings and precautions to prevent injury or damage. This appliance is designed for household use only. Do not attempt to repair or modify the unit yourself. Contact qualified service personnel for assistance.
- Ensure the power supply meets the product specifications.
- Produktet må ikke nedsænkes i vand, og der må ikke sprøjtes vand direkte på elektriske komponenter.
- Hold børn og kæledyr væk fra produktet under drift.
- Afbryd strømmen, før du udfører vedligeholdelse eller rengøring.
Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Brugervejledning (1)
- Ceramic installation kits (1)
- Fjernbetjening (1)
- Remote holder (1)
- Remote control batteries (2)
- Voksring (1)
- Flow restrictor (1)
- Battery box (1)
- Sealing gasket (2)
- Expansion screw set (2)
- Angle Valve (1)
- Multitap nut (2)
- Installation card (1)
Image: An illustration detailing the various components included in the Casta Diva CD-K030 Smart Toilet package, such as the remote control, wax ring, and installation hardware.
Opsætning og installation
The Casta Diva CD-K030 Smart Toilet is designed for floor-mounted installation. Professional installation is recommended. Ensure you have the necessary tools and follow local plumbing codes.
1. Forberedelse af stedet
- Ensure the rough-in measurement is 12 inches from the wall to the center of the drain pipe.
- Confirm access to a standard electrical outlet (120V AC) within reach of the toilet's power cord.
- Verify water supply line is available and can be connected to the included angle valve.
Image: Dimensional diagram of the Casta Diva CD-K030 Smart Toilet, indicating a 12-inch rough-in requirement and overall product measurements.
2. Placering af toilettet
- Position the toilet over the drain pipe, aligning it with the floor flange.
- Install the wax ring to create a watertight seal between the toilet and the floor.
- Secure the toilet to the floor using the expansion screw set and ceramic installation kits.
3. Vand- og strømtilslutninger
- Tilslut vandforsyningsledningen til vinkelventilen og derefter til toilettets vandindløb.
- Sæt toilettet i en jordet stikkontakt.
- Install the remote control batteries into the remote and place it in the remote holder.
Betjeningsvejledning
The Casta Diva CD-K030 Smart Toilet offers a range of automated and customizable features for enhanced comfort and hygiene.
Automatic Lid Opening and Closing
The toilet features an automatic lid that opens upon approach and closes after use. A foot sensor can also be used to open the seat and initiate flushing for hands-free operation.
Image: Visual guide demonstrating how the toilet lid automatically opens and closes, and how the foot sensor activates the seat and flush.
Skylningssystem
The toilet features a powerful 1000g MaP flushing system with a built-in tank, eliminating reliance on external water pressure. It utilizes pump-assisted, bowl swirl, and jet siphon flushing mechanisms. An automatic hands-free flush activates when you walk away. In case of a power outage, a blackout flush function is available (requires AA batteries in the battery box).

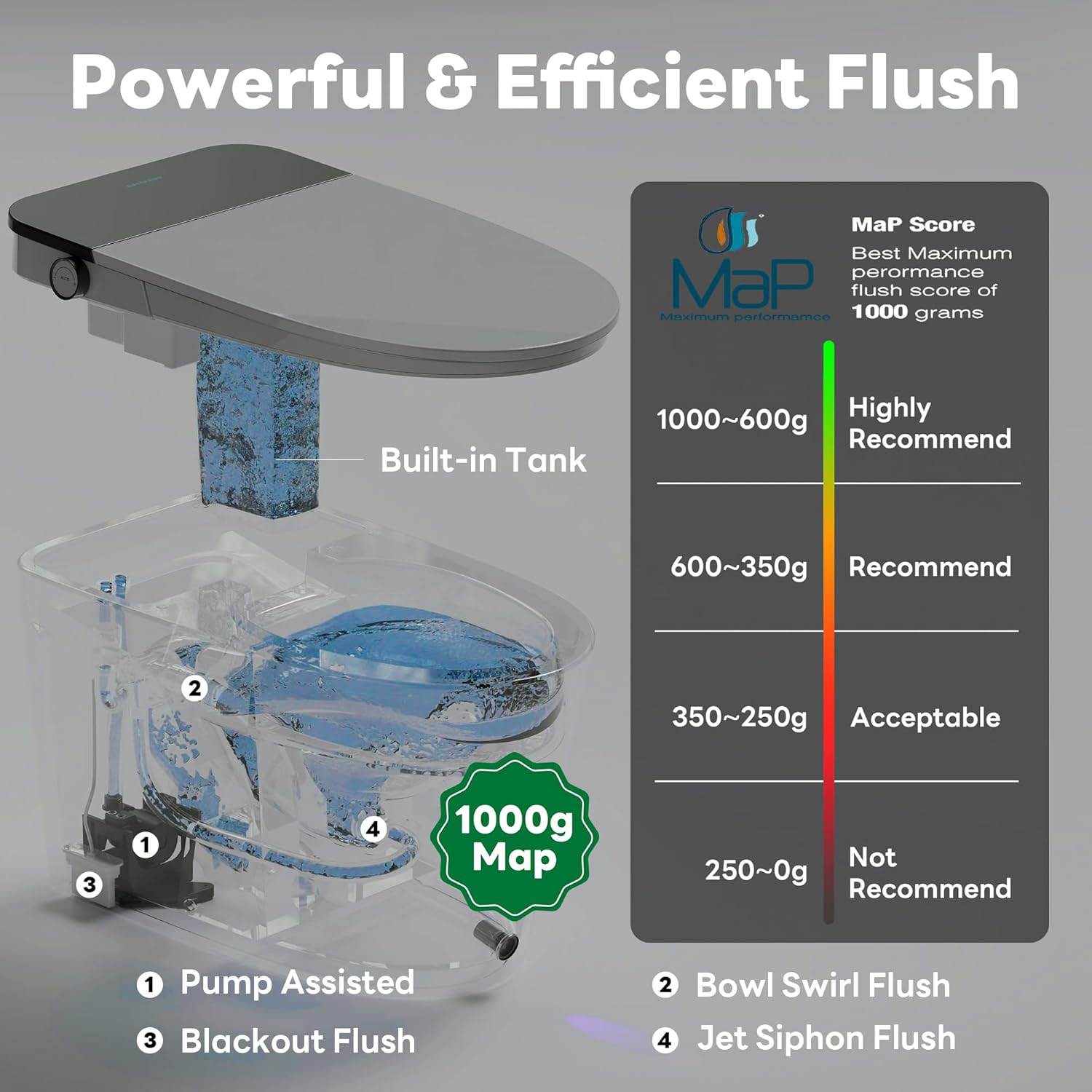

Billede: En eksploderet view diagram illustrating the powerful and efficient flushing system, including the built-in tank, pump assistance, bowl swirl, jet siphon, and blackout flush capabilities.
The flushing sound level is approximately 45dB, designed for quiet operation.
Image: A graphic illustrating the quiet 45dB operation of the toilet's flush, comparing it to typical ambient noise levels.
Bidetfunktioner
The integrated bidet offers multiple warm water cleaning modes:
- Bagvask: Til rensning af bagdelen.
- Forvask: Til feminin udrensning.
- Oscillerende rensning: Bevæger dysen frem og tilbage for et bredere rengøringsområde.
Water temperature is instantly warmed (0.1 seconds) and can be adjusted through 5 different temperature modes. This function is off by default and must be activated via the remote control or settings menu.
Image: A visual representation of the bidet's warm water cleaning modes, including rear wash, front wash, oscillating cleanse, and the self-cleaning nozzle feature.
Heated Seat and Warm Air Dryer
The seat features 5-speed heating, automatically adjusting to ambient temperature (adaptive comfort). A 3-level warm air dryer provides comfort after bidet use.

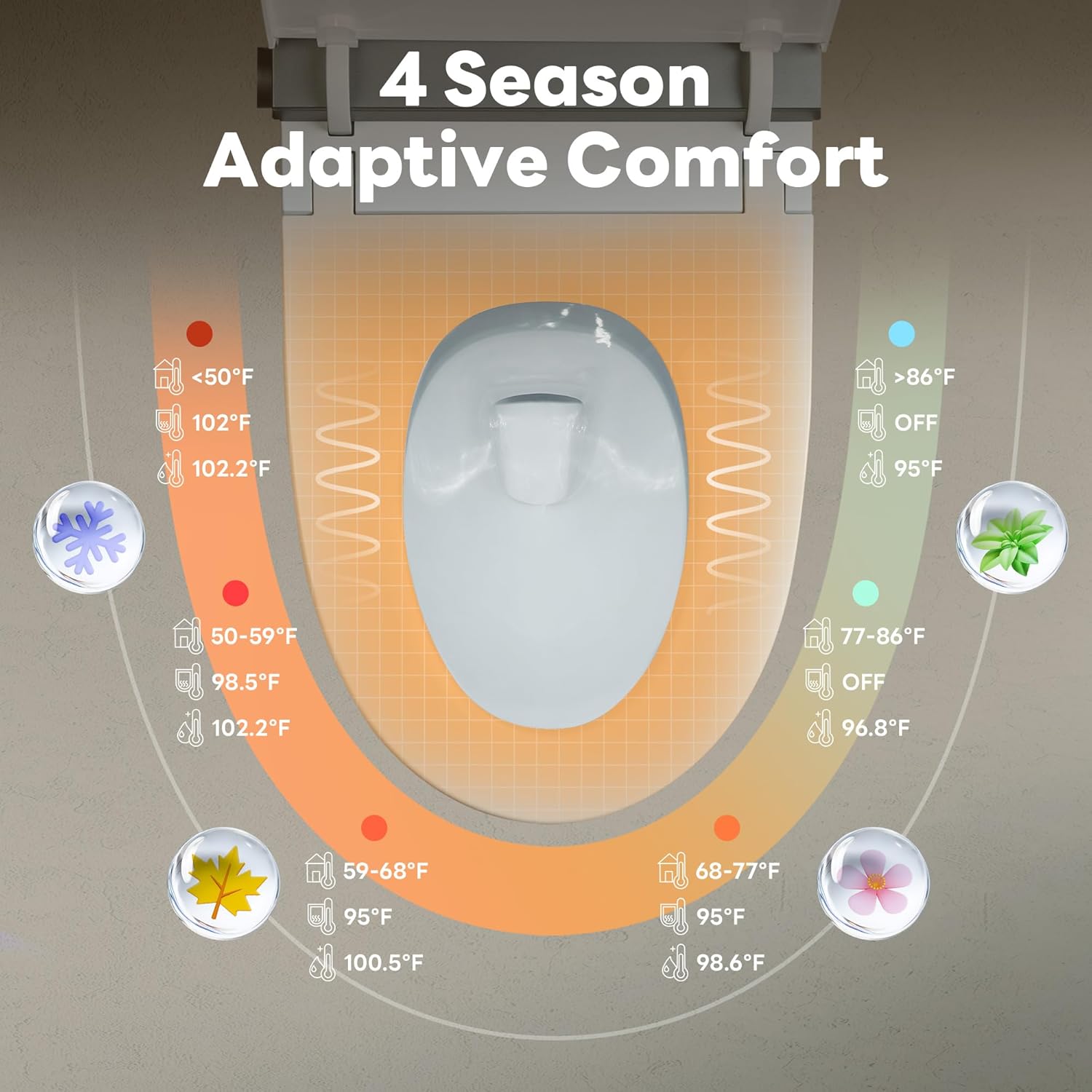

Image: A graphic illustrating the 4-season adaptive comfort feature of the heated seat, which adjusts its temperature based on the surrounding environment.
Foam Shield Protection
The Foam Shield feature creates a thick foam barrier in the bowl to prevent splashes, trap odors, and resist sticking. To activate, ensure the foam dispenser is filled with a 1:1 mixture of dishwashing liquid and water.
Image: A series of illustrations demonstrating the benefits of the Foam Shield, including splash prevention, odor control, anti-sticking properties, and enhanced bowl cleaning.
Image: Step-by-step guide on how to prepare the foam solution by mixing dishwashing liquid and water for the Foam Shield dispenser.
Yderligere funktioner
- Smart Sensor Bidet Seat: Automatically triggers when a user weighing over 26.46 pounds sits down.
- Natlys: A soft night light provides illumination for safety during nighttime use.
- Auto Deodorizer: Automatically activates to neutralize odors.
- Digital skærm: Provides information on current settings and status.
Vedligeholdelse og rengøring
Regelmæssig vedligeholdelse sikrer dit smarte toilets levetid og hygiejniske drift.
Rengøring af dyser
The bidet nozzle features an automatic self-cleaning function before every use. Additionally, a Needle-Jet Cleaning system provides automatic descaling and deep cleaning to prevent stubborn stains and extend the nozzle's lifespan.
Billede: En intern view showing the Needle-Jet Cleaning system, highlighting its ability to automatically descale and deep clean the bidet nozzle.
Udvendig rengøring
- Tør de udvendige overflader af med en blød, damp klud og et mildt, ikke-slibende rengøringsmiddel.
- Undgå at bruge skrappe kemikalier, slibende svampe eller opløsningsmidler, da disse kan beskadige overfladen.
- For the ceramic bowl, use standard toilet bowl cleaners as needed, ensuring they do not come into contact with electronic components.
Foam Dispenser Refill
Regularly check the foam dispenser level. Refill with a 1:1 mixture of dishwashing liquid and water as needed to maintain Foam Shield functionality.
Fejlfinding Guide
If you encounter issues with your Casta Diva CD-K030 Smart Toilet, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Toilettet skyller ikke ud automatisk. | Sensor obstruction, power issue, or foot sensor not activated correctly. | Ensure no obstructions around sensors. Check power connection. If using foot sensor, ensure proper activation. Verify blackout flush batteries if applicable. |
| Bidet water is not warm. | Intelligent temperature adjustment is off by default. | Activate the intelligent temperature adjustment function via the remote control or settings menu as per the instruction manual. |
| Foam Shield is not working or producing insufficient foam. | Foam dispenser is empty or incorrect mixture ratio. | Refill the foam dispenser with a 1:1 mixture of dishwashing liquid and water. |
| Lid or seat does not open/close automatically. | Sensor obstruction or sensor not detecting presence. | Ensure the area around the toilet is clear. The bidet seat sensor triggers for users over 26.46 pounds; ensure sufficient weight is applied. |
| Ingen strøm til enheden. | Power cord disconnected or circuit breaker tripped. | Check if the power cord is securely plugged into a functional outlet. Reset the circuit breaker if necessary. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | CD-K030 |
| Mærke | CASTA DIVA |
| Produktmål (D x B x H) | 27.28 cm x 16.14 cm x 18.31 cm |
| Varens vægt | 95.8 pund |
| Materiale | Keramik (toilet), polypropylen (PP) (sæde) |
| Installationstype | Gulvmonteret |
| Flush Performance | 1000g MaP (Maximum Performance) |
| Skylningstype | Pump Assisted, Bowl Swirl, Jet Siphon |
| Støjniveau | 45dB (Flush) |
| Opvarmet sæde | 5-speed, Adaptive Comfort |
| Varmlufttørrer | 3-niveau |
| Bidet Water Temperature | 5 modes, 0.1s instant warm water |
| Strømforsyning | Standard 120V AC (check local voltage krav) |
| Certificeringer | CUPC, ETL, UL (as per brand information) |
Garanti og kundesupport
CASTA DIVA is committed to providing high-quality bathroom products and excellent customer experience. For specific warranty details, please refer to the warranty card included with your product or visit the official CASTA DIVA webwebsted.
For technical assistance, troubleshooting not covered in this manual, or to inquire about parts, please contact CASTA DIVA customer support:
- Online support: Besøg CASTA DIVA Store on Amazon for kontaktoplysninger og ressourcer.
- Inkluderede komponenter: Refer to the "Installation card" for additional support details.
Please have your model number (CD-K030) and purchase date available when contacting support.
