Indledning
Thank you for choosing the Maxfree Dual Portable Monitor M4. This manual provides essential information for setting up, operating, and maintaining your new dual monitor system. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.
Produkt overview
The Maxfree Dual Portable Monitor M4 is designed to expand your workspace with two 15.6-inch 1080P FHD IPS displays. Its folding design enhances portability, making it ideal for travel and various work environments.
Image: The Maxfree Dual Portable Monitor M4, featuring two 15.6-inch screens in an open, stacked configuration, ready for use.
Nøglefunktioner:
- Dual 15.6-inch 1080P FHD IPS Displays
- Plug & Play USB-C Connectivity
- Folding Design for Portability
- Matte Screen with Anti-glare, No Flicker, and Eye Care Functions
- 100 % sRGB farveskala
- Multiple Display Modes and 330° Rotation

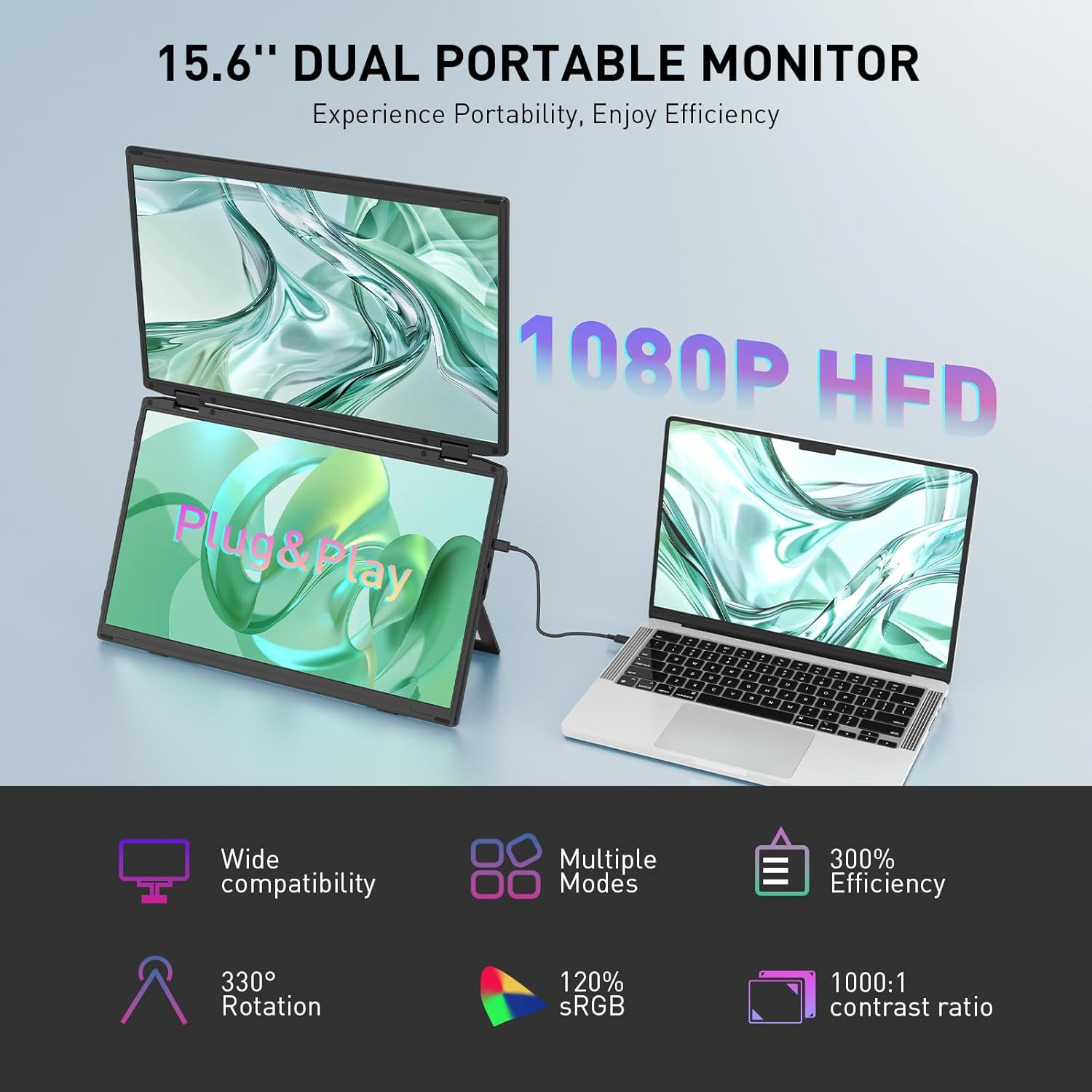

Image: The Maxfree Dual Portable Monitor M4 connected to a laptop, illustrating its plug-and-play functionality and various display modes.
Opsætningsinstruktioner
- Pak skærmen ud: Tag forsigtigt skærmen og alt tilbehør ud af emballagen.
- Placer skærmen: Placer skærmen på en stabil, plan overflade. Juster den integrerede stander til dine ønskede mål. viewvinkel.
- Connect to Power (Recommended): For optimal performance, connect the monitor to a power source using the provided USB-C power adapter (if included) or a compatible USB-C port on your device that supports power delivery.
- Opret forbindelse til enhed:
- USB-C-forbindelse: Connect one end of the provided USB-C cable to the monitor's USB-C port and the other end to a full-featured USB-C port on your laptop or PC. This single cable can transmit video, audio, and power.
- HDMI + USB-A Connection (if applicable): If your device does not have a full-featured USB-C port, you may need to use an HDMI cable for video and a USB-A to USB-C cable for power and touch functionality (if supported by your model). Refer to your device's manual for specific port requirements.
- Tænd: Press the power button on the monitor. Your device should automatically detect and extend the display.
- Juster skærmindstillinger: On your computer, navigate to Display Settings to configure the dual monitors (e.g., extend, duplicate, arrange displays).
Betjeningsvejledning
Skærmtilstande:
The Maxfree Dual Portable Monitor supports various display modes to enhance productivity:
- Udvidet tilstand: Expands your desktop across both screens, providing a larger workspace. This is ideal for multitasking.
- Duplikattilstand: Mirrors your primary display onto the portable monitors. Useful for presentations or sharing content.
- Lodret layout: The unique vertical stacking design minimizes scrolling and page switching, reducing eye and neck fatigue, especially for document review or coding.

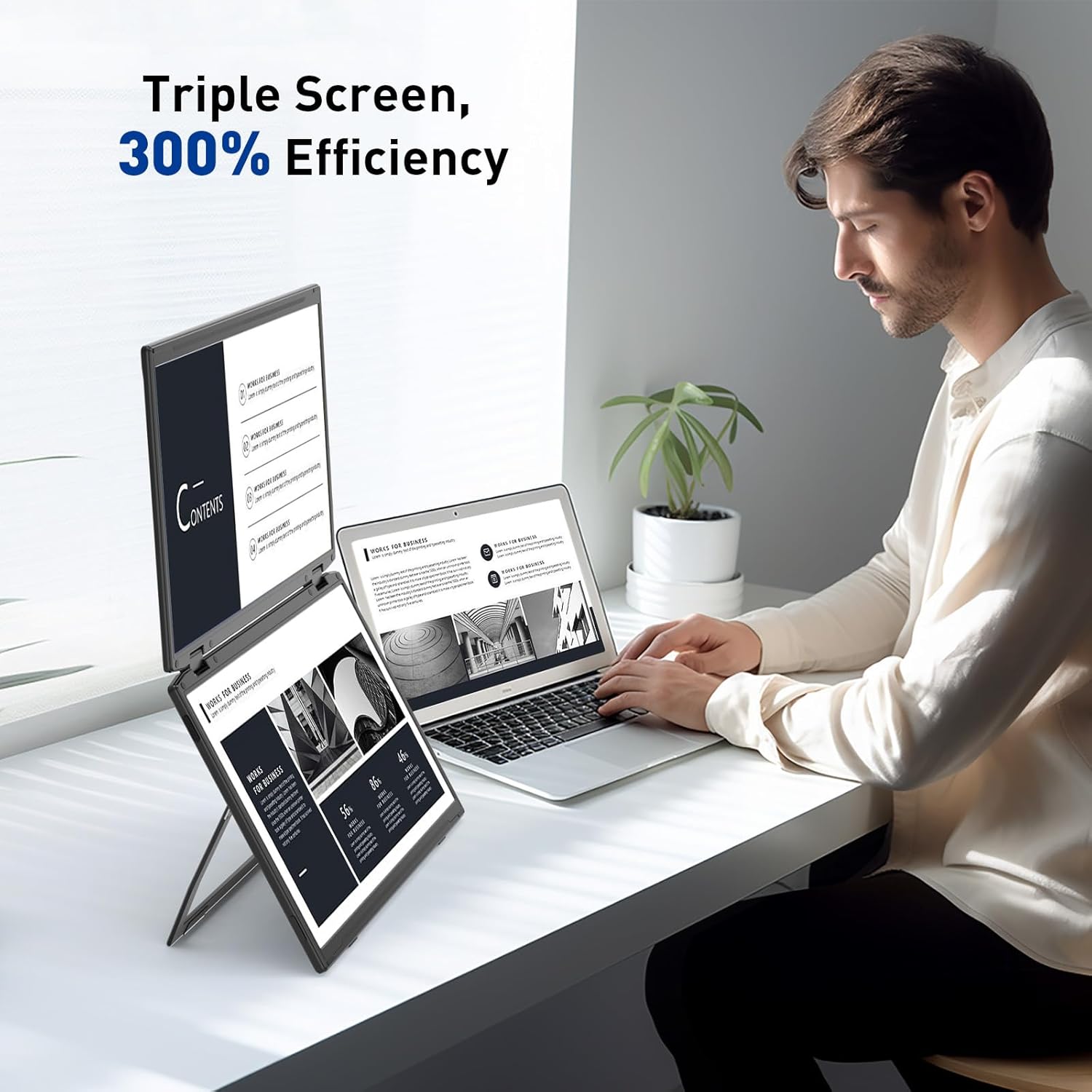

Image: A user demonstrating the Maxfree Dual Portable Monitor M4 in a vertical stacked setup, illustrating how it creates an efficient triple-screen workspace.
On-Screen Display (OSD) menu:
Use the buttons on the side of the monitor to access and navigate the OSD menu. This menu allows you to adjust settings such as:
- Lysstyrke og Kontrast
- Color Settings (e.g., sRGB, color temperature)
- Valg af inputkilde
- Aspektforhold
- Volume (if applicable)
Refer to the on-screen prompts for specific button functions (e.g., Menu, Up, Down, Exit).
Specifikationer
| Feature | Detalje |
|---|---|
| Skærmstørrelse | Dobbelt 15.6 tommer |
| Opløsning | 1920 x 1080 (FHD 1080p) |
| Paneltype | IPS |
| Aspektforhold | 16:9 |
| Skærmoverflade | Mat |
| Billedlysstyrke | 300 Candela |
| Farveskala | 100 % sRGB |
| Forbindelse | USB-C (Full-featured), HDMI (if applicable) |
| Samlet USB-porte | 1 (USB-C for main connection) |
| Voltage | 5 volt |
| Produktdimensioner | 0.5 x 14 x 9 tommer |
| Varens vægt | 3.5 pund |
| Modelnummer | M4 |
Fejlfinding
- Ingen visning:
- Ensure the USB-C cable is securely connected to both the monitor and your device.
- Bekræft, at din enheds USB-C-port understøtter videoudgang (DisplayPort Alternate Mode).
- Connect the monitor to an external power source if your device cannot provide sufficient power.
- Kontrollér computerens skærmindstillinger for at sikre, at den eksterne skærm er registreret og aktiveret.
- Flimrende skærm:
- Ensure the cable connections are secure.
- Prøv et andet USB-C-kabel.
- Reduce the display resolution or refresh rate on your computer.
- Image Quality Issues (Blurry, Incorrect Colors):
- Adjust the brightness, contrast, and color settings via the OSD menu.
- Ensure your computer's display resolution matches the monitor's native resolution (1920x1080).
- Monitor Not Powering On:
- Confirm the power cable is properly connected and the power outlet is functional.
- Tryk hårdt på tænd/sluk-knappen.
Opretholdelse
- Rengøring af skærmen: Tør forsigtigt skærmen af med en blød, fnugfri klud. Ved genstridige mærker, tør let afampRengør kluden med vand eller en skærmrengøringsopløsning. Undgå skrappe kemikalier eller slibende materialer.
- Rengøring af Casing: Brug en blød, tør klud til at tørre skærmens c afasing.
- Opbevaring: When not in use, fold the monitor and store it in a cool, dry place, preferably in its original packaging or a protective case to prevent damage.
- Undgå ekstreme forhold: Udsæt ikke skærmen for ekstreme temperaturer, fugtighed eller direkte sollys.
Garanti og support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Maxfree webwebsted.
Fabrikant: Shenzhen Baijiayoupu Technology CO., Ltd.
