ICERIVER KS7 LITE 4.2TH Kaspa Miner Instruction Manual

1. Introduktion

This manual provides essential instructions for the safe and efficient operation of your ICERIVER KS7 LITE 4.2TH Kaspa Miner. Please read this manual thoroughly before installation and use to ensure proper functionality and to prevent damage to the device or injury to personnel. This device is designed for Kaspa cryptocurrency mining.

2. Sikkerhedsoplysninger

• Elektrisk sikkerhed: Ensure the power supply unit (PSU) is connected to a grounded outlet. Do not overload electrical circuits. Use only the provided power cables or certified replacements.
• Ventilation: The miner generates heat. Ensure adequate airflow around the device. Do not block ventilation openings. Maintain a clear space of at least 20 cm (8 inches) around all sides of the miner.
• Driftsmiljø: Operate the miner within the specified temperature range of 0°C to 40°C (32°F to 104°F). Avoid high humidity, dust, and corrosive environments.
• Håndtering: Håndter enheden forsigtigt. Undgå at tabe den eller udsætte den for hårde stød.
• Demontering: Do not attempt to disassemble or modify the miner. This will void the warranty and may cause damage or injury.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• ICERIVER KS7 LITE 4.2TH Kaspa Miner Unit
• Strømforsyningsenhed (PSU)
• Power Cable (region-specific)
• Denne brugsanvisning

4. Produktet er slutview

Familiarize yourself with the components of your ICERIVER KS7 LITE miner.

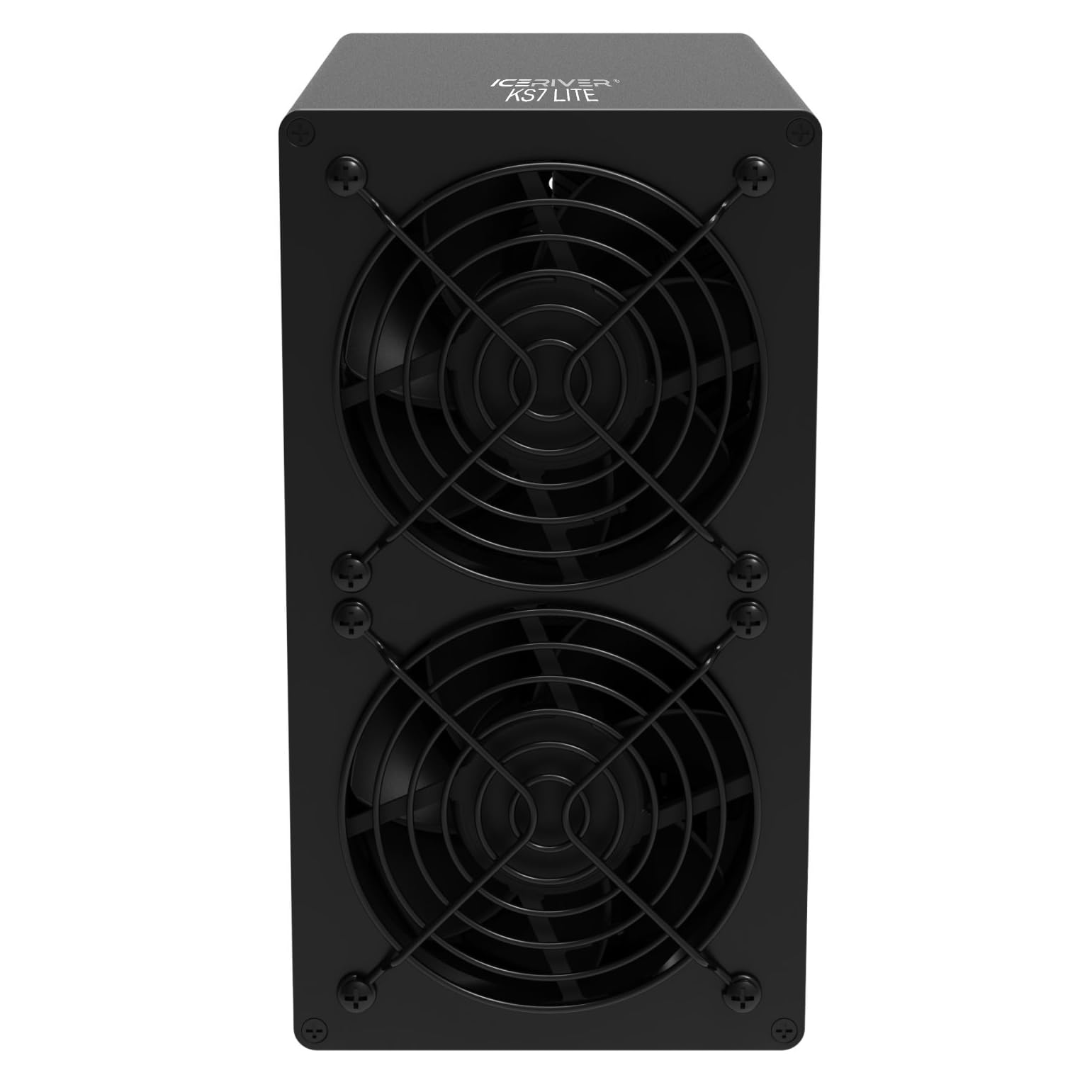

Figur 4.1: Forside View - This image displays the front of the ICERIVER KS7 LITE Kaspa Miner, featuring two prominent cooling fans with protective grilles. The fans are crucial for dissipating heat generated during operation.

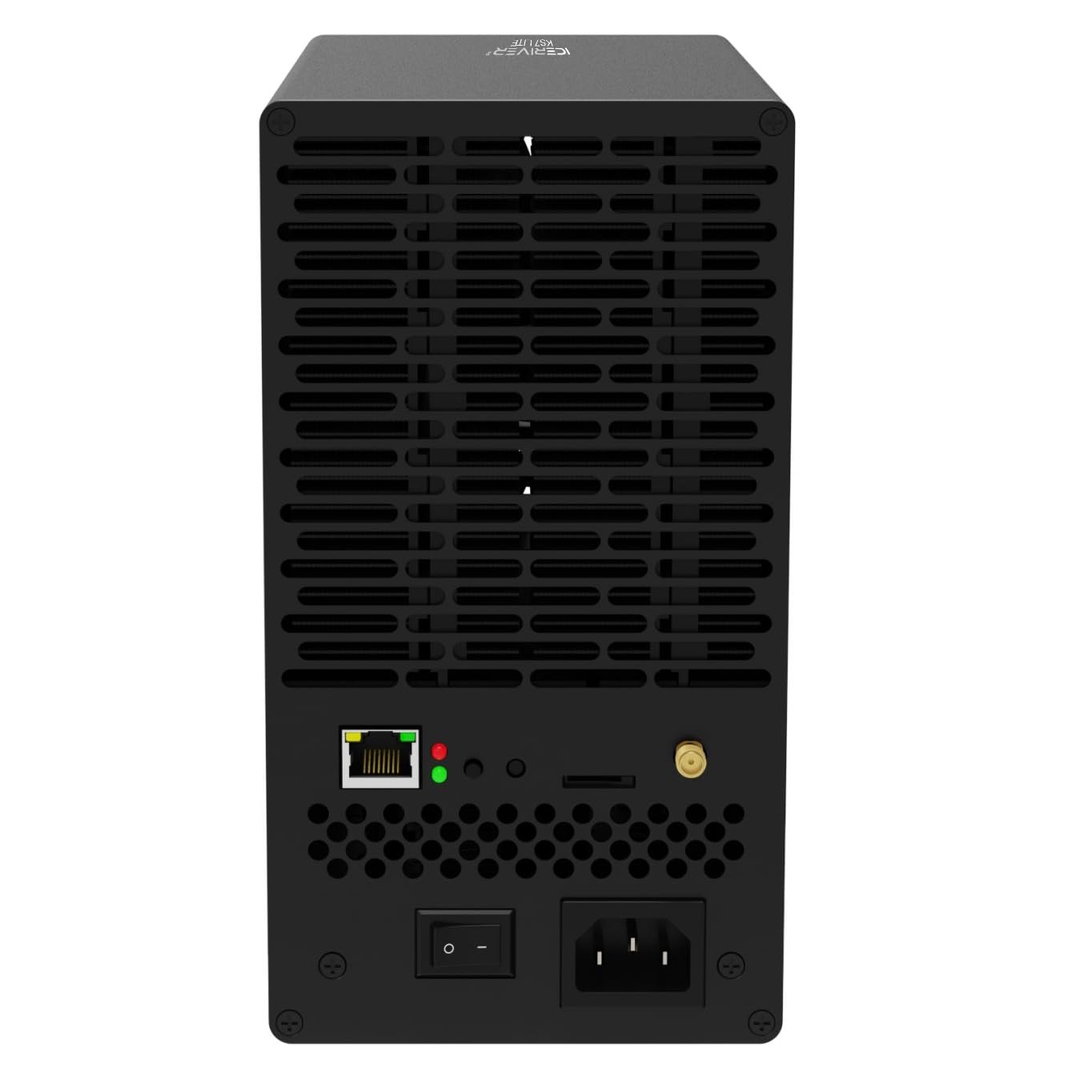

Figur 4.2: Bagside View - The rear panel of the miner is shown, highlighting the Ethernet port for network connectivity, LED indicator lights for status, a power on/off switch, and the AC power input socket. Also visible are ventilation grilles and a small antenna connector, likely for Wi-Fi (if applicable).

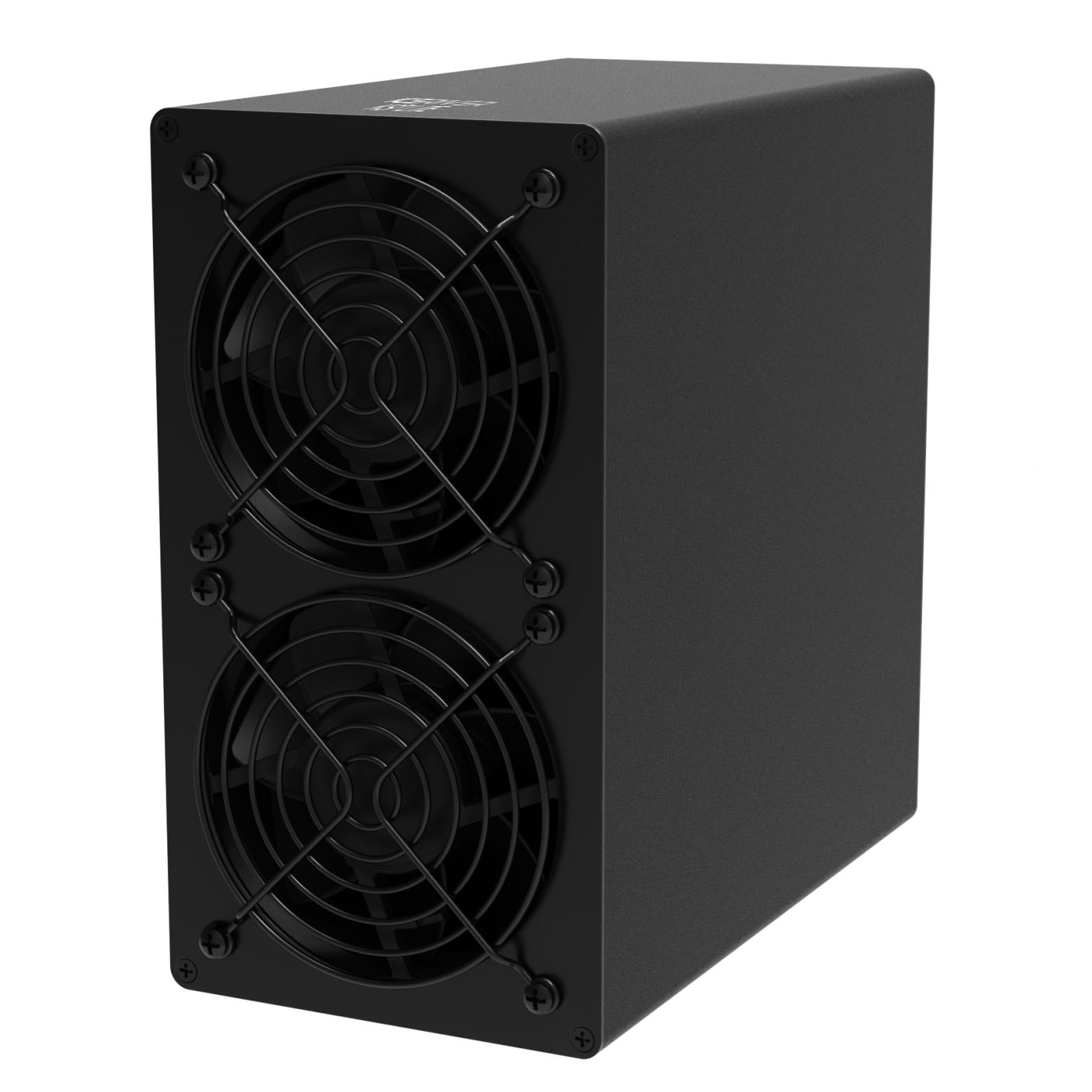

Figure 4.3: Side-Front View - This perspective shows the compact, black rectangular casing of the ICERIVER KS7 LITE miner, with a clear view of the two cooling fans on the front panel and the smooth side panel.

Nøglekomponenter:

• Køleventilatorer: Located at the front, these fans ensure optimal operating temperature.
• Ethernet-port: For network connection to your router or switch.
• Indikatorlys: Provide status feedback (e.g., power, network activity).
• Afbryderen: For at tænde eller slukke for enheden.
• AC strømindgang: Connects to the power supply unit.

5. Opsætning

5.1 Placering

• Choose a stable, flat surface in a well-ventilated area.
• Ensure the ambient temperature is within 0°C to 40°C.
• Keep the miner away from direct sunlight, heat sources, and excessive dust or moisture.
• Maintain at least 20 cm (8 inches) of clear space around all sides for proper airflow.

5.2 Tilslutning af strøm

1. Connect the power cable to the Power Supply Unit (PSU).
2. Connect the PSU output cables to the corresponding power input ports on the miner. Ensure all connections are secure.
3. Plug the power cable into a grounded electrical outlet (100-240V AC).

5.3 Tilslutning af netværk

• Connect an Ethernet cable from your router or network switch to the Ethernet port on the rear of the miner.
• Ensure the network connection is active and stable.

5.4 Indledende tænding

1. After connecting power and network, flip the power switch on the rear of the miner to the "ON" position.
2. The indicator lights will illuminate, and the fans will start.
3. Allow a few minutes for the miner to boot up and connect to the network.

6. Betjeningsvejledning

6.1 Adgang til Web Interface

1. Once the miner is powered on and connected to the network, you will need to find its IP address. This can typically be done through your router's administration page or by using an IP scanner tool on your network.
2. Åbn a web browser on a computer connected to the same network and enter the miner's IP address into the address bar.
3. Log in using the default credentials (refer to manufacturer documentation or the device label for default username/password).

6.2 Configuration for Mining

• Inden for web interface, navigate to the mining settings.
• Enter your Kaspa mining pool URL, worker name, and password (if required by your pool).
• Save the settings and restart the miner if prompted.
• Monitor the status page to confirm that the miner has started hashing and is submitting shares to the pool.

7. Vedligeholdelse

• Fjernelse af støv: Regularly inspect the cooling fans and ventilation grilles for dust accumulation. Use compressed air or a soft brush to gently clean them. Ensure the miner is powered off and unplugged before cleaning.
• Miljøovervågning: Periodically check the operating temperature and humidity of the environment to ensure it remains within the recommended range.
• Firmwareopdateringer: Check the manufacturer's official website for any available firmware updates. Follow the provided instructions carefully for updating firmware to ensure stability and performance.
• Kabelinspektion: Periodically inspect all power and network cables for any signs of wear or damage. Replace damaged cables immediately.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

For warranty information, technical support, or service inquiries, please contact your original seller or the manufacturer, ICERIVER, directly. Retain your proof of purchase for warranty claims. Do not attempt to repair the device yourself, as this may void the warranty.
