Aquaguard Sure Champ Brugsanvisning til RO+UV 2X vandrenser

1. Introduktion

This manual provides essential information for the installation, operation, and maintenance of your Aquaguard Sure Champ RO+UV 2X Water Purifier. Please read these instructions carefully before using the appliance to ensure proper function and safety. Keep this manual for future reference.

2. Sikkerhedsoplysninger

Overhold følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af apparatet:

• Sørg for, at strømforsyningen overholder specifikationerne på produktetiketten.
• Do not operate the purifier with a damaged power cord or plug.
• Hold apparatet væk fra direkte sollys, varmekilder og brandfarlige materialer.
• Do not immerse the appliance in water or spray water directly onto it.
• Only use genuine Aquaguard spare parts and filters for replacement.
• Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.

3. Produktet er slutview

The Aquaguard Sure Champ RO+UV 2X Water Purifier is designed to deliver clean and safe drinking water. It incorporates advanced filtration technologies to remove various contaminants.

Figure 3.1: Aquaguard Sure Champ RO+UV 2X Water Purifier. This image displays the main purifier unit in white and black, alongside a separate external mega sediment filter.

Nøglefunktioner:

• NanoPore-filterteknologi: Provides comprehensive protection against pesticides, microplastics, industrial waste (e.g., lead, mercury), bacteria, viruses, and cysts.
• 2 Year Filter Life: Filters are designed to last for 2 years or 12,000 litres, whichever occurs first, under standard laboratory test conditions (TDS ≤ 1000 ppm with NaCl).
• Free Service Plan: Includes free installation, two free cleaning services, and unlimited repair visits during the first year of ownership.
• Superior 6-Stage Rensning: Achieves 99.9999% bacteria reduction, 99.99% virus reduction, and offers 10 times more chemical protection through Sedi Shield, Particulate Filter, and Chemi Block stages.
• Vandbesparende RO-teknologi: The advanced filter design ensures over 40% water recovery and a faster filtration rate compared to standard RO systems.
• UV e-Boiling: Guarantees that every drop of water is as pure as water boiled for more than 20 minutes.
• Yderligere Mega Sedimentfilter: Removes fine dust, dirt, and mud particles from the incoming water, preventing choking and extending the lifespan of internal filters.
• Works With All Water Sources: Capable of purifying water from municipal supplies, borewells, or tanker water, with a maximum TDS level of 2000 mg/L.
• Widest Service Network: Supported by India's extensive service network, accessible across more than 19,500 pin-codes.

4. Opsætning og installation

Your Aquaguard Sure Champ RO+UV 2X Water Purifier comes with an installation kit. Professional installation is recommended to ensure optimal performance and adherence to safety standards.

4.1 Placering

The purifier is designed for countertop installation. Ensure the chosen location is stable, level, and has access to a water supply and electrical outlet. Maintain adequate space around the unit for ventilation and maintenance.

Figure 4.1: Product Dimensions. The purifier measures approximately 32cm in length, 27cm in width, and 48cm in height.

4.2 Connecting the Mega Sediment Filter

The additional Mega Sediment Filter should be installed externally to the main unit. This filter acts as the first stage of purification, removing larger particles and extending the life of the internal filters.

Figure 4.2: Mega Sediment Filter Installation. Water flows through this external filter first, which captures fine dust, dirt, and mud.

4.3 Water Source Connection

The purifier is compatible with various water sources, including municipal, borewell, and tanker water, provided the Total Dissolved Solids (TDS) level does not exceed 2000 mg/L. Connect the water inlet pipe to your chosen water source as per the installation guide provided with the product.

5. Betjeningsvejledning

Once installed, operating your Aquaguard Sure Champ RO+UV 2X Water Purifier is straightforward. The unit will automatically purify water and store it in its internal tank.

5.1 Purification Process

Renseren bruger en 6-stage purification process to ensure high-quality drinking water:

1. Mega-sedimentfilter: Removes large suspended particles like sand, dirt, and rust.
2. Sedi Shield 2X: Further filters finer suspended particles.
3. Partikelfilter: Fjerner patogene partikler og suspenderet materiale.
4. Chemi Block 2X: Absorbs organic impurities, chlorine, and other chemical contaminants.
5. RO Maxx 2X (NanoPore Filter Technology): Reduces TDS, removes microplastics, pesticides, and heavy metals like lead and mercury.
6. UV E-kogning: Uses UV radiation to eliminate bacteria and viruses, ensuring water purity equivalent to boiling for over 20 minutes.

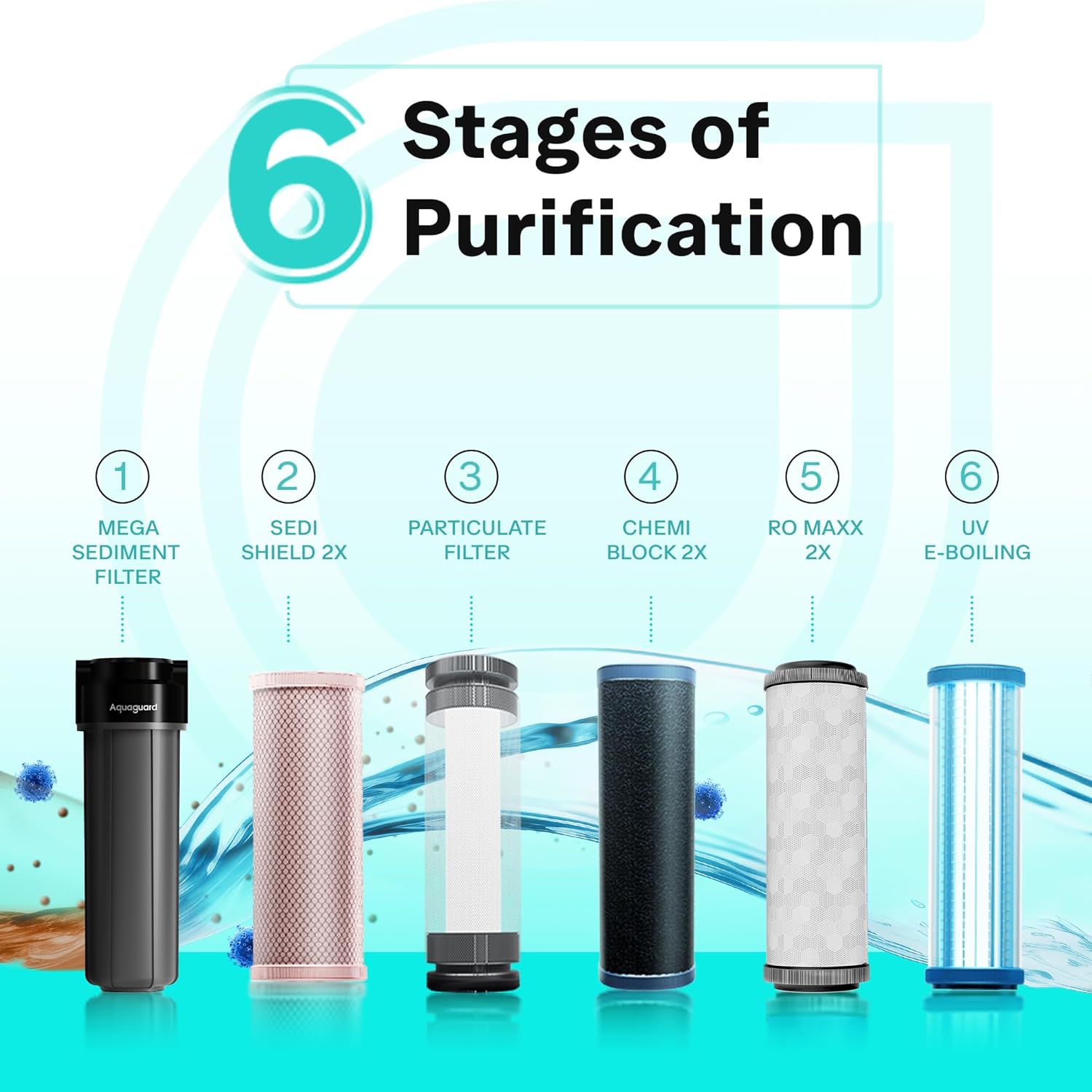

Figure 5.1: 6 Stages of Purification. This diagram illustrates the sequence of filters and technologies used to purify water.

Figure 5.2: NanoPore Filter Technology. This visual demonstrates how the NanoPore filter effectively removes various microscopic contaminants.

5.2 Vandudlevering

The purifier features a convenient dispensing tap. Place a glass or container under the tap and press the lever to dispense purified water. The unit has a large 6-liter storage capacity.

Figure 5.3: Water Dispensing and Water Saving RO Technology. The purifier efficiently dispenses water while its RO technology ensures over 40% water recovery.

5.3 Produkt overview Video

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din vandrensers levetid og effektivitet.

6.1 Filterudskiftning

The filters in your Aquaguard Sure Champ RO+UV 2X Water Purifier have a life of 2 years or 12,000 litres. It is crucial to replace them as recommended to maintain water quality. Refer to the indicator lights on the unit for filter replacement alerts.

6.2 Serviceplan

The product includes a genuine Aquaguard service plan, offering free installation, two free cleaning services, and unlimited repair visits during the first year. Contact customer support for service requests.

Figure 6.1: Aquaguard Service Network. This map illustrates the extensive reach of Aquaguard's service network across India, ensuring accessible support.

7. Fejlfinding

If you encounter any issues with your water purifier, refer to the following common troubleshooting steps:

• Ingen vandgennemstrømning: Check if the water supply is turned on and if the power cord is securely plugged in. Ensure the external sediment filter is not clogged.
• Langsom vandgennemstrømning: This may indicate clogged filters. Contact customer service for filter inspection or replacement.
• Usædvanlig smag/lugt: This could be a sign that filters need replacement. Avoid consuming water and contact customer support.
• Lækage: Immediately turn off the water supply and power to the unit. Contact customer service for assistance.
• Indikatorlys: Refer to the product's specific indicator light guide for error codes or maintenance alerts.

For issues not resolved by these steps, please contact Aquaguard customer support.

8. Specifikationer

9. Garanti og support

Your Aquaguard Sure Champ RO+UV 2X Water Purifier is backed by Aquaguard's extensive service network. For any warranty claims, service requests, or technical support, please refer to the contact information provided with your product or visit the official Aquaguard webwebsted.

Figure 9.1: Superior Health Protection. The Aquaguard purifier ensures safe and healthy drinking water for your family.
