Sonel MPI-536 Multifunction Electrical Installations Meter User Manual

1. Introduktion

The Sonel MPI-536 is a sophisticated multifunction electrical installations meter designed for comprehensive testing of home and industrial electrical systems. This instrument provides a wide range of measurements necessary to determine the safety and integrity of electrical installations, ensuring compliance with applicable regulations. Its advanced capabilities include high-voltage insulation resistance testing up to 2500 V, detailed insulation diagnostics, and automated measurement sequences for various parameters.

2. Sikkerhedsoplysninger

Always read and understand all safety instructions before operating the Sonel MPI-536 meter. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ensure the meter and all accessories are in good working condition before use. Do not use if damaged.
• Always wear appropriate personal protective equipment (PPE), including insulated gloves and safety glasses, when working with electrical installations.
• Do not exceed the maximum input ratings of the meter.
• Verify that the circuit under test is de-energized before making connections for resistance or continuity measurements, unless specifically instructed otherwise for live measurements (e.g., voltage, RCD tests).
• Undgå kontakt med strømførende kredsløb.
• Refer to local and national electrical safety codes and regulations.
• Only qualified personnel should perform electrical measurements and installations.

3. Pakkens indhold

Ved udpakning skal du kontrollere, at alle nedenstående varer er til stede og ubeskadigede:

• Sonel MPI-536 Multifunction Electrical Installations Meter
• Standard test leads and probes
• Strømadapter/oplader
• Brugervejledning (dette dokument)
• Other accessories as specified by the manufacturer (e.g., carrying case, software CD, USB cable)

4. Produktet er slutview

The Sonel MPI-536 meter combines the functionality of several devices into a single, accurate instrument. It is designed to perform a comprehensive set of measurements required for commissioning and periodic inspection of electrical installations.

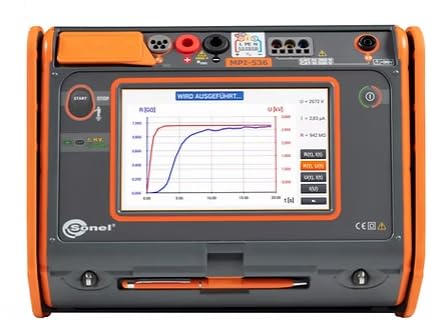

Figur 1: The Sonel MPI-536 Multifunction Electrical Installations Meter. The display shows a graph, likely representing insulation resistance over time, indicating the meter's advanced diagnostic capabilities.

Nøglefunktioner:

• Comprehensive Measurement Capabilities: Performs short circuit loop impedance (including RCD-protected circuits), RCD parameters, insulation resistance, earth resistance (4 methods + soil resistivity), continuity of protective and equipotential bondings, light intensity, phase sequence, and motor rotation direction tests.
• Høj voltage Insulation Testing: Offers insulation resistance control with a maximum measurement voltage på 2500 V.
• Advanced Insulation Diagnostics: Supports R(t)/U(t), R(t)/I(t), U(t)/I(t), I(U) graphs, absorption coefficients, and temperature coefficients for thorough insulation analysis.
• Automated Measurements: Features automatic RCD testing and pre-programmed or user-defined measuring sequences (auto-tests).
• Optional AutoISO-2500 Adapter Support: Enables automatic insulation resistance measurement of 3-, 4-, or 5-core cables/wires.

5. Opsætning

5.1. Batteriinstallation og opladning

The MPI-536 is powered by an internal rechargeable battery. Ensure the battery is fully charged before initial use. Connect the provided power adapter to the meter's charging port and to a suitable power outlet. The charging indicator on the meter will show the charging status.

5.2. Tilslutning af testledninger

Carefully connect the appropriate test leads and probes to the input terminals of the MPI-536 meter. Ensure all connections are secure and free from damage. Refer to the specific measurement section for correct lead configurations.

6. Betjeningsvejledning

The Sonel MPI-536 offers a wide array of measurement functions. Navigate through the menu using the meter's controls to select the desired test. Always ensure correct connections and settings for each measurement type.

6.1. Måling af isolationsmodstand

The MPI-536 can measure insulation resistance up to 2500 V. This function is critical for assessing the condition of electrical insulation in cables, motors, and other equipment.

• Procedure: Select the insulation resistance test mode. Connect the test leads to the circuit or component under test. Ensure the circuit is de-energized and isolated before applying test voltage. Initiate the measurement. The meter will display the resistance value and can generate diagnostic graphs (R(t)/U(t), R(t)/I(t), U(t)/I(t), I(U)) for detailed analysis.
• Avanceret diagnostik: The meter automatically calculates absorption coefficients (DAR, PI) and temperature coefficients, which are vital for evaluating insulation degradation over time.
• Automatic Cable Testing: With the optional AutoISO-2500 adapter, the meter can automatically test insulation resistance of multi-core cables.

6.2. Residual Current Device (RCD) Testing

The meter performs comprehensive RCD tests in accordance with relevant standards, including automatic test sequences.

• Procedure: Select the RCD test mode. Connect the test leads to the RCD-protected circuit. Choose the RCD type, rated current, and test current multiplier. The meter can perform tests in 'Auto' mode, executing a sequence of measurements (e.g., trip time, trip current) automatically.

6.3. Earth Resistance Measurement

The MPI-536 supports four methods for earth resistance measurement, along with soil resistivity measurement.

• Metoder: Includes 3-pole, 4-pole, two-clamp, and three-clamp methods. Select the appropriate method based on site conditions and requirements.

6.4. Short Circuit Loop Impedance

Measures the impedance of the fault loop, essential for verifying the effectiveness of overcurrent protective devices.

• Procedure: Connect the leads to the live, neutral, and protective earth conductors. The meter can perform tests in circuits protected by RCDs without tripping them.

6.5. Continuity of Protective and Equipotential Bondings

Verifies the low resistance path of protective conductors and equipotential bonding conductors.

• Procedure: Use the continuity test function to measure resistance between protective conductors and exposed conductive parts.

6.6. Other Measurements

• Lysintensitetsmåling: For assessing illumination levels.
• Phase Sequence Test: To verify the correct rotation of phases in three-phase systems.
• Motor Rotation Direction Test: To ensure motors are wired for correct rotational direction.

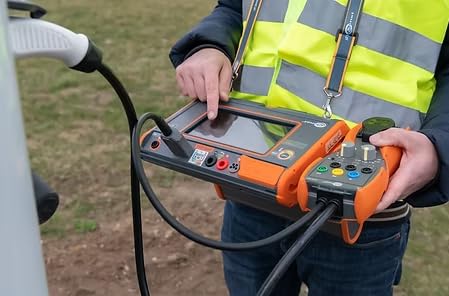

Figur 2: An individual operating the Sonel MPI-536 meter to perform tests on an electric vehicle charging station. This demonstrates the meter's application in modern electrical infrastructure.

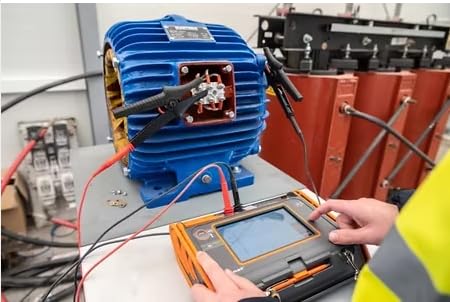

Figur 3: A technician utilizing the Sonel MPI-536 meter to conduct tests on an electric motor. The meter is connected to the motor's terminals, indicating insulation or winding resistance measurements.

7. Vedligeholdelse

7.1. Rensning

Clean the meter's casing med en blød, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at der ikke kommer fugt ind i enheden.

7.2. Opbevaring

Store the MPI-536 in a dry, cool environment, away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the battery is partially charged (around 50%) to prolong its lifespan.

7.3. Kalibrering

Regular calibration by an authorized service center is recommended to ensure the continued accuracy and reliability of the meter. Refer to local regulations or manufacturer recommendations for calibration intervals.

8. Fejlfinding

This section addresses common issues you might encounter with your Sonel MPI-536 meter.

• Enheden tænder ikke: Check battery charge level. Ensure the power button is pressed correctly. If using an external power source, verify the connection.
• Upræcise læsninger: Verify test lead connections are secure and undamaged. Ensure the correct measurement function is selected. Check for external interference or environmental factors. Consider professional calibration if issues persist.
• Visningsproblemer: If the display is blank or flickering, try restarting the device. Ensure the battery is adequately charged.
• Fejlmeddelelser: Refer to the meter's on-screen help or the full technical manual for specific error code interpretations and solutions.

If you encounter problems not covered here, or if troubleshooting steps do not resolve the issue, contact Sonel customer support or an authorized service center.

9. Specifikationer

Below are the key technical specifications for the Sonel MPI-536 Multifunction Electrical Installations Meter:

10. Garanti og support

10.1. Garantioplysninger

The Sonel MPI-536 Multifunction Electrical Installations Meter comes with a 2 års garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, unauthorized modifications, or improper maintenance.

10.2. Kundesupport

For technical assistance, service, or warranty inquiries, please contact your authorized Sonel distributor or visit the official Sonel website for support contact information. When contacting support, please have your meter's model number (MPI-536) and serial number readily available.
