Frienhund Automatic Pet Feeder with 2 Cameras User Manual

1. Introduktion

This manual provides detailed instructions for the setup, operation, and maintenance of your Frienhund Automatic Pet Feeder with 2 Cameras. Designed for convenience and pet well-being, this feeder allows you to manage your pets' feeding schedules remotely, monitor their activities, and ensure they receive fresh food consistently. Please read this manual thoroughly before using the device to ensure proper function and safety.

2. Sikkerhedsoplysninger

• Sørg for, at foderautomaten er placeret på en stabil, plan overflade for at forhindre, at den vælter.
• Keep the power adapter and cable away from water and out of reach of pets to prevent chewing or electrical hazards.
• Brug kun den medfølgende strømadapter.
• Do not immerse the main feeder unit in water. Refer to the cleaning section for detachable parts.
• This device is designed for dry pet food only. Do not use wet food, canned food, or treats larger than 15mm (0.59 inches).
• Opbevares utilgængeligt for børn.
• Always unplug the feeder before cleaning or performing maintenance.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• Automatic Pet Feeder Unit (with 2 Cameras) x 1
• Stainless Steel Feeding Bowls x 2
• Bowl Tray x 1
• Låg x 1
• Meal Splitter x 1
• Strømadapter x 1
• USB-kabel x 1
• Tørremiddelpose x 1
• ABS Wall Hook x 1
• Skruer x 4
• Ankre x 4
• Brugervejledning x 1

This image illustrates the complete set of items you should find in your Frienhund Automatic Pet Feeder package, including the main feeder unit, bowls, power accessories, and mounting hardware.

4. Produktet er slutview

The Frienhund Automatic Pet Feeder is designed with user-friendly features and robust construction. Key components include:

• Madtank: 7L (29 cups) capacity, transparent for easy monitoring of food levels. Made from BPA-Free ABS material.
• Låg: Features a safety twist-lock mechanism and a compartment for the desiccant bag to maintain food freshness.
• Foderbase: Houses the dispensing mechanism, control panel, and dual cameras. Designed for stability to resist overturning.
• Dobbelte kameraer: Two Full HD 3-megapixel cameras with infrared night vision for monitoring pets and food levels.
• Kontrolpanel: Includes buttons for manual feeding and network connection.
• Foderskåle: Two stainless steel bowls, detachable and dishwasher safe, placed 18.7 inches apart for comfortable multi-pet feeding.
• Dobbelt strømforsyning: Operates via DC 5V power adapter with an option for 3 D cell batteries (not included) as backup.

This image displays the overall design of the feeder, highlighting its dual bowls, transparent food tank, and integrated camera system.

This infographic provides a quick visual summary of the feeder's main functionalities and specifications, such as its large food capacity and advanced connectivity.

5. Opsætningsvejledning

5.1 Montering

1. Place the feeder base on a stable, flat surface.
2. Insert the meal splitter into the designated slot in the feeder base.
3. Place the bowl tray onto the feeder base, ensuring it is securely seated.
4. Place the two stainless steel bowls into the designated slots on the bowl tray.
5. Fill the food tank with dry pet food (recommended food size: 5-15mm).
6. Insert the desiccant bag into the compartment under the lid.
7. Place the lid securely on top of the food tank, ensuring the twist-lock mechanism is engaged.

The transparent food tank allows for easy visual inspection of the remaining food quantity, ensuring you know when to refill.

This image provides guidance on the appropriate dimensions and varieties of pet food suitable for use with the feeder, ensuring smooth operation and preventing blockages.

5.2 Strømtilslutning

Connect the power adapter to the feeder and plug it into a wall outlet. For continuous operation during power outages, install 3 D cell batteries (not included) in the battery compartment at the bottom of the feeder. A nylon braided power cord is included to prevent pet chewing.

This diagram shows how the feeder can be powered by both the included DC 5V adapter and optional D cell batteries, ensuring uninterrupted feeding even during electrical disruptions.

This image illustrates the robust design of the power cord, which is braided to resist damage from pet chewing, enhancing safety and durability.

5.3 Network Connection (App Setup)

The Frienhund Automatic Pet Feeder supports dual-band WiFi (2.4GHz & 5GHz) for stable and fast connectivity. Download the "Smart Life" App from your device's app store.

Follow the instructions in the video below to connect your feeder to the network:

Key steps for network connection:

1. Plug in the power supply. The indicator light will blink blue and a voice prompt will sound, indicating it's ready for network connection.
2. Ensure your phone's Bluetooth, WLAN (Wi-Fi), and GPS are turned on.
3. Open the "Smart Life" App and select "Add Device".
4. The app may automatically detect the feeder. If not, manually select "Small Home Appliances" > "Pet Feeder with Camera (2.4GHz & 5GHz)".
5. Enter your Wi-Fi information (SSID and password).
6. For camera models, you may need to scan a QR code displayed on your phone screen using the feeder's camera. Hold your phone 15-20 cm away from the feeder's camera until you hear a long beep, indicating successful scanning.
7. The feeder will then connect to your network. Once connected, the blue indicator light will remain solid.

This image illustrates the mobile application's interface, showcasing the various remote control features available for managing your pet's feeding and monitoring their activities from anywhere.

This image demonstrates the location-based feeding feature, which can automatically adjust the feeding schedule when you leave or return home, providing flexibility for pet owners.

6. Betjeningsvejledning

6.1 Indstilling af fodringsplaner

Using the "Smart Life" App, you can set up to 20 meals per day, with a maximum of 12 portions per meal. This allows for precise control over your pet's diet and feeding habits.

• Open the app and navigate to your feeder's control interface.
• Select "Feeding Schedule" and tap "Add" to create a new feeding time.
• Choose the desired time, number of portions, and days of the week for the feeding.
• Save the schedule. You can view your pet's feeding history within the app.

This image shows the app's ability to keep a clear record of every meal dispensed, aiding in monitoring your pet's dietary intake.

6.2 Manuel fodring

You can dispense food manually at any time using the app or the physical button on the feeder.

• Via app: On the feeder's control interface, select the number of portions and tap "Feed".
• Via Feeder: Press the manual feed button on the feeder's control panel.

6.3 Slow Feeding Mode

To prevent fast eating, regurgitation, bloating, and obesity, enable the slow feeding mode. When activated, the feeder dispenses one portion of food every minute.

• Access the feeder settings in the "Smart Life" App.
• Toggle the "Slow Feeding Mode" option on or off as needed.

This image highlights how the slow feeding mode addresses common issues like rapid consumption and digestive problems, promoting healthier eating habits for pets.

6.4 Kamerafunktioner

The feeder's two Full HD 3-megapixel cameras offer comprehensive monitoring capabilities:

• Levende View: Access real-time video of your pets and food bowls through the app.
• Nattesyn: Infrared sensors ensure clear visibility even in low-light conditions.
• Foto-/videooptagelse: Capture moments and store them via TF card (up to 128GB, not included) or cloud storage (subscription may be required).
• Bevægelsesdetektion: Receive alerts on your phone when your pet is active near the feeder.
• Tovejs lyd: Communicate with your pets remotely using the built-in microphone and speaker.

This image demonstrates the dual camera system, allowing for comprehensive supervision of your pets' eating habits and overall activity around the feeder.

This image highlights the feeder's infrared night vision, ensuring clear monitoring of your pets even in complete darkness, providing peace of mind around the clock.

6.5 Multi-Pet Feeding

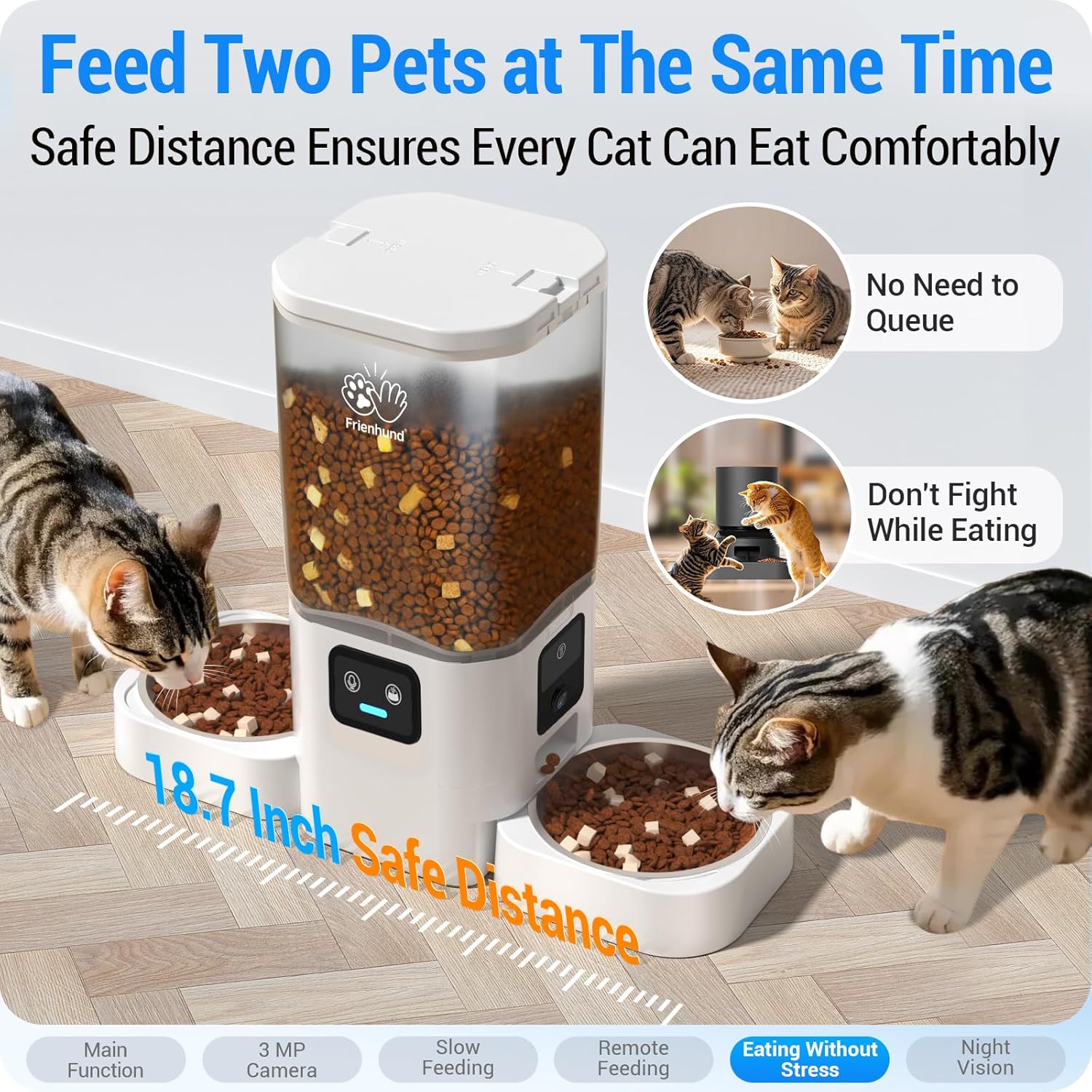

The feeder is designed with two bowls spaced 18.7 inches apart, providing ample room for two pets to eat simultaneously without interference or conflict.

This image demonstrates the thoughtful design of the feeder, providing a safe and comfortable distance between the two feeding bowls to prevent pets from fighting over food.

7. Vedligeholdelse & Rengøring

Regular cleaning ensures hygiene and extends the life of your feeder. The detachable design makes cleaning easy.

1. Unplug the Feeder: Always disconnect the power adapter and remove backup batteries before cleaning.
2. Skille ad: Remove the lid, food tank, meal splitter, bowl tray, and stainless steel bowls.
3. Clean Bowls: The stainless steel bowls are dishwasher safe.
4. Clean Food Tank & Tray: The food tank and bowl tray can be hand-washed with mild soap and water. Ensure they are completely dry before reassembly.
5. Rengør hovedenhed: Wipe the exterior of the main feeder unit with a damp klæde. Nedsænk den ikke i vand.
6. Replace Desiccant: Replace the desiccant bag every 1-2 months to maintain food freshness.
7. Saml igen: Once all parts are dry, reassemble the feeder in reverse order of disassembly.

This image demonstrates the ease of cleaning due to the feeder's detachable components, with parts suitable for both hand washing and dishwasher use, ensuring optimal hygiene.

8. Fejlfinding

If you encounter issues with your Frienhund Automatic Pet Feeder, refer to the following common problems and solutions:

This image highlights the feeder's robust and stable design, engineered to resist overturning by active pets, ensuring food remains accessible and the unit stays upright.

This diagram illustrates the option to fix the feeder to a wall using the provided ABS wall hook, offering enhanced stability and preventing accidental tipping, especially useful for playful pets.

9. Specifikationer

• Modelnavn: automatic cat feeder with two camera
• Varemodelnummer: ACF180W-US-D
• Kapacitet: 7L (approx. 29 cups)
• Materiale: Acrylonitrile Butadiene Styrene (ABS), Stainless Steel (bowls)
• Varens vægt: 4.1 pund
• Produktdimensioner: 18.7 x 7.1 x 15.8 tommer
• Strømforsyning: DC 5V Power Adapter, 3 x D Cell Batteries (not included)
• Forbindelse: Dual-band WiFi (2.4GHz & 5GHz)
• Kamera: Full HD 3-megapixel, Infrared Night Vision, 145-degree wide angle
• Fodringsplan: Up to 20 meals/day, 1-12 portions/meal
• Recommended Food Size: 5-15 mm (0.19-0.59 tommer)
• Vedligeholdelsesinstruktioner: Detachable food tank and stainless steel bowls (dishwasher safe), main unit hand wash only.

10. Garanti og support

Frienhund offers a free one-year warranty for your automatic cat feeder. For any issues, questions, or support needs, please contact our customer service team.

• Garantiperiode: One (1) Year from date of purchase.
• Kundeservice: 24/7 online support available.
• Kontakte: Refer to your purchase order for specific contact methods (e.g., email, phone, or through the seller platform).

This image highlights Frienhund's commitment to quality assurance, a 12-month warranty, and 24/7 online customer service, ensuring comprehensive support for users.
