SEYVUM 40V 16-tommer batteridrevet plæneklipper brugermanual

Vigtige sikkerhedsoplysninger

Read all instructions carefully before operating the lawn mower. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

• Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and sturdy footwear when operating the mower.
• Ensure the work area is clear of debris, stones, wires, and other objects that could be thrown by the blade.
• Brug ikke plæneklipperen i vådt græs eller regn.
• Keep hands and feet away from the cutting blade. Disconnect the battery before performing any maintenance or clearing blockages.
• Never allow children or untrained individuals to operate the lawn mower.
• Betjen kun plæneklipperen i dagslys eller godt kunstigt lys.
• Avoid operating on slopes greater than 15 degrees. Mow across the face of slopes, never up and down.
• Store the mower and batteries in a dry, secure location, out of reach of children.

Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• SEYVUM 40V 16-inch Cordless Lawn Mower Unit
• 2 x 20V 4.0Ah litium-ion-batterier
• 2.4A hurtigoplader
• 45L Grass Collection Bag
• Brugervejledning (dette dokument)

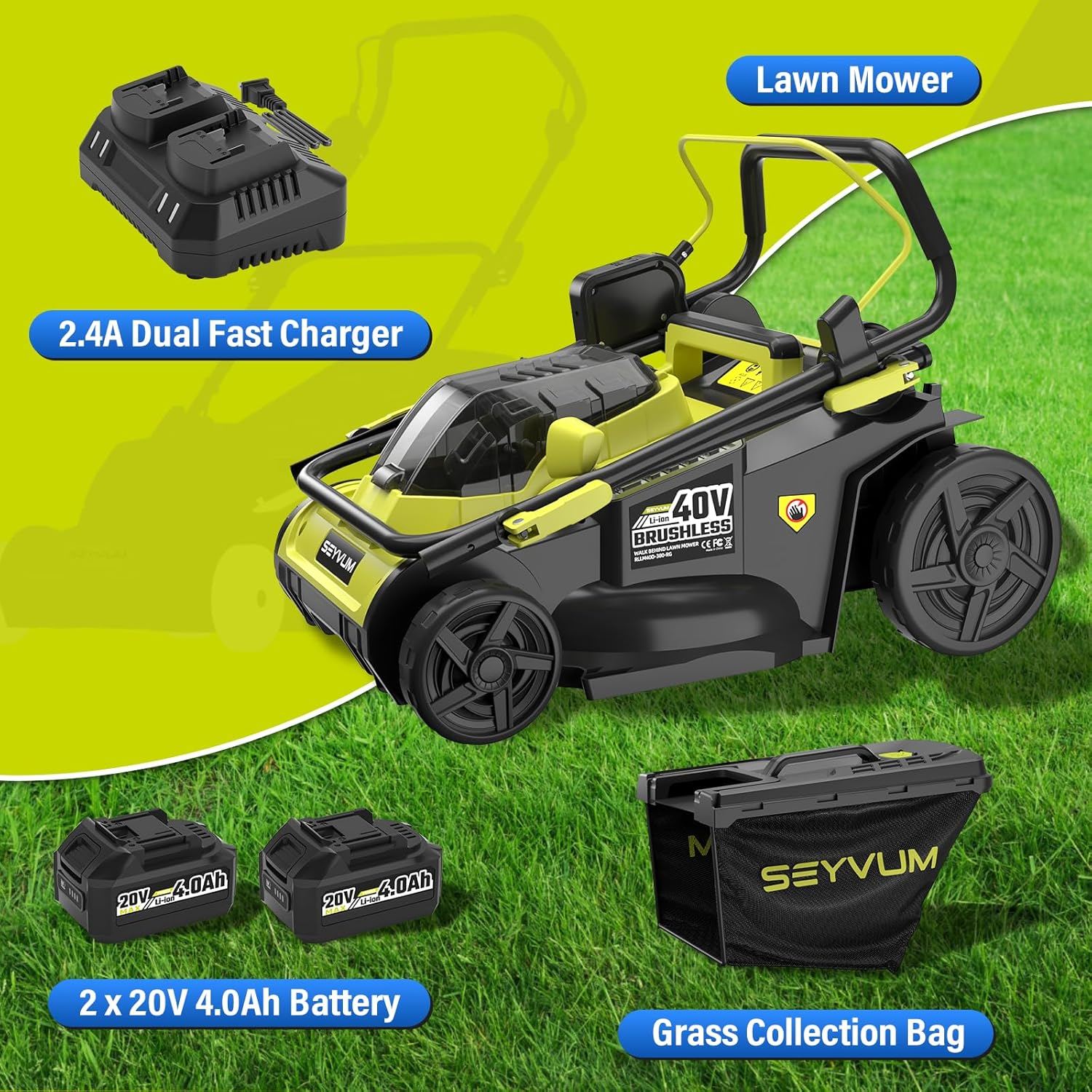

Image: Contents of the SEYVUM 40V 16-inch Cordless Lawn Mower package, including the mower, two 20V 4.0Ah batteries, a dual fast charger, and the grass collection bag.

Forsamling

Follow these steps to assemble your SEYVUM Cordless Lawn Mower:

1. Udpak komponenter: Tag forsigtigt alle komponenter ud af emballagen. Undersøg for eventuelle skader.



   Image: Labeled diagram showing key components of the SEYVUM lawn mower, including the upper push bar, safety lock button, cable clips, carrying handle, battery compartment lid, cutting height adjustment, grass box, wheel, 2x 4.0Ah batteries, charger, and mower deck.

2. Fastgør håndtag: Secure the upper push bar (handle) to the mower body using the provided quick-assembly set. Ensure cable clips are used to manage the wiring neatly.



   Image: Visual guide demonstrating how to unfasten the buckle to fold or adjust the angle of the mower handle for assembly and storage.

3. Assemble Grass Collection Bag: Assemble the 45L grass collection bag according to the instructions provided with the bag. Ensure the buckle is installed correctly for secure attachment to the mower.



   Billede: Nærbillede view emphasizing the correct installation of the grass collection bag buckle to ensure it is securely attached to the mower.

Opladning af batteriet

Your SEYVUM lawn mower is powered by two 20V 4.0Ah lithium-ion batteries. It is recommended to fully charge the batteries before first use.

1. Tilslut oplader: Plug the 2.4A Fast Charger into a standard electrical outlet.

2. Indsæt batterier: Insert the 20V 4.0Ah batteries into the charging slots on the charger. Ensure they are seated firmly.



   Image: Two 20V 4.0Ah SEYVUM batteries placed on their dual fast charger, indicating the charging process.

3. Opladningsindikatorer: The charger will indicate the charging status (e.g., red for charging, green for fully charged). A full charge typically takes approximately 2 hours.

4. Fjern batterier: Når batterierne er fuldt opladet, skal de tages ud af opladeren.

Image: Illustration of the dual 20V 4.0Ah battery system, highlighting their capacity for 30 minutes of garden lawn mowing or 25 minutes of hard thatch cutting, with a 2-hour fast charging time.

Operation

Inserting Batteries and Safety Key

Before operating, ensure both charged batteries are inserted into the battery compartment and the safety key is engaged.

Image: Visual instruction to insert the safety key into the battery compartment before use and to remove it when storing the mower.

Start og stop af plæneklipperen

1. At begynde: Push the button to turn ON, then push the trigger to start the mower.

2. At stoppe: Release the trigger to turn OFF the mower.

Image: Step-by-step diagram illustrating how to operate the mower: 1) Push the button to turn ON, 2) Push the trigger to start, and 3) Release the trigger to turn OFF. Also notes to insert the safety key before use.

Justering af klippehøjde

The mower offers 6 adjustable cutting heights from 0.98 inches to 2.95 inches.

1. Locate Adjustment Lever: The cutting height adjustment lever is located on the mower deck.

2. Vælg højde: Move the lever to the desired height setting. Refer to the markings on the mower for specific height measurements.

Image: A visual representation of the SEYVUM lawn mower's 6-position cutting height adjustment, ranging from 0.98 inches to 2.95 inches, with corresponding gear settings.

Image: Detailed illustration of the 6-position cutting height adjustment mechanism, showing different grass lengths corresponding to settings from 0.98" to 2.95".

Using the Grass Collection Bag

The 45L grass collection bag efficiently collects clippings, reducing cleanup time.

1. Attach Bag: Ensure the grass collection bag is securely attached to the mower before operation.

2. Monitorens fyldningsniveau: Periodically check the bag's fill level. Empty the bag when it is full to maintain optimal mowing performance.



   Image: A user attaching or detaching the 45L grass collection bag from the SEYVUM lawn mower, demonstrating its large capacity.

3. Tømning: Disconnect the battery, then remove the grass bag and empty its contents. Reattach securely before resuming operation.



   Image: A visual reminder to regularly remove weeds and grass clippings from the grass collection bag to maintain efficiency.

Image: An illustration emphasizing the 45L large capacity grass collection bag, with warnings against mowing over stones, irrigation sprinklers, slopes greater than 15 degrees, wet lawns, or electric cables.

Klippetips

• For at opnå de bedste resultater, slå græsset, når det er tørt.
• Do not attempt to cut more than one-third of the grass blade length at a time.
• Overlap skæreskårene let for at sikre jævn dækning.
• Avoid sudden turns or stops while mowing.
• The 16-inch cutting width is ideal for small to medium-sized lawns.

Image: A person operating the SEYVUM lawn mower, highlighting its 16-inch cutting width for efficient grass cutting.

Opretholdelse

Regelmæssig vedligeholdelse sikrer din plæneklippers lange levetid og optimale ydeevne.

• Rensning: After each use, disconnect the battery and clean the mower deck and grass collection bag. Use a damp cloth to wipe down surfaces. Do not use water jets or harsh chemicals.

• Klingepleje: Periodically inspect the cutting blade for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn. If necessary, have the blade sharpened or replaced by a qualified service technician.

• Batteriopbevaring: Opbevar batterier et køligt og tørt sted væk fra direkte sollys og ekstreme temperaturer. Ved langtidsopbevaring skal batterierne oplades til cirka 50 % kapacitet.

• Opbevaring: For convenient storage, the mower handle can be folded. Ensure the safety key is removed and batteries are disconnected before folding. Store the mower in a dry, secure location.



  Image: The SEYVUM lawn mower with its handle folded, demonstrating its compact design for convenient storage in small spaces.

• Generel inspektion: Regularly check all nuts, bolts, and fasteners for tightness. Ensure all safety features are functioning correctly.

Fejlfinding

Specifikationer

Image: The SEYVUM 40V 16-inch Cordless Lawn Mower, showcasing its design along with the included 20V 4.0Ah batteries and charger.

Garanti og support

For warranty information and customer support, please refer to the official SEYVUM webwebstedet eller kontakt deres kundeservice direkte. Behold din købskvittering som købsbevis.

For additional support or to purchase replacement parts, visit the SEYVUM Store on Amazon.
