Indledning
Thank you for choosing the Polibi Queen Size Murphy Bed Wall Bed. This innovative furniture piece is designed to maximize your living space by seamlessly transforming from a compact cabinet with integrated storage and a built-in desk into a comfortable queen-size bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new Murphy bed system.
Image: The Polibi Queen Size Murphy Bed system, showcasing its dual functionality as a space-saving cabinet and a comfortable bed. The inset image highlights the transformation from desk to bed.
Sikkerhedsoplysninger
Please read and understand all safety warnings and instructions before assembly and use. Failure to follow these instructions may result in serious injury or property damage.
- Voksensamling påkrævet: This product requires assembly by at least two adults.
- Vægmontering: The Murphy bed must be securely anchored to a wall stud or appropriate structural support. Do not attempt to use the bed without proper wall mounting.
- Vægt kapacitet: Do not exceed the maximum bed weight capacity of 600 lbs (including mattress and occupants).
- Madrasskompatibilitet: Use a mattress with a recommended thickness of 8-10 inches. Using a mattress outside this range may affect the bed's operation and safety.
- Klarering: Ensure adequate clearance around the bed when extending and retracting. Keep children and pets away during operation.
- Regelmæssig inspektion: Kontrollér regelmæssigt alle fastgørelseselementer og forbindelser for at sikre, at de forbliver stramme og sikre.
- Ingen hop: Hop ikke op i sengen.
Opsætning og montering
Your Polibi Murphy Bed system arrives in 4 separate packages. All necessary hardware and detailed assembly instructions are included. It is highly recommended to have at least two adults for assembly.
- Udpak komponenter: Carefully unpack all components from the 4 packages. Verify all parts are present against the included parts list.
- Forbered arbejdsområde: Clear a spacious area for assembly, preferably near the intended installation wall.
- Saml kabinetrammen: Follow the step-by-step instructions to assemble the main cabinet frame, including the side wardrobes and central bed housing.
- Install Bed Mechanism: Carefully install the bed frame and its folding mechanism into the cabinet. Ensure all sliding tracks and support legs are correctly aligned and secured.
- Attach Storage Components: Assemble and install the 4 drawers and shelves into their designated locations within the side wardrobes.
- Fastgør til væg: This is a critical step. Securely anchor the assembled unit to a wall stud or appropriate structural support using the provided hardware. This prevents tipping and ensures safe operation.
- Indsæt madras: Once fully assembled and secured, place your queen-size mattress (8-10 inches thick recommended) onto the bed frame.

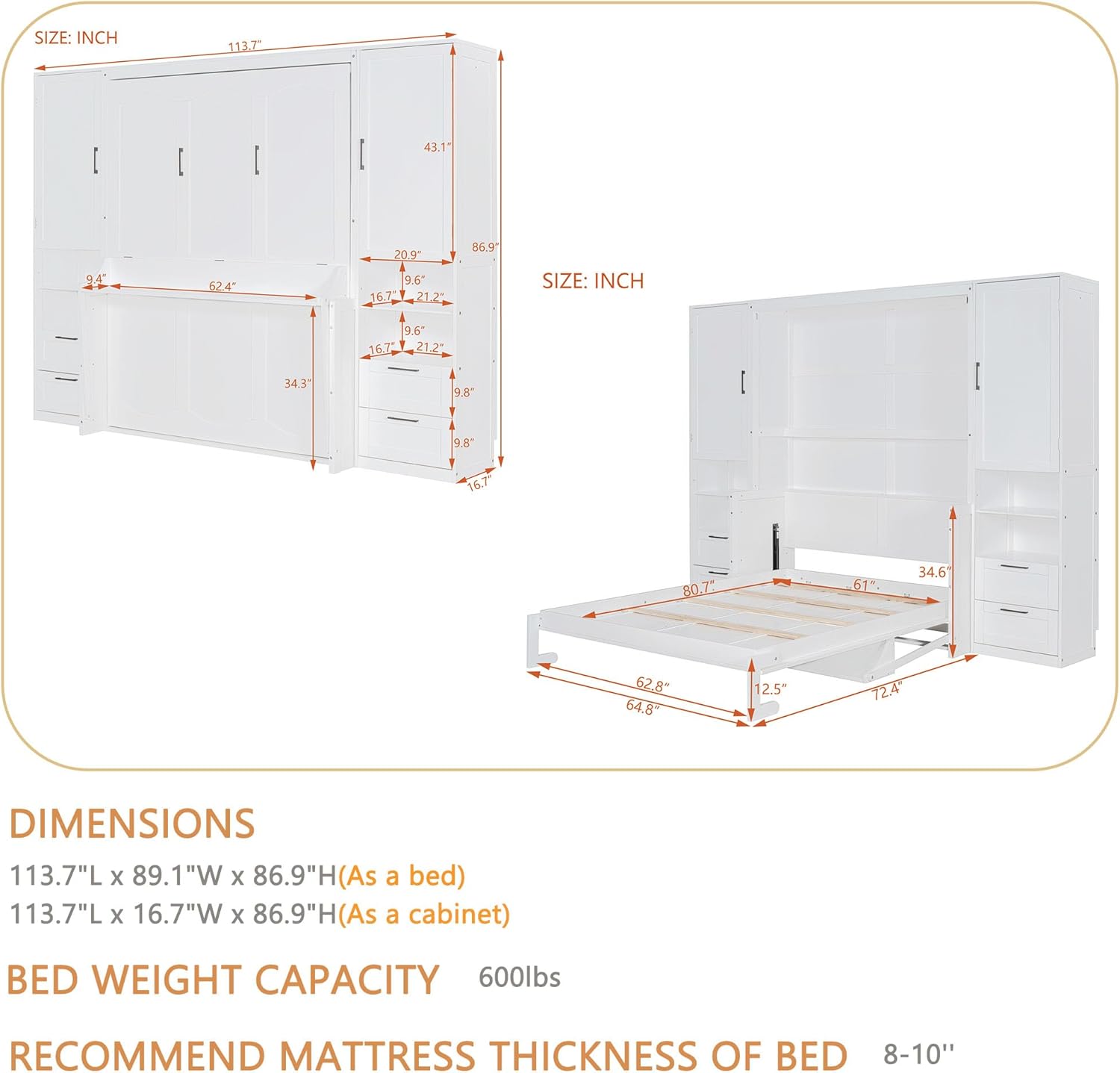

Image: Detailed dimensions of the Polibi Murphy Bed, showing its size as a cabinet (113.7"L x 16.7"W x 86.9"H) and as a bed (113.7"L x 89.1"W x 86.9"H), along with bed weight capacity.
Billede: Nærbillede views illustrating the sturdy construction of the bed, highlighting the use of pine wood and MDF, the design of the support legs, and the sliding track mechanism for smooth operation.
Betjeningsvejledning
Converting from Cabinet to Bed
To convert the unit from its cabinet configuration to a bed:
- Sørg for, at området foran skabet er fri for forhindringer.
- Gently pull the bed frame downwards from the top center of the cabinet. The hydraulic mechanism will assist in a smooth, controlled descent.
- As the bed lowers, the support legs will automatically extend and lock into place.
- Once fully extended, the bed is ready for use.
Converting from Bed to Cabinet
To convert the unit from bed to cabinet:
- Remove any bedding or pillows that might obstruct the folding mechanism.
- Gently lift the bed frame upwards from the foot end. The hydraulic mechanism will assist in lifting the bed back into the cabinet.
- Ensure the support legs retract fully as the bed folds.
- Push the bed frame completely into the cabinet until it is flush and securely closed.
Using the Built-in Desk
When the bed is in its cabinet configuration, a convenient desk surface is available for work or study.
- The desk surface is integrated into the front panel of the bed when folded up.
- Simply pull out a chair and utilize the desk space.
- Ensure all items are removed from the desk surface before converting the unit to a bed.
Image: The Polibi Murphy Bed in its cabinet configuration, showcasing the integrated desk feature. A chair is positioned at the desk, indicating its use as a workspace.
Utilizing Integrated Storage
The Polibi Murphy Bed system includes extensive integrated storage to help keep your space organized.
- Side Wardrobes: Two spacious wardrobes are located on either side of the main unit, ideal for hanging clothes.
- Skuffer: Four smooth-gliding drawers provide concealed storage for various items.
- Hylder: Four open shelves offer convenient access and display space for books, decor, or other essentials.
Image: The Polibi Murphy Bed with its integrated storage solutions visible, including open side wardrobes, accessible shelves, and pull-out drawers, demonstrating ampplads til organisering.
Opretholdelse
Proper maintenance will ensure the longevity and continued smooth operation of your Polibi Murphy Bed.
- Rensning: Tør overflader af med en blød, damp klud. Undgå skrappe kemikalier eller slibende rengøringsmidler, der kan beskadige overfladen.
- Hardwarekontrol: Periodically inspect all screws, bolts, and connections. Tighten any loose fasteners to maintain structural integrity.
- Mekanismepleje: Keep the bed's folding mechanism and sliding tracks free of dust and debris. Do not lubricate the hydraulic pistons unless specifically instructed by the manufacturer.
- Miljøforhold: Avoid exposing the furniture to extreme temperature changes or high humidity, which can cause warping or damage to the wood and MDF components.
Fejlfinding
If you encounter any issues with your Polibi Murphy Bed, refer to the following common solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Bed does not fold/unfold smoothly. | Obstruction in mechanism; loose hardware; incorrect mattress thickness. | Check for any items blocking the mechanism. Ensure all assembly hardware is tight. Verify mattress thickness is within 8-10 inches. |
| Skufferne sidder fast eller er svære at åbne. | Overloaded drawers; debris in tracks; misaligned tracks. | Reduce contents of drawers. Clean tracks. Realign drawer slides if necessary. |
| Enheden føles ustabil. | Not properly anchored to wall; loose assembly hardware. | Ensure the unit is securely anchored to wall studs. Tighten all assembly bolts and screws. |
If you are unable to resolve an issue using the troubleshooting guide, please contact Polibi customer support for assistance.
Specifikationer
| Feature | Detalje |
|---|---|
| Model | B0FC2Q54RC |
| Mærke | polybi |
| Størrelse | Dronning |
| Product Dimensions (As Cabinet) | 113.7 cm L x 16.7 cm B x 86.9 cm H |
| Product Dimensions (As Bed) | 113.7 cm L x 89.1 cm B x 86.9 cm H |
| Speciel funktion | Built-in Closet, Integrated Desk |
| Farve | Hvid |
| Inkluderede komponenter | 4 Drawers & Shelves, 2 Side Wardrobes |
| Montering påkrævet | Ja |
| Fabrikant | polybi |
| Sengens vægtkapacitet | 600 lbs |
| Anbefalet madrastykkelse | 8-10 tommer |
| Materialer | Fyrretræ + MDF |
Garanti og support
For any questions regarding assembly, operation, or troubleshooting that are not covered in this manual, please contact the manufacturer, Polibi, directly. Please have your model number (B0FC2Q54RC) available when contacting support.
Information regarding specific warranty terms and conditions for your Polibi Murphy Bed can be obtained by contacting Polibi customer service. Protection plans may also be available for purchase separately to extend coverage beyond the manufacturer's warranty.
