iTOMA YH16 bordpladeismaskine brugermanual

1. Introduktion

Thank you for choosing the iTOMA YH16 Countertop Ice Maker Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new ice maker. Please read it thoroughly before first use and retain it for future reference.

The iTOMA YH16 is designed for convenience, producing bullet-shaped ice cubes quickly and efficiently. It features a 1.3L water tank, dual ice size options, and an auto-cleaning function, making it suitable for various settings including homes, kitchens, offices, and parties.

2. Hvad er der i æsken

• iTOMA YH16 Countertop Ice Maker Machine
• Iskurv
• Is Scoop
• Brugermanual

3. Sikkerhedsoplysninger

WARNING: This device is designed for 110-120V~60Hz voltage. Please ensure that the voltage in your area matches this specification to avoid equipment damage and potential safety hazards.

Image: A warning label indicating the required voltage (110-120V~60Hz) for the ice maker, with a close-up of a standard US power plug.

• Tilslut altid apparatet til en stikkontakt med jord.
• Apparatet, netledningen eller stikket må ikke nedsænkes i vand eller andre væsker.
• Hold apparatet væk fra varmekilder og direkte sollys.
• Sørg for korrekt ventilation omkring enheden.
• Brug ikke en beskadiget ledning eller stik.
• Hold børn væk fra apparatet under drift.

4. Opsætning og første brug

4.1 Udpakning

1. Tag forsigtigt ismaskinen ud af emballagen.
2. Remove all packaging materials, including tape, labels, and protective films.
3. Kontroller for eventuelle skader under transporten. Hvis produktet er beskadiget, må det ikke anvendes, og du skal kontakte kundesupport.

4.2 Placering

• Place the ice maker on a stable, level surface.
• Sørg for, at der er mindst 15 cm plads omkring enheden for korrekt luftcirkulation.
• Undgå at placere enheden i nærheden af ​​varmekilder (f.eks. ovne, radiatorer) eller i direkte sollys.

4.3 Indledende rengøring

Before using your ice maker for the first time, it is recommended to clean it thoroughly.

1. Åbn låget, og fjern iskurven.
2. Clean the interior with a soft cloth and warm water with a mild detergent.
3. Rinse thoroughly and drain any remaining water through the drain plug located at the bottom of the unit.
4. Tør det udvendige af med adamp klæde.

5. Betjeningsvejledning

5.1 Fremstilling af is

Image: A visual guide showing three steps: 1. Pouring water into the reservoir, 2. Pressing the start button and selecting ice size, 3. Enjoying bullet ice in 6-8 minutes.

1. Tilsæt vand: Open the lid and pour potable water into the water reservoir up to the MAX fill line. Do not overfill.
2. Tænd: Plug the unit into a grounded electrical outlet. The 'POWER' indicator will illuminate.
3. Vælg isstørrelse: Press the 'SELECT' button to choose between Small (S) or Large (L) bullet ice cubes. The corresponding indicator light will illuminate.
4. Start isproduktion: Press the 'ON/OFF' button to start the ice-making cycle. The 'POWER' indicator will blink during operation.
5. Isopsamling: The first batch of ice will be ready in approximately 6-8 minutes. The ice will drop into the ice basket.
6. Kontinuerlig drift: The machine will continue to make ice until the 'ICE FULL' indicator lights up (meaning the ice basket is full) or the 'ADD WATER' indicator lights up (meaning the water reservoir is empty).
7. Stop drift: To stop ice production at any time, press the 'ON/OFF' button.

5.2 Kontrolpanel og indikatorer

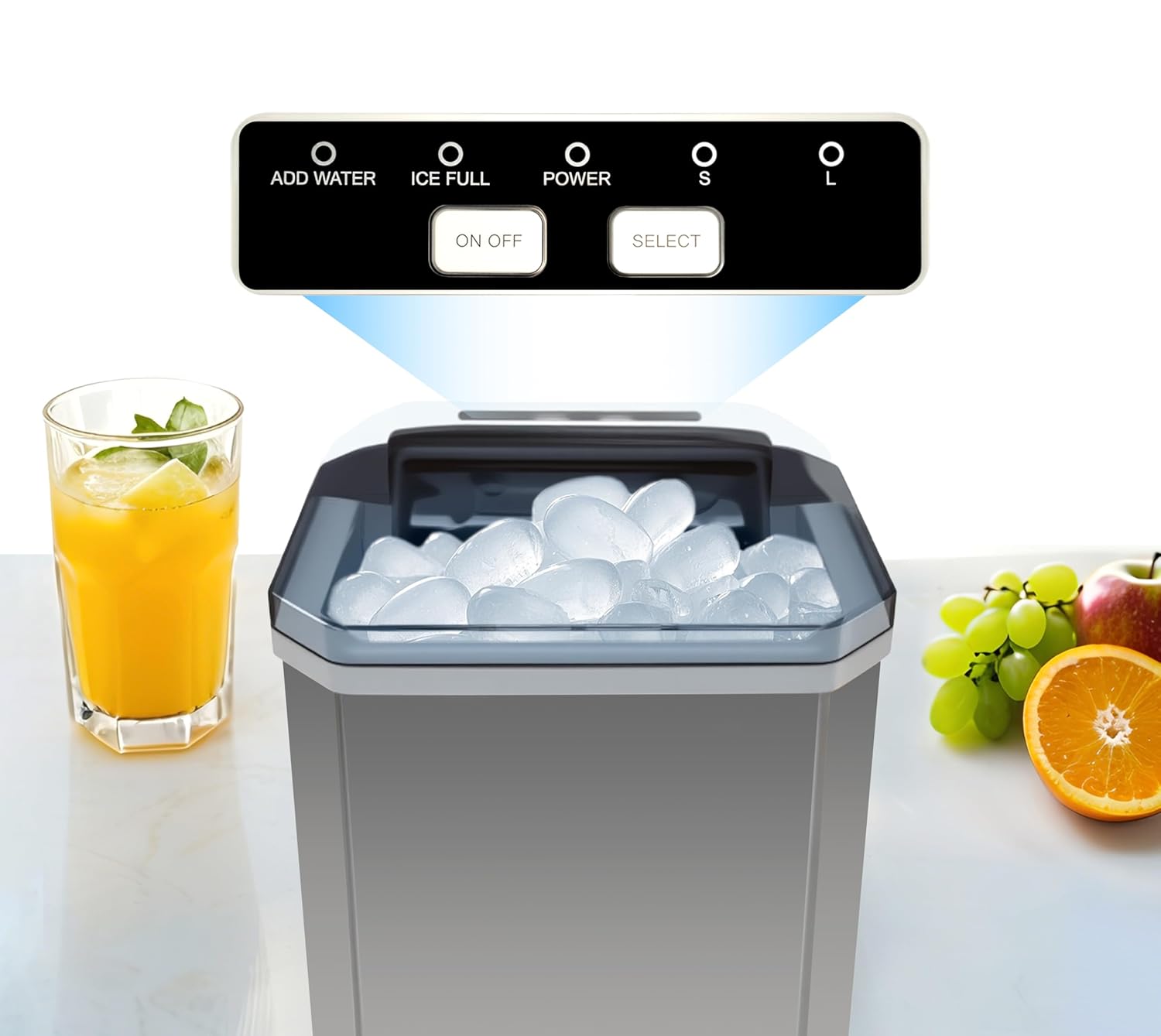

Image: A close-up of the ice maker's control panel, showing 'ADD WATER', 'ICE FULL', 'POWER' indicators, and 'ON/OFF' and 'SELECT' buttons with 'S' and 'L' ice size indicators.

• TILFØJ VAND: Lyser, når vandbeholderen skal genopfyldes.
• IS FULD: Illuminates when the ice basket is full, and the machine will pause operation. Remove ice to resume.
• MAGT: Indicates the unit is powered on. Blinks during ice production.
• S / L: Indicates the selected ice cube size (Small or Large).
• ON/OFF knap: Starts or stops the ice-making process. Press and hold for 5 seconds to activate self-cleaning mode.
• SELECT -knap: Toggles between small and large ice cube sizes.

5.3 Ice Cube Sizes

Image: A visual comparison of the two available bullet ice cube sizes, labeled 'Large Size' and 'Small Size', with examples in beverages.

The iTOMA YH16 offers two sizes of bullet ice to suit your preferences:

• Lille (S): Ideal for quickly chilling drinks or for use in smaller glasses.
• Stor (L): Suitable for larger beverages, cocktails, or for keeping food chilled longer.

5.4 Produktdemonstrationsvideo

6. Vedligeholdelse

6.1 Automatisk rengøringsfunktion

Image: An illustration of the ice maker's self-cleaning function, showing water circulating within the unit, with icons indicating '5S on/off' and '20min self-cleaning'.

The iTOMA YH16 features a convenient one-touch auto-cleaning mode:

1. Sørg for, at vandbeholderen er fyldt med rent vand.
2. Press and hold the 'ON/OFF' button for 5 seconds. The unit will enter a 20-minute self-cleaning cycle.
3. Once the cycle is complete, drain the water from the unit using the drain plug.

6.2 Regular Cleaning and Storage

• Daglig: Empty the ice basket and wipe it clean.
• Ugentlig: Perform the auto-cleaning cycle. For a more thorough clean, unplug the unit, remove the ice basket, and manually clean the water reservoir and ice-making components with a soft cloth and a solution of water and vinegar or a mild food-grade cleaner. Rinse thoroughly.
• Dræning: Always drain the water from the reservoir when the unit is not in use for an extended period or before moving it. The drain plug is located at the bottom of the unit.
• Ydre: Tør ydersiden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: When storing, ensure the unit is clean and dry. Store in a cool, dry place away from direct sunlight.

7. Fejlfinding

If you encounter any issues with your iTOMA YH16 Ice Maker, please refer to the following table before contacting customer support.

8. Specifikationer

Image: The iTOMA YH16 ice maker shown with its key dimensions: 11.6 inches (height), 8.8 inches (width), and 11.2 inches (depth).

9. Garanti og support

The iTOMA YH16 Countertop Ice Maker Machine comes with a standard manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or contact iTOMA customer support directly.

If you require technical assistance, have questions about your product, or need to report a defect, please contact iTOMA customer support through their official webwebstedet eller kontaktoplysningerne på din produktemballage.

• Fabrikant: iTOMA
• Webwebsted: Visit the iTOMA Store on Amazon
