Indledning
The Godox V480C is a versatile TTL flash designed for Canon cameras, featuring a 2.4G wireless system, a 2.0-inch color touchscreen, and a powerful Li-ion battery. This manual provides detailed instructions for setting up, operating, and maintaining your V480C flash to ensure optimal performance and longevity. Please read this manual thoroughly before use.
Sikkerhedsoplysninger
- Adskil eller modificer ikke blitzenheden. Reparationer bør kun udføres af autoriseret servicepersonale.
- Hold enheden tør. Rør den ikke med våde hænder, og sænk den ikke ned i vand.
- Brug ikke blitzenheden i nærheden af brandfarlige gasser, kemikalier eller andre materialer.
- Do not touch the flash tube after use as it may be hot.
- Opbevares utilgængeligt for børn.
- Use only the specified battery and charging accessories.
Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- 1x Godox V480C Canon Flash
- 1x opbevaringspose
- 1x Diffuser
- 1x-adapter
- 1x Mini Stand
- 1x Lithium Battery (7.2V/2200mAh)
- 1x USB-C opladerkabel

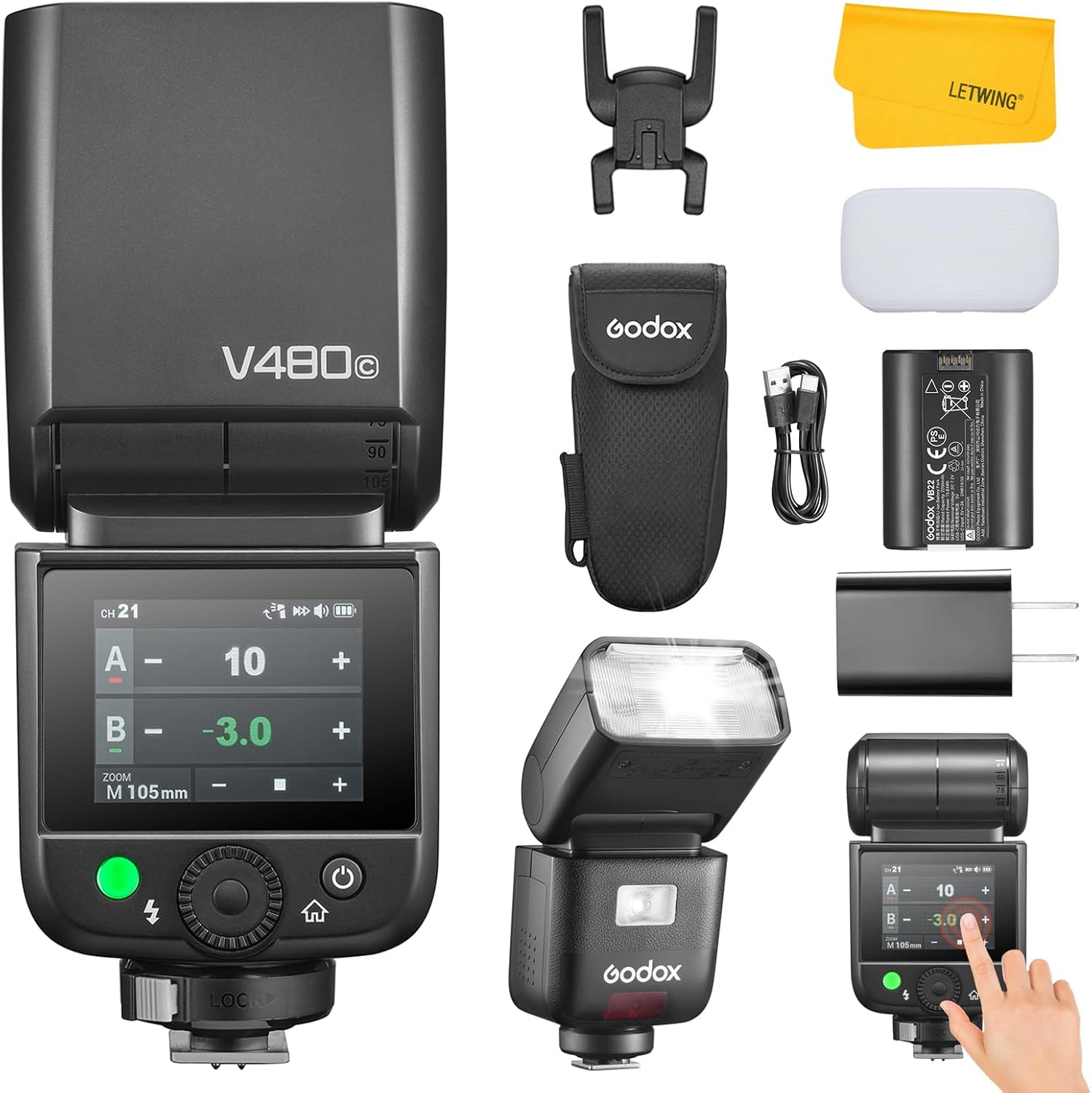

Image: The Godox V480C flash unit along with its standard accessories, including the battery, charger, diffuser, mini stand, and storage bag.
Opsætning
1. Batteriinstallation
- Open the battery compartment cover on the flash unit.
- Insert the 7.2V/2200mAh lithium battery, ensuring correct polarity.
- Luk batterirummets dæksel forsvarligt.
2. Montering på kamera
- Slide the flash unit's hot shoe onto your Canon camera's hot shoe mount.
- Drej låseringen eller håndtaget på flashenheden for at fastgøre den ordentligt.
Image: The Godox V480C flash unit securely attached to the hot shoe of a Canon DSLR camera, ready for use.
3. Tænd/sluk
Press and hold the power button to turn the flash unit on or off. The 2.0-inch color touchscreen will illuminate upon startup.
Betjeningsvejledning
Intuitive Touchscreen & Buttons
The V480C features a 2.0-inch color touchscreen and tactile buttons for fast and precise adjustments. Tap, swipe, or press buttons to navigate menus and adjust parameters effortlessly.
Billede: En detaljeret view of the Godox V480C's 2.0-inch color touchscreen, showing various settings and controls for flash operation.
Flash-tilstande
The V480C supports various professional flash modes:
- TTL automatisk blitz: Automatically adjusts flash output for accurate exposure, especially useful in complex lighting conditions.
- Manuel tilstand (M): Allows precise control over flash power from 1/1 to 1/256.
- Multi Mode (Stroboscopic): Fires a series of rapid flashes to capture multiple movements of a subject in a single frame.
- Højhastighedssynkronisering (HSS): Enables flash synchronization at shutter speeds up to 1/8000s, allowing the use of wide apertures in bright daylight.
- Synkronisering af forreste/bageste gardin: Choose between synchronizing the flash with the beginning or end of the shutter exposure for dynamic motion effects.
Image: An infographic detailing the various pro-level flash modes available on the Godox V480C, including HSS, front/rear curtain sync, TTL, multi-flash, and manual flash.
2.4G Wireless X System (Sender & Receiver Functionality)
The built-in Godox 2.4G X wireless system allows the V480C to function as both a sender and receiver. It supports 32 channels and has a transmission distance of up to 100 meters (328 feet), enabling control of multiple flashes directly from the unit without external triggers.
Image: A visual representation of the Godox 2.4G X wireless system, showing the V480C interacting with other Godox flash units and triggers for remote control.
Smart Distance Readout
The V480C's display provides a real-time effective flash range, allowing you to instantly know if your subject is within optimal reach. This feature is beneficial for various shooting environments, including tight spaces or bounce applications.
Image: The Godox V480C flash unit mounted on a camera, with its screen displaying the smart distance readout feature, indicating the effective flash range.
10-Level LED Modeling Lamp
A 2W LED modeling lamp (5300K±300) with 10 adjustable levels is integrated into the flash. This lamp helps you preview how your flash will shape shadows and highlights, serving as a useful tool for pre-visualizing light direction and intensity or as a fill light.
Image: The Godox V480C flash unit demonstrating its built-in LED modeling lamp, providing continuous light for previewing lighting effects.
Flexible Bounce Head
The flash head offers flexible rotation, tilting from -7° to 120° vertically and swiveling a full 330° horizontally. This allows for precise bounce angles, enabling you to direct light indirectly for softer, more natural illumination.
Image: A visual representation of the Godox V480C's flexible bounce head, illustrating its vertical tilt and horizontal swivel capabilities for versatile lighting.
Creative Light Shapers
The V480C includes a built-in reflector for creating attractive catchlights in the eyes. It also comes with a snap-on wide-angle diffuser for broader, softer light, effectively softening the light and expanding its range.
Image: The Godox V480C flash unit with its wide-angle diffuser attached, designed to spread light more broadly and softly.
Batteriydelse
The high-capacity 7.2V/2200mAh rechargeable lithium battery provides up to 650 full-power flashes and recycles in just 1.7 seconds. The USB-C port allows for convenient charging between sessions and firmware updates.
Image: The Godox V480C's lithium battery being charged via a USB-C cable, highlighting its capacity and quick recycle time.
Officiel produktvideo
Video: En officiel produktvideoasing the Godox V480C TTL Camera Flash Speedlite in various shooting scenarios, demonstrating its features and capabilities.
Opretholdelse
Rensning
Rengør regelmæssigt blitzenheden med en blød, tør klud. Brug en let tør klud til genstridigt snavs.amp kluden og tør den derefter grundigt. Undgå at bruge skrappe kemikalier eller slibende materialer.
Batteripleje
To prolong battery life, store the battery in a cool, dry place when not in use. If storing for extended periods, charge the battery to approximately 50% capacity every few months.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Blitzen går ikke ud. | Lavt batteri, forkert tilstand, blitz ikke monteret korrekt. | Charge battery, check flash mode, re-mount flash on hot shoe. |
| Blitzudgangen er for svag/stærk. | Incorrect flash exposure compensation (FEC) or manual power setting. | Adjust FEC or manual power level. |
| Problemer med trådløs forbindelse. | Incorrect channel/ID, interference, distance too far. | Verify channel/ID settings, reduce distance, change channel. |
| Touchscreen reagerer ikke. | Midlertidig softwarefejl. | Restart the flash unit. If problem persists, contact support. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | V480C |
| Mærke | GODOX |
| Kompatible monteringer | Canon kamera |
| Flash-synkroniseringshastighed | 1/8000s (HSS) |
| Guidenummer (GN) | 50 (ca.) |
| Batteritype | 7.2V/2200mAh Li-ion batteri |
| Blinker med fuld kraft | Op til 650 |
| Genbrugstid | Ca. 1.7'erne |
| Modellering L.amp | 2W LED (10 levels, 5300K±300) |
| Trådløst system | Godox 2.4G X Wireless System |
| Wireless Range | Op til 100 m (328 fod) |
| Varens vægt | 1.65 pund |
| Pakkedimensioner | 8.35 x 7.24 x 3.54 tommer |
Garanti og support
This product is covered by a manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the official Godox webwebstedet eller kontakt din lokale forhandler. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
