TREKURE 8-i-1 Jumpstarter med luftkompressor Brugermanual

Produkt overview

The TREKURE 8-in-1 Jump Starter with Air Compressor is a versatile and portable device designed for automotive emergencies and various inflation needs. It integrates multiple functions including vehicle jump starting, tire inflation, pressure gauging, emergency lighting, and portable power bank capabilities.

Figure 1: Main unit of the TREKURE 8-in-1 Jump Starter with Air Compressor, displaying its compact design and included accessories.

Hvad er der i æsken

• 1x 7000A Jump Starter with Air Compressor
• 1x Heavy-Duty Smart Clamp (Jumper Cables) with forced start button
• 1x Detachable Extended Air Hose
• 1x USB-C Quick Charging Cable
• 1x EC Cigarette Lighter Adaptor
• 3x Gas Nozzles (Valve Connectors)
• 1x Rugged Carrying Case
• 1x brugsanvisning

Opsætning

Indledende opladning

Before first use, fully charge the jump starter. Connect the provided USB-C charging cable to the USB-C input port on the unit and plug the other end into a compatible USB power adapter (not included). The LCD display will indicate charging status. A full charge ensures optimal performance.

Familiarizing with Controls and Ports

The unit features an LCD display and multi-function buttons for various operations. Review the layout of the ports and controls:

• Power knap: Central button to turn the unit on/off and activate functions.
• Mode-knap (M): Cycles through inflation modes (car, motorcycle, bicycle, ball, manual).
• Unit Button (U): Changes pressure units (PSI, KPA, BAR).
• Lys knap: Activates and cycles through flashlight modes (steady, strobe, orange SOS).
• +/- knapper: Adjusts target pressure in manual inflation mode.
• Engine Start Port: Til tilslutning af de smarte jumperkabler.
• USB-udgangsporte: Two USB ports for charging external electronic devices.
• USB-C indgangsport: Til opladning af jumpstarterenheden.
• DC udgangsport: For connecting the EC cigarette lighter adapter.

Betjeningsvejledning

Hopstart af dit køretøj

This jump starter is designed to start 12V vehicles (up to all gas/10L diesel engines), including those with completely dead batteries.

1. Ensure the jump starter is adequately charged.
2. Indsæt smart clamp plug firmly into the Engine Start port on the jump starter. The indicator light on the smart clamp will flash red and green.
3. Tilslut den røde (+) clamp til den positive (+) pol på køretøjets batteri.
4. Tilslut den sorte (-) clamp to the negative (-) terminal of the vehicle's battery. The smart clamp indicator light should turn solid green, indicating a safe connection. If it flashes red/green, check connections.
5. Start dit køretøj.
6. Når køretøjet starter, skal du straks fjerne smart-cl'en.amp from the vehicle battery terminals, then disconnect it from the jump starter unit.

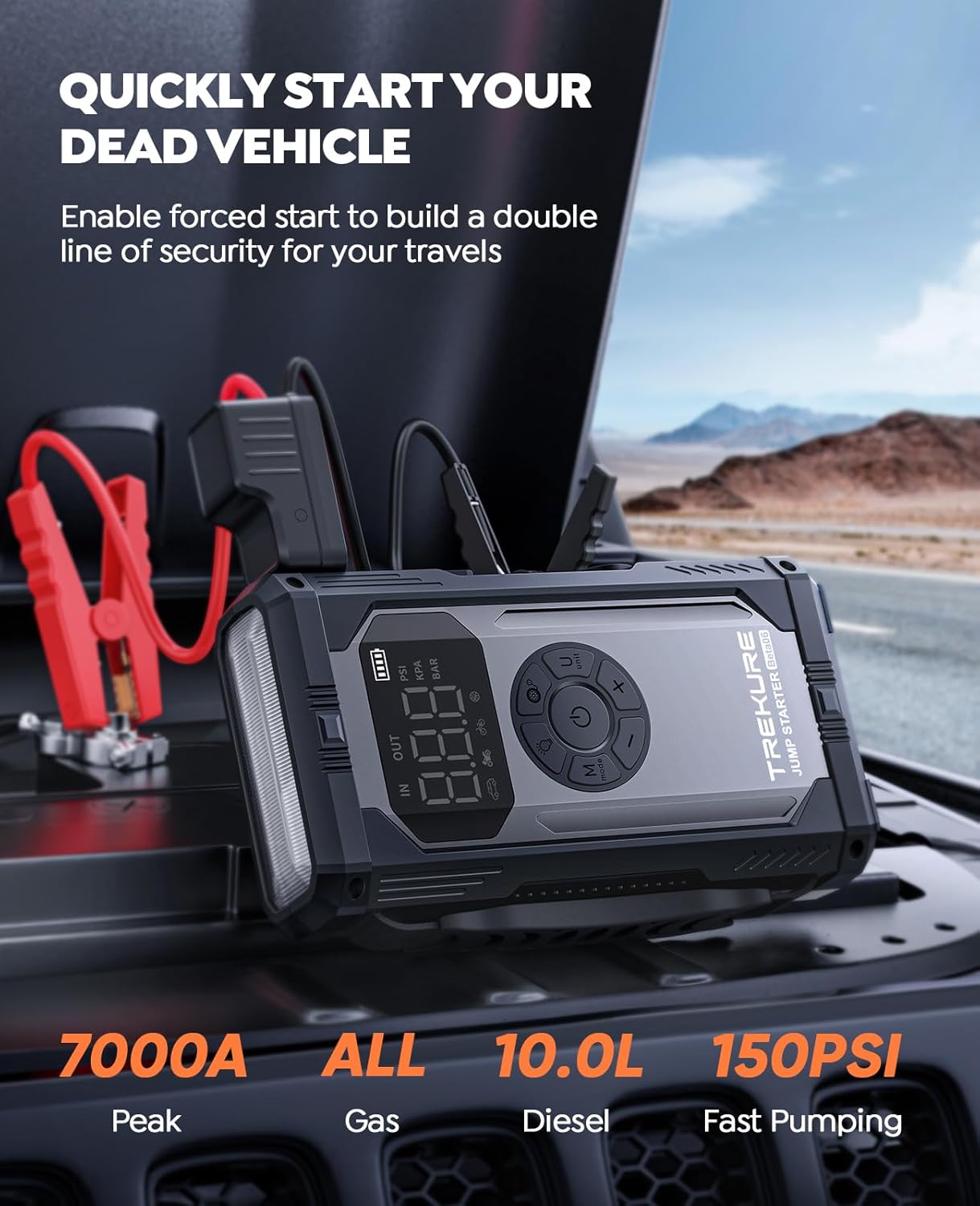

Figure 2: Proper connection of jumper cables for vehicle jump starting.

Brug af luftkompressoren

The integrated air compressor can inflate tires and other inflatables up to 150 PSI.

1. Connect the detachable air hose to the air compressor port on the unit.
2. Attach the appropriate gas nozzle (valve connector) to the air hose and secure it to the item you wish to inflate.
3. Press the Power button to turn on the unit. The LCD display will show the current pressure.
4. Press the Mode (M) button to select the desired inflation mode (car, motorcycle, bicycle, ball) or manual mode. The preset PSI for each mode will be displayed.
5. In manual mode, use the +/- buttons to set your target pressure.
6. Long press the Power button for 5 seconds to start inflation. The compressor will automatically stop once the target pressure is reached.

Figure 3: Inflating a car tire using the built-in air compressor.

Bruges som powerbank

The 23,800mAh capacity allows you to charge various electronic devices.

1. Tilslut din enheds USB-opladerkabel til en af ​​USB-udgangsportene på jumpstarteren.
2. Press the Power button to activate charging. The LCD display will show the unit's remaining charge.
3. For 12V DC devices, connect the EC cigarette lighter adapter to the DC output port and then plug in your device.

Figure 4: Charging multiple devices simultaneously using the power bank function.

Using the Emergency Flashlight

The unit features a powerful LED flashlight with multiple modes for various situations.

1. Press the Light button to turn on the flashlight (steady white light).
2. Press the Light button again to cycle through modes: Strobe (flashing white light), Orange SOS (flashing orange light).
3. Press the Light button a fourth time to turn off the flashlight.

Figure 5: The multi-mode LED flashlight in operation.

Opretholdelse

• Store the jump starter in its rugged carrying case in a cool, dry place away from direct sunlight and extreme temperatures.
• Recharge the unit every 3-6 months, even if not used, to maintain battery health and prolong its lifespan.
• Rengør enheden med en blød, tør klud. Brug ikke skrappe kemikalier eller slibende materialer.
• Inspect the jumper cables and air hose for any signs of wear or damage before each use.

Fejlfinding

Jump Starter Issues

• Enheden tænder ikke: Ensure the unit is charged. If fully charged and still unresponsive, contact customer support.
• Smart klamp indicator light not solid green: Tjek, at clamps are securely connected to the correct battery terminals (red to positive, black to negative). Ensure battery terminals are clean and free of corrosion. If the battery is completely dead, use the forced start button on the smart clamp (refer to instruction manual for details).
• Vehicle does not start after jump: After the first attempt, wait 30-60 seconds before trying again. If the vehicle still doesn't start after 3 attempts, there may be a larger issue with the vehicle's battery or starting system. Consult a professional mechanic.

Air Compressor Issues

• Compressor does not inflate: Ensure the air hose is securely connected to both the unit and the inflatable item. Check that the unit is powered on and an inflation mode is selected.
• Upræcis trykaflæsning: Ensure the air hose connection is tight to prevent air leaks.

Specifikationer

Garanti og support

TREKURE offers a 2-year hassle-free warranty and lifetime technical support for this product. If you encounter any issues or have questions, please feel free to contact us.

For support, please visit the official TREKURE store on Amazon or refer to the contact information provided in your product packaging.

Online brugervejledning: Download PDF-brugervejledning
