Indledning
This manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your Retrospec Koda Plus 20-inch kids bike. Please read this manual thoroughly before assembly and use to ensure safe and optimal performance. This bicycle is designed for children aged 6-8 years, with a minimum user height of 48 inches and a maximum weight recommendation of 150 pounds.
Image: The Retrospec Koda Plus 20-inch kids bike, featuring a black frame with neon accents, designed for young riders.
Sikkerhedsoplysninger
Always prioritize safety when riding. Adhere to the following guidelines:
- Brug altid en korrekt monteret hjelm.
- Ensure all bolts and quick releases are securely tightened before each ride.
- Check brake functionality before each use.
- Ride in well-lit areas and obey all traffic laws.
- Avoid riding on uneven terrain or in adverse weather conditions until proficient.
- Voksenopsyn anbefales, især for yngre ryttere.
Opsætning og montering
Your Retrospec Koda Plus bike requires some assembly. Follow these steps carefully:
- Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Gem emballagen til senere transport eller opbevaring.
- Montering af forhjul: Attach the front wheel to the fork, ensuring it is centered and the quick release or axle nuts are tightened securely.
- Montering af styr: Insert the handlebar stem into the fork steerer tube. Align the handlebars straight with the front wheel and tighten the stem bolt.
- Pedal installation: Identify left (L) and right (R) pedals. The right pedal tightens clockwise, and the left pedal tightens counter-clockwise. Ensure they are fully threaded and tightened.
- Justering af sadelpind og sadel: Insert the seat post with the saddle into the frame. Adjust the seat height so the rider's feet can comfortably touch the ground while seated, allowing for proper leg extension during pedaling. Tighten the seat post quick release or bolt securely. The adjustable seat height ranges from 21.5" to 27.5".
- Bremsejustering: The bike features V-brakes. Ensure both front and rear brakes are properly aligned and the brake levers are easily reachable for small hands. Adjust the reach of the brake levers as needed using the adjustment screws. Test brake functionality before riding.
- Installation af tilbehør: Attach the included safety bell to the handlebars. Install the kickstand.
Image: An illustration detailing the easy assembly process and key adjustable features of the Koda Plus bike, including the safety bell and reach-adjustable V-brakes.
Image: Detail of the bike's handlebars and V-brakes, illustrating how to adjust the brake lever reach for smaller hands to ensure effective stopping power.
Betjeningsvejledning
Understanding how to properly operate your bike ensures a safe and enjoyable riding experience.
- Starter: The bike features an optimized 4.0 gain ratio for easy starts and smooth pedaling. Begin by pushing off with one foot and then placing both feet on the pedals.
- Pedaling: Maintain a steady pedaling rhythm. The ergonomic saddle is designed for comfort during rides.
- Bremsning: Use both front and rear V-brakes simultaneously for controlled stopping. Apply gentle pressure initially and increase as needed. Avoid sudden, hard braking, especially with the front brake only, as this can cause instability.
- Styretøj: Guide the bike by gently turning the handlebars. Practice in an open, safe area to develop steering control.
- Justerbare komponenter: The seat and handlebars are adjustable to accommodate your child's growth. Regularly check and adjust these components to ensure a comfortable and safe riding position.
Billede: A view of the bike's drivetrain, highlighting the optimized pedaling system with a 4.0 gain ratio for efficient and smooth starts.

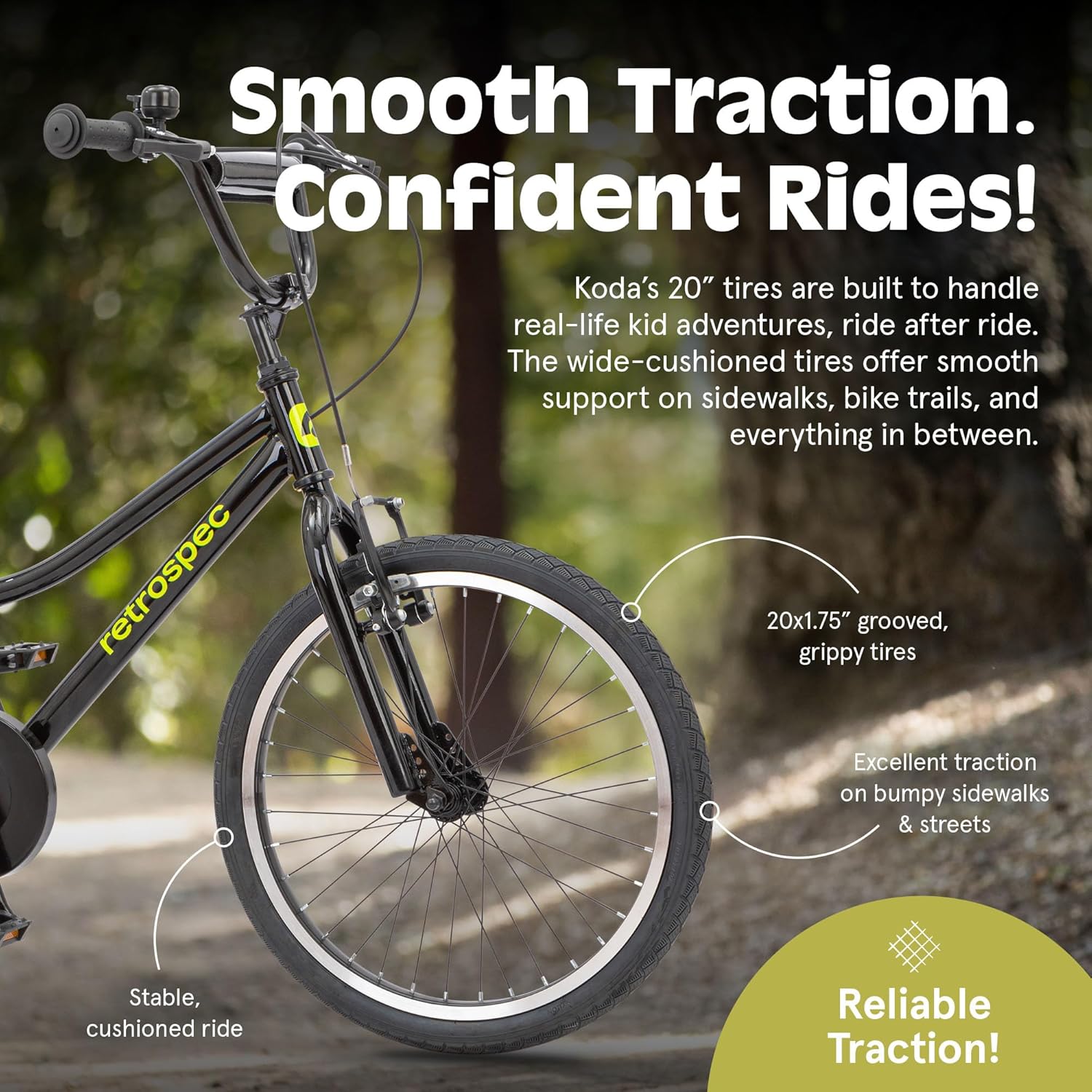

Image: A detailed shot of the bike's 20x1.75 inch grooved tires, emphasizing their wide profile for stable and cushioned rides on various surfaces.
Opretholdelse
Regular maintenance ensures the longevity and safe operation of your bicycle.
- Dæktryk: Check tire pressure before each ride. Maintain the recommended PSI (pounds per square inch) indicated on the tire sidewall for optimal performance and puncture resistance.
- Bremser: Inspect brake pads for wear and replace them when necessary. Ensure brake cables are free of fraying and properly tensioned. Adjust brake levers for proper reach and engagement.
- Kæde: Keep the chain clean and lubricated. Apply a bicycle-specific lubricant periodically, especially after riding in wet conditions.
- Bolte og fastgørelseselementer: Kontrollér regelmæssigt alle bolte, møtrikker og hurtigudløsere for fastspænding. Løse komponenter kan påvirke sikkerhed og ydeevne.
- Rensning: Clean the bike with mild soap and water. Avoid high-pressure washers, which can damage bearings and seals. Dry thoroughly after washing.
Fejlfinding
Her er løsninger på almindelige problemer, du kan støde på:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Bremserne føles svampede eller ineffektive. | Loose brake cable, worn brake pads, improper lever adjustment. | Tighten brake cable, replace worn pads, adjust brake lever reach. Ensure proper alignment of brake pads with the rim. |
| Pedaling feels difficult or noisy. | Dry or dirty chain, loose crank arm. | Clean and lubricate the chain. Check and tighten crank arm bolts. |
| Cyklen føles ustabil eller vaklende. | Loose wheel nuts, improperly installed handlebars, low tire pressure. | Check and tighten wheel nuts. Ensure handlebars are aligned and stem bolt is tight. Inflate tires to recommended pressure. |
| Seat or handlebars slip. | Quick release or bolt not tight enough. | Ensure quick release or bolt is fully tightened. Do not exceed torque specifications. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Retrospec |
| Modelnavn | Koda Plus 20 Inch |
| Modelnummer | 6418 |
| Type cykel | Børnecykel |
| Aldersgruppe (anbefalet) | 6-8 Years (Big Kid) |
| Hjulstørrelse | 20 tommer |
| Rammemateriale | Aluminium |
| Ophængstype | Stiv |
| Antal hastigheder | 1 |
| Bremse stil | V Brake (Front & Rear) |
| Dækbredde | 1.75 tommer |
| Justerbar sædehøjde | 21.5" - 27.5" |
| Varens vægt | 24 pund (ca. 10.89 kg) |
| Maksimal vægtanbefaling | 150 pund (ca. 68 kg) |
| Minimum brugerhøjde | 48 tommer (ca. 122 cm) |
| Inkluderede komponenter | Bell, Kickstand |
Garantioplysninger
This Retrospec Koda Plus bike is covered by a Begrænset garanti. For specific terms and conditions, please refer to the warranty documentation included with your purchase or visit the official Retrospec webGarantien dækker typisk fabrikationsfejl i materialer og udførelse under normal brug.
Kundesupport
If you have any questions, require assistance with assembly, or need troubleshooting support, please contact Retrospec customer service. You can find contact information on the official Retrospec webhjemmeside eller gennem din forhandler.
