Aideepen 40KG højmoment RC servo (model 8140MG) brugsanvisning

1. Introduktion

Thank you for choosing the Aideepen 40KG High Torque RC Servo. This digital servo is engineered for robust performance and durability, featuring full metal gears and a waterproof design. It is suitable for a wide range of remote-controlled applications, including 1/8, 1/10, and 1/12 scale RC cars, trucks, robotic arms, and ship models. This manual provides essential information to ensure proper installation, operation, and longevity of your servo.

Figure 1: Aideepen 40KG High Torque RC Servo and accessories.

2. Nøglefunktioner

• Opgraderet version: Features military-grade precision carbon steel gears and dual ball bearings for stable performance, fast response, strong anti-interference, and low noise.
• High Rotation: Controllable angle range from 0° to 270° (PWM 500-2500µs). Designed to rotate 360° after power-off, ideal for robot joint activities.
• Large Torque & Speed: Operation voltage range of 4.8V~8.4V, providing 38kg/cm~42kg/cm torque.
• Høj kvalitetskonstruktion: CNC aluminum middle shell enhances heat dissipation, ensuring high precision and smooth operation.
• Vandtæt Design: Equipped with waterproof gaskets and screws with rubber seals for enhanced durability in challenging environments.

Figur 2: Eksploderet view highlighting key internal and external components.

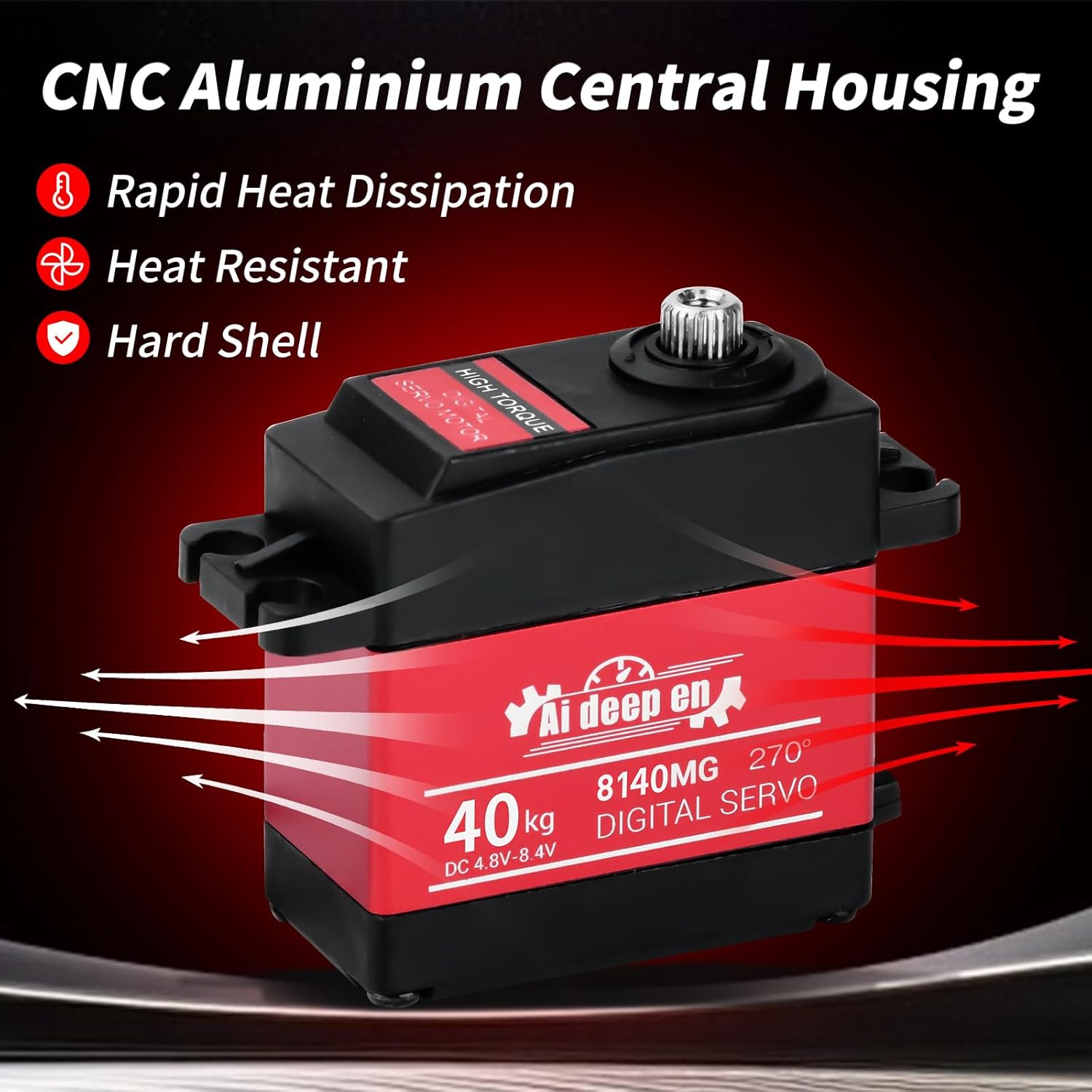

Figure 3: CNC Aluminum Central Housing for enhanced heat dissipation.

3. Pakkens indhold

The following items are included with your Aideepen 40KG High Torque RC Servo:

• Aideepen 40KG High Torque RC Servo (Model 8140MG)
• 25T Servo Horn
• Various plastic servo horns
• Monteringsskruer og tilbehør

4. Specifikationer

Figure 4: Detailed dimensions of the servo and included horns.

Figure 5: Performance specifications of the 40KG Servo.

5. Opsætning og installation

Proper installation is crucial for optimal servo performance. Follow these general guidelines:

1. Montering: Securely mount the servo in your RC vehicle or robotic application using the provided screws. Ensure there is no obstruction to the servo's movement.
2. Servo Horn Attachment: Select the appropriate servo horn (e.g., 25T) for your application. Attach it firmly to the servo output shaft.
3. Ledningsføring: Connect the servo's 3-wire cable to your receiver or control board. Typically, the brown/black wire is ground, red is positive voltage, and orange/yellow/white is the signal wire. Ensure correct polarity.
4. Strømforsyning: Verify that your power supply voltage is within the servo's operating range (4.8V-8.4V). Overvoltage can damage the servo.
5. Indledende test: Before full operation, perform a basic test to ensure the servo responds correctly to control inputs and moves freely without binding.

6. Betjeningsvejledning

The Aideepen 40KG servo operates based on Pulse Width Modulation (PWM) signals. The controllable angle range is 0° to 270° with a PWM signal range of 500-2500µs. Ensure your control system (e.g., RC transmitter, microcontroller) is configured to output signals within this range.

• Styresignal: The servo's position is determined by the width of the pulse signal. A pulse width of 1500µs typically corresponds to the center position (90°), 500µs to 0°, and 2500µs to 270°.
• Bevægelse: The servo will move to and hold the position commanded by the control signal. If the signal changes, the servo will smoothly transition to the new position.
• Overbelastningsbeskyttelse: Avoid artificially or mechanically hindering the servo's output shaft, as this can lead to damage or burnout.

Figur 6: Eksample applications of the Aideepen 40KG servo in RC models.

7. Vedligeholdelse

Regular maintenance helps extend the lifespan and ensure reliable performance of your servo:

• Gearbox Cleaning: Periodically inspect and clean the gearbox. Apply a small amount of silicone grease to the gears if necessary to reduce friction and wear.
• Ledningsforbindelser: Check all wire connections for looseness or damage. Secure any loose connections.
• Monteringsskruer: Ensure all mounting screws are tight. Vibrations during operation can cause screws to loosen over time.
• Miljøbeskyttelse: While waterproof, avoid prolonged submersion or exposure to harsh chemicals. Clean any dirt or debris from the servo body after use in dusty or wet conditions.

8. Fejlfinding

Her er nogle almindelige problemer og deres potentielle løsninger:

• Q1: Why does my high-torque servo buzz?
  A: Digital servos often buzz due to constant position correction. To reduce this, ensure no mechanical binding, add a ferrite ring to the signal wire, or switch to analog mode if supported by your system.
• Q2: How to maintain for long lifespan?
  A: Monthly cleaning of the gearbox (use silicone grease), checking wire connections, and tightening mounting screws are recommended.
• Q3: What causes servo jitter and how to fix it?
  A: Common causes include electrical interference (keep away from ESCs), bad signal connections (check wiring), or a low-quality transmitter/receiver.
• Q4: How to troubleshoot a non-responsive servo?
  A: Diagnosis steps include checking voltage with a multimeter, testing with a different receiver channel, trying a known-good servo in the same port, and inspecting for burnt components or unusual smells.

Figure 7: Important usage warnings for the servo.

9. Garanti og support

Aideepen products are designed for reliability and performance. For any quality issues with your item, Aideepen offers a 24-month service period, including new replacements. For further assistance or detailed support, please visit the official Aideepen store or contact customer service through your purchase platform.

Besøg Aideepen Store for mere information og produkter.
