KATVR KAT Walk C2 PLUS VR Omnidirektionelt Løbebånd Brugermanual

1. Introduktion

The KATVR KAT Walk C2 PLUS is an advanced omnidirectional treadmill designed to provide an immersive virtual reality locomotion experience. This manual provides essential information for the safe and effective use of your device, including setup, operation, maintenance, and troubleshooting.

2. Produktet er slutview

2.1 Nøglefunktioner

• 360° Full-Body Locomotion: Enables natural walking, running, and movement in virtual environments.
• Reduceret køresyge: Physical movement aligns with virtual movement, minimizing discomfort.
• Kompakt fodaftryk: Designed for home use with a 1.2m² footprint.
• Sitting Module: Integrated support for seated VR experiences.
• Integrated Vibration Feedback: Enhances immersion through tactile sensations.
• Kompatibilitet på tværs af platforme: Supports SteamVR headsets and wireless play on Meta Quest 2, 3, and Pro via the included KAT Nexus adapter.
• Fitness Integration: Allows for physical exercise during VR gameplay.

2.2 Komponenter

The KAT Walk C2 PLUS package includes the following main components:

• KAT Walk C2 PLUS Omnidirectional Treadmill
• KAT VR Shoes (specific size included)
• Sitting Module
• KAT Nexus Adapter
• Required cables and assembly hardware

Image: The KAT Walk C2 PLUS omnidirectional treadmill, the KAT Nexus adapter, and a pair of KAT VR shoes, illustrating the complete system.

2.3 Modelsammenligning

The KAT Walk C2 series offers different models with varying features:

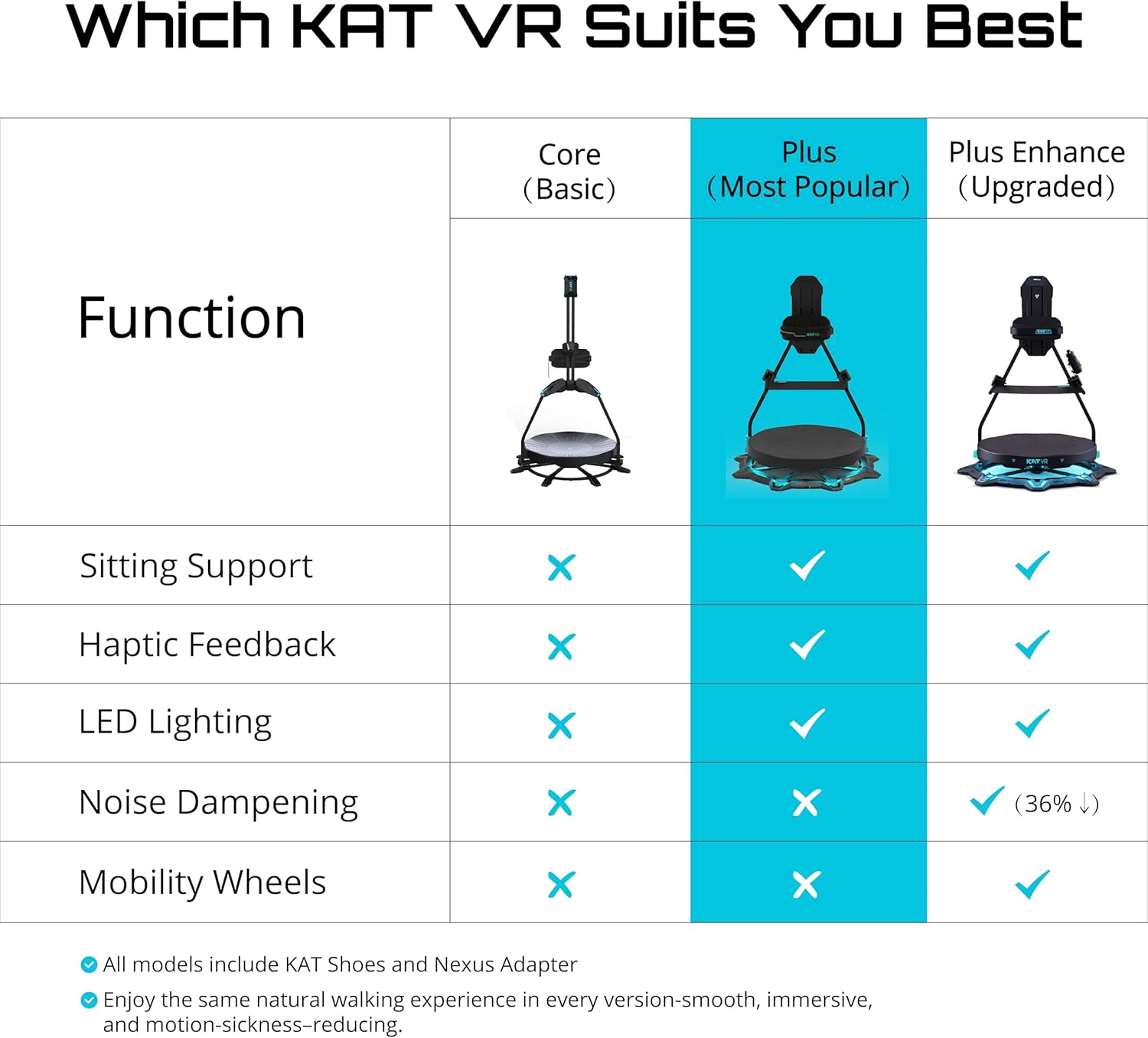

Image: A table comparing the features of KAT VR's Core (Basic), Plus (Most Popular), and Plus Enhanced (Upgraded) models, detailing differences in sitting support, haptic feedback, LED lighting, noise dampening, and mobility wheels.

3. Opsætningsvejledning

Proper assembly and initial setup are crucial for optimal performance and safety. It is recommended to have assistance during assembly.

3.1 Udpakning og inspektion

1. Pak forsigtigt alle komponenter ud af emballagen.
2. Verify that all parts listed in the packing list are present and undamaged. Report any missing or damaged parts to customer support immediately.

3.2 Montering

Follow the detailed assembly guide provided with your product. Ensure all bolts and fasteners are securely tightened. Do not overtighten.

Image: A user engaged in the assembly process of the KAT Walk C2 PLUS, showing the structural components being put together.

3.3 Software Installation and Calibration

1. Connect the KAT Nexus adapter to your PC (Windows 10+ required for first-time setup).
2. Install the necessary KAT Gateway software from the official KATVR webwebsted.
3. Follow the on-screen instructions within the KAT Gateway software to pair your KAT VR shoes and calibrate the system.
4. For wireless play with Meta Quest headsets, ensure your headset and KAT Nexus are on the same Wi-Fi network.

Image: A visual guide illustrating the connection process: HMD to Internet Router, Router to KAT Nexus, and KAT Nexus to the KAT VR device, highlighting easy setup.

4. Betjeningsvejledning

4.1 Wearing the KAT VR Shoes and Harness

1. Put on the KAT VR shoes. Ensure they fit snugly and are comfortable.
2. Securely attach the safety harness around your waist and connect it to the treadmill's support structure. Adjust the harness height for comfort and proper support.

Image: A user wearing a VR headset and the KAT Walk C2 PLUS safety harness, demonstrating safe and immersive VR gameplay.

4.2 Initiating Movement

1. Step onto the concave platform of the treadmill.
2. Begin walking naturally. The low-friction surface and specialized shoes allow for continuous movement in any direction.
3. Adjust your stride and speed to match the desired movement in your VR application.

Image: A side-by-side comparison showing a user experiencing motion sickness in VR while seated versus natural locomotion on the KAT Walk C2 PLUS, highlighting reduced VR dizziness.

4.3 Using the Sitting Module

The sitting module can be deployed for VR experiences that require sitting. Refer to the assembly guide for instructions on how to properly attach and use the sitting module.

5. Kompatibilitet

The KAT Walk C2 PLUS is designed for broad compatibility with various VR platforms.

• PC VR: Fully compatible with SteamVR and Oculus Home (PC) platforms. Direct wired connection to PC is typically used.
• Standalone VR: Wireless compatibility with Meta Quest 2, Meta Quest 3, and Meta Quest Pro via the KAT Nexus adapter.
• Andre platforme: The KAT Nexus adapter is designed for universal input integration with Free-Locomotion games on multiple standalone VR platforms. Meta Quest platform is available on launch, with other platforms like PlayStation VR, PICO, and VIVE under integration.

Image: A graphic displaying compatibility with various VR headsets (Meta Quest, Pico, Vive) and platforms (SteamVR, Oculus Home, Meta), with the KAT Nexus adapter shown as a central component.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your KAT Walk C2 PLUS.

• Rensning: Wipe down the platform and frame with a soft, damp klud. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Skopleje: Keep the KAT VR shoes clean. Replace insoles or shoes if they show significant wear to maintain proper friction and tracking.
• Harness Inspection: Periodically check the safety harness for any signs of wear, fraying, or damage. Ensure all buckles and adjustments function correctly.
• Fastgørelseskontrol: Regularly inspect all bolts and fasteners to ensure they remain tight. Retighten as necessary.

7. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på.

7.1 Sporingsproblemer

• Symptom: Inaccurate or unresponsive movement in VR.
• Løsning:
  1. Ensure KAT VR shoes are properly worn and sensors are clean.
  2. Recalibrate the system using the KAT Gateway software.
  3. Check for any obstructions around the treadmill that might interfere with sensor tracking.
  4. Verify that the KAT Nexus adapter is correctly connected and powered.

7.2 Forbindelsesproblemer

• Symptom: Device not connecting to PC or VR headset.
• Løsning:
  1. For wired connections, ensure all USB cables are securely plugged in.
  2. For wireless connections (Meta Quest), confirm that your headset and KAT Nexus are connected to the same Wi-Fi network.
  3. Restart the KAT Gateway software, your PC, and your VR headset.
  4. Check for updated drivers or firmware for the KAT Nexus and KAT Walk C2 PLUS.

7.3 Physical Discomfort or Dizziness

• Symptom: Feeling unbalanced or experiencing motion sickness.
• Løsning:
  1. Ensure the safety harness is adjusted to the correct height and tightness.
  2. Take breaks as needed.
  3. Practice walking on the platform without VR initially to get accustomed to the sensation.
  4. Adjust VR settings (e.g., FOV, comfort options) if available.

8. Specifikationer

8.1 Shoe Size Chart

Image: A table detailing KAT VR shoe sizes across Brand Size, US Men, US Women, EU, and UK measurements, assisting users in finding their correct fit.

9. Garanti og support

For warranty information, please refer to the documentation included with your product or visit the official KATVR website. For technical support, product inquiries, or assistance with setup and troubleshooting, please contact KATVR customer service.

Kontaktoplysninger: Refer to your product packaging or the official KATVR webwebstedet for de seneste kontaktoplysninger til support.
