1. Introduktion
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your HUSHLIGHT Gas Pressure Washer. Please read all instructions carefully before assembly and use to ensure proper function and to prevent injury or damage.

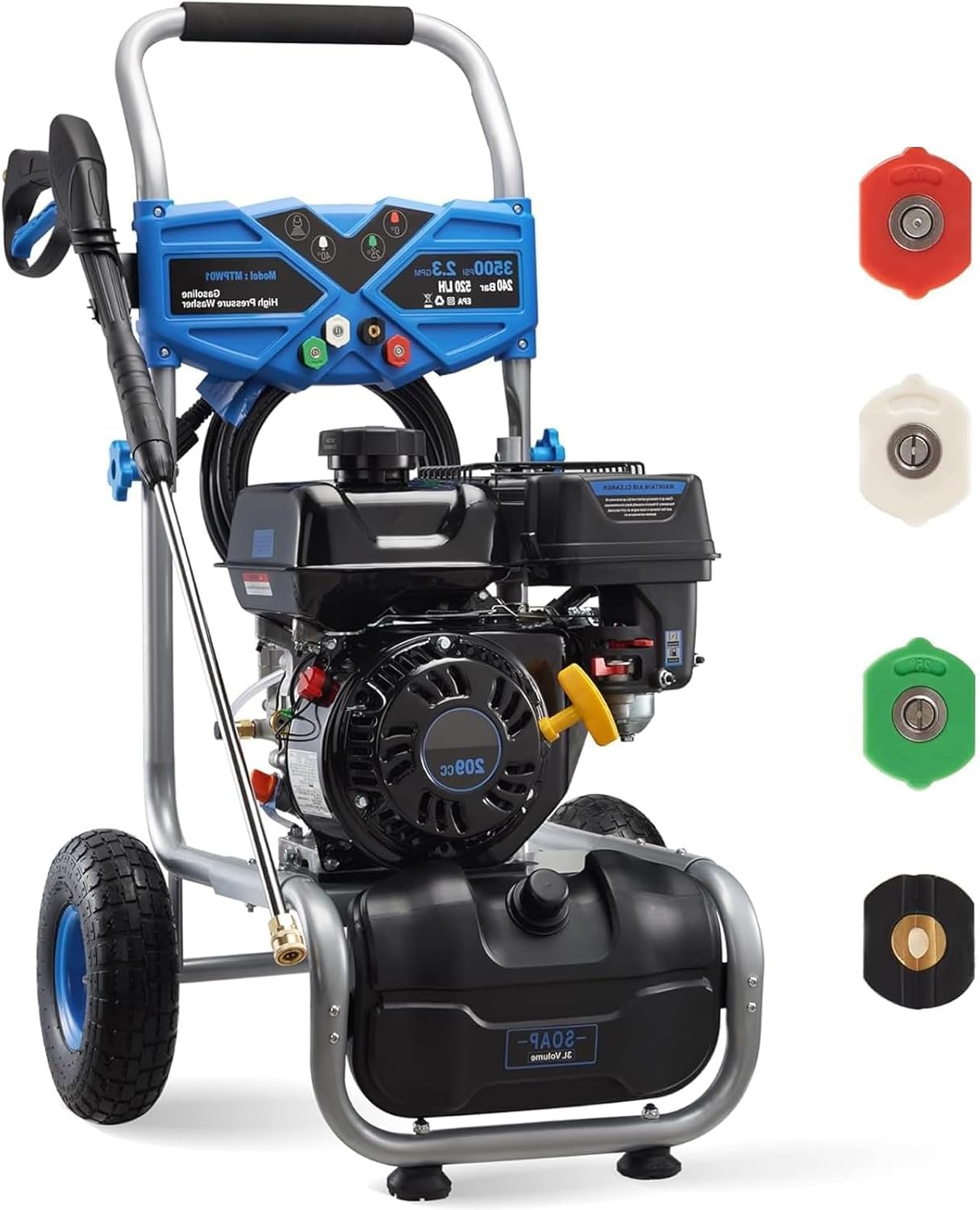

Figure 1: HUSHLIGHT Gas Pressure Washer, 3500 PSI 2.3 GPM, with 209CC Engine and accessories.
2. Sikkerhedsoplysninger
Prioritér altid sikkerhed ved betjening af elektrisk udstyr. Manglende overholdelse af sikkerhedsinstruktionerne kan resultere i alvorlig personskade eller materielle skader.
- Læs manualen: Understand all operating instructions and warnings before use.
- Eye and Hearing Protection: Always wear appropriate eye protection (safety glasses/goggles) and hearing protection.
- Fodtøj: Bær robust, skridsikkert fodtøj.
- Ventilation: Operate the pressure washer in a well-ventilated area to avoid carbon monoxide poisoning. Never operate indoors.
- Brændstofhåndtering: Handle gasoline with extreme care. Refuel in a well-ventilated area with the engine off and cool. Do not smoke while refueling.
- Vandtilslutning: Sørg for, at alle vandtilslutninger er sikre for at forhindre lækager.
- Børn og kæledyr: Hold børn og kæledyr væk fra operationsområdet.
- Varme overflader: The engine and pump can become very hot during operation. Avoid contact.
- Dysevalg: Choose the correct nozzle for the task to prevent damage to surfaces or injury.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede ved udpakning:
- Gas Pressure Washer Unit (with 209CC Engine)
- Spray Gun with Metal Barrel
- 25FT PVC Pressure Hose
- 4 Quick-Connect Nozzles (0°, 25°, 40°, Soap)
- 3L Soap Tank
- Hjul (2)
- Styr
- Small Funnel for Oil/Gas
- Brugermanual
Figur 2: Overview of the main components included with the pressure washer, including the main unit, spray gun, hose, nozzles, and soap tank.
4. Opsætning
Follow these steps to assemble your pressure washer:
- Fastgør styret: Secure the handlebar to the main unit using the provided bolts and nuts. Hand-tighten the nuts.
- Monter hjul: Push the wheels onto the axle until they lock into place.
- Mount Soap Tank: Screw the soap tank holder onto the frame, ensuring the locking washer is in place for a secure fit.
- Saml sprøjtepistolen: Connect the metal barrel to the spray gun handle by spinning it clockwise until secure.
- Tilslutning af højtryksslange: Attach one end of the 25FT high-pressure hose to the spray gun and the other end to the high-pressure outlet on the pump. Screw on tightly.
- Tilslut vandforsyningsslange: Connect your garden hose (not included) to the water inlet on the pressure washer. Ensure the gasket is properly seated to prevent leaks.
- Tilsæt motorolie: Your pressure washer is shipped without oil. Using the provided funnel, add approximately 0.5 quarts of SAE 10W-30 motor oil to the engine. Refer to the engine's dipstick for the correct fill level.
- Tilføj benzin: Fill the fuel tank with 87+ octane gasoline. Do not overfill.
- Store Nozzles: Place the quick-connect nozzles into their designated storage holes on the control panel.
Video 1: Detailed steps on how to set up and start the pressure washer, including adding oil and fuel, and connecting hoses.
Figure 3: Visual guide for starting the gas pressure washer, illustrating steps for adding engine oil, gasoline, turning on the faucet, setting the damper, adjusting throttle, pulling the rope, and cleaning.
5. Betjeningsvejledning
Once assembled and fueled, follow these steps for operation:
- Tænd for vandforsyningen: Fully open the water faucet connected to your garden hose.
- Udluftning: Squeeze the trigger on the spray gun to purge air from the pump and hose until a steady stream of water emerges.
- Motorstart:
- Drej motorkontakten til "ON"-positionen.
- Move the choke lever to the "CLOSE" position (for cold starts).
- Adjust the throttle to the "RIGHT" position.
- Locate the recoil cord and pull it rapidly until the engine starts.
- Once the engine starts, gradually move the choke lever to the "OPEN" position.
- Dysevalg: Choose the appropriate quick-connect nozzle for your cleaning task. Insert it into the spray gun until it clicks securely.
- Apply Soap (Optional): If using detergent, fill the 3L soap tank with pressure washer-safe detergent. Use the black soap nozzle for detergent application.
- Begynd rengøring: Aim the spray gun at the surface to be cleaned, maintaining a safe distance. Squeeze the trigger to start the high-pressure spray.
- Luk ned: To turn off the pressure washer, release the spray gun trigger, turn the engine switch to the "OFF" position, and turn off the water supply. Squeeze the trigger again to release any remaining pressure.
Video 2: Demonstrates the correct startup steps for the gas pressure washer, including choke and throttle adjustments.
Figure 4: Quick-connect nozzles: 0° Jet (High pressure, red), 25° Wash (Medium pressure, green), 40° Rinse (Low pressure, white), and Soap (Foam nozzles, black).
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din højtryksrensers lange levetid og optimale ydeevne.
- Motorolie: Check engine oil level before each use. Change oil after the first 5 hours of operation, then every 50 hours or annually.
- Luftfilter: Inspect the air filter regularly. Clean or replace if dirty.
- Tændrør: Inspicer og rengør tændrøret årligt eller hver 100. time. Udskift om nødvendigt.
- Brændstofsystem: Drain the fuel system if storing for more than 30 days to prevent fuel degradation. Use a fuel stabilizer if storing with fuel.
- Pumpe: Flush the pump with a pump protector/stabilizer before long-term storage to prevent freezing and corrosion.
- Dyser: Clean clogged nozzles with the included nozzle cleaning tool.
- Hose and Gun: Inspect the high-pressure hose and spray gun for damage before each use. Replace if worn or damaged.
7. Fejlfinding
Se dette afsnit for almindelige problemer og løsninger på disse:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Motoren vil ikke starte | No fuel or low oil; Choke/throttle incorrect; Spark plug issue | Add fuel/oil; Adjust choke/throttle; Check/replace spark plug |
| Lavt tryk | Clogged nozzle; Insufficient water supply; Air in pump | Clean nozzle; Ensure full water flow; Purge air from pump |
| Engine stalls during operation | Low oil level; Overheating; Clogged fuel filter | Check/add oil; Allow to cool; Clean/replace fuel filter |
| Vand lækker | Loose connections; Damaged O-rings/gaskets | Tighten connections; Replace O-rings/gaskets |
8. Specifikationer
- Mærke: TYDLYSNING
- Model: Højtryksrenser
- Strømkilde: Gasdrevet
- Maksimalt tryk: 3500 PSI
- Maksimal gennemstrømningshastighed: 2.3 gallon pr. minut (GPM)
- Motor: 209CC 7HP OHV Engine
- Slange længde: 25 fod
- Sæbetankvolumen: 3 liter
- Produktdimensioner: 23.5 cm L x 21.5 cm B x 39.5 cm H
- Varens vægt: 63 pund
- Brændstoftype: 87+ Octane Gasoline
- Olietype: SAE 10W-30
- Overholdelse: EPA Compliant
Figure 5: Detailed product dimensions and weight for the pressure washer.
9. Garanti og support
Your HUSHLIGHT Gas Pressure Washer is designed for reliable performance. For any issues or questions, please contact HUSHLIGHT USA customer support. The product is pre-tested at the factory, and support is available to resolve concerns promptly and efficiently.
- Kundesupport: Contact HUSHLIGHT USA for assistance.
- Returnerer: This product is returnable until January 31, 2026.
