Brugermanual til Ausom L1 800W elektrisk løbehjul

1. Introduktion

This manual provides essential information for the safe and efficient operation of your Ausom L1 800W Electric Scooter. Please read it thoroughly before your first ride and retain it for future reference. Understanding the instructions will ensure optimal performance and longevity of your scooter.

2. Sikkerhedsoplysninger

Operating an electric scooter carries inherent risks. Always prioritize safety. Failure to follow these instructions may result in serious injury or property damage.

• Always wear a helmet and appropriate protective gear (e.g., knee pads, elbow pads, gloves).
• Sørg for, at alle komponenter er forsvarligt fastgjort før hver tur.
• Kør ikke i dårligt vejr (kraftig regn, sne, is).
• Overhold lokale færdselslove og -regler.
• Hold en sikker hastighed og afstand til andre køretøjer og fodgængere.
• Undgå at køre under påvirkning af alkohol eller stoffer.
• The maximum weight limit for this scooter is 130 kg (287 lbs). Do not exceed this limit.
• This scooter is designed for adults.

3. Produktet er slutview

The Ausom L1 is an 800W electric scooter designed for adult use, offering a balance of power, range, and safety features for urban commuting and recreational riding.

Billede: Side view of the Ausom L1 Electric Scooter, showcasindets overordnede design og komponenter.

Nøglefunktioner:

• Kraftig motor: 800W motor for rapid acceleration and a top speed of 45 km/h (28 mph).
• Batteri med lang rækkevidde: 15.6Ah / 48V EVE lithium battery providing up to 70 km (44 miles) of range.
• Avanceret bremsning: Front and rear mechanical disc brakes with E-ABS for confident stopping.
• Holdbare dæk: 10-inch tubeless vacuum tires for various terrains.
• All-Round Lighting: Integrated LED headlight, taillight, brake light, and turn signals.
• Komfortabel køretur: Advanced swingarm suspension for shock absorption.
• Sammenfoldeligt design: One-click folding mechanism for portability.
• Smart skærm: 4.5-inch LCD screen for essential ride information.

4. Opsætning og montering

4.1 Udfoldning af scooteren

1. Placer scooteren på en flad, stabil overflade.
2. Find låsen til foldemekanismen nær bunden af ​​​​styrfrempinden.
3. Release the latch and carefully lift the handlebar stem until it locks into the upright position. Ensure it is securely locked.
4. Adjust the handlebars to your preferred height by loosening the quick-release clamp, forlænge eller trække stilken tilbage, og derefter stramme kl.amp.

Image: Visual guide demonstrating the three steps to fold the Ausom L1 Electric Scooter for storage or transport.

4.2 Indledende kontrol

• Verify that both tires are adequately inflated.
• Test the brakes to ensure they are responsive and functional.
• Check that the headlight, taillight, and turn signals are working correctly.
• Ensure the battery is sufficiently charged before your first ride.

5. Betjening

5.1 Tænd/sluk

Press and hold the power button on the display unit to turn the scooter on or off. The 4.5-inch LCD screen will illuminate, showing current speed, battery level, and riding mode.

Image: The 4.5-inch LCD display showing speed, battery, and riding modes, alongside an illustration of NFC card unlocking.

5.2 Køretilstande

The scooter features multiple riding modes (ECO, SPORT, RACE) which can be selected via the display unit to adjust speed and power output according to your preference and riding conditions.

5.3 Acceleration and Speed

The Ausom L1 is equipped with an 800W motor, providing strong acceleration and a maximum speed of 45 km/h (28 mph). Use the responsive throttle for speed control.

Image: A rider on the Ausom L1 scooter, with an inset showing the internal components of the 800W motor.

5.4 Bremsesystem

The scooter features front and rear mechanical disc brakes, enhanced with E-ABS, for reliable and controlled stopping. Apply both brake levers simultaneously for optimal braking performance.

Image: A person riding the Ausom L1 scooter, with an inset showing a detailed view of the disc brake mechanism.

5.5 Lysanlæg

Activate the full LED lighting system, including the headlight, taillight, brake light, and turn signals, for enhanced visibility during day and night riding. Use the turn signal toggle switch to indicate turns.

Image: The Ausom L1 Electric Scooter illuminated at night, demonstrating the functionality of its headlight and taillight.

5.6 NFC and Passcode Lock

For enhanced security, the Ausom L1 includes NFC and a passcode lock system. Refer to the display unit instructions for setting up and using these features to secure your scooter.

6. Vedligeholdelse

6.1 Pleje af batterier

The scooter is equipped with a 15.6Ah / 48V EVE lithium battery. To maximize battery life:

• Oplad batteriet helt inden første brug.
• Undgå at dræne batteriet helt.
• Opbevar scooteren et køligt og tørt sted, når den ikke er i brug.
• Charge the battery at least once every three months if stored for extended periods.
• Use only the official charger provided with the scooter.

Image: A rider on the Ausom L1 scooter, with an overlay highlighting the location of the 15.6Ah battery within the deck.

6.2 Dækpleje

The 10-inch tubeless vacuum tires are designed for durability and puncture resistance. Regularly check tire pressure and inspect for any signs of wear or damage. Maintain proper tire pressure for optimal performance and safety.

Billede: Nærbillede view of the 10-inch tubeless tire of the Ausom L1 Electric Scooter, highlighting its tread pattern suitable for various terrains.

6.3 Bremsevedligeholdelse

Periodically inspect the brake pads and discs for wear. If you notice reduced braking performance or unusual noises, have the brakes inspected and serviced by a qualified technician.

6.4 Rengøring

Rengør scooteren med annonceamp cloth. Avoid using high-pressure water jets or harsh chemicals, as these can damage electronic components or paintwork.

7. Fejlfinding

If you encounter issues with your Ausom L1 Electric Scooter, refer to the following common troubleshooting tips:

• Scooter not powering on: Ensure the battery is charged and securely connected. Check the power button for proper function.
• Reduceret rækkevidde eller hastighed: This could indicate a low battery charge, improper tire pressure, or riding in challenging conditions (e.g., uphill, heavy load).
• Bremserne reagerer ikke: Inspect brake levers, cables, and disc pads for wear or damage. Adjust as necessary or seek professional assistance.
• Usædvanlige lyde: Stop riding immediately and inspect the scooter for loose parts, debris, or damage to wheels, motor, or suspension.

For issues not covered here, please contact Ausom customer support.

8. Specifikationer

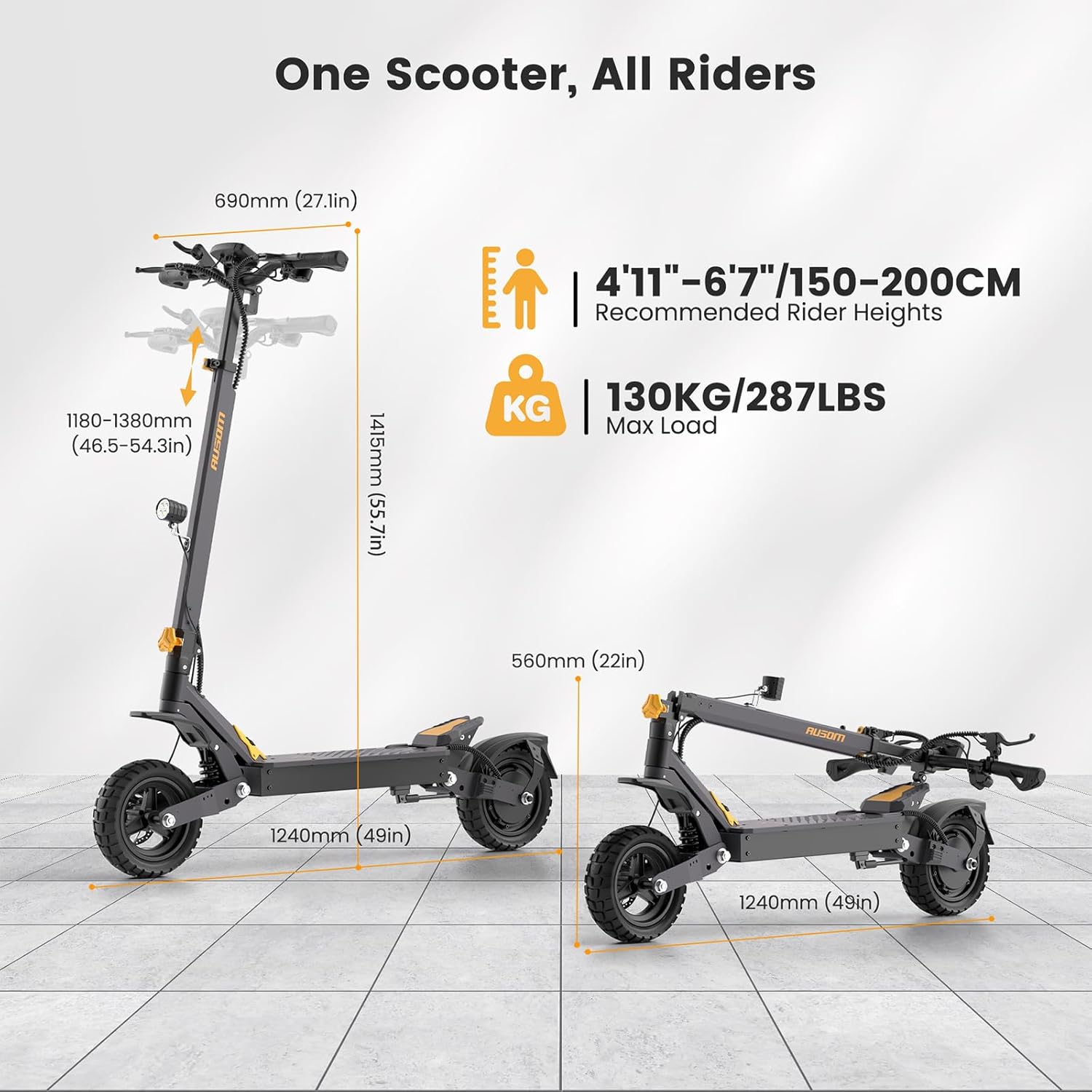

Image: Diagram illustrating the dimensions of the Ausom L1 Electric Scooter in both unfolded and folded states, along with recommended rider height and maximum load capacity.

9. Garanti og support

9.1 Garantioplysninger

Your Ausom L1 Electric Scooter comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

9.2 Kundesupport

For technical assistance, parts, or warranty inquiries, please contact Ausom customer support. You can find contact information on the official Ausom webwebsted eller via din købsplatform.
