PowMr 10000W hybrid solcelle-inverter (POW-RELAB 10KE) brugermanual

1. Introduktion

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your PowMr 10000W Hybrid Solar Inverter. Please read this manual thoroughly before installation and use, and retain it for future reference. This inverter is designed to convert 48VDC battery power to 220VAC, integrating a 120A MPPT solar charge controller for comprehensive solar power management.

2. Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsforanstaltninger for at mindske risikoen for elektrisk stød, brand eller personskade:

• Installation must be performed by qualified personnel in accordance with all local electrical codes.
• Ensure the inverter is disconnected from all power sources (PV array, battery, AC input) before performing any maintenance or wiring.
• Skil ikke inverteren ad. Der er ingen dele indeni, som brugeren kan servicere.
• Avoid installing the inverter in direct sunlight, near heat sources, or in areas with flammable materials.
• Sørg for korrekt ventilation omkring inverteren for at forhindre overophedning.
• Wear appropriate personal protective equipment (PPE), including insulated gloves and eye protection, when working with electrical systems.
• Verify correct polarity when connecting batteries and solar panels. Incorrect polarity can cause severe damage.

3. Produktet er slutview

The PowMr 10000W Hybrid Solar Inverter is a robust solution for off-grid and hybrid solar systems. It features a pure sine wave output, a high-efficiency MPPT charge controller, and advanced protection functions.

3.1 Nøglefunktioner

• Udgangseffekt: 10000W rated, with a peak power capability of up to 30000W.
• Input bindtage: 48VDC for battery systems.
• Udgang Voltage: 220Vac ±10% at 50Hz/60Hz.
• MPPT Charge Controller: Built-in 120A MPPT for efficient solar charging. Max PV input power: 6400W, MPPT voltage range: 60-150VDC.
• AC opladning: Maximum AC charging current of 60A. Hybrid charging (AC + PV) up to 120A.
• Batterikompatibilitet: Supports various 48V battery types including Flooded, LiCoMnNiO2, LiFePO4, AGM, Gel, and user-defined settings.
• High Load Handling: Optimized toroidal transformer design for enhanced stability and reliability with high-load electrical devices.
• Vise: LCD screen and 3 LED indicators for dynamic system data and operating status.

3.2 Fysisk beskrivelse

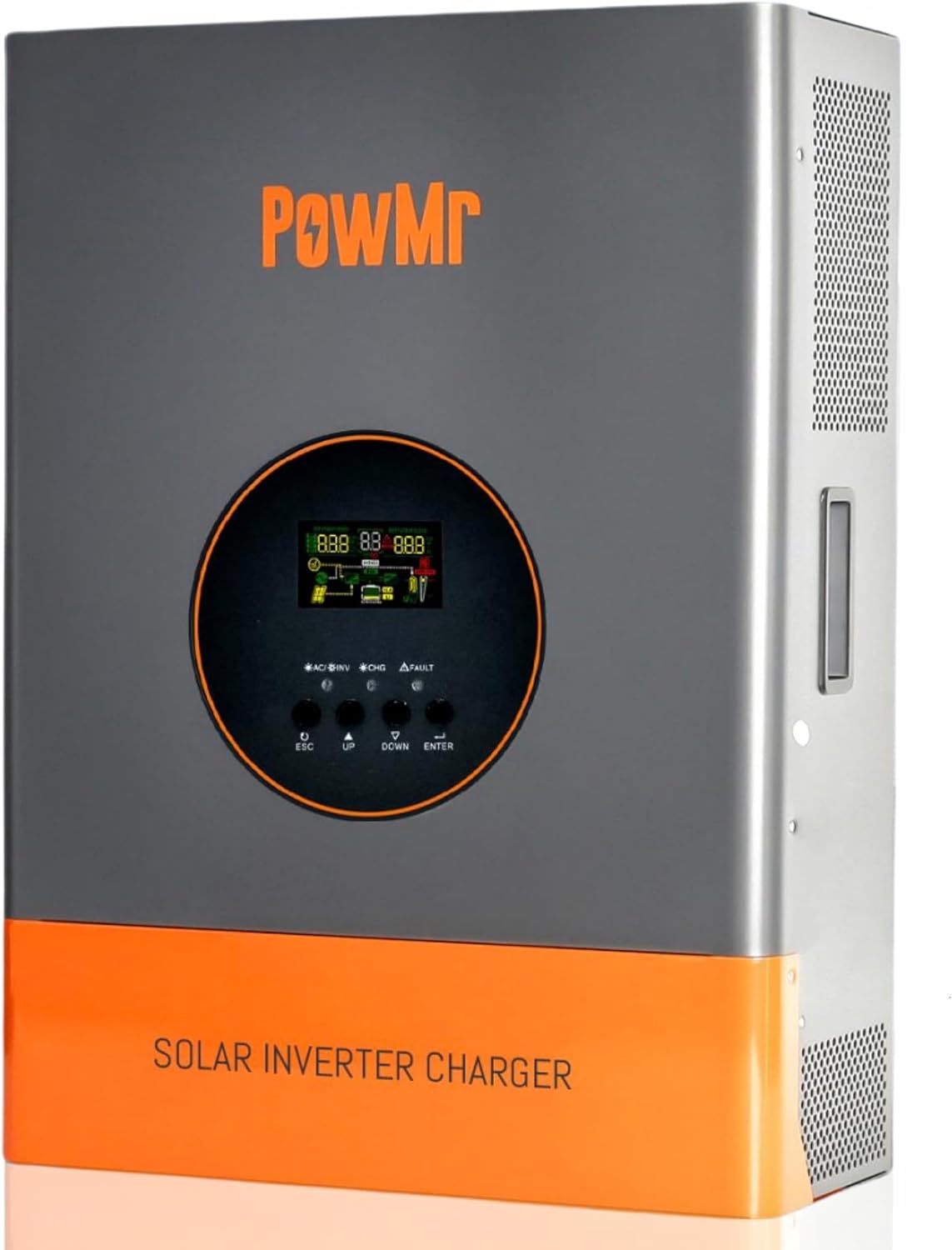

Billede 3.1: Forside view of the PowMr 10000W Hybrid Solar Inverter, showing the LCD display and control buttons.

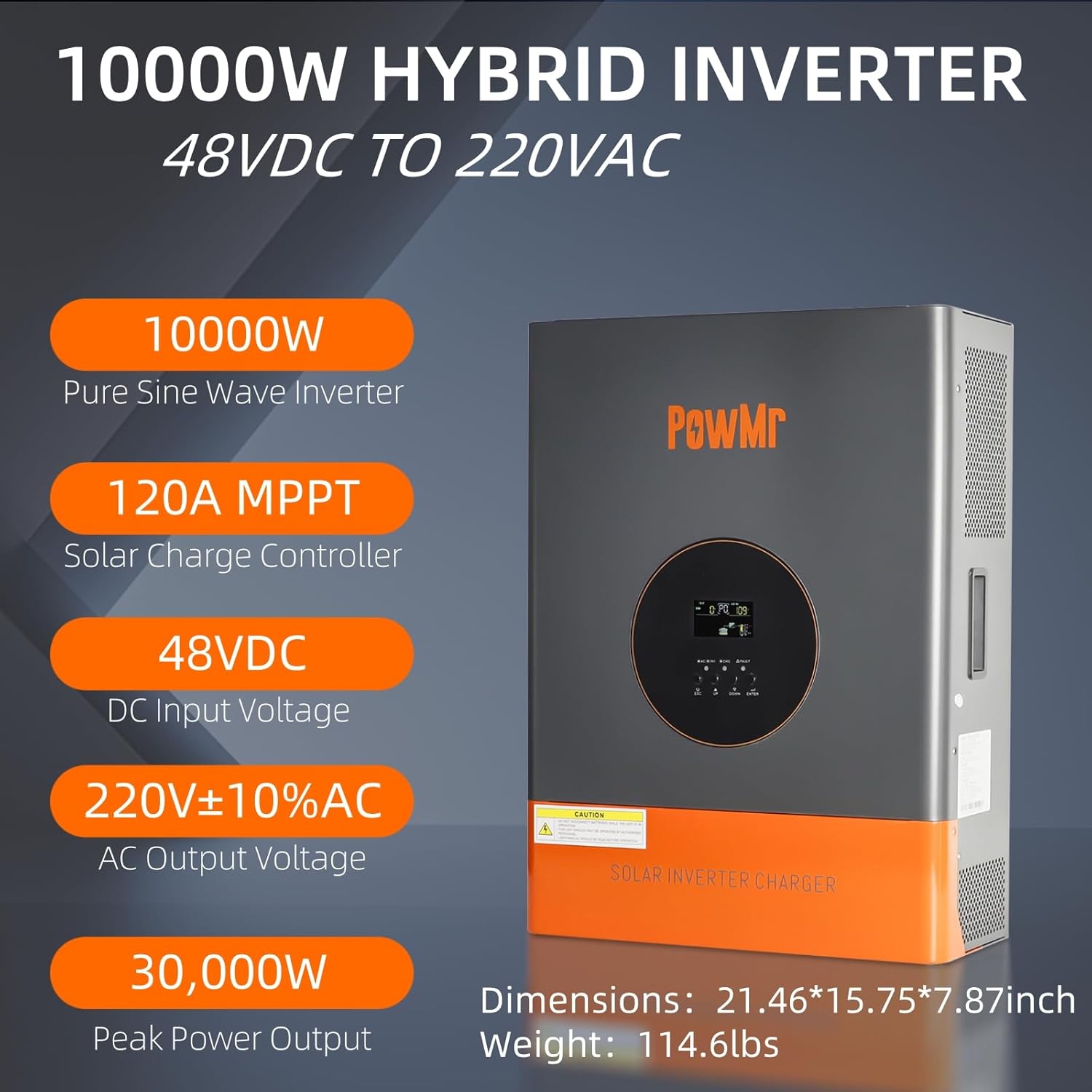

Image 3.2: The inverter highlighting its 10000W pure sine wave output, 120A MPPT controller, 48VDC input, 220V AC output, 30000W peak power, and dimensions.

The inverter measures approximately 21.46 x 15.75 x 7.87 inches and weighs 114.6 pounds. It features a durable finish with high anti-corrosion and dust-proof design.

3.3 Connection Ports and Controls

Billede 3.3: Bagside view of the inverter showing the various connection ports and a toggle switch.

1. Vippekontakt: Hovedafbryder til inverteren.
2. AC-indgang: Tilslutning til net- eller generatorstrøm.
3. AC udgang: Connection for loads requiring 220VAC.
4. Kommunikationsport: For data monitoring and external communication.
5. PV input: Tilslutninger til solpaneler.
6. Batteriindgang: Tilslutninger til 48V batteribanken.

4. Opsætning og installation

Careful planning and correct installation are crucial for the safe and optimal performance of your hybrid solar inverter.

4.1 Valg af sted

• Install the inverter indoors, in a dry, well-ventilated area.
• Ensure adequate clearance around the unit for airflow and heat dissipation.
• Mount the inverter vertically on a sturdy, non-flammable surface.
• Avoid areas with excessive dust, corrosive gases, or high humidity.

4.2 Ledningsforbindelser

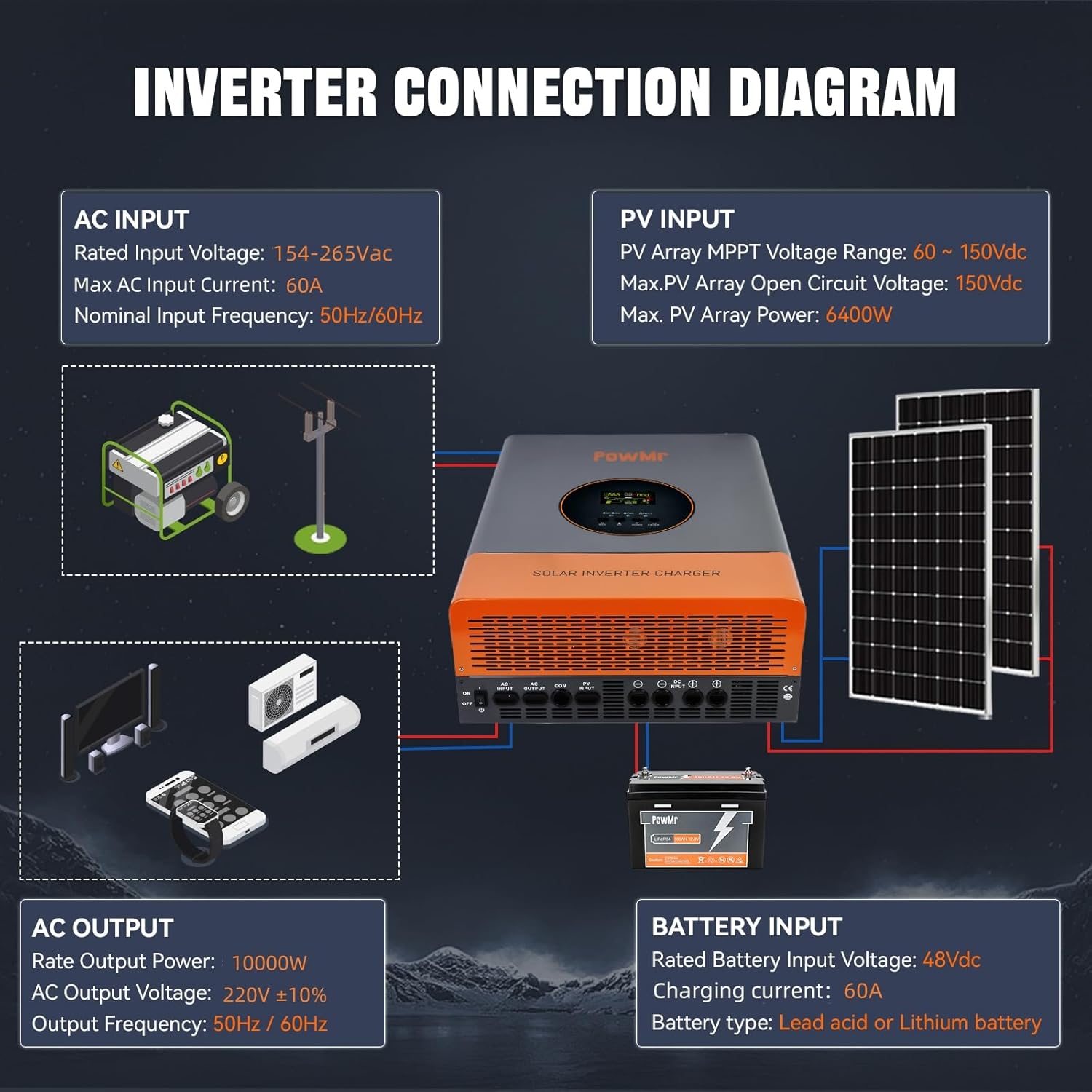

Image 4.1: Diagram illustrating the AC input (grid/generator), AC output (loads), PV input (solar panels), and Battery input connections.

1. Batteriforbindelse: Connect the 48V battery bank to the battery input terminals. Ensure correct polarity (positive to positive, negative to negative). The inverter supports various 48V battery types including Flooded, LiCoMnNiO2, LiFePO4, AGM, Gel, and user-defined settings.
2. PV-paneltilslutning: Connect the solar panel array to the PV input terminals. The maximum PV array open circuit voltage is 150VDC, and the MPPT voltage range is 60-150VDC. Ensure the total PV power does not exceed 6400W.
3. AC-indgangsforbindelse: Connect the AC utility grid or a compatible generator to the AC input terminals. Rated input voltage is 154-265Vac, with a maximum AC input current of 60A.
4. AC-udgangstilslutning: Connect your AC loads to the AC output terminals. The inverter provides 10000W rated power at 220Vac ±10% (50Hz/60Hz).

All wiring should be appropriately sized for the expected current and protected with circuit breakers or fuses as required by local electrical codes.

Image 4.2: Illustration of battery charging current (Max AC 60A, Max PV 120A) and compatible 48V battery types: GEL, FLD (Flooded), Li-ion (Lithium-ion), and USE (User-defined).

5. Betjeningsvejledning

Once all connections are securely made and verified, you can begin operating the inverter.

5.1 Tænd/sluk

1. For at tænde: First, switch on the battery breaker, then the PV array breaker, and finally the AC input breaker (if connected). Turn on the inverter's main toggle switch. The LCD display will illuminate, and the inverter will initiate its startup sequence.
2. For at slukke: First, turn off the AC input breaker, then the PV array breaker, and finally the battery breaker. Turn off the inverter's main toggle switch.

5.2 LCD Display and Settings

The LCD screen provides real-time system data, including input/output voltages, current, power, battery status, and operating mode. The 3 LED indicators provide quick status updates.

The inverter features a comprehensive menu system with approximately 41 adjustable parameters. These settings allow customization of charging modes, discharge priorities, battery types, and other operational parameters. Refer to the detailed parameter settings section in the full product manual for specific instructions on navigating and adjusting these settings.

5.3 Charge and Discharge Modes

The inverter supports flexible charging and discharge strategies:

• 3 opladningstilstande:
  • Solar-only charging
  • Utility priority charging (AC first, then solar)
  • Solar priority charging (Solar first, then AC)
• 3 Discharge Modes:
  • PV priority discharge (Solar first, then battery, then utility)
  • Utility priority discharge (Utility first, then solar, then battery)
  • Solar-only discharge (Loads powered only by solar/battery)

6. Vedligeholdelse

Regular maintenance ensures the longevity and reliable performance of your PowMr Hybrid Solar Inverter.

• Rensning: Periodically clean the exterior of the inverter with a dry cloth. Ensure ventilation openings are free from dust and debris. The inverter features a dust-proof design to prolong its lifespan.
• Forbindelser: Annually inspect all wiring connections for tightness and signs of corrosion. Loose connections can lead to overheating and system failure.
• Ventilation: Ensure the dual cooling fans are operating correctly and are not obstructed. Efficient heat dissipation is critical for performance.
• Miljø: Verify that the installation environment remains within the specified temperature and humidity ranges.

7. Fejlfinding

Dette afsnit indeholder vejledning til almindelige problemer. Kontakt teknisk support ved komplekse problemer.

7.1 Beskyttelsesfunktioner

Image 7.1: Diagram illustrating the various protection mechanisms integrated into the inverter.

The inverter is equipped with multiple protection features to ensure safe operation:

• Overbelastningsbeskyttelse: Shuts down output if connected loads exceed the inverter's capacity.
• Charge Short Protection: Protects against short circuits in the charging circuit.
• Kortslutningsbeskyttelse: Protects the AC output from short circuits.
• Batteri over voltage Beskyttelse: Prevents battery overcharging.
• Batteri lav voltage Beskyttelse: Forhindrer overafladning af batteriet.
• Bypass Over Current Protection: Protects the bypass circuit from excessive current.
• AC Reverse Protection: Prevents damage from incorrect AC input wiring.
• Parallel Connection Error Protection: Ensures correct configuration in parallel systems.

7.2 Fælles problemer

• Inverter Not Turning On: Check battery connections, battery voltage, and all breakers. Ensure the main toggle switch is in the ON position.
• Ingen AC-udgang: Verify input sources (PV, AC utility), check for overload conditions, and ensure protection functions have not been triggered.
• LCD-skærmen virker ikke: If the unit powers on but the display is blank, check internal ribbon cable connections (if comfortable and authorized by support, otherwise contact support).
• Usædvanlige lyde: Minor fan noise is normal during operation, especially under heavy load. Excessive or unusual noises may indicate a problem; disconnect power and contact support.

8. Specifikationer

9. Garanti og support

For warranty information, please refer to the documentation provided with your purchase or contact the seller directly. Warranty terms typically cover manufacturing defects for a specified period.

For technical support, troubleshooting assistance, or inquiries regarding parts and service, please contact PowMr customer service through their official channels or the retailer from whom the product was purchased. Providing your model number (POW-RELAB 10KE) and purchase details will help expedite support.
