Brugervejledning til VTOMAN Jump 1800 bærbar kraftstation

1. Produktet er slutview

The VTOMAN Jump 1800 is a versatile portable power station designed to provide reliable power for various applications, including camping, RV travel, home backup, and emergency situations. It features a robust 1548Wh LiFePO4 battery and delivers a pure sine wave 1800W AC output, with a surge capacity of 3600W. This unit is equipped with multiple output ports and advanced safety features to ensure efficient and secure operation.

Nøglefunktioner:

• SuperSafe LIFEBMS Battery Management System: Provides comprehensive protection against over-charge, over-discharge, over-voltage, over-current, and more.
• LiFePO4 batteriteknologi: Offers enhanced heat resistance, safety, and a longer lifespan of over 3,000 cycles to 80% capacity.
• Udvidbar kapacitet: Base capacity of 1548Wh, expandable up to 3096Wh with an optional VTOMAN Jump 1500 extra battery (sold separately).
• 1800W Constant-Power Output (V-Beyond Technology): Capable of powering appliances rated over 1800W by maintaining a constant 1800W output, providing an emergency solution for devices up to 3600W.
• Flere udgangsporte: Includes 3x 110V/1800W AC outlets, 2x Regulated 12V/10A DC5521 outputs, 1x Regulated 12V/10A car port, 4x USB-A outputs (including 1x QC 3.0 18W max), and 2x Type-C PD 100W outputs.
• Fast Recharging Options: Supports recharging via wall charger (approx. 3 hours to 80%), 12V car outlet (approx. 8 hours), or up to 400W solar panels (approx. 5-8 hours).
• 12V Car Jump Start Function: Integrated capability to jump start vehicles.
• Pass-through-opladning: Allows the unit to charge devices while being recharged itself.
• Integreret LED lys: Giver belysning i nødsituationer eller miljøer med svagt lys.

2. Vigtige sikkerhedsinstruktioner

Please read and understand all safety instructions before operating the VTOMAN Jump 1800 Portable Power Station. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Enheden må ikke skilles ad, repareres eller ændres. Forkert samling kan forårsage brand eller elektrisk stød.
• Keep the unit away from fire, heat sources, and direct sunlight. Store in a cool, dry, and well-ventilated area.
• Do not expose the unit to water or other liquids. Avoid using in humid environments.
• Sørg for tilstrækkelig ventilation under brug og opladning. Ventilationsåbningerne må ikke blokeres.
• Use only VTOMAN-approved accessories and charging cables.
• Opbevares utilgængeligt for børn og kæledyr.
• I tilfælde af brand, brug en tørpulverslukker. Vand kan forårsage elektrisk stød.
• Dispose of the unit and its battery according to local regulations. Do not dispose of in household waste.

3. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• 1x VTOMAN Jump 1800 Portable Power Station
• 1x AC-adapter og opladningskabel
• 1x bil ladekabel
• 1x Type-C til Type-C kabel
• 1x USB-A til Type-C-kabel
• 1x brugermanual

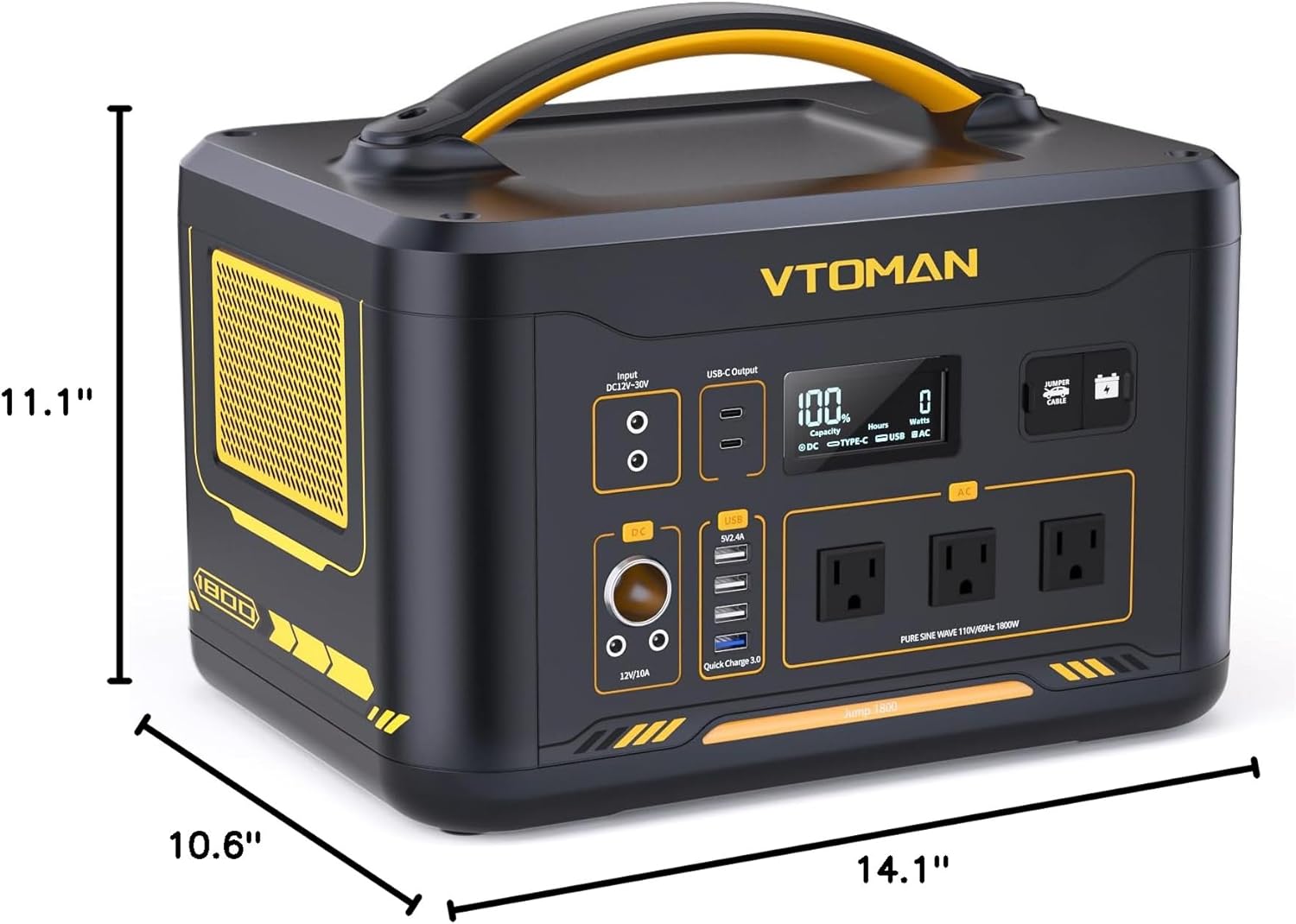

4. Produktlayout og porte

Familiarize yourself with the various input and output ports on your Jump 1800 power station.

• Input DC12V-30V: For charging the power station via AC adapter, car charger, or solar panels.
• USB-C Output (PD100W): Two Type-C ports for fast charging compatible devices.
• Skærm: Viser batteriniveau, input/output watttage, og resterende køretid.
• Jumper Cable Port: Dedicated port for connecting car jump starter cables.
• Add-on Battery Port: For connecting an optional VTOMAN Jump 1500 extra battery.
• 12V/10A DC-udgang: Two DC5521 ports and one car cigarette lighter port for 12V devices.
• USB-A-output: Four USB-A ports, including one Quick Charge 3.0 port.
• AC Outlets (110V/1800W): Three standard AC outlets for household appliances.

5. Opsætningsvejledning

5.1 Indledende opladning

Before first use, it is recommended to fully charge your VTOMAN Jump 1800. Connect the provided AC adapter to the DC input port and plug it into a wall outlet. The display screen will indicate charging status. A full charge via wall outlet typically takes approximately 3 hours to reach 80% capacity.

6. Betjeningsvejledning

6.1 Tænd/sluk

To turn on the power station, press and hold the main power button for a few seconds until the display screen illuminates. To turn off, press and hold the power button again until the display turns off.

6.2 Brug af AC-udgange

Press the AC power button to activate the AC outlets. Plug your appliances into the 110V AC outlets. Ensure the total wattage of connected devices does not exceed 1800W. For devices exceeding 1800W, the V-Beyond Technology may provide constant 1800W output (see section 6.7).

6.3 Using DC Outputs (12V/10A, Car Port)

Press the DC power button to activate the 12V DC5521 ports and the car cigarette lighter port. These ports provide a regulated 12V/10A output, suitable for devices like car refrigerators, CPAP machines, and portable tire inflators. The total maximum output for all DC ports is 120W.

6.4 Using USB Outputs (Type-C PD 100W, USB-A)

The USB outputs are typically active when the unit is on. The two Type-C ports support Power Delivery (PD) up to 100W for fast charging laptops and other compatible devices. The USB-A ports include one Quick Charge 3.0 port (18W max) and three standard USB-A ports (12W max).

6.5 Car Jump Start Function

The Jump 1800 can be used to jump start a 12V vehicle battery. Connect the jumper cables (sold separately) to the dedicated jumper cable port on the power station, then connect the clamps to your vehicle's battery terminals (red to positive, black to negative). Follow the specific instructions provided with your jumper cables for safe operation. Ensure the power station has sufficient charge before attempting a jump start.

6.6 Opladning af kraftværket

The Jump 1800 offers multiple charging methods:

• AC vægudtag: Connect the AC adapter to the DC input port. Recharges to 80% in approximately 3 hours.
• Biloplader: Use the provided car charging cable to connect to your vehicle's 12V outlet. Full recharge takes approximately 8 hours.
• Solpaneler: Connect compatible solar panels (up to 400W max input) to the DC input ports. Recharging time is approximately 5-8 hours, depending on sunlight conditions and panel wattage. The unit features a built-in MPPT controller for efficient solar charging.

6.7 Udvidelig kapacitet

The Jump 1800's capacity can be expanded by connecting a VTOMAN Jump 1500 extra battery (sold separately). This increases the total capacity from 1548Wh to 3096Wh, providing extended power duration for your needs. Refer to the Jump 1500 extra battery manual for connection instructions.

6.8 V-Beyond Technology (Constant Power Output)

The Jump 1800 features V-Beyond Technology, which allows it to power resistive loads exceeding its rated 1800W output by maintaining a constant 1800W output instead of shutting down. This provides an emergency solution for appliances up to 3600W, such as water heaters, space heaters, and ovens. Note that this feature is primarily for resistive loads and may not apply to all high-wattage inductive appliances.

6.9 LED-lysfunktion

The integrated LED light can be activated by pressing the dedicated light button. It provides convenient illumination for various situations, including power outages eller udendørs aktiviteter.

7. Vedligeholdelse og opbevaring

7.1 Pleje af batterier

The Jump 1800 utilizes a LiFePO4 battery, known for its durability and long cycle life (over 3,000 cycles to 80% capacity). To maximize battery lifespan:

• Undgå at aflade batteriet helt ofte.
• Genoplad enheden mindst én gang hver 3.-6. måned, hvis den ikke er i regelmæssig brug.
• Store the unit with a charge level between 50% and 80%.

7.2 Rengøring og opbevaring

• Rengør enheden med en tør, blød klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevar kraftværket et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• Ensure the unit is turned off before storing for extended periods.

8. Fejlfinding

If you encounter issues with your VTOMAN Jump 1800, refer to the following common problems and solutions:

• Enheden tænder ikke: Check the battery level on the display. Ensure the main power button is pressed and held for a few seconds. If the battery is completely depleted, connect to an AC charger for initial power.
• AC output not working: Verify that the AC power button is pressed and its indicator light is on. Check if the appliance wattage exceeds the unit's 1800W rated output. If using V-Beyond Technology for higher wattage devices, ensure it's a resistive load.
• DC/USB output not working: Confirm that the respective DC or USB power buttons are activated. Check all cable connections for secure fit.
• Langsom opladning: For AC charging, ensure the original adapter is used. For solar charging, verify solar panel output, optimal positioning towards the sun, and clean panel surfaces.
• Car Jump Start failure: Ensure the jumper cables are correctly connected to both the power station and the vehicle battery (red to positive, black to negative). Check that the power station has sufficient charge for jump starting.
• Advarsel om overbelastning: If an overload warning appears, disconnect some devices to reduce the load. The unit may automatically shut down to prevent damage.

If the problem persists, please contact VTOMAN customer support.

9. Tekniske specifikationer

10. Garanti og kundesupport

10.1 Garantioplysninger

The VTOMAN Jump 1800 Portable Power Station comes with a 2-års garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.

10.2 Kundesupport

For technical assistance, warranty claims, or any questions regarding your VTOMAN Jump 1800, please contact VTOMAN customer support through their official channels. You can find more information and contact details on the VTOMAN Brand Store on Amazon eller deres embedsmand webwebsted.
