Indledning
Welcome to the Bugaboo Butterfly 2 Travel Stroller user manual. This guide provides essential information for the safe and effective use, setup, operation, and maintenance of your new stroller. The Bugaboo Butterfly 2 is designed for ultimate convenience, featuring an ultra-compact one-second fold, making it lightweight and airplane-friendly. It offers superior comfort for your child and ease of use for parents on the go.
Image: The Bugaboo Butterfly 2 Travel Stroller in its upright position, showcasing its sleek design and green fabric.
Sikkerhedsoplysninger
Always prioritize your child's safety. Read and understand all instructions before using the stroller. Failure to follow these instructions could result in serious injury.
- Efterlad aldrig dit barn uden opsyn in the stroller.
- Brug altid 5-punkts selesystem to secure your child. Ensure it is correctly adjusted and fastened.
- Engager bremsesystem whenever the stroller is stationary.
- Do not overload the stroller. Adhere to the maximum weight recommendations for the seat and storage basket. The maximum weight recommendation for the child is 48.5 pounds, and for the storage basket, it is 17.64 pounds.
- Sørg for, at alle låseanordninger er aktiveret før brug.
- Hold børn væk fra bevægelige dele, når du foretager justeringer.
- This stroller is suitable for children from 0 to approximately 48 months. For newborns, a compatible car seat (with adapters) is recommended for optimal comfort and safety.
Opsætning
Udpakning og indledende inspektion
Carefully remove all components from the packaging. Inspect the stroller for any signs of damage or missing parts. If any issues are found, do not assemble or use the stroller, and contact Bugaboo customer support immediately.
Folder barnevognen ud
The Bugaboo Butterfly 2 features a convenient one-second unfold mechanism. Follow these steps:
- Placer den sammenfoldede klapvogn på en flad, stabil overflade.
- Locate the release button/handle on the handlebar.
- Press the button and lift the handlebar firmly upwards. The stroller frame will automatically extend and lock into place.
- Ensure all parts are securely locked before placing a child in the stroller. You will hear an audible click when the frame is fully engaged.
Image: A visual sequence demonstrating the one-second unfolding process of the Bugaboo Butterfly 2 stroller, showing it transform from a compact fold to a fully open position.
Betjening af klapvognen
Sammenfoldning af barnevognen
To fold the Bugaboo Butterfly 2 for compact storage or travel, follow these steps:
- Sørg for, at barnet er taget ud af klapvognen.
- Aktiver bremsen.
- Locate the folding mechanism on the handlebar.
- Press the release button and push the handlebar downwards. The stroller will collapse into its ultra-compact folded state.
- The stroller is designed to stand independently when folded.
Image: The Bugaboo Butterfly 2 stroller shown in its folded, compact state, with dimensions indicating its small footprint for travel and storage.

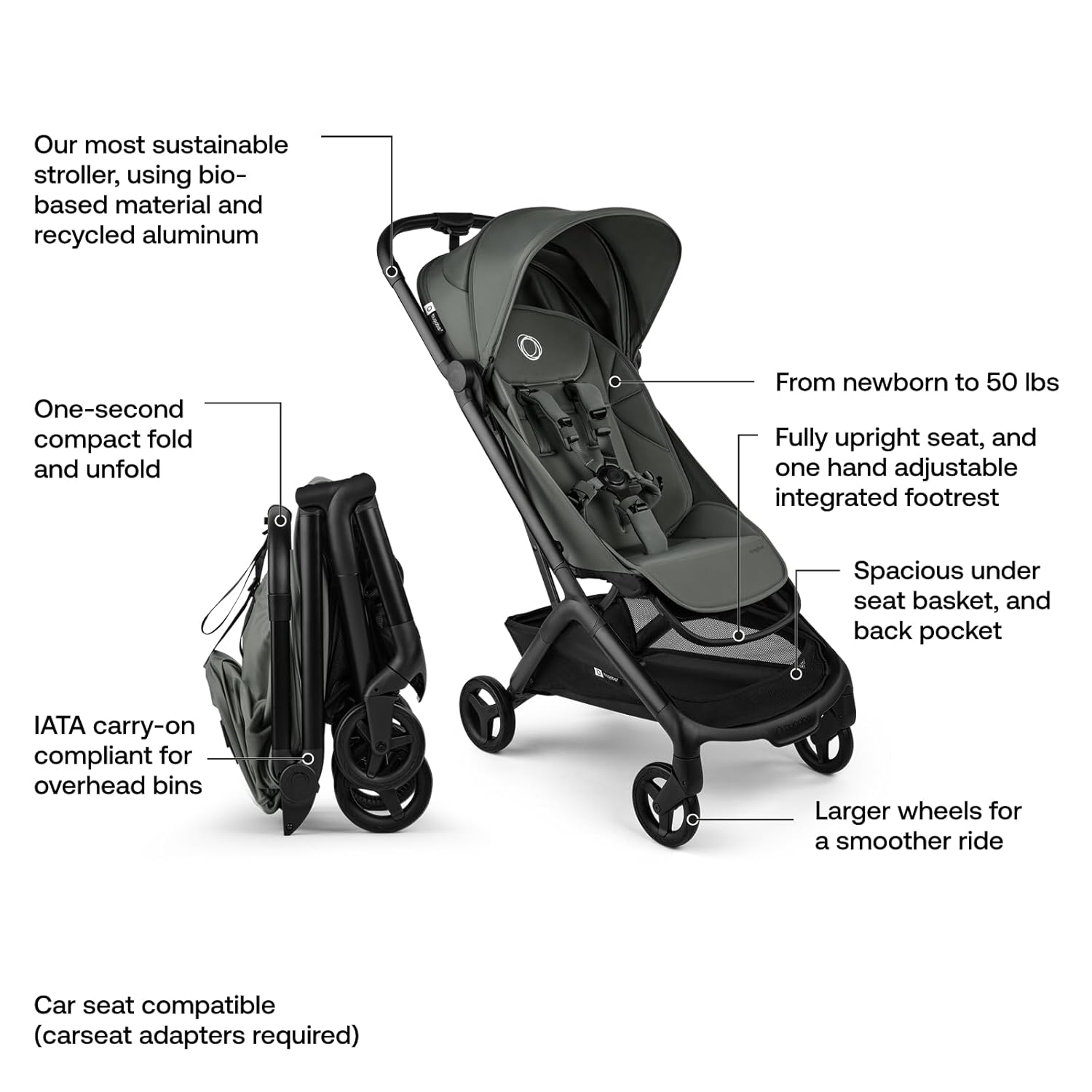

Image: An infographic highlighting key features of the Bugaboo Butterfly 2, including its one-second compact fold, spacious underseat basket, adjustable footrest, and IATA carry-on compatibility.
Selesystem
The stroller is equipped with a 5-point adjustable harness. To secure your child:
- Placer dit barn i sædet.
- Før skulderremmene over dit barns skuldre og taljeremmene omkring dets hofter.
- Insert the buckle prongs into the central buckle until they click securely.
- Adjust the straps to ensure a snug, comfortable fit, allowing no more than one finger to fit between the strap and your child's body.
Seat Recline and Footrest Adjustment
The seat offers multiple recline angles, including a fully upright position, and features an adjustable footrest for growing children.
- To recline the seat, locate the recline mechanism behind the seat and adjust to the desired position.
- To adjust the footrest, use the lever or buttons located near the footrest to raise or lower it.
Bremsesystem
The stroller is equipped with a foot-operated brake system.
- To engage the brake, press down firmly on the brake pedal located near the rear wheels until it locks.
- For at løsne bremsen skal du løfte pedalen opad.
- Sørg altid for, at bremsen er fuldt aktiveret, når barnevognen holder stille.
Opbevaringskurv
The stroller includes an extra-large underseat storage basket and a handy back storage pocket.
- The underseat basket can hold up to 17.64 pounds (8 kg) of items.
- Use the back pocket for smaller, easily accessible items.
- Do not exceed the maximum weight capacity to maintain stroller stability.
Billede: Et nærbillede view of the Bugaboo Butterfly 2's spacious underseat storage basket, filled with various items, demonstrating its capacity.
Opretholdelse
Regular maintenance will prolong the life of your Bugaboo Butterfly 2 stroller.
- Rengøring af stof: The fabric components are made of polyester and can be machine washed. Refer to the care label for specific washing instructions. Use mild detergent and cold water. Do not bleach.
- Rengøring af ramme: Tør aluminiumsrammen af med reklameamp cloth and mild soap. Dry thoroughly. Avoid abrasive cleaners.
- Vedligeholdelse af hjul: Regularly check the wheels for debris and clear any obstructions. Lubricate moving parts of the wheels and axles periodically with a silicone-based lubricant.
- Opbevaring: Opbevar klapvognen et tørt, godt ventileret område, væk fra direkte sollys og ekstreme temperaturer.
Fejlfinding
If you encounter any issues with your Bugaboo Butterfly 2 stroller, please refer to the common problems and solutions below. If the problem persists, contact customer support.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Barnevognen folder sig ikke jævnt ud/sammen. | Mekanismen er blokeret eller ikke helt aktiveret. | Ensure all release points are pressed simultaneously. Check for any fabric or debris obstructing the folding mechanism. Apply a small amount of silicone lubricant to moving joints if stiff. |
| Wheels squeak or are difficult to turn. | Dirt/debris in wheel bearings or lack of lubrication. | Clean wheels and axles thoroughly. Apply silicone lubricant to the wheel axles. |
| Bremsen aktiveres/frakobles ikke korrekt. | Debris in the brake mechanism or misalignment. | Clear any debris from the brake pedal and mechanism. Ensure the brake pedal is fully pressed or lifted. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Bugaboo |
| Modelnummer | 8717447366379 |
| Farve | Grøn |
| Materiale (ramme) | Aluminium |
| Stoftype | Polyester |
| Aldersgruppe beskrivelse | 0-48 måneder |
| Varens vægt | 16.1 pund |
| Maximum Weight Recommendation (Child) | 48.5 pund |
| Kurvvægtkapacitet Maksimal | 17.64 pund |
| Folded Size (H x W) | Ca. 21.26 cm x 9.06 cm |
| Udfoldede mål (L x B x H) | 37.2 cm L x 17.64 cm B x 40.47 cm H |
| Inkluderede komponenter | Opbevaringskurv |
| Type sele | 5 punkt |
| Barnevognstype | Paraply klapvogn |
| Kompatibel med bilsæde | Yes (adapters required) |
Garanti og support
Bugaboo offers a comprehensive warranty for your Butterfly 2 Travel Stroller.
- Standard garanti: Your stroller comes with a standard warranty.
- Udvidet garanti: Register your product to receive a free extended 4-year warranty, effectively doubling your coverage. Product registration details can typically be found on the Bugaboo official website or through the included product registration card.
- For technical support, spare parts, or warranty claims, please visit the official Bugaboo website or contact their customer service department. Keep your proof of purchase and model number handy when contacting support.
