Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your Avatar ABR-800.1 monoblock car ampLæs venligst denne manual grundigt, før du forsøger at installere eller betjene amplifier to ensure proper use and to prevent damage to the unit or your vehicle's audio system. Keep this manual for future reference.
The Avatar ABR-800.1 is a compact and powerful monoblock car amplifier designed to deliver up to 800 watts of clean power to your subwoofer. Built for car audio enthusiasts, this Class AB amplifier provides reliable performance with smooth sound quality and minimal distortion. It offers a flexible and affordable solution for upgrading your stock system or adding extra bass. With high- and low-level inputs, it easily integrates with various head units, while 2-ohm stability ensures compatibility with a wide range of subwoofers. Its small footprint allows for easy installation in tight spaces. The amplifier also features protection circuits for overheating, overload, and short circuit, ensuring safe and stable operation.
Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsforanstaltninger under installation og drift:
- Frakobl køretøjets negative batteripol, før du påbegynder nogen form for installation.
- Sørg for, at alle ledninger er korrekt ført og fastgjort for at forhindre klemning eller beskadigelse.
- Brug passende ledningsføring til strøm- og jordforbindelser for at håndtere amplifiers nuværende træk.
- Monter ikke ampopbevar apparatet i områder med direkte sollys, overdreven varme, fugt eller støv.
- Sørg for tilstrækkelig ventilation omkring ampvarmeafledning til korrekt varmeafledning.
- Betjen aldrig ampforsyning med beskadigede ledninger eller komponenter.
- Søg professionel hjælp, hvis du er usikker på nogle installationstrin.
Hvad er der i æsken
Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede:
- Avatar ABR-800.1 Strøm Amplivligere
- Bass knob (remote level control)
- Monteringsskruer
- Brugervejledning (dette dokument)

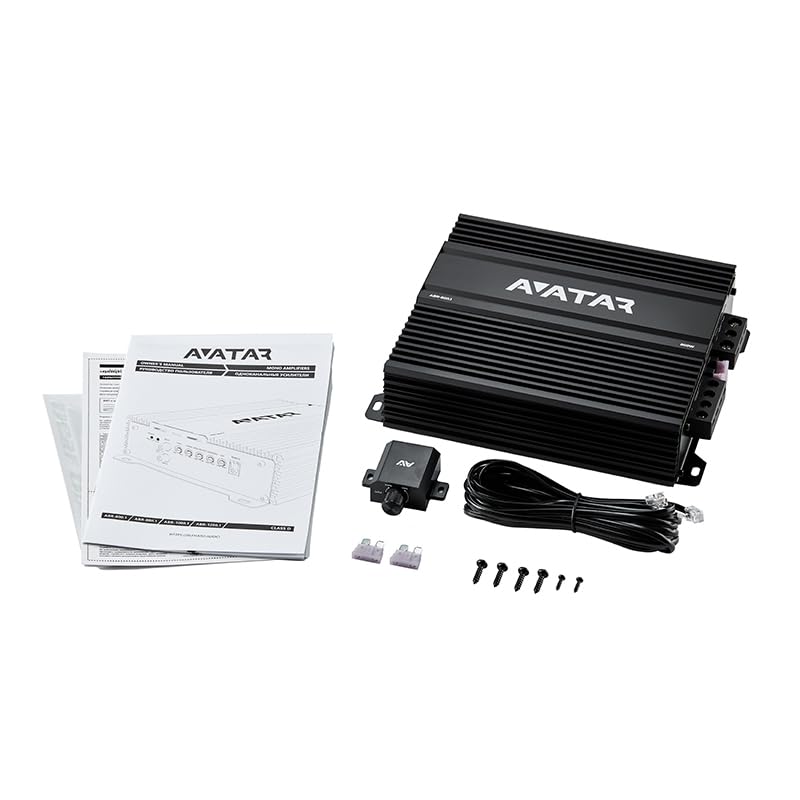

Image: The package contents include the Avatar ABR-800.1 amplifier, a remote bass knob, mounting screws, and the user manual.
Opsætning og installation
Montering af Amplivligere
Choose a mounting location that is dry, well-ventilated, and away from direct heat sources. Ensure the amplifier is securely fastened to a solid surface to prevent movement during vehicle operation. Common locations include under a seat, in the trunk, or behind a panel.
Ledningsforbindelser
Proper wiring is crucial for optimal performance and safety. Refer to the diagram below for terminal locations.

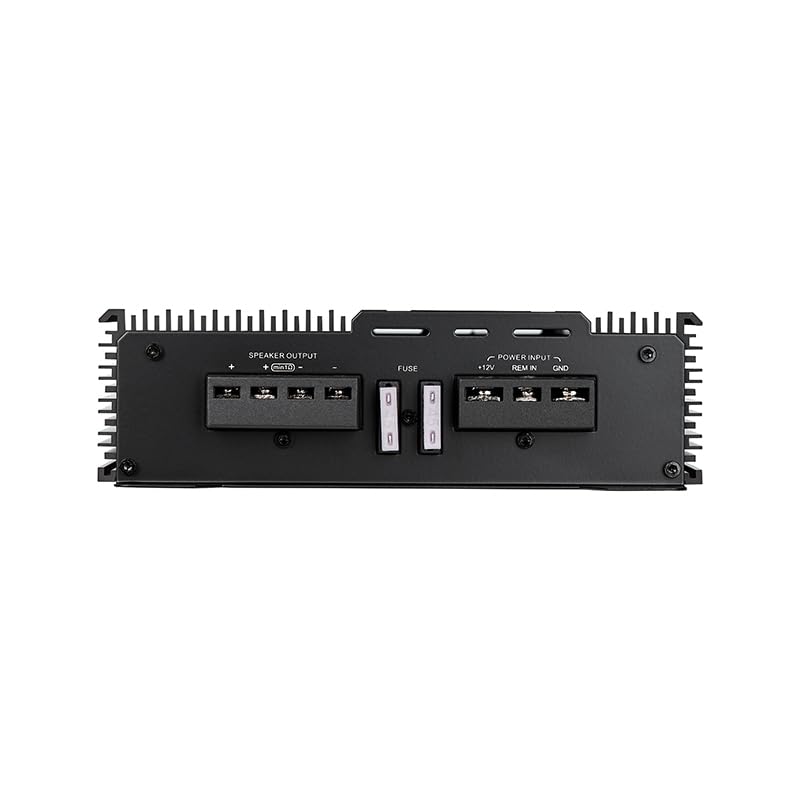

Image: Rear panel of the amplifier displaying the power input (+12V, REM IN, GND), fuse slots, and speaker output terminals.
- Strømtilslutning (+12V): Connect a heavy-gauge power cable (recommended 8 AWG or larger) directly from the vehicle's positive battery terminal to the +12V terminal on the amplifier. Install an inline fuse holder (not included) within 18 inches (45 cm) of the battery.
- Jordforbindelse (GND): Connect a heavy-gauge ground cable (same gauge as power) from the GND terminal on the ampFastgør sikringen til en ren, umalet metaloverflade på køretøjets chassis. Sørg for en god elektrisk forbindelse.
- Remote Turn-On (REM IN): Connect a remote turn-on wire from your head unit's remote output to the REM IN terminal on the ampDenne ledning signalerer amplysdæmperen tændes, når hovedenheden er aktiv.
- Højttaler output: Connect your subwoofer(s) to the SPEAKER OUTPUT terminals. Observe correct polarity (+ to + and - to -) for optimal sound. The ABR-800.1 is stable at 2 Ohms.
Indgangsforbindelser
The ABR-800.1 supports both low-level (RCA) and high-level inputs.
Image: Front panel of the amplifier, detailing the RCA input jacks, gain control, phase switch, bass boost, subsonic filter, low pass filter, and remote bass knob port.
- Lavniveauindgang (RCA): For aftermarket head units with RCA pre-outs, connect RCA cables from the head unit's subwoofer output to the INPUT RCA jacks on the amplivligere.
- Input på højt niveau: If your head unit does not have RCA outputs, you can use a high-level input converter (not included) or connect directly to the speaker wires if the amplifier supports it (consult a professional if unsure). The ABR-800.1 is designed primarily for low-level RCA inputs.
Betjening af Amplivligere
The ABR-800.1 features several controls to fine-tune your audio system. Familiarize yourself with these adjustments for optimal sound.

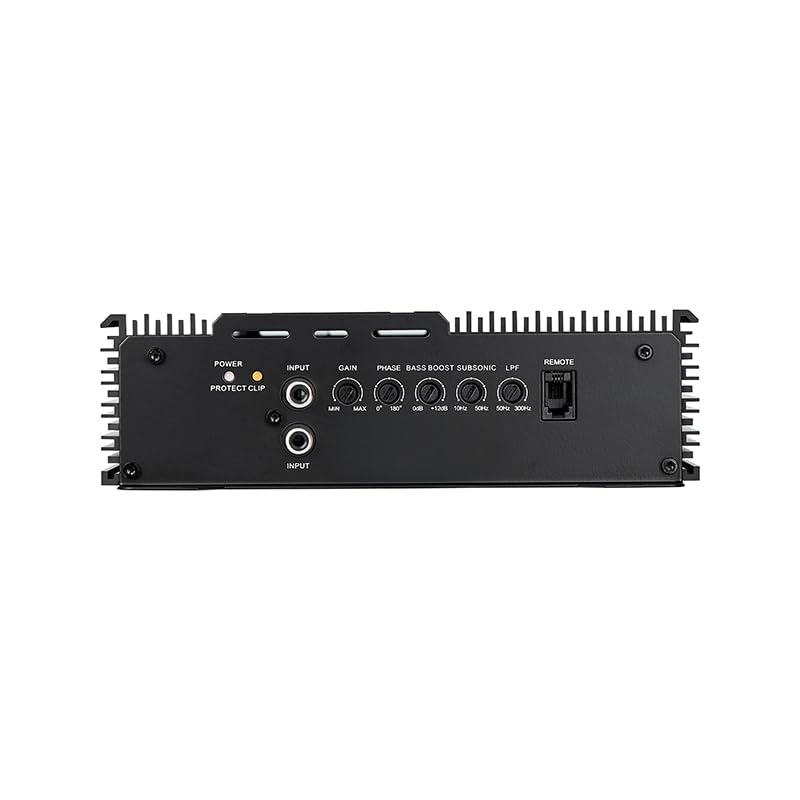

Billede: Detaljeret view af amplifier's control panel, highlighting the Gain, Phase, Bass Boost, Subsonic, and LPF (Low Pass Filter) knobs, along with the Power and Protect/Clip indicators.
- POWER-indikator: Illuminates green when the ampLifieren er tændt og fungerer normalt.
- PROTECT/CLIP Indicator: Lyser rødt, når amplifier enters protection mode due to overheating, short circuit, or low voltage. It may also indicate clipping (signal distortion) if the input gain is set too high.
- Få kontrol: Justerer indgangsfølsomheden for ampså den matcher udgangsniveauet på din hovedenhed. Start med minimumsforstærkningen og øg langsomt, indtil den ønskede lydstyrke opnås uden forvrængning.
- PHASE Switch (0°/180°): Adjusts the phase of the subwoofer output. Experiment with both settings to find the one that provides the most cohesive bass response with your main speakers.
- BASS BOOST Control (0-12dB @ 50Hz): Provides an adjustable bass equalization boost at 50Hz. Use sparingly to avoid distortion and potential speaker damage.
- SUBSONIC Filter (10Hz-50Hz): Filters out extremely low frequencies that are below the audible range and can cause damage to subwoofers without producing sound. Set it slightly below your subwoofer's resonant frequency or port tuning frequency.
- LPF (Low Pass Filter) Control (50Hz-200Hz): Filters out frequencies above the set point, allowing only low frequencies to pass to the subwoofer. Adjust this to blend the subwoofer's output seamlessly with your main speakers.
- FJERNBRUGsport: Connect the included remote bass knob here for convenient level control from the driver's seat.
Opretholdelse
To ensure the longevity and optimal performance of your Avatar ABR-800.1 ampLifier, følg disse enkle vedligeholdelsesretningslinjer:
- Rensning: Tør regelmæssigt af amplifier's exterior with a soft, dry cloth to remove dust and dirt. Do not use harsh chemicals or abrasive cleaners.
- Ventilation: Sørg for, at amplifier's heatsink fins are free from obstructions to allow for proper airflow and cooling.
- Udskiftning af sikring: De amplifier is equipped with internal fuses for protection. If a fuse blows, replace it only with a fuse of the same type and rating (refer to specifications). Always disconnect power before replacing fuses.
Fejlfinding
Hvis du oplever problemer med din amplifier, consult the following troubleshooting guide before seeking professional service:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No Power (POWER indicator off) |
|
|
| Ingen lyd |
|
|
| Forvrænget lyd |
|
|
| Amplifier Overheating (PROTECT/CLIP indicator on) |
|
|
Specifikationer
| Feature | Detalje |
|---|---|
| Amplivligere Type | Monoblock Class AB |
| Max effekt | 800 watt |
| Stabil impedans | 2 Ohm |
| Antal kanaler | 1 |
| Monteringstype | Frit stående |
| Pakkedimensioner | 15 x 10 x 2.5 tommer |
| Varens vægt | 4.9 pund |
| Modelnummer | ABR-800.1 |
| Fabrikant | Døve Bonce |
Garanti og support
For warranty information, please refer to the specific terms and conditions provided at the time of purchase or contact your authorized Deaf Bonce dealer. General product support and additional resources may be available through the official Deaf Bonce webwebsted eller ved at kontakte deres kundeservice.
You can visit the official Deaf Bonce store on Amazon for more information: Deaf Bonce Amazon Store
