MOZA Racing mBoost Base Extension Plate Brugermanual

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, and maintenance of the MOZA Racing mBooster Base Extension Plate. Please read this manual thoroughly before using the product to ensure proper function and safety.

The MOZA Racing mBooster Base Extension Plate is designed to provide additional mounting flexibility and stability for your MOZA Racing wheelbase setup. It extends the mounting surface, allowing for more versatile rig configurations.

2. Sikkerhedsoplysninger

Følg altid disse sikkerhedsretningslinjer for at forhindre personskade eller beskadigelse af produktet:

Sørg for, at alle forbindelser er sikre inden brug.
Do not attempt to modify the extension plate.
Hold produktet væk fra væsker og ekstreme temperaturer.
Use only with compatible MOZA Racing equipment.
Handle with care to avoid pinching or crushing hazards during installation.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er til stede i din pakke:

MOZA Racing mBooster Base Extension Plate (1)
Mounting Hardware (screws, washers, nuts - quantity may vary based on specific kit)
Brugervejledning (dette dokument)

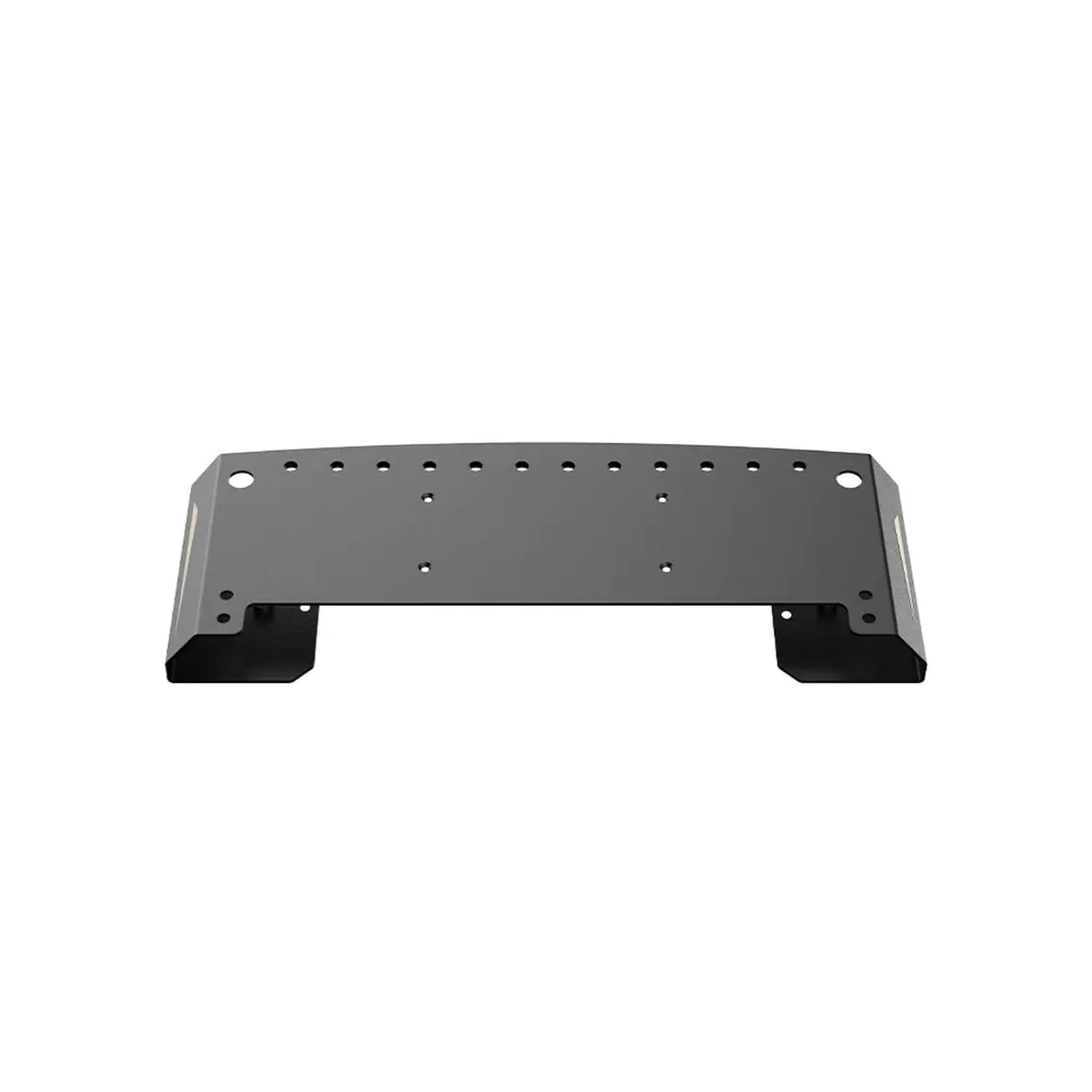

MOZA Racing mBooster Base Extension Plate, top view

Billede: Top view of the MOZA Racing mBooster Base Extension Plate, showing its flat surface and mounting holes.

4. Opsætning og installation

Follow these steps to properly install the mBooster Base Extension Plate:

Prepare your setup: Ensure your racing rig or desk is stable and clean. Unpack all components from the box.

Billede: Vinklet view of the MOZA Racing mBooster Base Extension Plate, highlighting its structural design and mounting points.
Position the extension plate: Place the mBooster Base Extension Plate on your desired mounting surface. Align the mounting holes on the extension plate with the corresponding holes on your racing rig or desk.
Secure the plate: Use the provided mounting hardware (screws, washers, nuts) to firmly attach the extension plate to your rig. Ensure all screws are tightened securely but do not overtighten.

Billede: Side view of the MOZA Racing mBooster Base Extension Plate, showing its profile and the raised sections for base support.
Mount your wheelbase: Once the extension plate is securely installed, you can now mount your MOZA Racing wheelbase onto the extension plate using the appropriate mounting points on the plate. Refer to your wheelbase's manual for specific mounting instructions.
Image: Perspective view of the MOZA Racing mBooster Base Extension Plate, illustrating its overall shape and the various mounting holes.
Afsluttende kontrol: Verify that the extension plate and your wheelbase are stable and do not wobble. Adjust tightness if necessary.

5. Betjeningsvejledning

The mBooster Base Extension Plate is a passive component designed to enhance the mounting capabilities of your MOZA Racing wheelbase. It does not require any electrical power or software for operation.

Once installed, it provides a stable and extended platform for your wheelbase, allowing for improved ergonomics and compatibility with various racing cockpits and desk setups.

Ensure that the wheelbase is securely fastened to the extension plate before beginning any racing simulation.

6. Vedligeholdelse

The MOZA Racing mBooster Base Extension Plate requires minimal maintenance:

Rensning: Wipe the surface with a soft, dry cloth to remove dust and debris. Do not use abrasive cleaners or solvents.
Inspektion: Periodically check all mounting screws to ensure they remain tight. Retighten if necessary.
Opbevaring: If storing the plate separately, keep it in a dry, cool place away from direct sunlight and moisture.

7. Fejlfinding

This section addresses common issues you might encounter with the mBooster Base Extension Plate.

Problem	Mulig årsag	Løsning
Plate feels unstable or wobbly after installation.	Monteringsskruerne er ikke tilstrækkeligt spændt.	Ensure all mounting screws securing the extension plate to your rig, and your wheelbase to the extension plate, are tightened firmly.
Wheelbase does not align with holes on the extension plate.	Incorrect orientation of the extension plate or wheelbase.	Verify that the extension plate is oriented correctly and that your wheelbase is positioned according to its own mounting specifications. The plate offers multiple mounting patterns.
Missing mounting hardware.	Pakkens indhold er ufuldstændigt.	Contact MOZA Racing customer support or your retailer for replacement parts.

8. Specifikationer

Key specifications for the MOZA Racing mBooster Base Extension Plate:

Model: mBooster Base Extension Plate
ASIN: B0F8NL2TS5
Pakkedimensioner: 16 x 8 x 3 tommer (40.64 x 20.32 x 7.62 cm)
Varens vægt: 3.5 pund (1.59 kg)
Materiale: High-strength metal alloy
Kompatibilitet: Designed for MOZA Racing wheelbases

9. Garanti og support

For garantioplysninger og teknisk support henvises til den officielle MOZA Racing-side. webwebstedet eller kontakt deres kundeservice direkte. Garantivilkår og -betingelser kan variere afhængigt af region og forhandler.

MOZA Racing Officiel Webwebsted: www.mozaracing.com

Gem venligst dit købsbevis for garantikrav.
