Brugermanual til Anweller Smart Deadbolt-lås

1. Introduktion

Thank you for choosing the Anweller Smart Deadbolt Lock. This manual provides detailed instructions for the installation, operation, and maintenance of your new smart lock. Designed for enhanced security and convenience, the MD1 features multiple unlocking methods, a built-in display screen, and robust construction. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Produktet er slutview

2.1. Pakkens indhold

The Anweller Smart Deadbolt Lock package includes the following components:

• 1 x 10000mAh Li-ion-batteri
• 1 x MD1 Smart Deadbolt Lock (All Parts)
• 1 x Smart Sensor
• 2 x Mekaniske nøgler
• 4 x RFID-kort

2.2. Nøglefunktioner

The MD1 Smart Deadbolt Lock offers advanced features for modern home security:

• Exclusive Display Screen: Real-time display of lock modes, date, time, battery level, passcode input, auto-lock countdown, and low battery reminder.
• Enhanced Security and Smart Functions: Magnetic Sensor for auto-lock upon door closure, app reminders for open doors, and smartphone proximity unlock.
• WiFi and Bluetooth Dual-Mode: Built-in WiFi for remote control (2.4GHz only), with an option to switch to Bluetooth mode for power saving.
• 10000mAh genopladeligt batteri: High-capacity Li-ion battery provides up to 180 days standby time, rechargeable via Type-C in 4 hours.
• High-Security and Durable: Complies with ANSI/BHMA Grade 2 safety standards, made of aluminum alloy and zinc alloy, IP65 Waterproof, and tested for 10+ years of use.
• Nem gør-det-selv-installation: Simple installation with a screwdriver in 15 minutes, no drilling or extra batteries required. Reversible for left and right-handed doors.
• 6 Ways to Unlock: Fingerprint, Passcode, RFID Card, Mobile App, Apple Watch, and Spare Key.

2.3. Produktdiagram

The image above shows the main components of the Anweller Smart Deadbolt Lock: the exterior keypad with display, the interior unit with the manual turn knob, and the separate magnetic sensor.

3. Opsætning og installation

The Anweller MD1 Smart Deadbolt Lock is designed for easy DIY installation. No drilling is required for standard door preparations.

3.1. Kontrol før installation

Før du starter installationen, skal du sørge for, at din dør opfylder følgende specifikationer:

• backset: 2-3/8" eller 2-3/4" (60 mm eller 70 mm)
• Huldiameter: 54 mm eller 38 mm
• Dørtykkelse: 1-3/8" til 2-1/8" (35 mm til 55 mm)
• Suitable for single cylinder deadbolts. Not compatible with mortise locks.
• Reversible for both left-handed and right-handed doors.

This diagram illustrates the necessary door measurements to ensure proper fit and function of the smart deadbolt lock.

3.2. Installationstrin

Follow these steps for physical installation. A screwdriver is the only tool required.

1. Check Deadbolt Adjustment: Verify if the deadbolt requires adjustment for your door's backset.
2. Fix Latch Lock Body: Ensure the "UP" marking on the latch faces upward and the latch is in the unlocked position before inserting into the door.
3. Install Front Lock: Position the exterior keypad unit onto the door.
4. Install Rear Lock Bracket: Secure the mounting plate on the interior side of the door.
5. Install Rear Lock: Connect the cable from the front lock to the rear lock unit and secure it to the mounting plate.
6. Installer batteri: Insert the 10000mAh Li-ion battery into the interior unit.
7. Installer magnetisk sensor: Attach the magnetic sensor to the door frame, aligning it with the main lock unit. This sensor enables auto-lock and door status detection.

The video above demonstrates the complete installation process, including how to check door dimensions, install the latch, front and rear lock units, battery, and the magnetic sensor. It is highly recommended to watch this video before starting the installation.

3.3. Opsætning af app

After physical installation, download the eSmartLock app (or similar, based on product details) to configure your smart lock. The app allows for remote control, user management, and access to advanced features. Ensure your home router supports 2.4GHz WiFi for direct connection.

This image illustrates the mobile application interface, highlighting its ability to control the lock remotely via Wi-Fi, manage users, and view lock history.

4. Betjeningsvejledning

4.1. Oplåsningsmetoder

The MD1 Smart Deadbolt Lock offers six convenient ways to unlock:

• Fingeraftryk: Register your fingerprints through the app for quick and secure access.
• Adgangskode: Create temporary or permanent passcodes via the keypad or app.
• RFID-kort: Use the provided RFID cards for tap-to-unlock convenience.
• Mobil app: Unlock remotely from anywhere using the eSmartLock app (requires WiFi connection).
• Apple Watch: Unlock directly from your Apple Watch for seamless entry.
• Spare Key: Traditional mechanical keys are provided for emergency backup.

This image visually represents all six unlocking methods available for the Anweller MD1 lock, emphasizing its versatility and user-friendliness.

4.2. Skærmfunktioner

The integrated display screen provides real-time information and feedback:

• Dato og tid: Current date and time display.
• Batteriniveau: Angiver resterende batteristrøm.
• Passcode Input Display: Shows entered digits for verification.
• Mode Display: Shows current lock mode (e.g., Passage Mode).
• Auto-Lock Countdown: Displays the countdown before automatic locking.
• Lavt batteri påmindelse: Advarer når batteriet er lavt.

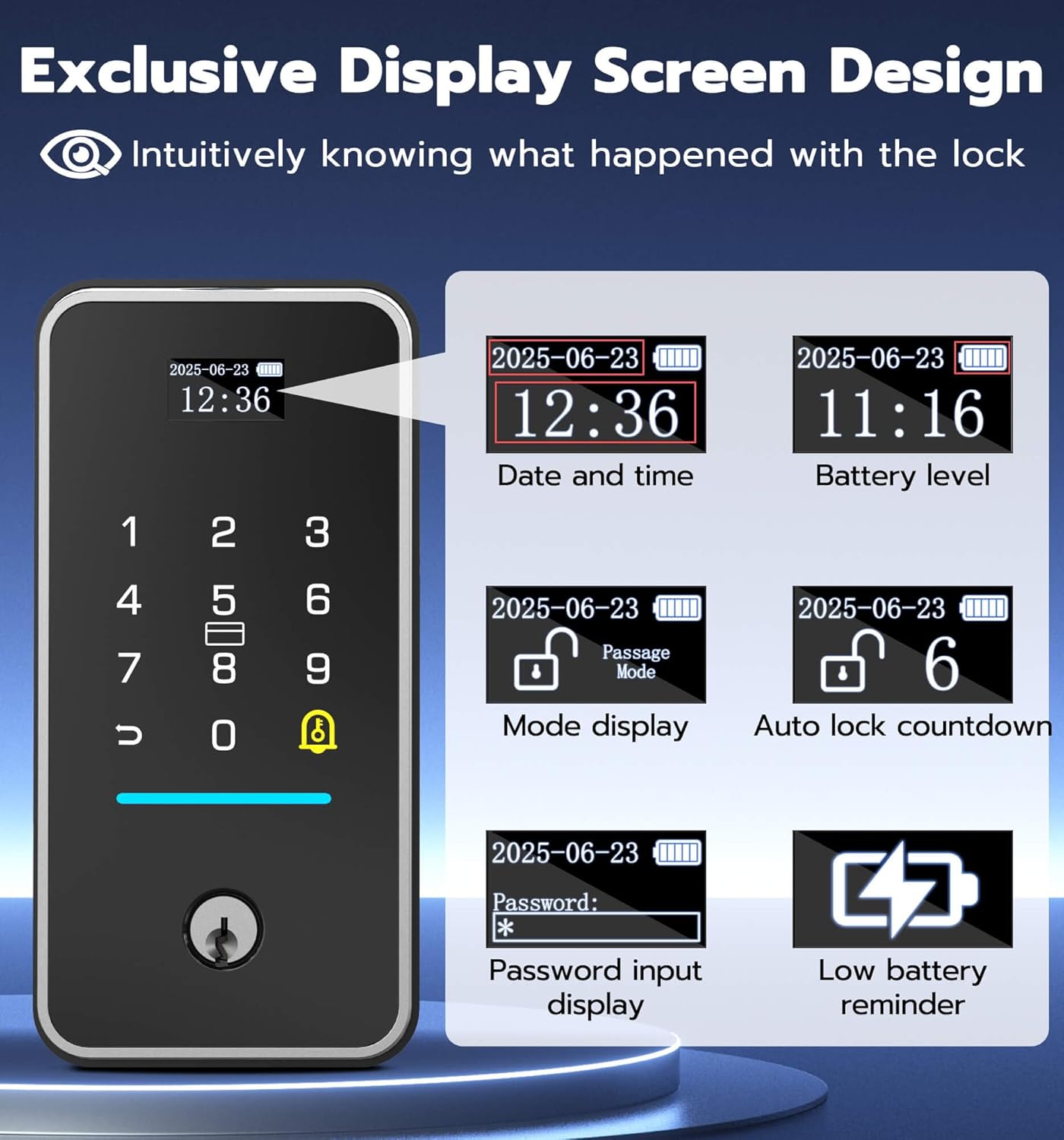

The image above highlights the various pieces of information displayed on the lock's screen, providing users with immediate status updates.

4.3. Smart Sensor and Auto-Lock

The magnetic sensor enhances security and convenience:

• The lock automatically locks when the door is closed.
• The app will send a reminder if the door has been open for over 60 seconds.

This image demonstrates how the smart sensor works, providing both app notifications for open doors and automatic locking when the door is closed.

4.4. Lock Modes

The MD1 offers different operational modes for various needs:

• Normal tilstand: Auto-locks after a set time (15/30/45 seconds).
• Passagetilstand: Keeps the lock continuously unlocked, ideal for high-traffic periods.
• Anti-Unlock Mode: Only the administrator can unlock, providing maximum security.

This image illustrates the different operational modes of the lock, including Normal, Passage, and Anti-Unlock modes, and how they can be selected.

5. Vedligeholdelse

5.1. Batteristyring

The MD1 Smart Deadbolt Lock is powered by a 10000mAh rechargeable Li-ion battery, offering extended usage and environmental benefits.

• Batterilevetid: Up to 180 days of standby time on a single charge.
• Opladning: Recharge via Type-C port in approximately 4 hours.
• Advarsel om lavt batteri: The display screen will show a low battery reminder.

This image details the lock's rechargeable battery, its capacity, and charging method, along with options for emergency power via a power bank or mechanical key.

5.2. Nødoplåsning

In case the battery runs out, you can still access your home:

• Mekanisk nøgle: Use one of the provided spare mechanical keys.
• Nødkraft: Connect a power bank via the USB-C port on the lock to temporarily power it and unlock.

5.3. Rensning

To maintain the appearance and functionality of your lock, wipe it with a soft, damp klæde. Undgå at bruge slibende rengøringsmidler eller opløsningsmidler.

6. Fejlfinding

This section addresses common issues you might encounter with your Anweller Smart Deadbolt Lock.

7. Produktspecifikationer

8. Garanti og kundesupport

Anweller is committed to providing high-quality products and excellent customer service.

• Garanti: Anweller provides an 18-month warranty.
• Teknisk support: Free lifetime technical support is available.
• Replacements/Refunds: Hassle-free replacements or refunds are available within the warranty period.
• Kontakte: For any queries or support, please contact us at hongjdzwj@outlook.com.
