SWIFF AUDIO WX520R Trådløs In-Ear Monitor System Modtager Brugermanual

Indledning

This manual provides detailed instructions for the proper use and maintenance of your SWIFF AUDIO WX520R Wireless In-Ear Monitor System Receiver. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity. The WX520R is designed to provide musicians and performers with a reliable, low-latency, and high-quality stereo audio monitoring experience on stage, in rehearsal, or during recording sessions.

Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• WX520R Receiver (1 unit)
• Opladningskabel (1 enhed)
• Brugervejledning (1 enhed)

Image: Contents of the SWIFF AUDIO WX520R package, including the receiver, charging cable, and user manual.

Produktegenskaber

• 5.8GHz Stereo IEM System: Utilizes 5.8GHz wireless communication for strong anti-interference capabilities, ensuring stable signal transmission over distances of 100-164 feet (30-50 meters).
• Lav forsinkelse: Features advanced low-latency technology with a delay time of less than 5ms, providing real-time audio feedback for precise monitoring.
• High-Contrast LED Display: An advanced LED display offers a 180-degree ultra-wide viewing angle, clearly showing channel, remaining battery, and signal strength, even in challenging lighting conditions.
• Understøttelse af flere modtagere: One transmitter can connect to multiple WX520R receivers simultaneously without signal interference, ideal for bands and larger ensembles.
• Automatisk parring: The system automatically connects the transmitter and receiver upon power-on for quick and easy setup.

Image: Visual representation of key features including 5.8GHz frequency, less than 5ms latency, over 100ft transmission distance, over 6 hours working time, and 4 channels.

Image: A musician using the WX520R receiver, highlighting its low-latency capability for real-time monitoring.

Opsætningsinstruktioner

Indledende opsætning og parring

1. Oplad modtageren: Before first use, fully charge the WX520R receiver using the provided charging cable. Connect the cable to the receiver's charging port and a standard USB power adapter (not included). The LED display will indicate charging status.
2. Tilslut sender: Ensure your SWIFF AUDIO WX520 transmitter (sold separately) is connected to your audio source (e.g., mixer, instrument, microphone) and powered on.
3. Tænd modtager: Press and hold the power button on the WX520R receiver until the LED display illuminates.
4. Automatisk parring: The receiver will automatically search for and pair with the nearest active SWIFF AUDIO WX520 transmitter. The LED display will show a stable signal indicator once connected.
5. Connect In-Ear Monitors: Plug your in-ear monitors or headphones into the 3.5mm audio output jack on the WX520R receiver.

Image: Illustration of the wireless connection between the transmitter and receiver, demonstrating the stable transmission range.

Betjeningsvejledning

Tænd/sluk

• To power on, press and hold the power button until the LED display activates.
• To power off, press and hold the power button until the LED display turns off.

Kanalvalg

The WX520R receiver automatically pairs with the transmitter. If multiple transmitters are in use, ensure each transmitter is on a different channel to avoid interference. The receiver will connect to the transmitter on the same channel. Refer to your WX520 transmitter manual for channel adjustment.

Lydstyrkekontrol

Adjust the listening volume using the rotary knob on the receiver. Rotate clockwise to increase volume and counter-clockwise to decrease volume.

Monitoring Battery Status and Signal Strength

The high-contrast LED display provides real-time information:

• Batteriindikator: Shows the remaining battery life of the receiver.
• Signalstyrkeindikator: Displays the strength of the wireless connection to the transmitter.
• Kanalindikator: Shows the currently active channel.

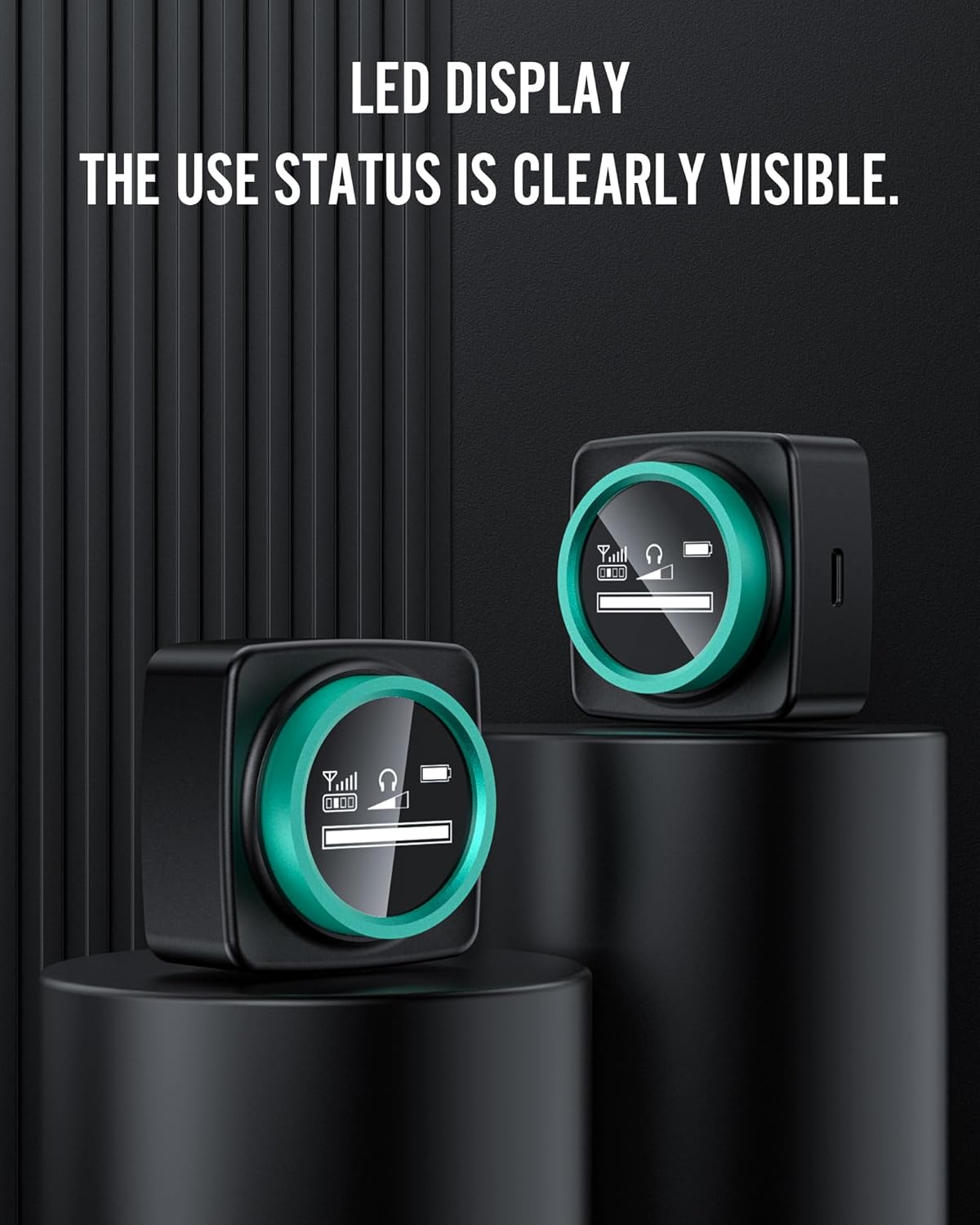

Image: The LED display of the WX520R receiver, clearly indicating its operational status.

Opretholdelse

• Rensning: Brug en blød, tør klud til at rengøre modtagerens yderside. Brug ikke flydende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Store the receiver in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Batteripleje: For optimal battery life, avoid fully discharging the receiver frequently. Charge the device regularly, even if not in constant use.

Fejlfinding

Specifikationer

Garanti og support

For warranty information and technical support, please refer to the official SWIFF AUDIO webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
