Produkt overview
The Vantrue S1 Pro Max is an advanced dual dash camera system designed to capture high-resolution video footage from both the front and rear of your vehicle. It features dual Sony STARVIS 2 IMX678 sensors, 4K (3840x2160) resolution for both cameras, HDR, PlatePix™ technology for enhanced license plate clarity, 5GHz Wi-Fi, built-in GPS, and comprehensive parking surveillance modes. This manual provides detailed instructions for the installation, operation, and maintenance of your S1 Pro Max dash cam.

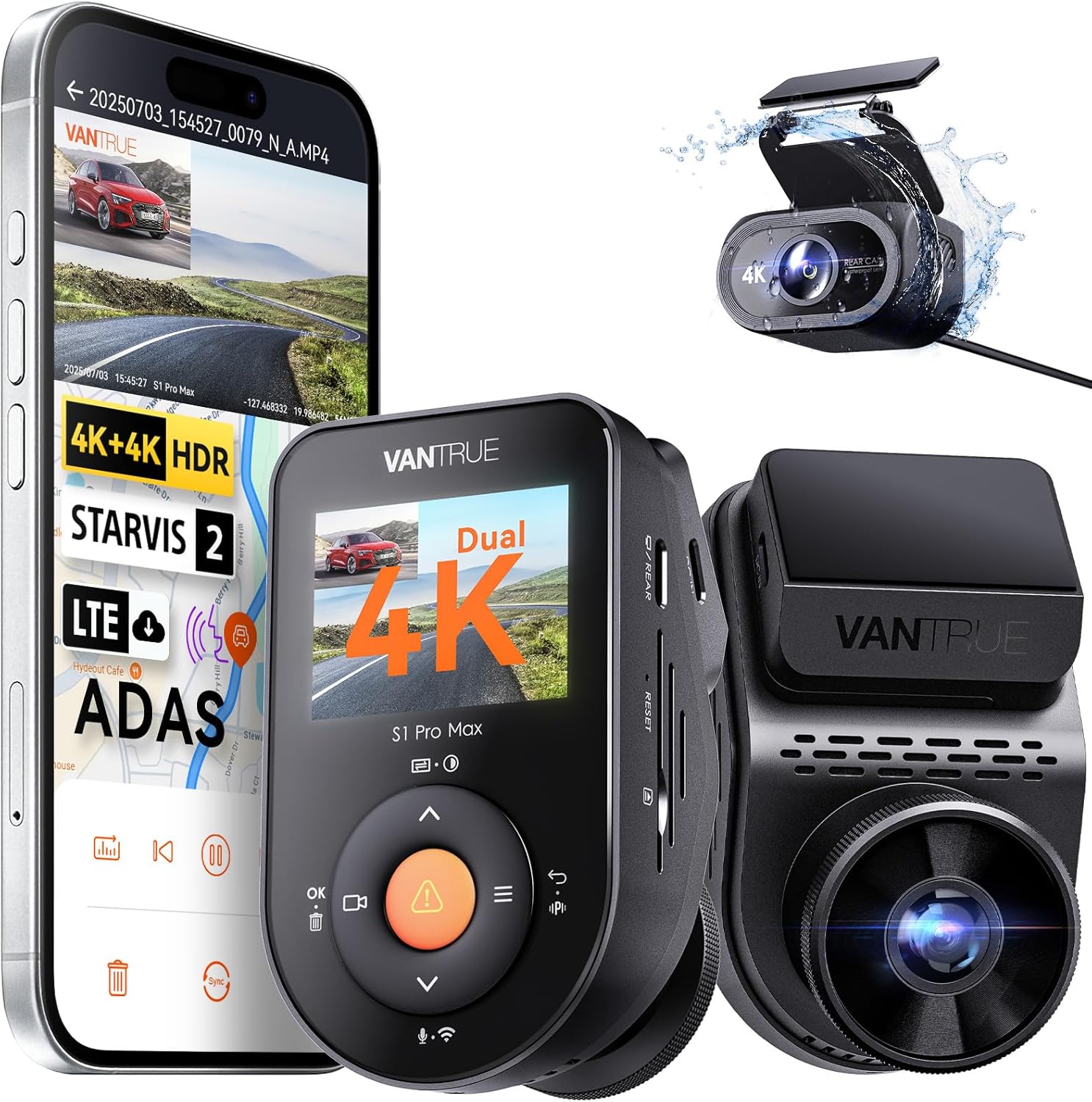

Image: The Vantrue S1 Pro Max dash cam system, showcasing the front camera, the rear camera, and a smartphone displaying the companion app interface with live view and map tracking.
Hvad er i æsken
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- VANTRUE S1 PRO MAX Front Dash Cam
- Bagkamera
- GPS selvklæbende montering
- Warning Stickers (x2)
- Bil oplader
- Kabelklemme
- Elektrostatiske klistermærker (x2)
- Type-C USB-datakabel
- Kofang
- Støvfri klud
- Selvklæbende klistermærker (x2)
- VANTRUE Smart Card
- Brugervejledning
- Bagkamera kabel
Image: A complete layout of all components included with the Vantrue S1 Pro Max dash cam, such as the front and rear cameras, various cables, mounting accessories, and documentation.
Opsætning
1. Montering af frontkamera
The front dash cam is designed for discreet installation behind your rearview mirror. Use the provided electrostatic sticker and adhesive mount to secure the camera to the windshield. The detachable mount allows for easy removal, and the rotatable lens ensures optimal viewjustering af vinkel.
Image: Visual guide demonstrating the hidden installation of the front camera behind the rearview mirror and highlighting its rotatable lens for flexible positioning.
2. Montering af bakkamera
The IP67-rated rear camera is waterproof and can be installed either inside the vehicle (e.g., on the rear windshield) or outside (e.g., near the license plate). Connect the rear camera to the front unit using the provided rear camera cable. Ensure the cable is routed safely and does not interfere with vehicle operations.
Image: Diagrams illustrating the versatility of the IP67 waterproof rear camera, showing options for both interior and exterior mounting, compatible with sedans, SUVs, roadsters, pickups, trucks, and RVs.
3. Strømtilslutning
Connect the car charger to your vehicle's cigarette lighter socket and the other end to the front dash cam's 5V In port. For 24/7 parking mode functionality, a hardwire kit (ASIN: B083XB8T7T, sold separately) is required to provide continuous power.
4. Indsættelse af SD-kort
Insert a compatible microSD card (up to 1TB, sold separately; Vantrue recommends Vantrue SD card, ASIN: B09SNRFSS3) into the designated slot on the dash cam. It is recommended to format the SD card within the camera's settings before first use to ensure proper functionality and recording.
Betjeningsvejledning
1. Grundlæggende betjening
The dash cam will automatically power on and begin recording when connected to a power source and the vehicle ignition is turned on. To manually power on/off, press and hold the power button. Use the navigation buttons (M, OK, arrows) to access menus and settings on the display.
2. Wi-Fi Connection & App Usage
The S1 Pro Max features built-in 5GHz Wi-Fi for faster data transfer. Download the Vantrue Free app on your smartphone. Connect to the dash cam's Wi-Fi network to view live footage, afspilning af optagede videoer, download files to your phone, and adjust camera settings. The app also supports over-the-air (OTA) firmware updates.
Image: A smartphone screen showing the Vantrue app, demonstrating fast 5GHz Wi-Fi connectivity for quick footage download and GPS tracking with mileage statistics.
3. GPS-funktionalitet
The integrated GPS module accurately records your driving route, speed, and location data. This information is embedded into the video footage and can be viewed during playback on the Vantrue app or a compatible computer application. This feature is useful for incident documentation and insurance claims.
4. Stemmekontrol
Operate the dash cam hands-free using simple voice commands. Commands include "Start recording," "Take photo," and "Lock video." This feature enhances driving safety by minimizing manual interaction with the device.
Image: A visual representation of the smart voice control feature, showing how commands like "Take photo" and "Lock the Video" can be used hands-free, with an example of a collision scene.
5. Parkeringstilstand
The S1 Pro Max offers 24/7 buffered parking surveillance with multiple modes. A hardwire kit (ASIN: B083XB8T7T) is required for continuous power in parking mode.
- Bufferbeskyttet bevægelsesdetektion: Records 15 seconds before and 30 seconds after a detected motion event, capturing the entire incident. Motion detection areas can be customized.
- Kollisionsdetektion: Automatically triggers recording upon detecting an impact or collision. Sensitivity is adjustable (5 levels).
- Low-Bitrate Mode: Sustains 24-hour surveillance at 720p/15fps, minimizing storage consumption.
- Lav billedhastighedstilstand: Records time-lapse video at a lower frame rate (e.g., 1fps, 5fps, 10fps, 15fps) to maximize storage and battery efficiency during long parking periods.
Billede: Et overheadbillede view of a parking lot with a car, illustrating the 24/7 buffered parking mode, showing motion detection and collision detection zones around the vehicle.
6. Loop-optagelse
The dash cam continuously records video in segments. When the memory card is full, the oldest files are automatically overwritten by new recordings, ensuring uninterrupted surveillance. This feature maximizes storage efficiency.
7. Variable Sensitivity G-Sensor
The built-in G-sensor detects sudden movements, impacts, or collisions. Upon detection, it automatically locks the current video segment, preventing it from being overwritten. This ensures critical footage is preserved for evidence. Sensitivity can be adjusted across 5 levels.
8. Supercapacitor
The S1 Pro Max utilizes a supercapacitor instead of a traditional lithium-ion battery. This provides enhanced durability and reliability, especially in extreme temperature conditions (14°F to 158°F), and reduces the risk of overheating or battery-related issues.
9. Time Lapse
This function allows the dash cam to capture still images at set intervals and compile them into a time-lapse video. It is ideal for recording long journeys or monitoring parked vehicles over extended periods, significantly saving SD card space.
10. ADAS/BSD Alerts
The dash cam is equipped with advanced driver-assistance systems (ADAS) and blind-spot detection (BSD) features that provide real-time voice alerts to enhance driving safety. These include:
- ADAS: Real-time collision warnings, forward collision alerts, lane departure warnings, pedestrian detection, and forward vehicle start alarms.
- BSD: Lane change assist alarm and rear collision warning.
Image: Icons and scenarios depicting various Intelligent ADAS and BSD alerts, such as Lane Departure Warning (LDW), Forward Collision Warning (FCW), Pedestrian Collision Warning (PCW), Lane Change Assist Alarm (LCAA), and Rear Collision Warning (RCW).
11. Optional LTE Module
An optional LTE module (ASIN: B0F1ZY4Y3S, sold separately) allows for remote monitoring of your vehicle. When connected, you can access real-time video previews, receive impact alerts, track vehicle location, and manage settings from your smartphone, even when away from the vehicle.
Opretholdelse
To ensure the longevity and optimal performance of your Vantrue S1 Pro Max dash cam, follow these maintenance guidelines:
- Rensning: Use the provided dust-free cloth to gently wipe the camera lenses and body. Avoid using harsh chemicals or abrasive materials that could scratch the surfaces.
- Temperatur: While the supercapacitor allows for operation in extreme temperatures, prolonged exposure to direct sunlight in a parked car can still generate significant heat. If possible, park in shaded areas or remove the dash cam when the vehicle is left in extreme heat for extended periods.
- Vedligeholdelse af SD-kort: Regularly format the microSD card (at least once a month) to prevent data corruption and ensure smooth recording. Back up important footage før formatering.
- Firmwareopdateringer: Keep the dash cam's firmware updated via the Vantrue Free app to benefit from performance improvements and new features.
Fejlfinding
If you encounter issues with your Vantrue S1 Pro Max dash cam, refer to the following common problems and solutions:
| Problem | Mulig løsning |
|---|---|
| Kameraet tænder ikke. | Check the power connection. Ensure the car charger is properly inserted into the vehicle's socket and the camera. Test the charger with another device if possible. |
| Optagelsen stopper uventet. | Check the SD card. Ensure it is properly inserted and has sufficient space. Format the SD card regularly. Use a high-speed (Class 10 or U3) microSD card. |
| Video footage er sløret eller uklar. | Clean the camera lenses with the provided dust-free cloth. Ensure the protective film has been removed from the lenses. Adjust the front camera's rotatable lens for optimal focus. |
| Problemer med Wi-Fi-forbindelse. | Ensure the camera's Wi-Fi is enabled. Restart both the camera and your smartphone. Try connecting to the 2.4GHz Wi-Fi band if the 5GHz band is unstable. |
| Parkeringstilstanden virker ikke. | A hardwire kit (ASIN: B083XB8T7T) is required for 24/7 parking mode. Ensure it is correctly installed and providing continuous power. Check parking mode settings in the camera menu. |
| Stemmestyringen svarer ikke. | Ensure the microphone is not blocked. Speak clearly and at a normal volume. Check voice control settings in the camera menu. |
For yderligere assistance, kontakt venligst Vantrue kundesupport.
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | S1 PRO Max |
| Videooptagelsesopløsning | Dual 4K+4K (2160P+2160P)/30FPS |
| Billedsensor | Dual Sony STARVIS 2 IMX678 |
| Linsevinkel | Dual 155° Ultra-Wide Lenses |
| Nattesyn | PlatePix™ + HDR Night Vision 4.0 |
| Forbindelse | 5GHz Wi-Fi, USB |
| GPS | Built-in GPS for speed and route tracking |
| Parkeringstilstand | 24/7 Buffered (Motion Detection, Collision Detection, Low-Bitrate, Low Frame Rate) - requires hardwire kit |
| Support til opbevaring | Up to 1TB external memory card (sold separately) |
| Strømkilde | Built-in Supercapacitor (14°F to 158°F operating range) |
| Særlige funktioner | App Control, OTA Updates, ADAS/BSD Alerts, Voice Control, Loop Recording, G-Sensor, Time Lapse, Optional LTE Module |
| Rear Camera Rating | IP67 vandtæt |
| Produktdimensioner | 2.17 x 3.9 x 2.24 tommer |
| Varens vægt | 5.7 ounce |
Garanti & Support
Vantrue provides comprehensive support for the S1 Pro Max dash cam:
- Kvalitetssikring: The S1 Pro Max comes with an extendable 18-month quality assurance period.
- Kundesupport: Email support is available within 24 hours.
- Tilfredshedsforsikring: 100% satisfaction assurance is provided.
For any inquiries or support needs, please contact Vantrue directly:
- E-mail: support@vantrue.net
- Telefon: 510-666-4086
