1. Produktet er slutview
OLIGHT I3T 2 EOS er en kompakt og lysstærk Everyday Carry (EDC) lommelygte designet til alsidighed og pålidelighed. Den har en dobbelt udgangskontakt til både lav og høj lysstyrke og drives af et enkelt AAA-batteri.

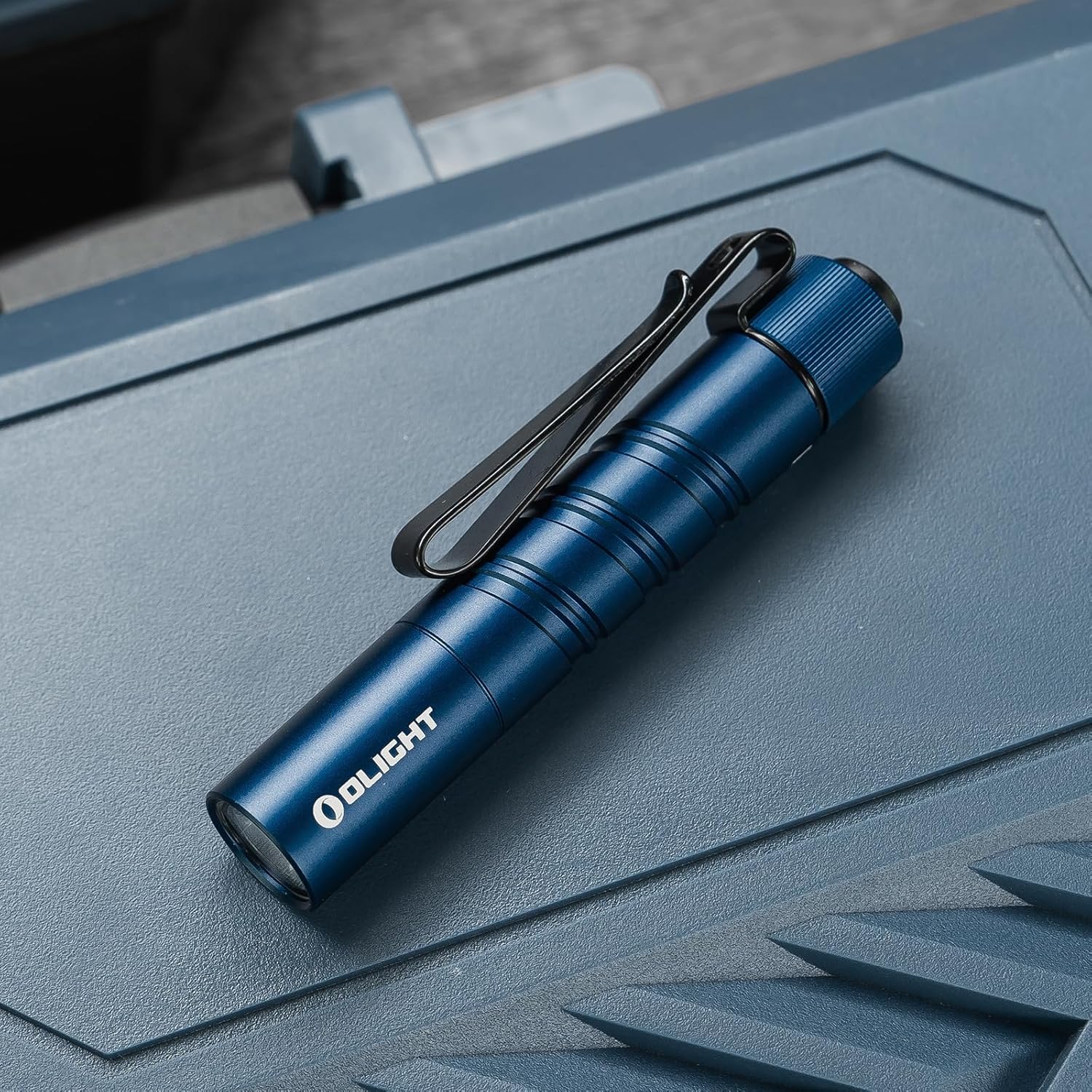

Image 1.1: The OLIGHT I3T 2 EOS Flashlight in Midnight Blue, showcasing its compact design and two-way pocket clip.
Hvad er der i æsken
- I3T 2 EOS lommelygte x 1
- 1.5V alkalisk AAA-batteri x 1
- O-ring x 2
- Brugervejledning x 1
Image 1.2: Packaging and included accessories for the OLIGHT I3T 2 EOS Flashlight.
2. Opsætning
2.1 Batteriinstallation
The I3T 2 EOS comes with a 1.5V AAA alkaline battery. To install or replace the battery:
- Skru hætten på lommelygten af.
- Isæt AAA-batteriet med den positive (+) ende vendt mod lommelygtehovedet.
- Skru halehætten sikkert på igen.
Note: A rechargeable 10440 Lithium-ion battery can also be used to achieve a maximum output of 300 lumens. Ensure correct polarity during installation.
Image 2.1: Illustration of battery insertion into the flashlight body.
2.2 Attaching the Pocket Clip
The flashlight features a dual-direction pocket clip for versatile carrying options.
- To attach, slide the clip onto the flashlight body into the designated grooves.
- The clip can be oriented to allow for attachment to pockets, belts, or the brim of a hat for hands-free use.
Image 2.2: Demonstrating the dual-direction pocket clip attached to clothing.
3. Betjeningsvejledning
3.1 Tænd/sluk
The I3T 2 EOS is operated via its tail switch:
- Øjeblikkelig tændt: Lightly press the tail switch for momentary activation. Release to turn off.
- Konstant tænd/sluk: Tryk helt ned på bagkontakten, indtil der høres et klik for konstant lys. Tryk igen for at slukke.
3.2 Mode Selection (Dual-Output)
The flashlight offers two brightness levels: Low and High.
- To cycle between modes, quickly press and release the tail switch (either momentary or full press) within 0.5 seconds after turning the light on.
- The flashlight will remember the last used mode when turned off and on again, allowing you to start in your preferred low or high mode.
Video 3.1: Official product video demonstrating the compact size and operation of the i3T 2 EOS flashlight.
Image 3.1: Comparison of the high and low brightness modes of the OLIGHT I3T 2 EOS.
4. Nøglefunktioner
4.1 Brightness and Beam Distance
The I3T 2 EOS delivers a maximum output of 200 lumens with a 62-meter beam distance when using a standard AAA alkaline battery. With a rechargeable battery, the output can reach up to 300 lumens.
Image 4.1: Summary of key features including max runtime, battery type, low temperature operation, and IPX8 waterproof rating.
4.2 Versatile Power Options
The flashlight operates on a single standard AAA alkaline battery (included). For increased brightness, a rechargeable 10440 Lithium-ion battery can be used, boosting the maximum output to 300 lumens.
Image 4.2: A person using the flashlight outdoors, illustrating its illumination capability.
4.3 Extended Runtime & Temperature Control
Compared to its predecessor, the I3T 2 EOS offers an extended battery life, running for over 21 hours on a single AAA alkaline battery. It also maintains a surface temperature below 45°C during prolonged use for user comfort.
Image 4.3: Chart comparing the maximum runtime of the I3T and I3T 2 EOS models.
4.4 IPX8 vandtæthedsklassificering
Engineered for durability, the I3T 2 EOS is IPX8-rated waterproof, capable of submersion in water up to 3 meters. This makes it suitable for various outdoor activities and demanding environments.
Image 4.4: The flashlight submerged in water, demonstrating its IPX8 waterproof rating.
4.5 Hands-Free Convenience (Dual-Way Clip)
The stronger dual-way clip allows for secure attachment to belts, pockets, straps, or gear in both horizontal and vertical orientations, enhancing user convenience in diverse scenarios.
Image 4.5: The dual-direction pocket clip shown attached to a pocket and a hat brim.
5. Vedligeholdelse
- Rensning: Regularly clean the threads and O-rings with a clean cloth. Apply a thin layer of silicone grease to the O-rings to maintain water resistance.
- Batteripleje: Remove the battery if the flashlight is not going to be used for an extended period to prevent leakage and damage.
- Linsepleje: Keep the lens clean from dust and debris to ensure optimal light output. Use a soft, lint-free cloth.
6. Fejlfinding
- Lyset tænder ikke:
- Check if the battery is installed correctly with the positive (+) end facing the head.
- Sørg for, at halehætten er skruet godt på.
- Replace the battery with a new one to rule out a depleted battery.
- Lyset er svagt eller flimrer:
- The battery may be low. Replace it or recharge if using a rechargeable battery.
- Clean the battery contacts and threads with an alcohol swab.
- Vandindtrængen:
- Ensure O-rings are properly seated and not damaged. Replace if necessary.
- Verify the tail cap is fully tightened.
7. Tekniske specifikationer
| Feature | Detalje |
|---|---|
| Model | I3T 2 EOS |
| Mærke | Olight |
| Maks. output (alkalisk) | 200 lumen |
| Maks. output (genopladelig) | 300 lumen |
| Stråleafstand | 62 meter |
| Strømkilde | 1 x AAA Alkaline Battery (included) or 1 x 10440 Lithium-ion Battery |
| Materiale | Aluminium |
| Vandmodstand | IPX8 (op til 3 meter nedsænkbar) |
| Dimensioner | 89 mm x 15 mm x 15 mm (3.5 cm D x 0.59 cm B x 0.59 cm H) |
| Vægt | 0.317 ounce (0.01 kilo) |
| Særlige funktioner | EDC, Lightweight, Dual-Output, Tail Switch, Two-Way Pocket Clip |
8. Garanti og support
OLIGHT tilbyder en Livstidsgaranti for the I3T 2 EOS flashlight, ensuring long-term reliability and customer satisfaction. Please refer to the official OLIGHT webwebstedet eller din købsdokumentation for specifikke garantivilkår og -betingelser.
For teknisk support, hjælp til fejlfinding eller garantikrav, kontakt venligst OLIGHTs kundeservice via deres officielle webwebstedet eller den forhandler, hvorfra produktet blev købt.
Online ressourcer: Besøg embedsmanden OLIGHT-butik på Amazon for yderligere produktinformation og support.
