ONEVAN Electric Bag Sewing Machine User Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your ONEVAN Electric Bag Sewing Machine. Please read it thoroughly before using the device to ensure proper function and to prevent injury or damage.

The ONEVAN Electric Bag Sewing Machine is designed for industrial bag closing applications, capable of handling various materials such as fabric, jute, and kraft paper bags. It features a powerful 210W copper motor and a portable, battery-powered design for maximum flexibility.

2. Sikkerhedsinstruktioner

Always follow these safety guidelines to reduce the risk of electric shock, fire, or serious injury.

• Læs alle instruktioner: Familiarize yourself with the machine's operation before use.
• Hold arbejdsområdet rent: Rodede områder inviterer til ulykker.
• Undgå farlige miljøer: Brug ikke maskinen i damp eller våde steder. Udsæt den ikke for regn.
• Hold børn væk: Lad ikke børn eller uuddannet personale betjene maskinen.
• Fastgør emnet: Ensure the bag or material being sewn is stable to prevent unexpected movement.
• Use Proper Accessories: Brug kun tilbehør anbefalet af producenten.
• Afbryd strømmen: Always disconnect the power source (remove battery) before making adjustments, changing needles, or performing maintenance.
• Undgå utilsigtet start: Ensure the switch is in the OFF position before inserting the battery.
• Brug passende tøj: Bær ikke løstsiddende tøj eller smykker, der kan sætte sig fast i bevægelige dele.
• Øjenbeskyttelse: Brug altid sikkerhedsbriller for at beskytte mod flyvende genstande.
• Batterisikkerhed: Use only the specified charger and batteries. Do not short-circuit, incinerate, or expose batteries to high temperatures.
• Sharp Needle: The needle is sharp. Handle with care to avoid injury.

3. Produktfunktioner

The ONEVAN Electric Bag Sewing Machine is engineered for high performance and durability.

• Kraftig motor: Equipped with a 210W pure copper motor for efficient and reliable operation.
• Høj syhastighed: Achieves 1800-2600 stitches per minute for rapid bag closing.
• Bærbart design: Lightweight at approximately 3 kg, with a compact ergonomic design for comfortable extended use.
• Batteridrevet: Powered by two 3000mAh lithium batteries, providing 3-4 hours of continuous operation.
• Justerbar stinglængde: Stitch length can be adjusted from 7-11 mm to suit different materials.
• Adjustable Sewing Depth: Sewing depth is adjustable from 0.2-6 mm.
• Maximum Sewing Thickness: Capable of sewing materials up to 8-15 mm thick.
• Automatisk trådskærer: Enhances productivity by automatically cutting the thread after sewing.
• Alsidig materialekompatibilitet: Suitable for various materials including general fabrics, woven bags, paper bags, and leather.

Billede: Overview of the ONEVAN Electric Bag Sewing Machine highlighting its power and stitching capabilities.

Image: The machine is suitable for a wide range of materials, including various types of bags and fabrics.

4. Opsætning

4.1. Udpakning og inspektion

Carefully remove all components from the packaging. Inspect the machine for any signs of damage during transit. Ensure all listed accessories are present.

4.2. Batteriinstallation og opladning

The machine operates on two 3000mAh lithium batteries. Before first use, ensure the batteries are fully charged using the provided charger.

• Insert the charged batteries into the designated battery slots on the machine.
• To charge, connect the charger to a power outlet and then to the battery pack.
• A full charge typically provides 3-4 hours of continuous operation.

Image: The machine is powered by two high-capacity 3000 mAh batteries, ensuring extended operation.

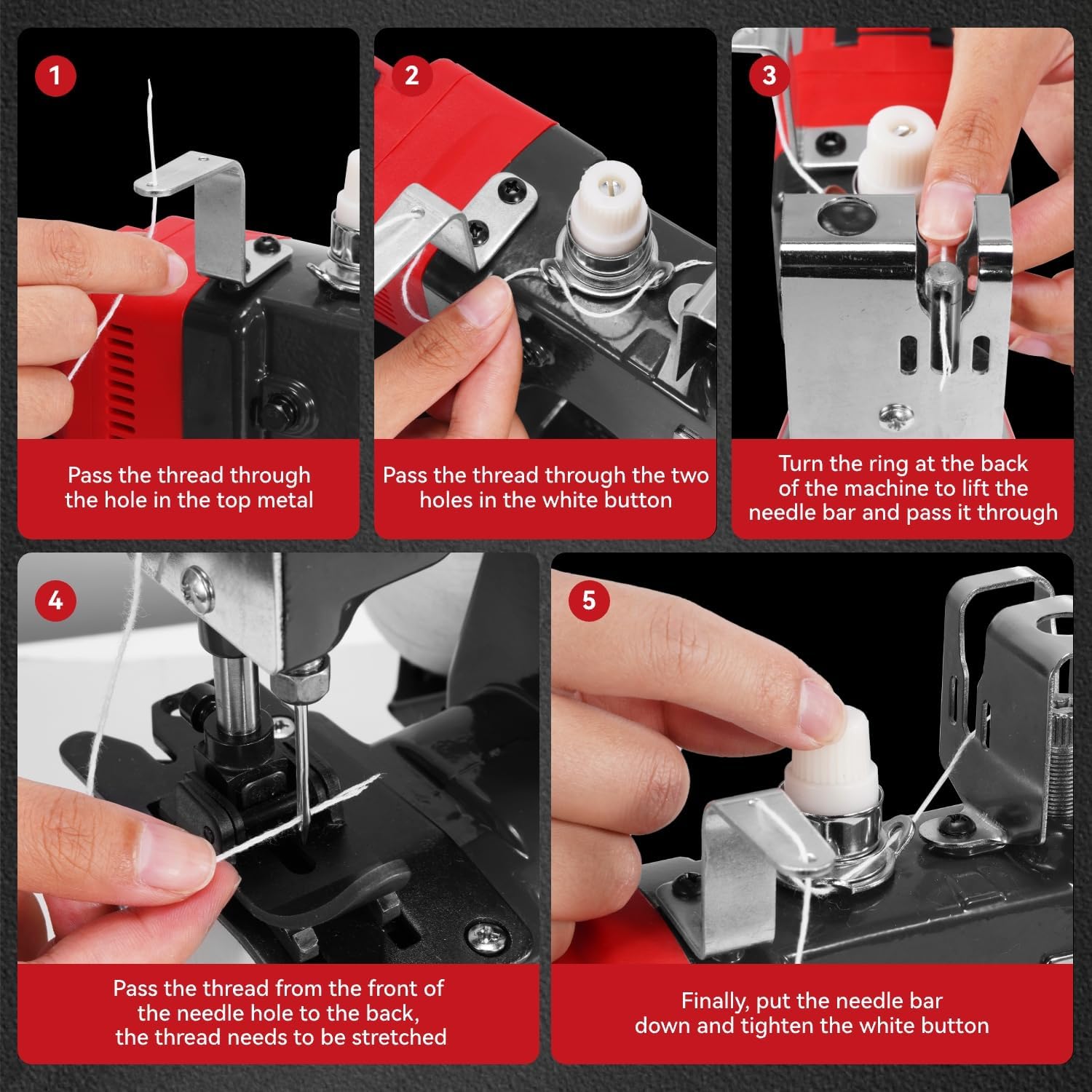

4.3. Thread Installation

Correct thread installation is crucial for proper stitching. Follow these steps carefully:

1. Pass the thread through the hole in the top metal guide.
2. Pass the thread through the two holes in the white tension button.
3. Turn the ring at the back of the machine to lift the needle bar and pass the thread through the guide.
4. Pass the thread from the front of the needle hole to the back. Ensure the thread is stretched taut.
5. Finally, put the needle bar down and tighten the white tension button.

Image: Step-by-step guide for correctly threading the sewing machine.

4.4. Adjusting Suture Pressure and Stitch Spacing

The machine allows for adjustment of suture pressure and stitch spacing to optimize performance for different materials.

• Suture Pressure: Adjust the white knob at the top of the machine to control the pressure on the thread.
• Stitch Spacing (Length): Use the red dial on the side of the machine to adjust the stitch length between 7-11 mm.

Image: Details on how to adjust suture pressure and stitch spacing for optimal sewing results.

5. Betjeningsvejledning

Once the machine is set up and threaded, you can begin sewing.

• Tænd: Ensure the battery is inserted and the power switch is in the 'ON' position.
• Placering: Hold the machine firmly with one hand, guiding the material with the other. Position the bag opening under the needle.
• Start med at sy: Press the trigger to start the motor and begin sewing. Guide the machine smoothly along the edge of the bag.
• Automatisk trådskærer: At the end of the seam, the machine's automatic thread cutter will engage to trim the thread, improving efficiency.
• Sluk: Release the trigger and switch the power to 'OFF' when finished or when pausing operation.

Image: Demonstrates the proper way to hold and operate the sewing machine for bag closing.

5.1. Operationel video

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din symaskines levetid og optimale ydeevne.

• Rensning: Regularly clean dust and lint from the needle area, thread path, and motor vents using a soft brush or compressed air. Ensure the battery is removed before cleaning.
• Smøring: Apply a small amount of sewing machine oil to moving parts as indicated in the diagram (if provided with the physical product) or to areas of friction.
• Udskiftning af nåle: Replace the needle if it becomes bent, dull, or broken. Always use genuine replacement needles. To replace, loosen the needle clamp screw, remove the old needle, insert the new needle with the flat side facing the back, and tighten the screw.
• Batteripleje: Opbevar batterier et køligt og tørt sted. Lad dem ikke være helt afladede i længere perioder.

7. Fejlfinding

Se dette afsnit for almindelige problemer og deres løsninger.

8. Specifikationer

9. Garanti og support

For warranty information or technical support, please refer to the documentation included with your purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.
