Indledning
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Maxim Lighting Keanu 88753BK Outdoor Ceiling Fan. Please read this manual thoroughly before beginning installation and retain it for future reference. Proper installation and operation are essential for optimal performance and safety.
Vigtige sikkerhedsoplysninger
ADVARSEL: To reduce the risk of fire, electric shock, or personal injury, always follow these instructions:
- Sørg for, at strømmen er afbrudt ved afbryderen før installation eller service.
- All wiring must be in accordance with national and local electrical codes. Consult a qualified electrician if you are unsure about wiring procedures.
- The fan must be mounted to a structurally sound outlet box or support system capable of supporting a minimum of 35 lbs (15.9 kg).
- Bøj ikke knivholderne under montering, afbalancering eller rengøring.
- Hold hænder, værktøj og andre genstande væk fra ventilatorbladene, når ventilatoren er i drift.
- This fan is suitable for outdoor, wet location use. Ensure all connections are properly sealed to prevent water ingress.
- Brug ikke ventilatoren med en beskadiget netledning eller stik.
- Brug ikke denne ventilator med nogen form for solid-state hastighedsstyringsenhed, medmindre den er specifikt designet til denne ventilator.
Pakkens indhold
Verify that all components are present before beginning installation. If any parts are missing or damaged, contact Maxim Lighting customer service.
- Loftsventilatormotorsamling
- Fan Blades (ABS material)
- Monteringsbeslag
- Downrod (if applicable for your model) or Hugger Mount components
- Baldakin
- Hardwarepakke (skruer, skiver, trådmøtrikker)
- DC Wall Control
- Instruktionsmanual (dette dokument)
- Integreret LED-lyssæt
Opsætning og installation
This ceiling fan requires assembly and semi-flush mount installation. Professional installation is recommended.
1. Kontrol før installation
- Ensure the installation location is suitable for an outdoor, wet-rated ceiling fan.
- Verify the electrical supply is turned off at the main circuit breaker.
- Confirm the ceiling joist or support structure can hold the fan's weight (approximately 13.8 lbs).
2. Montering af beslaget
Attach the mounting bracket securely to the ceiling outlet box. Use hardware appropriate for your ceiling type. Ensure the bracket is level and firmly attached.
3. Ledningsforbindelser
Connect the fan's electrical wires to the household wiring according to the provided wiring diagram (refer to the diagram in the physical manual). Ensure all connections are secure and insulated with wire nuts. This fan operates on 120 Volts, Corded Electric power.
4. Samling af blæseren
Carefully attach the fan motor assembly to the mounting bracket. Then, secure the ABS fan blades to the motor housing. Ensure all screws are tightened to prevent wobbling.

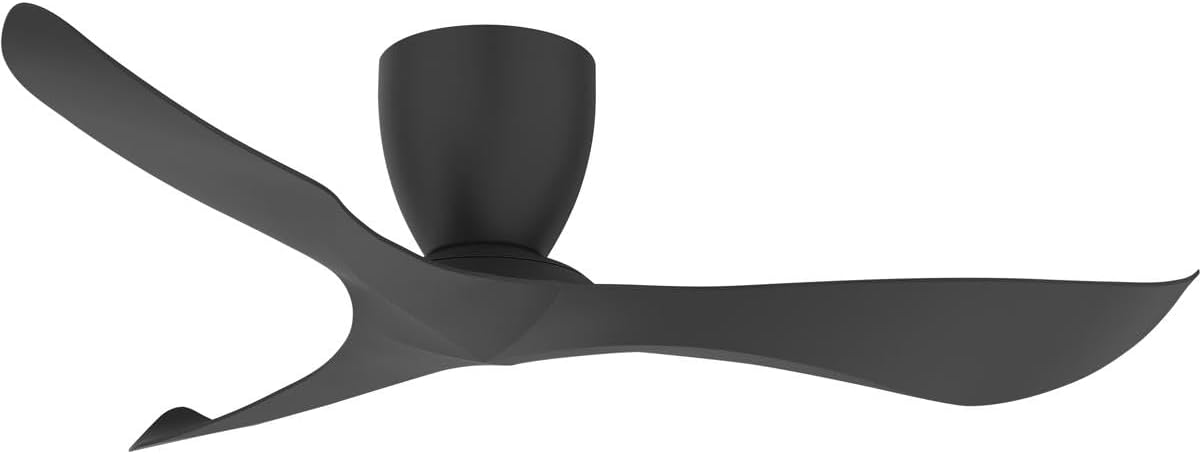

Figur 1: Maxim Lighting Keanu 88753BK Outdoor Ceiling Fan in Black finish. This image shows the fan's overall design, featuring its sleek black housing and uniquely curved ABS blades, designed for durability in wet locations.
5. Montering af baldakin
Slide the canopy up to the ceiling and secure it to cover the wiring connections and mounting bracket. Ensure a snug fit to protect internal components from outdoor elements.
6. Dimensions Overview
The fan measures 56 inches in width and 12.75 inches in height from the ceiling to the lowest point of the fan. Refer to the diagram below for detailed measurements.
Figur 2: Detailed dimension diagram for the Maxim Lighting Keanu 88753BK Outdoor Ceiling Fan. This illustration provides key measurements including the 56-inch blade span, 12.75-inch overall height, and specific dimensions for the motor housing and canopy, aiding in proper installation planning.
Betjeningsvejledning
Your Keanu ceiling fan is designed for efficient air circulation and features an integrated LED light.
Blæserhastighedskontrol
The fan speed is controlled via the included DC wall control. Refer to the wall control's specific instructions for detailed operation. The energy-efficient DC motor provides quiet and powerful performance across multiple speed settings.
Let drift
The integrated LED light kit is CCT-tunable, allowing adjustment from a warm 2700K to a bright 5000K. Use the DC wall control to turn the light on/off and to cycle through the color temperature settings. The light source type is LED, with a wattage på 15 watt.
Seasonal Operation (Reverse Function)
Most ceiling fans include a reverse switch to change the direction of blade rotation. This allows for downdraft cooling in summer and updraft heat circulation in winter. Consult your physical manual or the DC wall control instructions for the location and operation of the reverse switch.
Opretholdelse
Regelmæssig vedligeholdelse sikrer din loftsventilators levetid og optimale ydeevne.
- Rensning: Rengør ventilatorbladene og motorhuset regelmæssigt med en blød klud.amp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or plastic components.
- Tilspændingsskruer: Check all screws on the fan blades and mounting hardware annually. Tighten any loose screws to prevent wobbling and ensure safe operation.
- Knivbalance: If the fan wobbles, ensure all blades are securely attached and balanced. A balancing kit (often sold separately) can be used if necessary.
- Elektriske forbindelser: Ensure all electrical connections remain secure, especially in outdoor environments.
Vigtig: Always turn off the power at the circuit breaker before performing any cleaning or maintenance.
Fejlfinding
Før du kontakter kundesupport, skal duview disse almindelige problemer og løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilator starter ikke | No power to the fan; Loose wire connections; Faulty wall control. | Check circuit breaker; Verify all wire connections are secure; Test or replace wall control. |
| Blæseren slingrer | Løse knivskruer; Ubalancerede knive; Løst monteringsbeslag. | Spænd alle knivskruer; Brug et afbalanceringssæt; Sørg for, at monteringsbeslaget er sikkert fastgjort. |
| Lys virker ikke | Loose wire connection to light kit; Faulty LED driver; Incorrect light setting. | Check light kit wiring; Contact customer support for LED driver replacement; Cycle through light settings on wall control. |
| Støjende drift | Løse skruer; Motorbrummen; Knivene rammer en forhindring. | Tighten all screws; Ensure no obstructions are near blades; Motor hum is normal for some DC motors. |
Produktspecifikationer
| Mærke | Maxim Lighting |
| Modelnavn | Keanu 88753BK |
| Afslut farve | Sort |
| Materiale | ABS plast |
| Stil | Moderne |
| Produktmål (L x B x H) | 56 cm x 56 cm x 12.75 cm |
| Varens vægt | 13.78 pund |
| Indendørs/Udendørs brug | Udendørs (klassificeret til våde omgivelser) |
| Strømkilde | Elektrisk med ledning |
| Voltage | 120 volt |
| Lyskildetype | Integreret LED |
| Lys farve | Warm White to Cool White (2700K-5000K) |
| Wattage | 15 watts (for LED light) |
| Switch Type | DC Wall Control |
| Installationstype | Semi Flush Mount |
| Speciel funktion | Heavy Duty, Energy Star Certified |
| UPC | 783209336544 |
Garantioplysninger
This Maxim Lighting Keanu 88753BK Outdoor Ceiling Fan comes with a Begrænset garanti. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included in your product packaging or visit the official Maxim Lighting webwebsted. Gem din købsbevis til garantikrav.
Kundesupport
If you have any questions, require technical assistance, or need to report missing/damaged parts, please contact Maxim Lighting customer support:
- Webwebsted: Visit the official Maxim Lighting webwebsted for ofte stillede spørgsmål og supportressourcer.
- Telefon: Refer to your product packaging or the Maxim Lighting webhjemmeside for kundeservice kontaktnumre.
- E-mail: Kontakt support via den e-mailadresse, der er angivet på den officielle webwebsted.
Please have your model number (88753BK) and proof of purchase ready when contacting support.
