BougeRV CRS 53 Quart bærbart køleskab/fryser brugermanual

1. Introduktion

Thank you for choosing the BougeRV CRS 53 Quart Portable Refrigerator Freezer. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and retain it for future reference.

This portable refrigerator is designed for versatile use, offering both refrigeration and freezing capabilities. It is suitable for various applications, including use in trucks, vans, RVs, camping, and road trips, powered by 12/24V DC or 110-240V AC.

2. Sikkerhedsoplysninger

Please observe the following safety precautions to prevent injury and damage to the appliance.

• Sørg for, at strømforsyningen voltage stemmer overens med køleskabets specifikationer.
• Do not operate the appliance if the power cord is damaged. Contact customer support for replacement.
• Keep the ventilation openings clear of obstructions to ensure proper airflow.
• Undgå at placere køleskabet i direkte sollys eller i nærheden af ​​varmekilder.
• Do not immerse the appliance in water or expose it to excessive moisture, except for its IPX4 splashproof rating which protects against splashing water.
• Tag stikket ud af køleskabet, før du rengør eller udfører nogen form for vedligeholdelse.
• Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• 1x BougeRV CRS 53 Quart Portable Refrigerator Freezer
• 1x DC Power Cord
• 1x vekselstrømsadapter
• 1x kurv
• 1x brugermanual

Image: The package contents including the portable refrigerator, DC power cord, AC adapter, and basket.

4. Produktfunktioner

• Hurtig afkøling: Achieves 32℉ from 77℉ in approximately 15 minutes (under specific conditions).
• APP kontrol: Monitor and adjust temperature, mode, and power via a smartphone application within a 32ft range.
• Portabilitet: Equipped with wheels and a telescopic handle for easy transport.
• Støjsvag drift: Operates at approximately 35dB, suitable for quiet environments.
• Stødsikkert design: Maintains operation even with inclinations up to 30°.
• Dobbelt funktionalitet: Functions as both a refrigerator (32℉ to 50℉) and a freezer (-4℉ to 32℉).
• Vendbar dør: Two-way reversible door design for convenient access.
• Flere strømindstillinger: Kompatibel med 12V/24V DC og 110-240V AC strømkilder.
• IPX4 Splashproof: Protected against splashing water from any direction.

Image: The BougeRV CRS 53 Quart Portable Refrigerator Freezer, showcasing its design with wheels and a smartphone displaying the control app.

Image: A visual representation demonstrating the fast cooling capability of the refrigerator, reaching 32℉ from 77℉ in 15 minutes.

Billede: To views of the refrigerator interior, one set to freezer mode (-4℉ to 32℉) and the other to fridge mode (32℉ to 50℉).

Image: A person easily transporting the portable refrigerator using its integrated handle and high-quality wheels across a grassy area.

Image: The portable refrigerator operating at a low noise level of 35dB, ensuring comfort for a person sleeping nearby in a tent.

Image: The portable refrigerator positioned outdoors in light rain, highlighting its IPX4 splashproof capability.

5. Opsætning

5.1 Udpakning og placering

1. Tag forsigtigt køleskabet ud af emballagen.
2. Place the unit on a flat, stable surface. Ensure there is adequate ventilation around the appliance (at least 10 cm clearance on all sides).
3. Allow the refrigerator to stand upright for at least 6 hours before connecting to power. This allows the compressor fluids to settle.

5.2 Strømtilslutning

The refrigerator can be powered by DC (12V/24V) or AC (110-240V).

• Jævnstrøm: Connect the DC power cord to the refrigerator's DC input and then to your vehicle's 12V/24V outlet (cigarette lighter socket).
• AC strøm: Connect the AC adapter to the refrigerator's AC input, then plug the adapter into a standard 110-240V AC wall outlet.

Image: Illustrations depicting the various power options: solar power with an external battery, direct DC 12/24V connection to a vehicle, and AC 110-240V connection via an adapter.

6. Betjeningsvejledning

6.1 Kontrolpanel overview

The control panel is located on the top of the unit. It typically includes a power button, temperature adjustment buttons (+/-), and a mode selection button.

Billede: En detaljeret view of the refrigerator's digital display, showing current temperature and operational status indicators.

6.2 Grundlæggende betjening

1. Tænd/sluk: Tryk på tænd/sluk-knappen for at tænde eller slukke for enheden.
2. Temperaturjustering: Use the '+' and '-' buttons to set the desired temperature. The display will show the current and target temperatures.
3. Valg af tilstand: Press the mode button to cycle through available modes (e.g., MAX for fast cooling, ECO for energy saving).

6.3 APP kontrol

The BougeRV CRS refrigerator supports control via a dedicated smartphone application.

1. Download the BougeRV app from your device's app store.
2. Sørg for, at Bluetooth er aktiveret på din smartphone.
3. Open the app and follow the instructions to pair with your refrigerator.
4. Once connected, you can control temperature, switch modes, and monitor the refrigerator's status from your phone within a 32ft range.

Image: A hand holding a smartphone with the BougeRV app open, demonstrating remote control of the portable refrigerator in a campmiljø.

6.4 Vendbar dør

The refrigerator features a two-way reversible door. To change the door opening direction, refer to the detailed instructions in the full user manual or contact customer support.

Image: An illustration demonstrating how the refrigerator door can be opened from either side, highlighting its reversible design.

7. Vedligeholdelse

7.1 Rengøring

1. Tag altid stikket ud af køleskabet før rengøring.
2. Tør indvendige og udvendige overflader af med adamp klud og et mildt rengøringsmiddel. Undgå slibende rengøringsmidler eller opløsningsmidler.
3. Ensure the drain plug is securely closed during operation and open it for draining water during cleaning or defrosting.

7.2 Optøning

This unit features manual defrost. When ice accumulates to a thickness of 5mm or more, defrost the unit:

1. Turn off the refrigerator and unplug it.
2. Fjern alt indhold.
3. Leave the lid open to allow ice to melt naturally. You can place a towel inside to absorb water.
4. Once defrosted, wipe the interior dry before restarting the unit.

8. Fejlfinding

Hvis du støder på problemer, kan du se følgende almindelige problemer og løsninger:

For issues not listed here or if problems persist, please contact BougeRV customer support.

9. Specifikationer

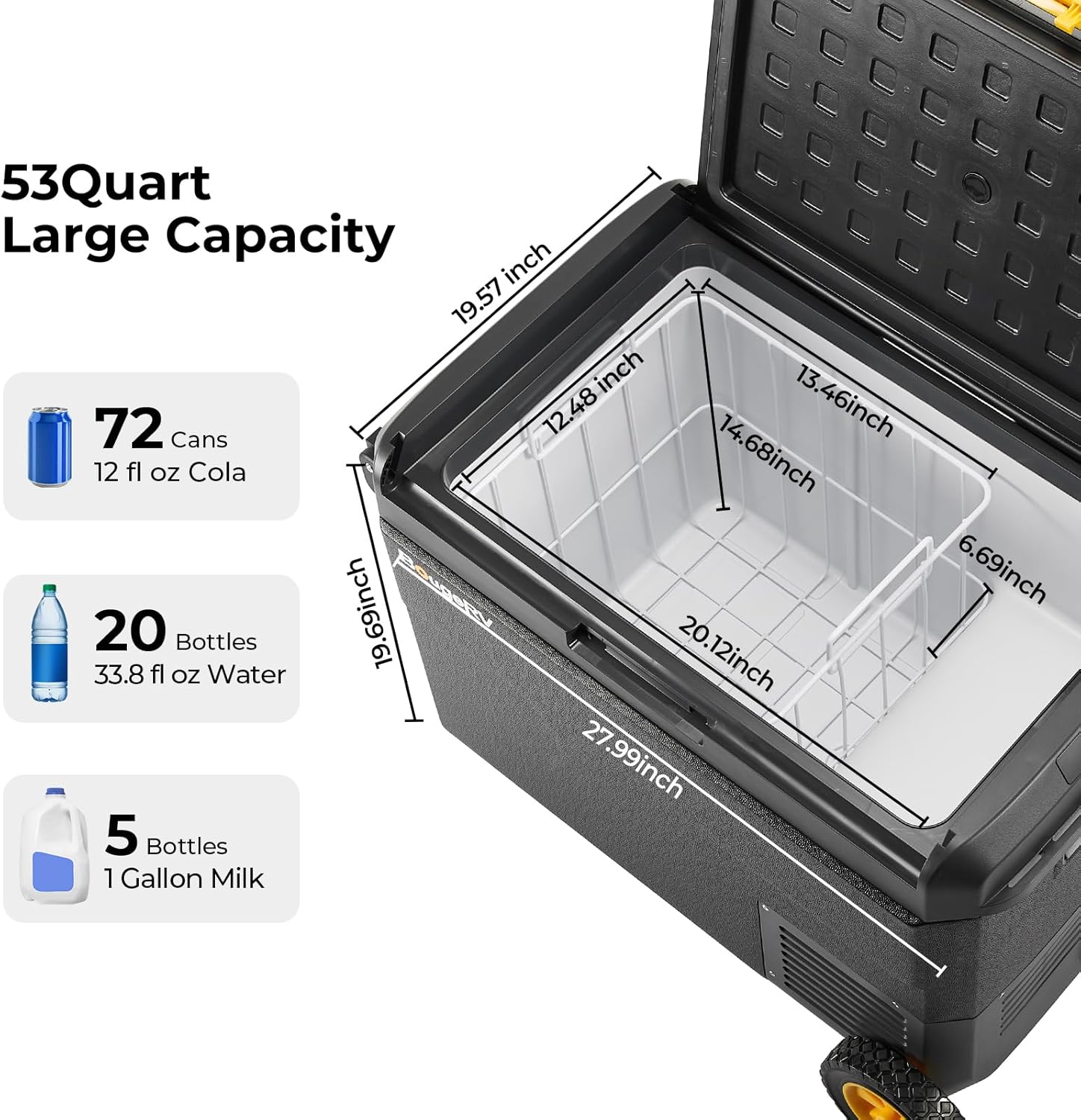

Image: A detailed diagram illustrating the external dimensions and internal storage capacity of the 53 Quart model, including examples of items it can hold.

10. Garanti og support

BougeRV provides 2-year technical support for this product. If you have any questions, require assistance with troubleshooting, or need to claim warranty service, please contact BougeRV customer support directly.

For the most up-to-date contact information, please visit the official BougeRV webwebstedet eller se de kontaktoplysninger, der følger med din købsdokumentation.
