1. Introduktion
This manual provides essential instructions for the safe and efficient use of your DOOGEE Fire 5 Rugged Smartphone. Please read this guide thoroughly before operating your device to ensure optimal performance and longevity. The DOOGEE Fire 5 is designed for durability, featuring IP68/IP69K/MIL-STD-810H ratings, a large 13000mAh battery, and an Android 15 operating system.
Billede: Forside og bagside view of the DOOGEE Fire 5 Rugged Smartphone, showcasing dens robuste design og kameramodul.
2. Pakkens indhold
Ved udpakning skal du kontrollere, at alle nedenstående varer er til stede:
- 1 x DOOGEE Fire 5 Rugged Smartphone
- 1 x Type-C USB-kabel
- 1 x oplader
- 1 x brugermanual
- 1 x garantikort

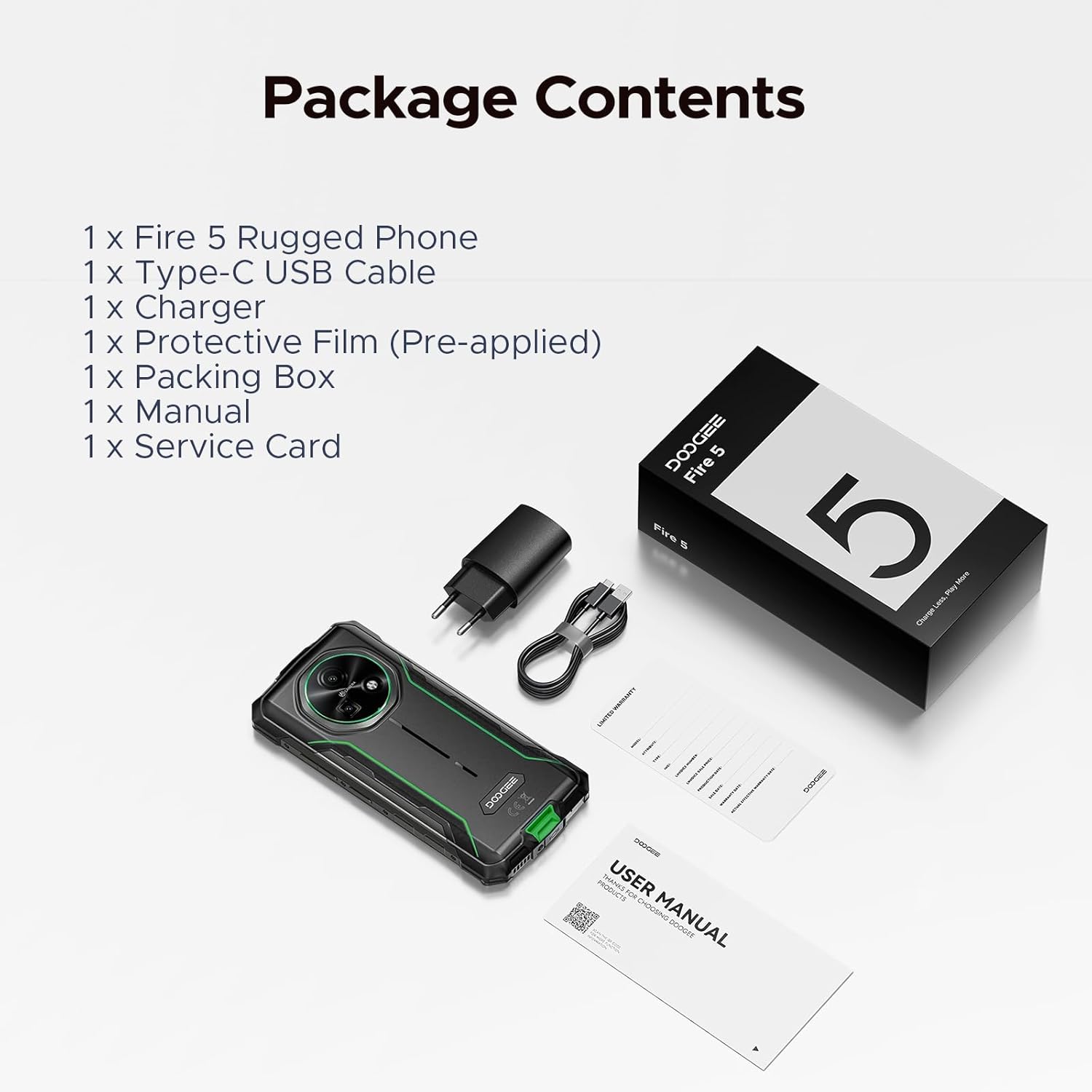

Image: The DOOGEE Fire 5 smartphone, charger, USB-C cable, and documentation laid out, representing the package contents.
3. Enhed overview
3.1 Fysiske egenskaber
The DOOGEE Fire 5 is built to withstand challenging environments. It features a ruggedized body with reinforced corners and a durable exterior.
- Dimensioner: 6.95 x 0.74 x 3.25 tommer
- Vægt: 13.8 ounce
- Holdbarhed: IP68/IP69K/MIL-STD-810H certified for water, dust, and drop resistance.
3.2 Display
The device is equipped with a 6.6-inch HD+ IPS display, offering clear visuals and a smooth user experience.
- Skærmstørrelse: 6.6 tommer
- Opdateringshastighed: 90Hz for fluid scrolling and responsiveness.
- Opløsning: 720*1612 pixels
- Screen-to-body Ratio: 85 %

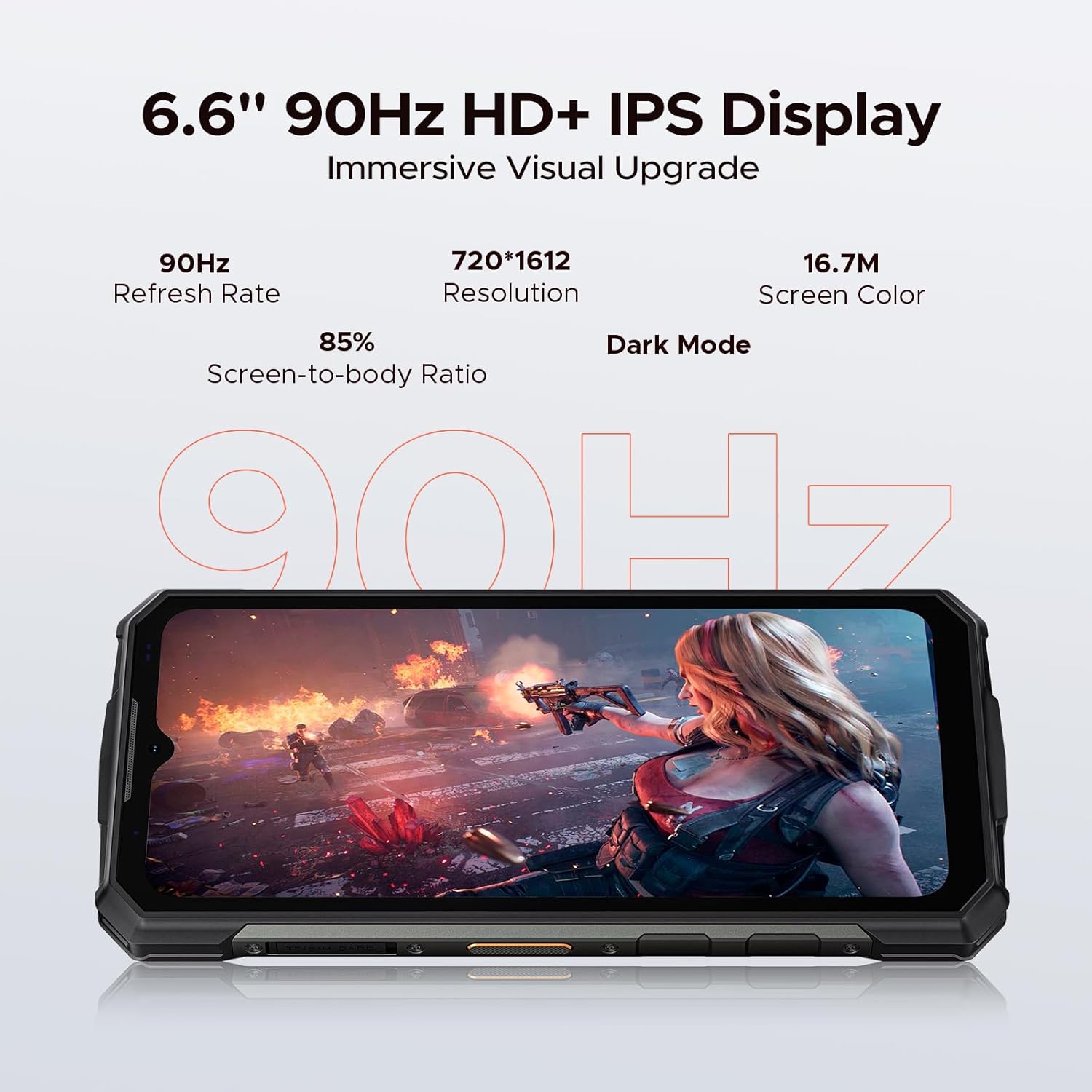

Image: The DOOGEE Fire 5 display showing a high-action scene, highlighting its 6.6-inch HD+ IPS screen with 90Hz refresh rate.
3.3 Ydelse
Powered by an octa-core processor and Android 15, the Fire 5 provides efficient performance for daily tasks.
- Operativsystem: Android 15
- Processor: UNISOC SC9863A Octa-Core CPU (1.6GHz)
- VÆDDER: 12GB (3GB physical + 9GB extended virtual RAM)
- Intern opbevaring: 64 GB
- Udvidelig lagerplads: Up to 2TB via TF card (sold separately)
Image: A visual representation of the Unisoc SC9863A Chipset, emphasizing its octa-core and power-efficient architecture.
4. Opsætning
4.1 Isætning af SIM- og TF-kort
The DOOGEE Fire 5 supports dual SIM cards and one TF (microSD) card for expanded storage.
- Find SIM-kortbakken på siden af enheden.
- Brug det medfølgende SIM-kortudløserværktøj til at åbne bakken.
- Placer forsigtigt dine Nano-SIM-kort og/eller TF-kort i de dertil beregnede stik. Sørg for, at de vender korrekt.
- Skub forsigtigt bakken tilbage i enheden, indtil den flugter.
4.2 Første opstart og grundlæggende indstillinger
- Tryk på tænd/sluk-knappen, og hold den nede, indtil DOOGEE-logoet vises.
- Følg vejledningen på skærmen for at vælge dit sprog, oprette forbindelse til et Wi-Fi-netværk og konfigurere din Google-konto.
- Configure security settings, including Face ID, for convenient and secure access.
5. Betjeningsvejledning
5.1 Android 15-funktioner
Your Fire 5 runs on Android 15, offering a range of features for enhanced usability and privacy.
- App-kloning: Duplicate apps for managing multiple accounts.
- Smart bevægelsesregistrering: Brug bevægelser til hurtige handlinger.
- Super Udklipsholder: Advanced clipboard functionality for managing copied content.
- Opdelt skærm: Brug to applikationer samtidigt på skærmen.
- Forbedret privatlivsbeskyttelse: Advanced controls over app permissions and data access.
- Skærmbevidsthed: Holder skærmen tændt, mens du kigger på den.
- Live Caption (English Only): Provides real-time captions for media playing on your device.
- Handsketilstand: Improves touch sensitivity for use with gloves.
- Videoforbedring: Optimizes video playback quality.
Image: A grid displaying various Android 15 features available on the DOOGEE Fire 5, such as App Cloning, Split Screen, and Glove Mode.
5.2 Sikkerhedsfunktioner
- Face ID: Unlock your phone quickly and securely using facial recognition.
- Fingeraftrykssensor: (If applicable, check device for sensor location)
- PIN/Mønster/Adgangskode: Standard Android-sikkerhedsindstillinger.
6. Kamerafunktioner
The DOOGEE Fire 5 is equipped with a 13MP main camera and an 8MP front camera, enhanced with AI capabilities.
- Hovedkamera: 13 megapixel
- Forreste kamera: 8 megapixel
- AI-genkendelse: Automatically optimizes settings for various scenes.
- Photography Modes: Includes Anti-Flicker, Pro Mode, Panoramic Mode, Beauty Mode, Night Mode, and Portrait Mode.
Image: Close-up of the DOOGEE Fire 5 camera module, with example photos taken by the 13MP main and 8MP front cameras.
7. Forbindelse
The Fire 5 offers comprehensive connectivity options for communication and data transfer.
- Mobil: Dual SIM support, compatible with major carriers (T-Mobile, MetroPCS, etc.). Supports GSM, WCDMA, TDD, and FDD bands.
- Wi-Fi: Opret forbindelse til trådløse netværk for at få internetadgang.
- Bluetooth: Til tilslutning af trådløst tilbehør.
- NFC: Nærfeltskommunikation til kontaktløs betaling og dataudveksling.
- USB Type-C: Til opladning og dataoverførsel.
- OTG (på farten): Allows connection of USB peripherals like flash drives or keyboards.
- Navigation: Understøtter GPS, Glonass og Galileo for præcis positionering.
Image: Visuals demonstrating NFC payment, the 3-card slot for dual SIM and TF card, and the navigation system of the DOOGEE Fire 5.
8. Batteristyring
The Fire 5 features a high-capacity 13000mAh battery for extended usage.
- Kapacitet: 13000mAh
- Opladning: Supports 10W charging via Type-C.
- Omvendt opladning: 5W reverse charging allows the phone to act as a power bank for other devices.
- Estimeret forbrug: Up to 94 hours music playing, 21 hours video watching, 69 hours calling, 44 days standby.
8.1 Opladning af din enhed
Connect the provided Type-C USB cable to the phone's charging port and the other end to the charger. Plug the charger into a power outlet. The battery indicator on the screen will show charging status.
8.2 Optimering af batterilevetid
- Juster skærmens lysstyrke.
- Deaktiver Wi-Fi, Bluetooth og GPS, når de ikke er i brug.
- Luk baggrundsapplikationer.
- Aktiver batterisparetilstand, når det er nødvendigt.
Image: An illustration of the DOOGEE Fire 5's internal battery, highlighting its 13000mAh capacity and estimated usage times for various activities.
9. Vedligeholdelse
To ensure the longevity and optimal performance of your DOOGEE Fire 5, follow these maintenance guidelines:
- Rensning: Brug en blød, damp klud til at rengøre enheden. Undgå skrappe kemikalier eller slibende materialer.
- Vand- og støvmodstand: While the device is IP68/IP69K rated, ensure all port covers are securely closed before exposure to water or dust. Avoid prolonged submersion or high-pressure water jets.
- Temperatur: Brug enheden inden for de anbefalede temperaturområder. Ekstrem varme eller kulde kan påvirke batteriets levetid og ydeevne.
- Slagbeskyttelse: The MIL-STD-810H rating provides drop protection, but excessive force or repeated impacts can still cause damage.
Image: Visuals depicting the DOOGEE Fire 5 undergoing drop tests, water immersion, and dust resistance, illustrating its IP68/IP69K/MIL-STD-810H certifications.
10. Fejlfinding
Hvis du støder på problemer med din DOOGEE Fire 5, kan du bruge følgende almindelige løsninger:
10.1 Enheden tænder ikke
- Sørg for, at batteriet er opladet. Tilslut opladeren, og vent et par minutter, før du forsøger at tænde.
- Tryk og hold tænd/sluk-knappen nede i mindst 10-15 sekunder for at fremtvinge en genstart.
10.2 Problemer med netværksforbindelse
- Kontroller, om dit SIM-kort er korrekt isat og aktiveret.
- Verify that mobile data is enabled in settings.
- Genstart enheden.
- Nulstil netværksindstillinger (Indstillinger > System > Nulstil indstillinger > Nulstil Wi-Fi, mobil og Bluetooth).
10.3 Applikationer der går ned eller fryser
- Ryd cachen og dataene for den problematiske app (Indstillinger > Apps > [Appnavn] > Lager > Ryd cache/Ryd data).
- Opdater appen til den nyeste version fra Google Play Butik.
- Hvis problemet fortsætter, skal du afinstallere og geninstallere appen.
10.4 Berøringsskærmen reagerer ikke
- Genstart enheden.
- Sørg for, at skærmen er ren og fri for fugt eller snavs.
- If using a screen protector, ensure it is properly applied and not interfering with touch.
11. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | Fire5 |
| Operativsystem | Android 15 |
| Processor | UNISOC SC9863A Octa-Core (1.6GHz) |
| VÆDDER | 12 GB (3 GB fysisk + 9 GB udvidet) |
| Intern opbevaring | 64 GB |
| Udvidelig opbevaring | Op til 2 TB (TF-kort) |
| Skærmstørrelse | 6.6 tommer |
| Opløsning | 720*1612 HD+ |
| Opdateringshastighed | 90 Hz |
| Hovedkamera | 13 MP |
| Forreste kamera | 8 MP |
| Batterikapacitet | 13000 mAh |
| Opladning | 10W hurtigopladning, 5W omvendt opladning |
| Forbindelse | 4G, Wi-Fi, Bluetooth, NFC, USB Type-C, OTG |
| Navigation | GPS, Glonass, Galileo |
| Holdbarhed | IP68, IP69K, MIL-STD-810H |
| Dimensioner | 6.95 x 0.74 x 3.25 tommer |
| Vægt | 13.8 ounce |
12. Garanti og support
12.1 Garantioplysninger
Your DOOGEE Fire 5 Rugged Smartphone comes with a comprehensive 2-year warranty. This warranty covers manufacturing defects and ensures peace of mind with your purchase. Please refer to the included Warranty Card for detailed terms and conditions.
12.2 Kundesupport
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact DOOGEE customer support through their official channels. Refer to the Warranty Card or the DOOGEE official webwebsted for kontaktoplysninger.
