MECHEN H1 Pro MP3-afspiller brugermanual

Indledning

This manual provides essential information for the safe and efficient operation of your MECHEN H1 Pro MP3 Player. Please read it thoroughly before using the device to ensure optimal performance and longevity.

Hvad er der i æsken

• 1 x MECHEN H1 Pro Music Player
• 1 x beskyttelsesetui
• 1 x Type-C ladekabel
• 1 x brugermanual
• 1 x Kablede høretelefoner

Enhed overview

The MECHEN H1 Pro features a compact design with intuitive controls and essential ports for connectivity and media management.

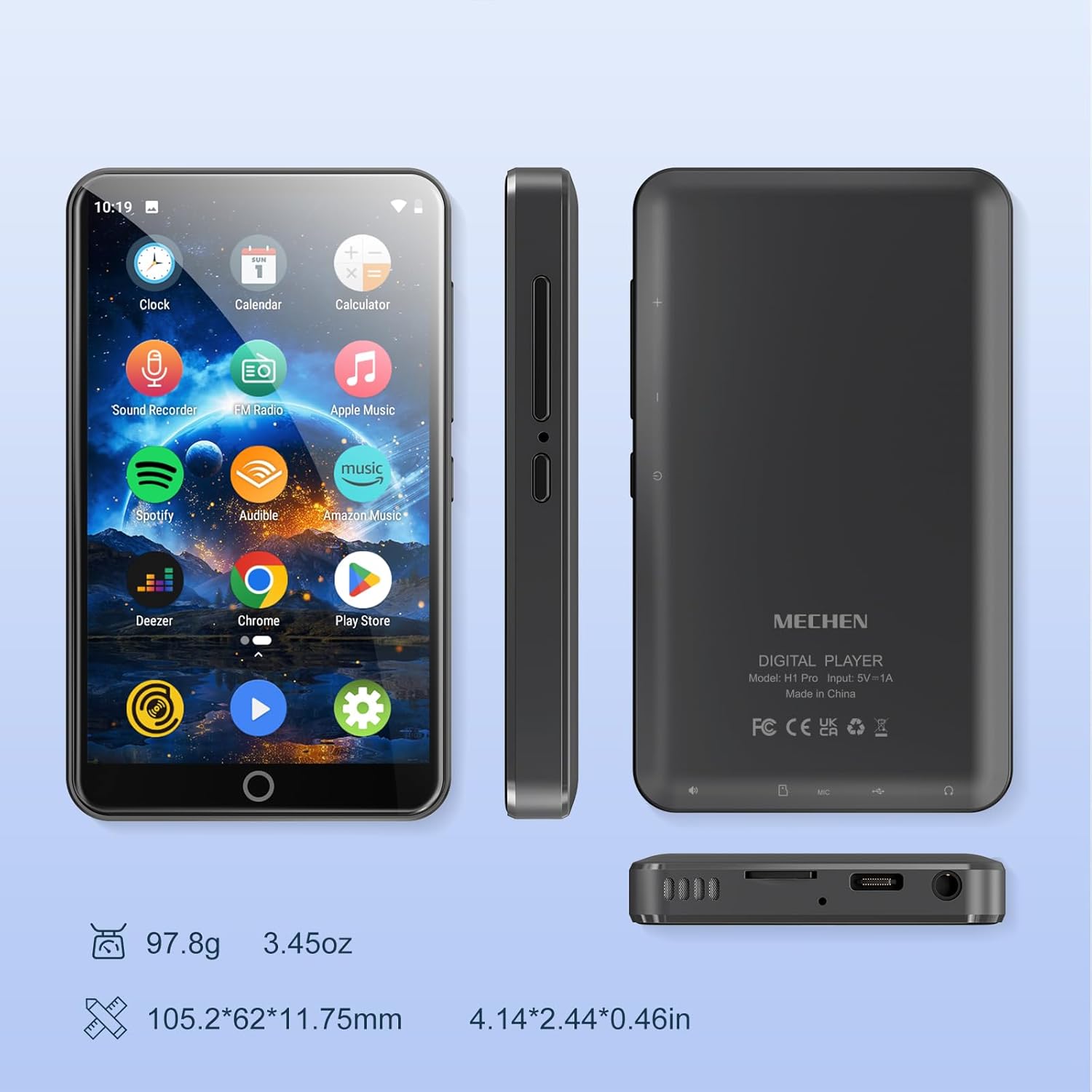

Figure 1: Front, side, and bottom views of the MECHEN H1 Pro MP3 Player, highlighting its compact dimensions (105.2x62x11.75mm) and weight (97.8g). The image also indicates the location of the volume buttons, power button, TF card slot, USB-C port, 3.5mm audio output, speaker, and recording hole.

Physical Buttons and Ports

• Tænd / sluk-knap: Located on the side for turning the device on or off.
• Lydstyrke +/- knapper: Adjust audio output levels.
• USB-C-port: Til opladning og dataoverførsel.
• 3.5 mm lydudgang: Connect wired headphones or external speakers.
• TF-kortslot: Insert a Micro SD card for expandable storage up to 512GB.
• Højttaler: Built-in speaker for audio playback.
• Recording Hole: Integreret mikrofon til lydoptagelse.

Opsætning

Indledende opladning

Before first use, fully charge the device using the provided Type-C charging cable and a 5V/1A USB charger. A full charge typically takes approximately 2.5 hours.

Tænd og indledende konfiguration

1. Tryk og hold tænd/sluk-knappen nede i 3 sekunder for at tænde enheden.
2. Follow the on-screen prompts to select your preferred language (e.g., English).
3. Set the correct time zone and time.
4. Accept Google Terms of Service and Privacy Policy to activate Google Play services.

Operativsystem og ydeevne

The MECHEN H1 Pro runs on Android 13, powered by an MTK6762 Octa-core processorDen har 3 GB RAM og 32 GB ROM for smooth operation and ample opbevaring.

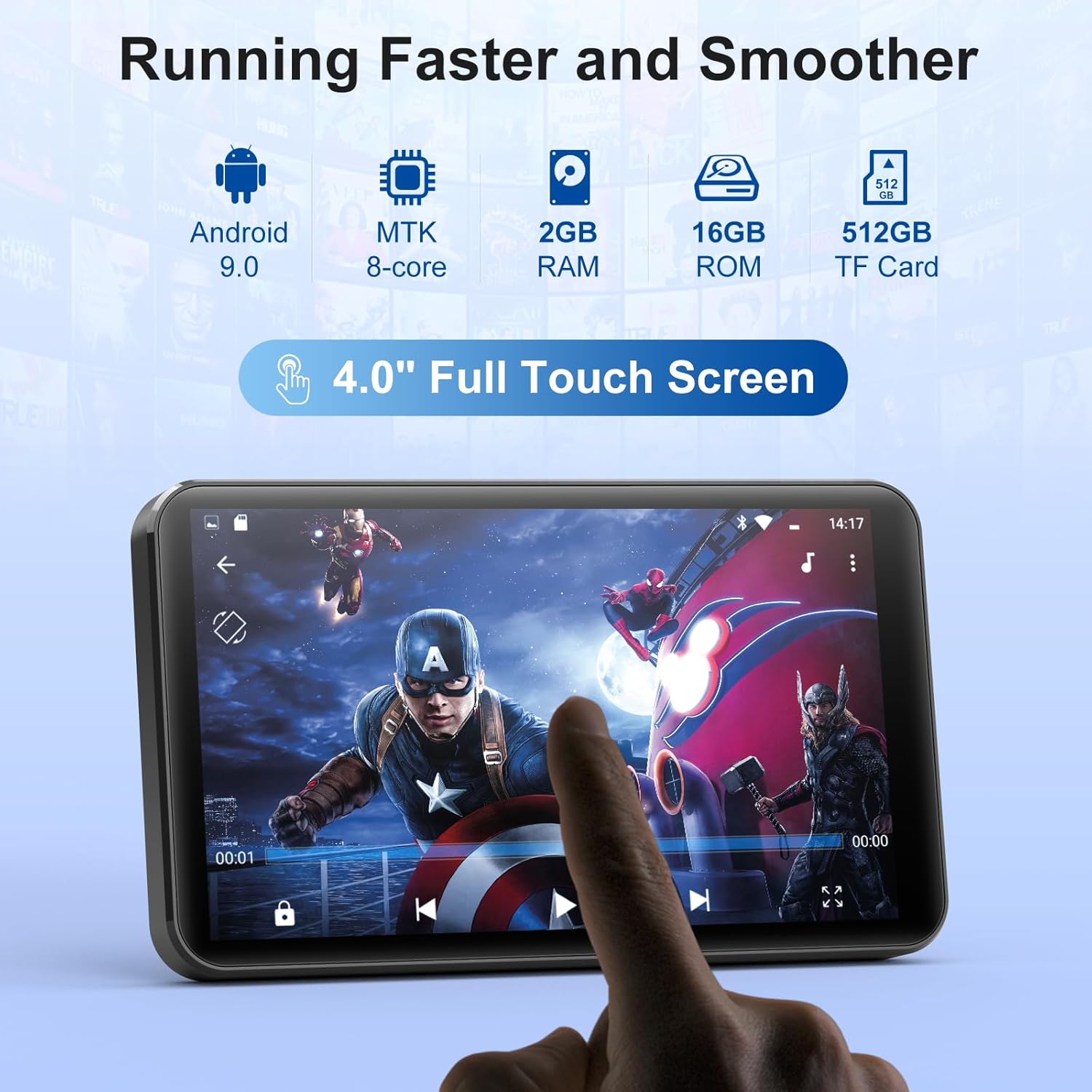

Figure 2: Visual representation of the device's internal components, including the Android operating system, Octa-core processor, RAM, ROM, and support for up to 512GB TF card expansion.

Udvidelig opbevaring

The device supports external storage expansion via a TF (Micro SD) card slot, allowing you to add up to 512 GB of additional storage for your music, videos, and other files.

Forbindelse

WiFi-forbindelse

The H1 Pro features dual-band WiFi (2.4GHz and 5GHz) for stable and fast internet access. To connect to WiFi:

1. Gå til Indstillinger > Netværk og internet > Wi-Fi.
2. Slå Wi-Fi til.
3. Vælg det ønskede netværk fra listen.
4. Indtast adgangskoden, hvis du bliver bedt om det, og tryk på Forbinde.

Bluetooth-parring

The device supports Bluetooth 4.1 with A2DP/AVRCP for connecting to wireless headphones, speakers, and car audio systems. To pair a Bluetooth device:

Figure 3: The MECHEN H1 Pro MP3 Player demonstrating its wide Bluetooth compatibility with various audio devices.

1. Gå til Indstillinger > Tilsluttede enheder > Bluetooth.
2. Toggle Bluetooth on.
3. Sørg for, at dit Bluetooth-tilbehør er i parringstilstand.
4. Vælg din enhed fra listen over tilgængelige enheder, der skal parres.

Musikafspilning

The H1 Pro supports a wide range of audio formats including MP3, WMA, WAV, FLAC, OGG, AAC, APE, and M4A. It comes pre-installed with the HIBY music playback application.

Figure 4: The device's home screen displaying various pre-installed popular music streaming applications.

Online Music Streaming

The device comes with popular music applications such as Spotify, Amazon Music, and Deezer pre-installed. You can also download and install other streaming apps from the Google Play Store.

Offline musikafspilning

To play music offline, ensure you have downloaded your desired tracks within the respective music applications (a paid subscription may be required for some services) or transfer your own music files to the device's internal storage or Micro SD card.

Videoafspilning

The 4-inch high-definition touch screen supports 720p and 1080p full-format video playback, including RM, AVI, RMVB, 3GP, FLV, MP4, DAT, MKV, MPG, MOV, and TS formats. Videos can be played directly without format conversion.

Figure 5: The MECHEN H1 Pro MP3 Player's vibrant 4-inch IPS touch screen, ideal for video playback and app navigation.

Forældrekontrol

The MECHEN H1 Pro supports parental control features. Parents can install or remove applications and set controls such as passwords, browser access, timers, and application access by downloading and installing the Family Link app and enabling Parental Controls in the player settings. This allows for a customized and safe experience for children.

Batteri og opladning

Enheden er udstyret med en 2000mAh lithium batteri, offering extended usage times. It provides up to 50 timers musikafspilning og op til 8 hours of video playback på en enkelt opladning.

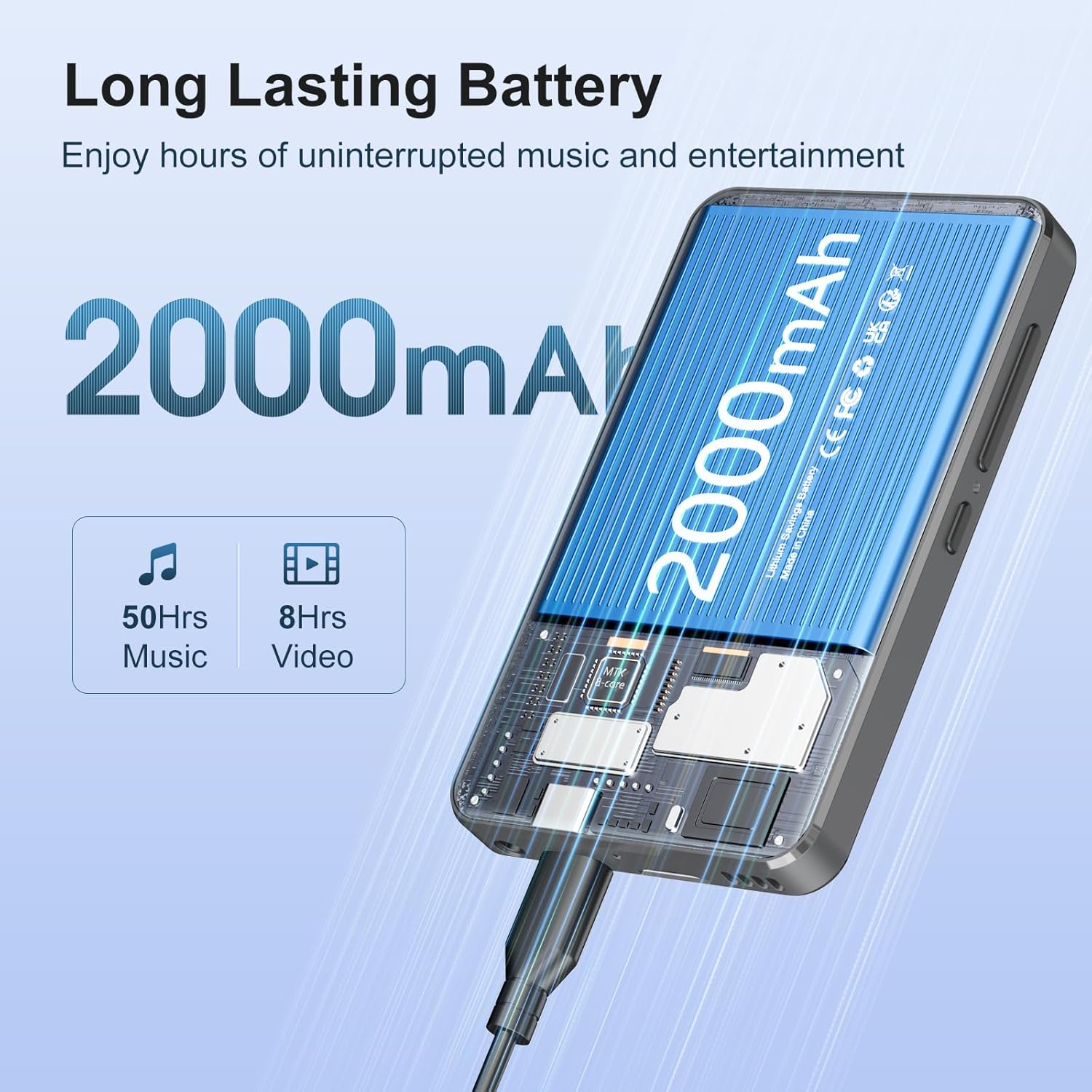

Figure 6: Illustration of the MECHEN H1 Pro's 2000mAh battery and its impressive playback durations for music and video.

Retningslinjer for opladning

• Use ONLY the 5V/1A USB-C charger provided or a compatible charger.
• Avoid charging in direct sunlight, humid environments, or near heat sources.
• If the device becomes hot during charging, unplug immediately and let it cool in a well-ventilated area.

Specifikationer

Fejlfinding

Almindelige problemer og løsninger

• Device Won't Charge:
  • Try a different USB-C cable and charger.
  • Clean the charging port for any debris.
  • Test with a 5V/1A charger.
• App-nedbrud:
  • Clear app cache (Settings > Apps > [App Name] > Storage & cache > Clear Cache).
  • Geninstaller appen.
• Ingen lyd:
  • Tjek hovedtelefonforbindelsen.
  • Disable Bluetooth if connected to external devices.
  • Reset sound settings (Settings > Sound > Reset).

Garanti og support

For warranty information or technical support, please refer to the contact details provided in the product packaging or visit the official MECHEN webwebsted. Gem din købskvittering for garantikrav.
