Comfytemp trådløs varmepude med rygstøtte brugermanual

1. Introduktion

The Comfytemp Cordless Heating Pad with Back Brace is designed to provide targeted heat therapy and lumbar support for pain relief. This portable and rechargeable device offers convenience and comfort, allowing for use during various activities. It features multiple heat levels and timer settings to customize your experience.

This manual provides essential information on the safe and effective use, setup, operation, and maintenance of your Comfytemp Cordless Heating Pad with Back Brace.

2. Produktkomponenter

Figure 2.1: Comfytemp Cordless Heating Pad with Back Brace. This image displays the main components including the heating element, control panel, and adjustable straps.

Figure 2.2: Premium Materials for Comfort. Illustrates the breathable Lycra lining and durable hook-and-loop external fabric used in the heating pad's construction.

Pakkeindhold:

• 1 x Comfytemp Cordless Heating Pad with Back Brace
• 1 x 5000mAh Rechargeable Power Bank
• 1 x USB Charging Cable (Type C)
• 1 x Extension Strap (for waist sizes 26 to 52 inches)
• Brugervejledning (dette dokument)

3. Opsætning

3.1 Opladning af powerbanken

Before first use, fully charge the included 5000mAh power bank. Use a 5V/2A charger (not included) and the provided USB Type C charging cable. The four small white lights on the power bank will pulse while charging and indicate the charge level.

• Connect the USB charging cable to the power bank's input port (Micro USB or Type C).
• Connect the other end of the cable to a compatible 5V/2A USB wall charger.
• Charge for approximately 3 hours until all four indicator lights are solid.

3.2 Attaching the Power Bank

The heating pad features a dedicated storage pocket for the power bank.

• Locate the storage pocket on the right side of the back brace.
• Connect the power bank to the USB cable inside the pocket.
• Insert the power bank into the pocket and secure it.

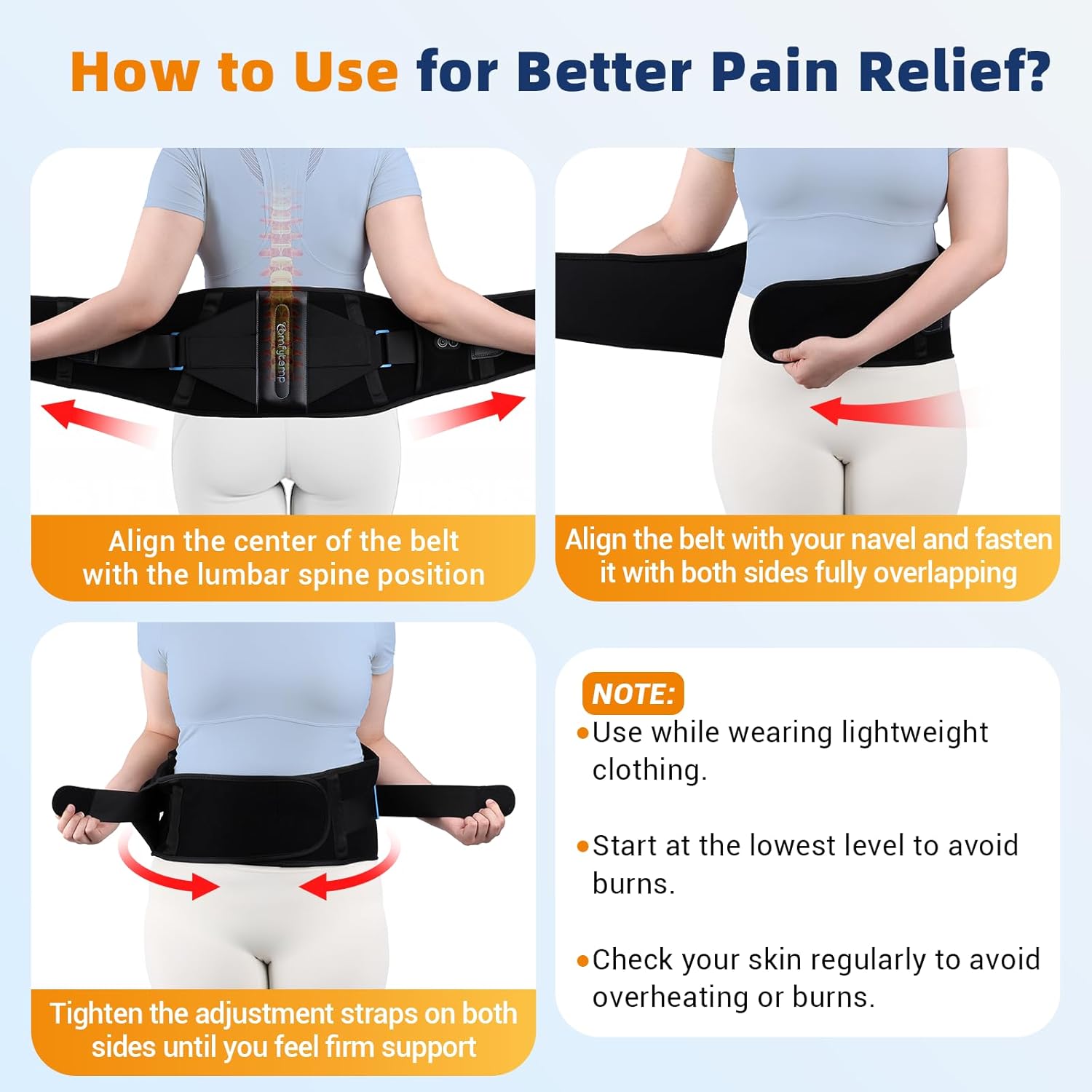

Figure 3.1: Steps for connecting the power bank and wearing the heating pad.

4. Betjeningsvejledning

4.1 Wearing the Heating Pad

• Align the center of the belt with your lumbar spine position (lower back).
• Wrap the main belt around your waist, aligning it with your navel, and fasten it with both sides fully overlapping.
• Tighten the dual adjustable straps on both sides until you feel firm, comfortable support. An extension strap is included for waist sizes up to 52 inches.
• Vigtig bemærkning: It is recommended to wear lightweight clothing when using the heat function to prevent direct skin contact and potential burns.

Figure 4.1: Dual-Strap Fit for Better Support and Warmth. Demonstrates how the adjustable straps provide a secure and comfortable fit.

Figure 4.2: Adjustable to Your Waist. Illustrates the standard belt and the included extension belt for a wider range of waist sizes.

4.2 Powering On and Adjusting Settings

The control panel features two buttons: one for timer settings and one for heat levels.

• To power on, press and hold either the Timer button (clock icon) or the Heat button (waves icon) for a few seconds. The LED indicators will light up.
• Justering af varmeniveauer: Press the Heat button (waves icon) to cycle through the three temperature levels:
  • Grøn: Lav varme
  • Blå: Middel varme
  • Rød: Høj varme
  The heat will start within a few seconds and reach full temperature in about one minute.
• Adjusting Timer Settings: Press the Timer button (clock icon) to cycle through the three timer settings:
  • 15 minutter
  • 30 minutter
  • 45 minutter
  The device will automatically shut off after the selected time.
• To power off, press and hold either button again for a few seconds.

Figure 4.3: Control Panel for Temperature and Timer Settings. Displays the intuitive buttons and their corresponding LED colors for different settings.

4.3 Brugsanbefalinger

• For best results, start at the lowest heat level and gradually increase if needed. Regularly check your skin to avoid overheating or burns.
• The heating pad can provide up to 4 hours of cordless warmth on low setting, or up to 2 hours on high setting, with a fully charged power bank.
• It is recommended to use the support function for up to 2 hours per day and heat therapy for about 15 minutes per session.
• This product is not suitable for strenuous physical activity or heavy lifting.

5. Vedligeholdelse

5.1 Rengøringsinstruktioner

• Always unplug the power bank from the heating pad before cleaning.
• Tør overfladen af ​​varmepuden af ​​med enamp klud og mildt rengøringsmiddel.
• Do not submerge the heating pad or power bank in water.
• Lad varmepuden lufttørre helt, før den opbevares eller bruges igen.

5.2 Opbevaring

• Store the heating pad in a cool, dry place away from direct sunlight.
• Ensure the power bank is fully charged before long-term storage to maintain battery health.

6. Fejlfinding

7. Specifikationer

• Produktdimensioner: 47.24 x 8.66 x 1.18 tommer; 1.79 pund
• Strømkilde: 5000 mAh genopladeligt batteri
• Varmeniveauer: 3 (Lav, Medium, Høj)
• Timerindstillinger: 3 (15, 30, 45 minutter)
• Adjustable Waist Size: 26 to 52 inches (with extension strap)
• Materiale: Breathable Lycra Lining, Hook-and-Loop External
• Supportsystem: 6 built-in support strips (4 lumbar + 2 abdomen)
• Farve: Sort
• Fabrikant: Shenzhen Yicai Health Technology Co. , Ltd.

Figure 7.1: Upgraded Support Strips. Illustrates the internal structure providing 6x lumbar support and 360° compression.

8. Garanti og support

Comfytemp is committed to providing high-quality products and customer satisfaction.

• Garanti: Dette produkt leveres med 365 dages garanti fra købsdatoen.
• Returnerer: Enjoy 30 days of free returns.
• Kundesupport: For any inquiries, technical assistance, or warranty claims, please contact Comfytemp customer support. We aim to provide 24-hour quick customer support.
• Juridisk ansvarsfraskrivelse: Udtalelser vedrørende kosttilskud er ikke blevet evalueret af FDA og er ikke beregnet til at diagnosticere, behandle, helbrede eller forebygge nogen sygdom eller sundhedstilstand.
