HANMATEK SF4 5-in-1 Multifunction Stud Finder User Manual

1. Introduktion

Thank you for choosing the HANMATEK SF4 5-in-1 Multifunction Stud Finder. This device is designed to assist you in safely and accurately locating studs, metal objects, pipes, and live AC wires behind walls, floors, and ceilings. Please read this manual thoroughly before use to ensure proper operation and to maximize the tool's performance and longevity.

2. Sikkerhedsoplysninger

Caution: This product can detect live AC wires. Always exercise extreme caution when working near electrical components to avoid electrical shock or damage to the product. Disconnect power to the area if possible before drilling or cutting.

• Always wear appropriate personal protective equipment (PPE) when performing tasks that involve drilling or cutting into walls.
• Do not rely solely on the stud finder for safety. Use other methods, such as consulting building plans, to confirm the presence of electrical wiring or plumbing.
• Hold enheden væk fra vand og ekstreme temperaturer.
• Forsøg ikke at åbne eller ændre enheden. Overlad al service til kvalificeret personale.

3. Produktet er slutview

The HANMATEK SF4 is an advanced wall scanner featuring a microprocessor chip for precise detection. It offers multiple scanning modes and a high-visibility LCD display with audio alerts for clear indications.

3.1 Nøglefunktioner

• 5-i-1-detektion: Locates wood studs, metal studs, metal pipes, and live AC wires.
• Multiple Scan Depths: Includes three stud scan depths (12.5mm, 25mm, 38mm), metal scan (38mm), and AC scan (120mm).
• HD LCD-skærm: Backlit screen shows center, edge, and location of detected objects, along with battery status.
• Lydalarm: Provides audible alerts to pinpoint object locations.

3.2 Komponenter og kontroller

Familiarize yourself with the different parts of your HANMATEK SF4 stud finder:

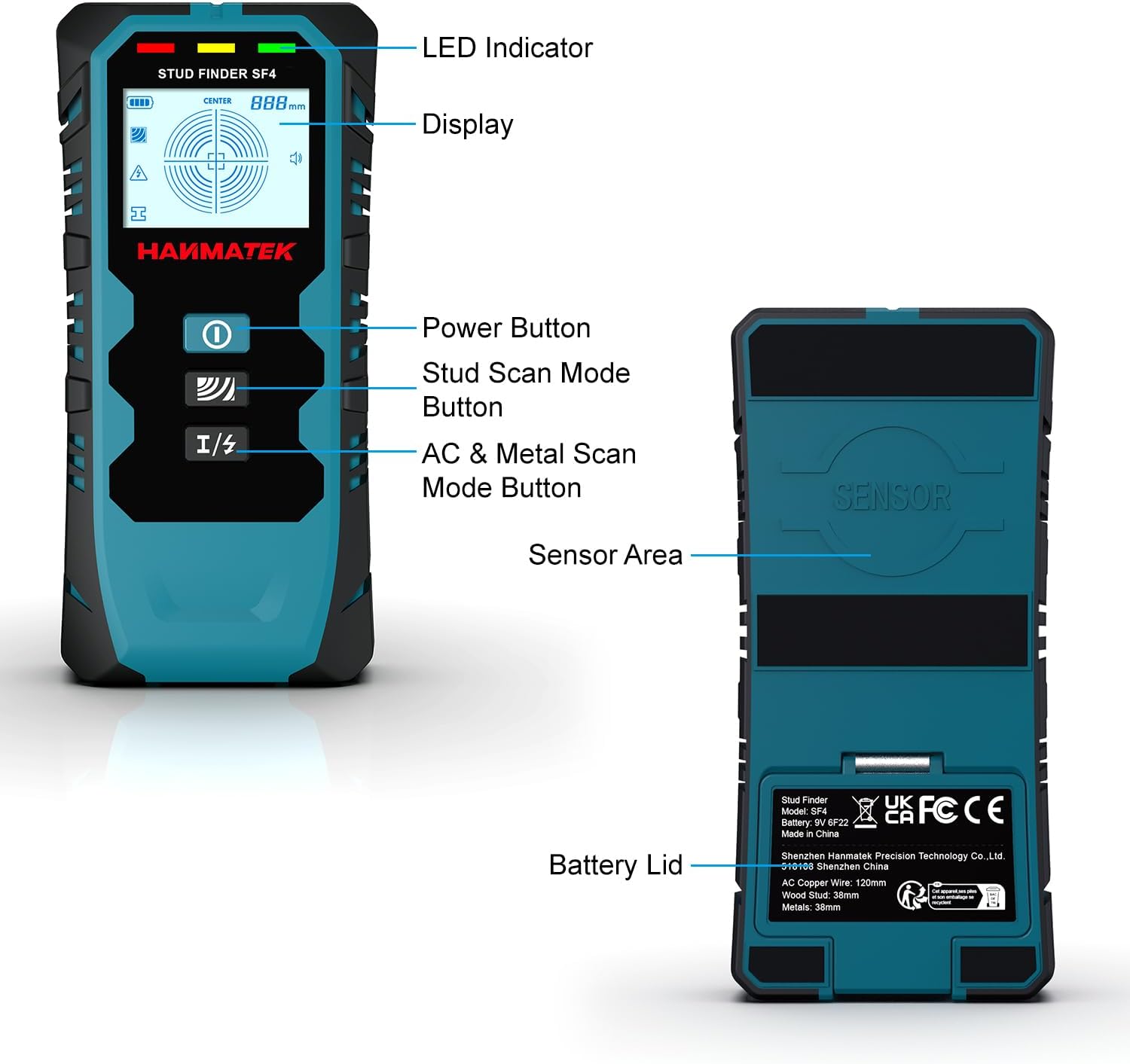

Billede 3.2.1: Labeled diagram of the HANMATEK SF4 stud finder, indicating the LED indicator, display screen, power button, stud scan mode button, AC & metal scan mode button, sensor area, and battery lid.

• LED-indikator: Provides visual feedback on detection status.
• Vise: LCD screen showing detection information, mode, and battery level.
• Power knap: Tænder og slukker for enheden.
• Stud Scan Mode Button: Cycles through different stud detection depths.
• AC & Metal Scan Mode Button: Cycles between AC wire and metal detection modes.
• Sensorområde: The part of the device that must be in contact with the wall for scanning.
• Batterilåg: Cover for the battery compartment.

4. Kom godt i gang (opsætning)

4.1 Batteriinstallation

The HANMATEK SF4 requires one 9V battery (included). To install:

1. Open the battery lid located on the back of the device.
2. Connect the 9V battery to the battery clip, ensuring correct polarity (+/-).
3. Place the battery into the compartment and close the lid securely.

4.2 Indledende kalibrering

Proper calibration is essential for accurate detection. The device must be calibrated against the wall surface before each scan.

Billede 4.2.1: Step 1: Press the Power Button to turn on the tool.

Billede 4.2.2: Step 2: Press the Mode Button to switch to the mode you need and wait for the signal bars to disappear and a "Beep" sound.

1. Tryk på tænd/sluk-knappen for at tænde enheden.
2. Select the desired scan mode (Stud, Metal, or AC) by pressing the respective mode button.
3. Place the device flat against the wall in an area where you are certain there are no studs, metal, or wires. This is typically an empty section of the wall.
4. Hold the device steady and wait for the calibration process to complete. The display will show a calibration icon, and you may hear a beep sound. The signal bars should disappear, and the green LED indicator will light up, indicating it's ready to scan.
5. If you lift the device or change the mode, you must recalibrate.

5. Betjeningsvejledning

5.1 Generel scanningsprocedure

Billede 5.1.1: Step 3: Move the scanner slowly along the wall. Do not lift the instrument or apply additional pressure.

Billede 5.1.2: Step 4: The progress bar on the screen changes with the distance of the object. When the signal is full, the indicator light flashes and a ticking sound is emitted, meaning that the center of the object has been found.

1. After calibration, slowly slide the scanner horizontally across the wall surface. Keep the device flat against the wall without lifting or tilting it.
2. Observe the LCD display and listen for audio alerts.
3. As the device approaches an object, the signal strength bars on the display will increase.
4. When the device detects the edge of an object, the display will indicate the edge, and an audio alert may sound.
5. When the device is directly over the center of an object, the display will show the "CENTER" indicator, the signal bars will be full, the LED indicator will flash, and a continuous beep will sound. Mark this spot.
6. To confirm, scan the area from the opposite direction and mark the center again. The true center is usually between the two marks.

5.2 Stud Scan Modes (1st, 2nd, 3rd)

Billede 5.2.1: Stud Mode Detection (1st, 2nd, 3rd) illustrating different detection depths.

The SF4 offers three stud scan modes for varying wall thicknesses:

• Stud Scan Mode 1 (12.5mm / 0-½ inch): For detecting studs in thinner walls.
• Stud Scan Mode 2 (25mm / 0-1 inch): For standard wall thicknesses.
• Stud Scan Mode 3 (38mm / 0-1½ inches): For deeper detection of studs.

For at bruge:

1. Press the Stud Scan Mode Button to cycle through the three modes. The selected mode will be displayed on the LCD.
2. Calibrate the device as described in Section 4.2.
3. Slowly scan the wall horizontally. The device will indicate the edges and center of wood or metal studs.
4. If no stud is found in a shallower mode, switch to a deeper mode and recalibrate before scanning again.

5.3 Metal Scan Mode

Billede 5.3.1: Metal Mode Detection, showing detection of metal objects up to 1.50 inches (38mm) deep.

This mode detects ferrous and non-ferrous metals, such as pipes, rebar, and metal studs, up to a depth of 38mm (1.50 inches).

1. Press the AC & Metal Scan Mode Button until the Metal Scan icon appears on the display.
2. Kalibrer enheden.
3. Scan the wall slowly. The device will indicate the presence and approximate location of metal objects.

5.4 AC Wire Detection Mode

Billede 5.4.1: AC Wire Detection, showing the device indicating live, unshielded electrical wiring up to 4.72 inches (120mm) deep.

This mode detects live, unshielded AC electrical wiring up to a depth of 120mm (4.72 inches). For safety, the wire warning detection icon will flash in all modes if live, unshielded wires are detected.

1. Press the AC & Metal Scan Mode Button until the AC Scan icon appears on the display.
2. Kalibrer enheden.
3. Scan the wall slowly. The device will indicate the presence of live AC wires.
4. Always be aware of the AC wire warning icon, even when using other modes.

5.5 Interpreting the Display and Audio Alerts

Billede 5.5.1: Easy to Read Digital LCD Display & Audio Alarm, illustrating how the display indicates stud edges and center.

The LCD display provides visual cues, while the audio alarm offers audible feedback:

• Signal Strength Bars: Increase as the device approaches an object.
• Edge Indicator: Shows when the device is over the edge of a stud or object.
• CENTER Indicator: Appears when the device is directly over the center of a detected object.
• AC Wire Warning Icon: Flashes when live, unshielded AC wires are detected in any mode.
• Batteriindikator: Viser det aktuelle batteriniveau.
• Lydadvarsler: Beeps indicate detection of objects, with a continuous beep for the center.

6. Vedligeholdelse

• Rensning: Tør enheden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Store the stud finder in its protective pouch in a dry, dust-free environment when not in use. Remove the battery if storing for extended periods to prevent leakage.
• Udskiftning af batteri: Udskift 9V-batteriet, når indikatoren for lavt batteriniveau vises på displayet.

7. Fejlfinding

If you encounter issues with your HANMATEK SF4, refer to the following common problems and solutions:

• Inaccurate Readings or No Detection:

  • Ensure the device is properly calibrated against an empty section of the wall before each scan.
  • Slide the scanner slowly and steadily. Rapid movement can lead to inaccurate results.
  • Ensure the device is held flat against the wall and not tilted.
  • Kontroller batteriniveauet, og udskift det, hvis det er lavt.
  • Try a different scan mode, especially a deeper stud scan mode if you suspect objects are further behind the surface.
  • Wall materials can affect performance. Very thick or unevenly textured walls may reduce accuracy.
• Enheden tænder ikke:

  • Check if the 9V battery is correctly installed with proper polarity.
  • Udskift batteriet med et nyt.
• Constant AC Wire Warning:

  • This indicates the presence of live, unshielded AC wires. Exercise extreme caution.
  • If you suspect a false positive, try scanning in a different area or recalibrate. However, always prioritize safety.

8. Specifikationer

9. Garanti og support

For warranty information and technical support, please refer to the documentation included with your product packaging or visit the official HANMATEK webwebstedet. Behold din købskvittering som købsbevis.
