FIREBAT Mini PC Brugermanual

1. Introduktion

Thank you for choosing a FIREBAT Mini PC. This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your new A6 or AM02 series Mini PC. Designed for versatility, FIREBAT Mini PCs are suitable for a wide range of applications, including home use, business, education, and gaming.

The FIREBAT A6 model features an AMD Ryzen7 6800H CPU, while the AM02 model is equipped with an AMD Ryzen5 6600H CPU. Both models offer robust performance and compact design.

2. Produktmodeller overview

2.1 FIREBAT A6 Model (Ryzen7 6800H)

The A6 model is powered by an AMD Ryzen7 6800H CPU, featuring 8 Cores and 16 Threads with a base speed of 3.2 GHz and a turbo speed of 4.7 GHz. It includes AMD Radeon 680M graphics with a frequency of 2200MHz. This model supports Dual DDR5 RAM (SO-DIMM 4800MHz) and M.2 NVMe 2280 PCIe SSD storage. Connectivity options include WiFi 6 and Bluetooth 5.2, along with 2.5G RJ45 LAN and MU-MIMO technology.

The A6 model is designed for lower power consumption while delivering stronger performance, featuring a 3 Zen+ architecture (12% higher IPC performance than Zen 3) and a 6nm modern core manufacturing process, resulting in up to 17% lower power consumption.

2.2 FIREBAT AM02 Model (Ryzen5 6600H)

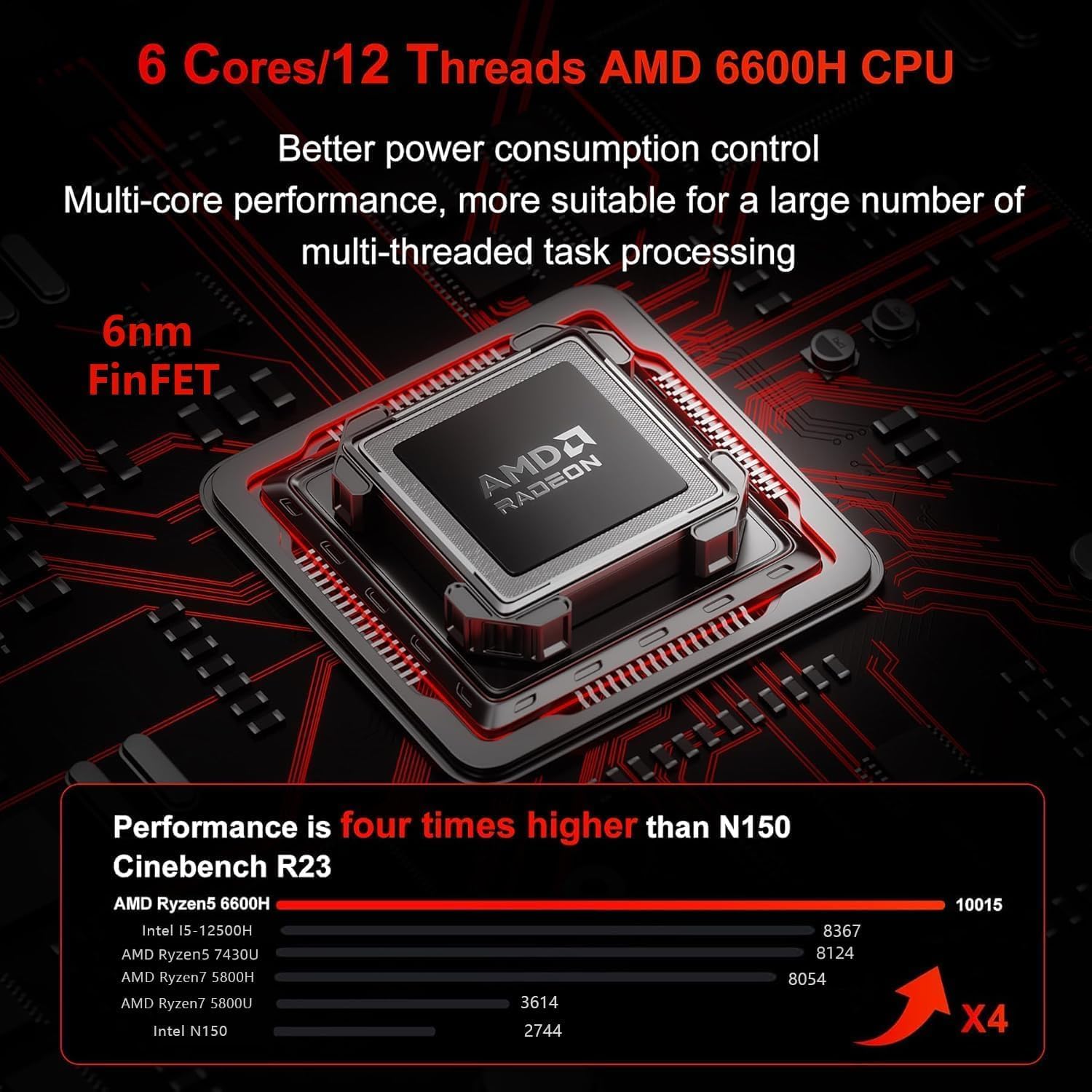

The AM02 model is equipped with a 6 Cores/12 Threads AMD Ryzen5 6600H CPU, built on a 6nm FinFET process. This processor offers better power consumption control and multi-core performance, making it suitable for multi-threaded task processing.

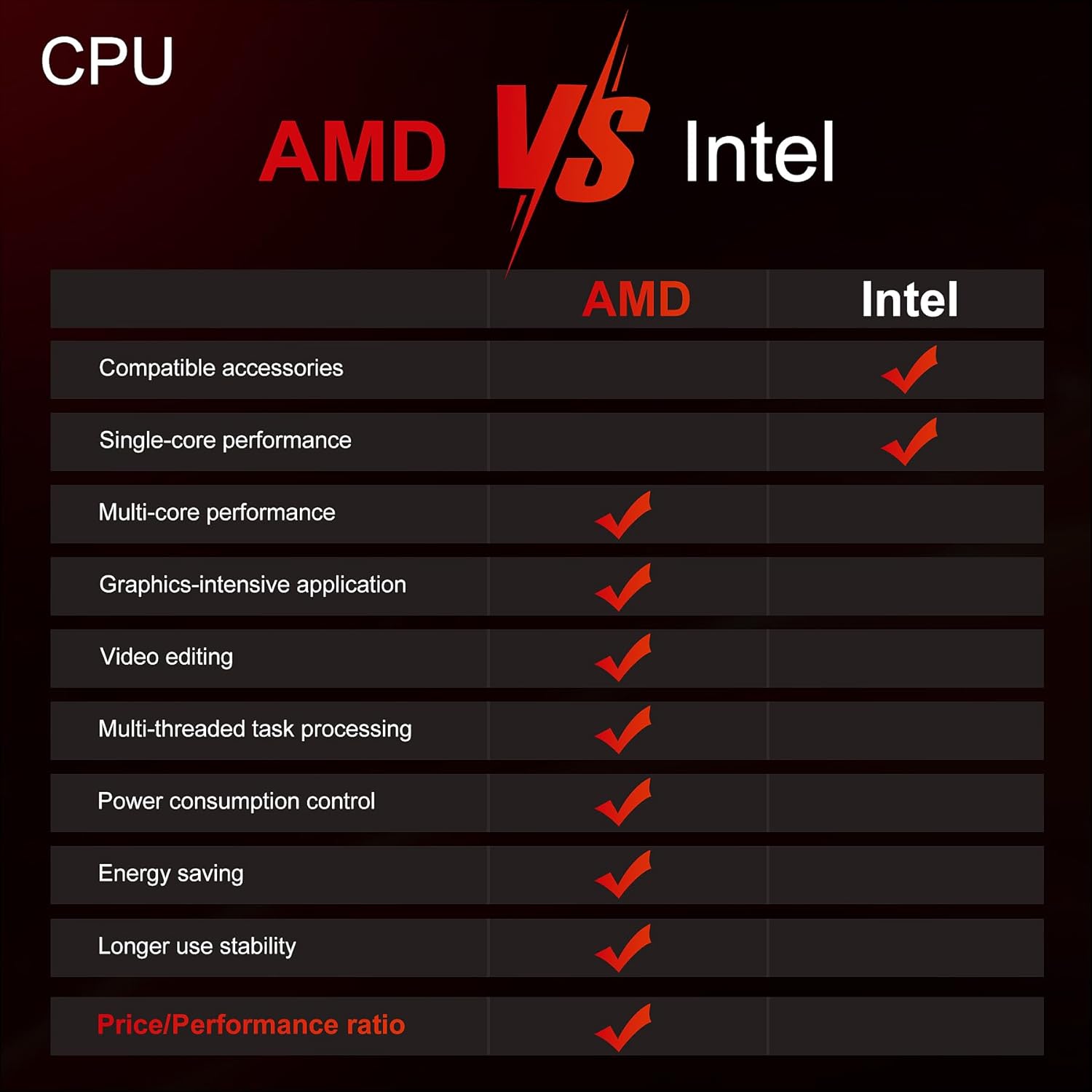

Both models leverage AMD's advanced architecture, providing a strong balance of performance and efficiency compared to other CPU architectures, particularly in areas like multi-core performance, graphics-intensive applications, video editing, and energy saving.

3. Opsætningsvejledning

3.1 Udpakning

1. Carefully open the packaging and remove the Mini PC and all accessories.
2. Kontroller, at alle komponenterne på pakkelisten er til stede.
3. Gem emballagematerialerne til senere transport eller opbevaring.

3.2 Tilslutning af eksterne enheder

Connect your monitor, keyboard, mouse, and other peripherals to the appropriate ports on the Mini PC. Both models feature a variety of ports for comprehensive connectivity.

• Vise: Connect your monitor(s) using the HDMI or DisplayPort (DP) outputs. Both models support triple screen display.
• USB-enheder: Plug in your keyboard, mouse, and other USB devices into the available USB 3.0 Type-A or USB Type-C ports.
• Netværk: Connect an Ethernet cable to the 2.5Gbps LAN port for wired network access.
• Lyd: Tilslut hovedtelefoner eller højttalere til 3.5 mm lydstikket.

3.3 Tænd

1. Tilslut strømadapteren til DC-in-porten på mini-pc'en.
2. Sæt strømadapteren i en stikkontakt.
3. Press the power button located on the front or side of the Mini PC. The power indicator light will illuminate.
4. The system will boot up. Follow the on-screen instructions to complete the initial setup of your operating system.

4. Betjeningsvejledning

4.1 Grundlæggende betjening

Once the operating system is set up, you can begin using your FIREBAT Mini PC like any standard desktop computer. Navigate the interface, install software, and connect to the internet.

4.2 Lagerplads og hukommelsesudvidelse

Both A6 and AM02 models support expandable storage and memory. You can upgrade the RAM up to 64GB (32GB x 2) DDR5 4800MHz and add dual M.2 NVMe SSDs (M-Key PCIe 4.0 x 4).

For detailed instructions on how to install or upgrade RAM and SSDs, please refer to the specific upgrade guide available on the FIREBAT official webwebsted eller kontakt kundesupport.

4.3 Opsætning af flere skærme

Your FIREBAT Mini PC supports connecting up to three displays simultaneously via the HDMI and DisplayPort (DP) outputs, along with the USB-C port (if it supports video output). This allows for an extended desktop experience, ideal for multitasking or professional setups.

• Tilslut din primære skærm til HDMI-porten.
• Connect a second monitor to the DisplayPort.
• If your USB-C port supports video output, connect a third monitor using a compatible USB-C to display adapter.
• Once connected, configure display settings within your operating system to extend or duplicate your desktop.

5. Vedligeholdelse

5.1 Rengøring

To ensure optimal performance and longevity, regularly clean your Mini PC. Use a soft, dry cloth to wipe down the exterior. For dust accumulation in vents, use compressed air. Ensure the device is powered off and unplugged before cleaning.

5.2 Kølesystem

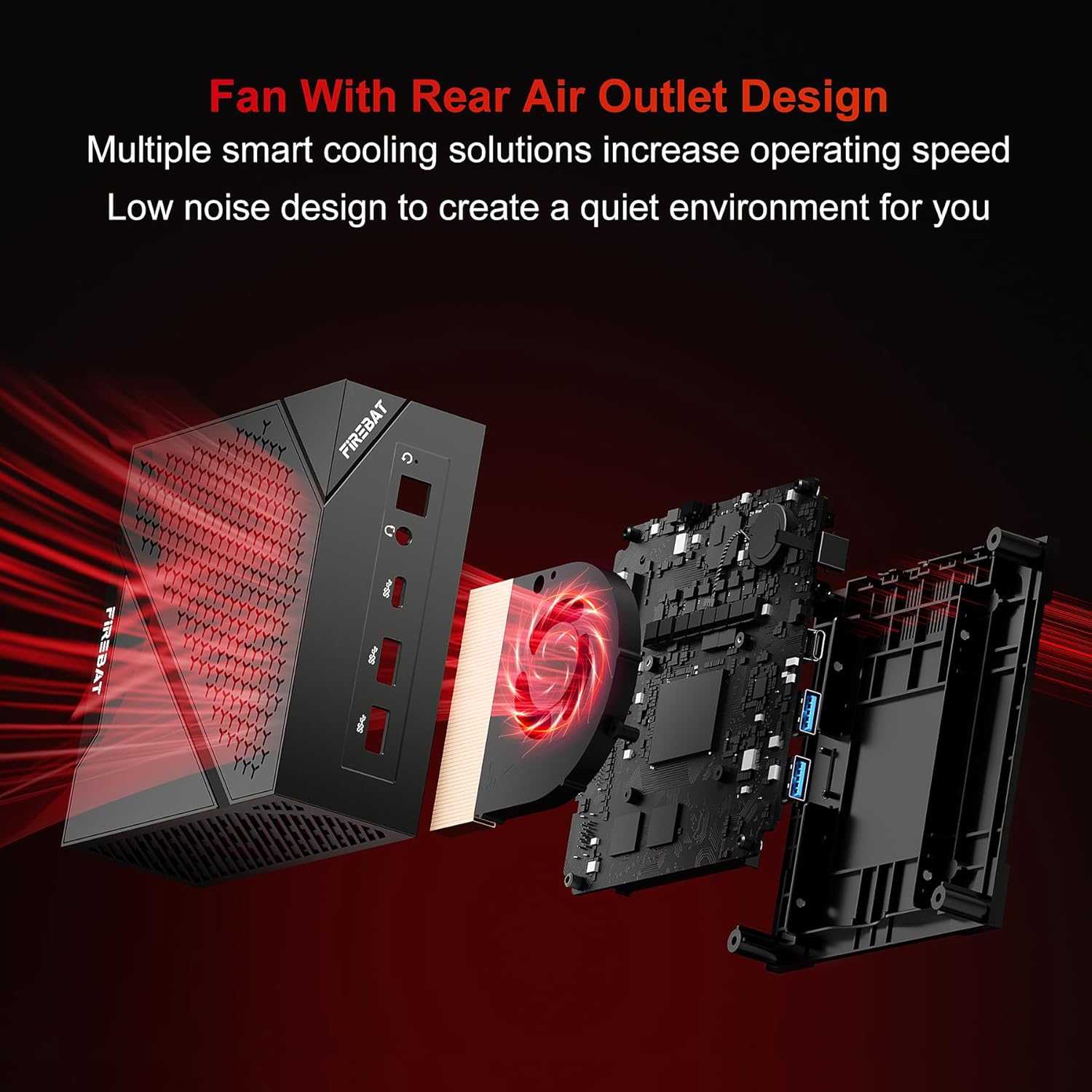

The FIREBAT Mini PC features a fan with a rear air outlet design and multiple smart cooling solutions to maintain optimal operating temperatures and low noise levels. Ensure that the air vents are not obstructed to allow for proper airflow.

6. Fejlfinding

If you encounter issues with your FIREBAT Mini PC, please refer to the following common troubleshooting steps:

• Ingen strøm: Sørg for, at strømadapteren er korrekt tilsluttet både Mini PC'en og en fungerende stikkontakt. Prøv en anden stikkontakt.
• Ingen visning: Check that the monitor cable (HDMI/DP) is firmly connected to both the Mini PC and the monitor. Ensure the monitor is powered on and set to the correct input source.
• Ingen internetforbindelse: For wired connections, check the Ethernet cable and router. For Wi-Fi, ensure Wi-Fi is enabled in the operating system and you are connected to the correct network with the correct password.
• Systemnedbremsning: Close unnecessary applications. Check for background processes consuming high resources. Ensure adequate ventilation and clean dust from vents.
• Periferiudstyr ikke fundet: Try connecting the peripheral to a different USB port. Ensure drivers are installed if required by the peripheral.

For more complex issues or if the problem persists, please contact FIREBAT customer support.

7. Tekniske specifikationer

8. Garanti og support

FIREBAT is committed to providing high-quality products and excellent customer service. Your Mini PC comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.

For any technical assistance, product inquiries, or support needs, please contact FIREBAT customer support:

• E-mail: support@firebatpc.com
• Webwebsted: www.firebatpc.com

Our team is dedicated to ensuring your satisfaction and will assist you with any questions or concerns you may have.
