1. Introduktion
The SUPERONE Bluetooth 5.3 Audio Adapter is a versatile 2-in-1 device functioning as both a transmitter (TX) and a receiver (RX). It enables wireless audio connectivity for a wide range of devices, from non-Bluetooth TVs and airplane entertainment systems to older speakers and car stereos. Featuring Bluetooth 5.3 technology, it ensures stable, low-latency audio transmission and reception, supporting universal compatibility with various Bluetooth versions.
This adapter includes an intuitive HD display for real-time battery and connection status, simplifying user interaction. It also supports dual pairing, allowing two Bluetooth headphones or AirPods to connect simultaneously for shared listening experiences.
2. Produktet er slutview
2.1 Nøglefunktioner
- 2-i-1 funktionalitet: Operates as both a Bluetooth Transmitter (TX) and Receiver (RX).
- Bluetooth 5.3-teknologi: Provides stable, low-latency, and high-quality audio. Backward compatible with Bluetooth 5.2/5.0/4.2 and earlier.
- HD-skærm: Shows real-time battery charge and connection status.
- Dobbelt parring: Connects to two Bluetooth headphones or AirPods simultaneously in TX mode.
- Lang batterilevetid: Up to 20 hours in Transmitter mode, over 17 hours in Receiver mode.
- Hurtig opladning: Fully charges in approximately 2 hours via USB-C.
- Universal kompatibilitet: 3.5mm Aux audio jack for wide device support.
2.2 Pakkens indhold
Please verify that all items are present:
- SUPERONE Bluetooth 5.3 Audio Adapter
- USB-C ladekabel
- Brugervejledning (dette dokument)
Image: The SUPERONE Bluetooth 5.3 Audio Adapter, shown with its integrated 3.5mm audio jack and USB-C charging port.
3. Sikkerhedsoplysninger
- Batterihåndtering: Keep the battery out of reach of children. Do not expose the device to excessive heat or humidity. Dispose of the battery and device in accordance with local regulations.
- Interference Warning: This device may interfere with other wireless devices. Follow instructions to minimize potential interference.
- Generel pleje: Håndter enheden forsigtigt. Undgå at tabe den eller udsætte den for hårde stød.
4. Opsætning
4.1 Opsætning af sendertilstand (TX)
Use TX mode to send audio from non-Bluetooth devices (e.g., airplane entertainment, TV, computer) to Bluetooth headphones or speakers.
- Slide the TX/RX switch on the adapter to the TX position.
- Press and hold the central button (play/pause/pairing) on the adapter for a few seconds until the display turns on and the headphone icons blink, indicating pairing mode.
- Put your Bluetooth headphones or AirPods into their pairing mode. The adapter will automatically search for and connect to nearby Bluetooth devices. The headphone icon will stop blinking when connected.
- Insert the adapter's 3.5mm audio jack into the audio output port of your source device (e.g., airplane seat audio jack, TV headphone jack).
Image: Visual guide for setting up the adapter in Transmitter (TX) mode, demonstrating connection to an airplane audio jack and AirPods.
4.2 Opsætning af modtagertilstand (RX)
Use RX mode to receive audio from Bluetooth-enabled devices (e.g., smartphone, tablet) and play it through non-Bluetooth audio systems (e.g., car stereo, home speakers).
- Slide the TX/RX switch on the adapter to the RX position.
- Press and hold the central button on the adapter for a few seconds until the display turns on and the headphone icons blink, indicating pairing mode.
- On your Bluetooth-enabled device (e.g., smartphone), go to Bluetooth settings and select the SUPERONE adapter from the list of available devices to pair. The headphone icon will stop blinking when connected.
- Insert the adapter's 3.5mm audio jack into the AUX-IN port of your audio system (e.g., car stereo, home speaker).
Image: Visual guide for setting up the adapter in Receiver (RX) mode, demonstrating connection to a smartphone and a car's AUX-IN port.
5. Betjeningsvejledning
5.1 Tænd/sluk
- For at tænde: Press and hold the central button (play/pause/pairing) for approximately 2 seconds until the display illuminates.
- For at slukke: Press and hold the central button for approximately 3-5 seconds until the display turns off.
5.2 Pairing Additional Devices (Dual Pairing in TX Mode)
In TX mode, the adapter can connect to two Bluetooth headphones simultaneously.
- Ensure the first pair of headphones is already connected.
- Press the central button briefly. A second headphone icon on the display will begin blinking.
- Put the second pair of Bluetooth headphones into their pairing mode. The adapter will connect to them. The second headphone icon will stop blinking once connected.
Image: Illustration of dual pairing, showing two individuals listening to audio from a laptop via the adapter and two separate Bluetooth headphones.
5.3 Modeskift
To switch between Transmitter (TX) and Receiver (RX) modes, use the physical TX/RX switch located on the side of the adapter.
5.4 Vis information
The HD display provides the following information:
- Batteri Percentage: Indicates the current charge level.
- Forbindelse Status: Headphone icons (1 and 2) indicate connected devices. Blinking icons signify pairing mode.
- Opladningsstatus: A charging icon appears when the device is connected to power.

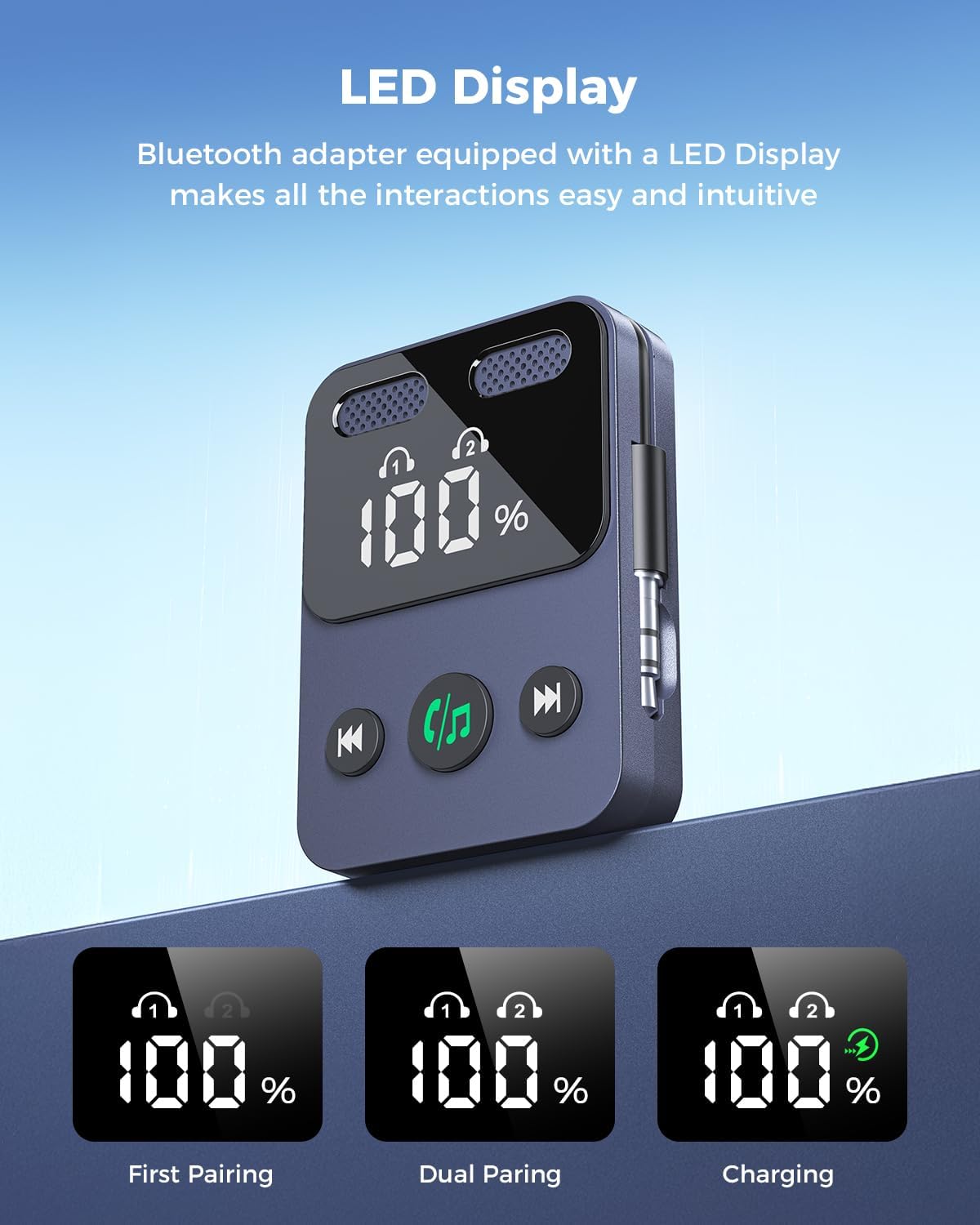

Image: The adapter's LED display, illustrating battery percentage and connection indicators for single and dual pairing, as well as charging status.
5.5 Batteri og opladning
The adapter features a built-in rechargeable battery.
- Batterilevetid: Up to 20 hours in TX mode, over 17 hours in RX mode.
- Opladning: Connect the included USB-C cable to the adapter and a compatible USB power source (e.g., phone charger, computer USB port). A full charge takes approximately 2 hours.

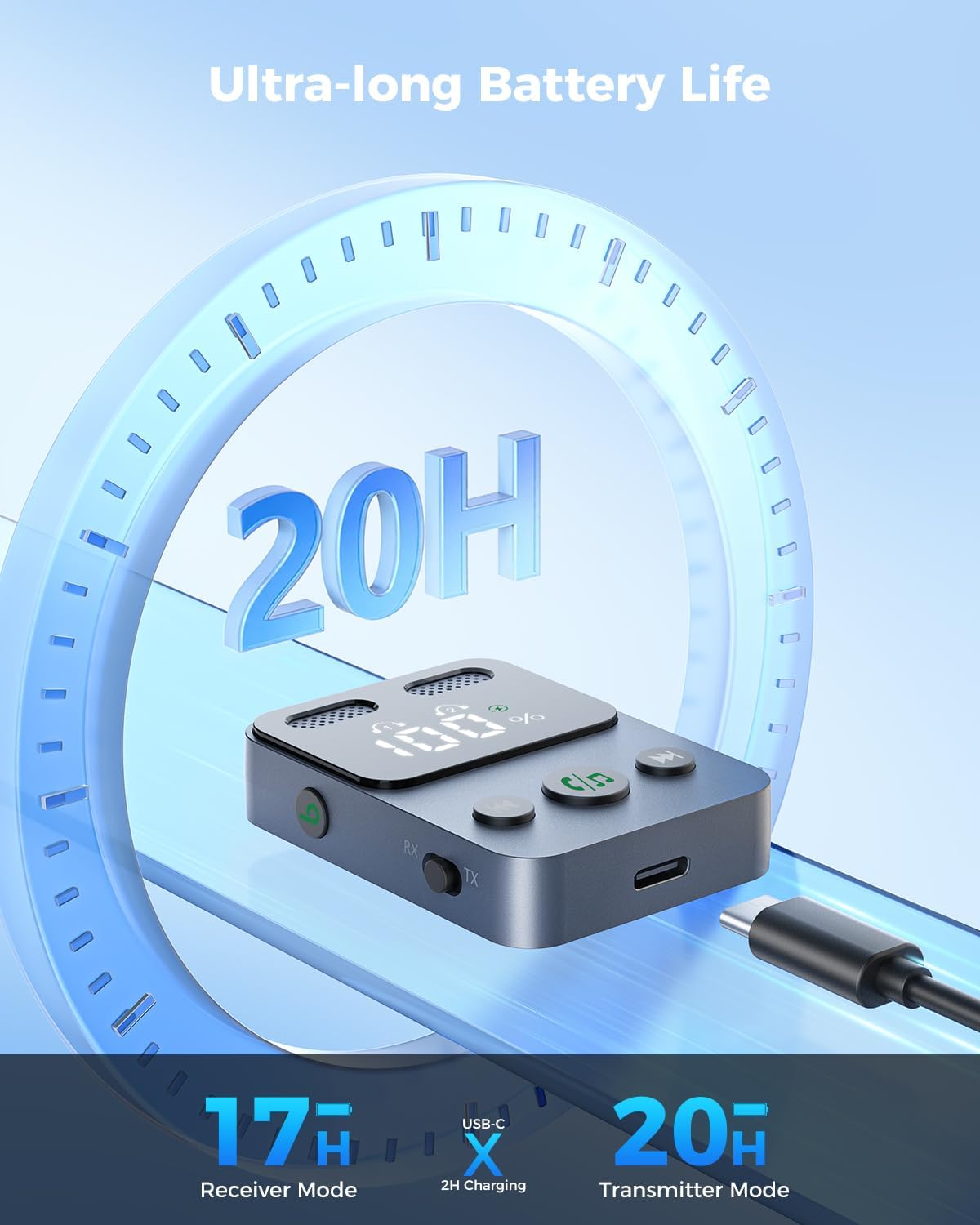

Image: The adapter connected to a USB-C charging cable, highlighting its long battery life and quick charging capability.
6. Vedligeholdelse
- Rensning: Brug en blød, tør klud til at rengøre enheden. Undgå at bruge skrappe kemikalier eller slibende materialer.
- Opbevaring: Opbevar adapteren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Håndtering: The device is lightweight; handle it with care to prevent damage from drops or impacts.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Lavt batteri. | Oplad enheden ved hjælp af det medfølgende USB-C-kabel. |
| Cannot pair with headphones/speakers. | Incorrect mode (TX/RX), device not in pairing mode, or out of range. | Ensure the adapter is in the correct TX or RX mode. Press the central button to enter pairing mode (blinking headphone icons). Move devices closer together. Try restarting both the adapter and the Bluetooth device. |
| Ingen lyd eller dårlig lydkvalitet. | Incorrect cable connection, low volume, or interference. | Ensure the 3.5mm audio jack is fully inserted into the correct port. Check volume levels on both the adapter and connected devices. Reduce distance between devices and avoid obstacles. |
| Batterilevetiden er kortere end forventet. | Usage patterns, environmental factors. | Battery life can vary based on volume levels and usage. Ensure the device is fully charged before use. |
8. Specifikationer
- Model: B0F6TYHCSD
- Mærke: SUPERONEN
- Bluetooth version: 5.3
- Forbindelse: 3.5mm AUX/2RCA (via adapter, if applicable)
- Driftstilstande: Sender (TX) og modtager (RX)
- Særlige funktioner: HD Display, Low Latency, Simple Setup, Quick Pairing, Volume Control, Built-in Rechargeable Battery, Dual Pairing
- TX Mode Playtime: Op til 20 timer
- RX Mode Playtime: Over 17 timer
- Opladningstid: Approximately 2 hours (via USB-C)
- Strømkilde: Ledningsbaseret elektrisk (til opladning)
- Varens vægt: 1.76 ounce
- Pakkedimensioner: 3.82 x 2.72 x 0.67 tommer
9. Garanti og support
SUPERONE provides a hassle-free 18 måneders garanti for the Bluetooth 5.3 Audio Adapter. Additionally, lifetime technical support is available.
For any questions, concerns, or technical assistance, please contact the SUPERONE customer service team. They provide 24/7 support to address any issues you may encounter.
Kontaktoplysninger: Please refer to the product packaging or the official SUPERONE webhjemmeside for de seneste kontaktoplysninger.
