Seeed Studio reCamera 2002w Open Source AI-kamera brugermanual

1. Introduktion

The Seeed Studio reCamera 2002w is a compact, modular AI camera designed for developers. It integrates a RISC-V System-on-Chip (SoC) running Linux, offering 1 TOPS @INT8 performance and a 5-megapixel camera. This device is engineered to facilitate rapid deployment of AI vision applications into various systems, supporting built-in YOLOv11, custom AI models, and Node-RED workflows.

2. Pakkens indhold

Verify that all items listed below are present in your reCamera 2002w package:

• reCamera 2002w Unit
• USB-C Cable (for power and data)
• Ethernet Cable with RJ45 and JST connectors (for network and additional power options)
• Brugermanual

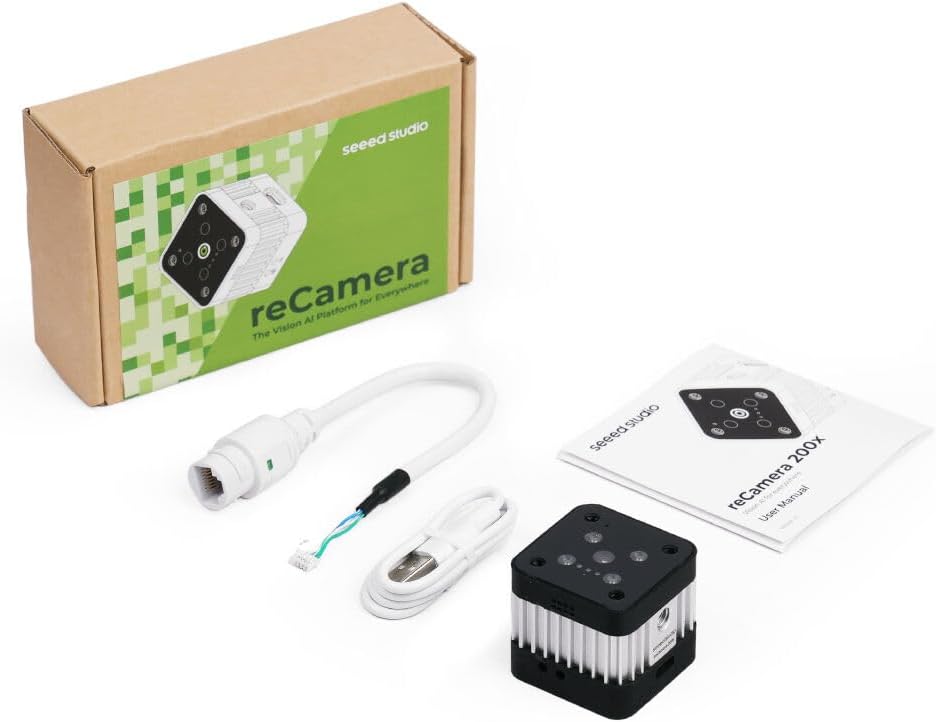

Image 1: Contents of the reCamera 2002w package. Shown are the reCamera unit, a USB-C cable, an Ethernet cable with an additional connector, and the printed user manual, alongside the product packaging.

3. Produktfunktioner

• Integrated AI Models: Includes built-in YOLOv11 with a commercial license, and supports Roboflow & SenseCraft AI.
• Forenklet implementering: Enables quick YOLO model deployment using a single command.
• Compact and Expandable: Features a pocket-sized design with Power over Ethernet (PoE) and CAN-bus support for expansion. Includes magnetic and 1/4" thread mounting options.
• Optimeret ydeevne: Designed with optimized heat dissipation for stable operation.
• Flexible Development: Supports both code-based and no-code workflows, including Node-RED for custom automation and C++ SDK with OpenCV C++ APIs for advanced users.
• Modulært design: Allows for combination and mixing of sensor, base, and core boards for diverse configurations.

4. Opsætningsvejledning

4.1 Powering the reCamera

1. Connect the provided USB-C cable to the USB-C port on the reCamera.
2. Connect the other end of the USB-C cable to a compatible 5V power adapter (not included) or a computer's USB port.
3. Note: While the reCamera features an RJ45 port, it does not support Power over Ethernet (PoE) for primary power. USB-C power is required for operation. The RJ45 port is for network connectivity.

4.2 Netværksforbindelse

The reCamera 2002w supports both Wi-Fi and Ethernet connectivity.

4.2.1 Wi-Fi-forbindelse

Upon initial boot, the reCamera may create a Wi-Fi hotspot or attempt to connect to a pre-configured network. Refer to the official Seeed Studio documentation for specific instructions on configuring Wi-Fi settings, typically involving a web interface or command-line tools.

4.2.2 Ethernet-forbindelse

1. Connect the provided Ethernet cable (RJ45 end) to the RJ45 port on the reCamera.
2. Tilslut den anden ende af Ethernet-kablet til din netværksrouter eller switch.
3. Ensure the reCamera is also powered via USB-C.

4.3 Førstegangsadgang

Once powered and connected to the network, you can typically access the reCamera via SSH or a web interface. Consult the official Seeed Studio reCamera documentation for default IP addresses, usernames, and passwords.

5. Betjeningsvejledning

5.1 Grundlæggende betjening

The reCamera runs a Linux-based operating system, allowing for flexible control and application deployment. Interaction is primarily through command-line interface (SSH) or a web-based management portal.

5.2 AI Model Deployment

The reCamera supports various methods for deploying AI models:

• Built-in YOLOv11: Utilize the pre-installed YOLOv11 model for object detection tasks. Activation and configuration details are available in the developer documentation.
• Brugerdefinerede modeller: Convert standard ONNX models into the compatible CVIMODEL format. This process may involve several steps and specialized tools. Refer to Seeed Studio's developer resources for detailed conversion guides.
• One-Line Deployment: For compatible YOLO models, a simplified one-line command can be used for quick deployment.

5.3 Node-RED Integration

For users preferring a visual programming approach, the reCamera supports Node-RED. This allows for the creation of custom workflows by dragging and dropping nodes to connect hardware devices, APIs, and online services.

5.4 Advanced Development

For experienced developers, the reCamera offers:

• C++ SDK: A Software Development Kit for C++ allows for direct programming and integration.
• OpenCV C++ APIs: Leverage the power of OpenCV for advanced computer vision tasks within your C++ applications.

6. Vedligeholdelse

6.1 Rengøring

To clean the reCamera, gently wipe the exterior with a soft, dry cloth. Avoid using liquid cleaners or abrasive materials, as these can damage the device. Ensure the camera lens is free of dust and smudges for optimal image quality.

6.2 firmwareopdateringer

Periodically check the official Seeed Studio website for firmware updates. Keeping your reCamera's firmware up-to-date ensures optimal performance, security, and access to new features. Follow the provided instructions carefully when performing updates.

7. Fejlfinding

• Enheden tænder ikke: Ensure the USB-C cable is securely connected to both the reCamera and a functional 5V power source. Try a different USB-C cable or power adapter.
• Ingen netværksforbindelse:
  • Ethernet: Verify the Ethernet cable is properly connected and your network is active. Remember that the RJ45 port does not provide PoE; separate USB-C power is required.
  • Wi-Fi: Check Wi-Fi configuration settings. If the device is not connecting, try reconfiguring the Wi-Fi credentials or restarting the reCamera.
• AI Model Deployment Issues: Ensure your custom models are correctly converted to the CVIMODEL format. Verify that all necessary dependencies and libraries are installed on the reCamera. Consult the Seeed Studio developer documentation for specific error codes and solutions.
• Overophedning: While the reCamera has optimized heat dissipation, ensure it is operating in a well-ventilated environment. Avoid obstructing the heat sink fins.

For further assistance, refer to the Seeed Studio community forums or contact their technical support.

8. Specifikationer

9. Garanti og support

The Seeed Studio reCamera 2002w comes with a standard manufacturer's warranty. For detailed warranty terms, technical support, and additional resources, please visit the official Seeed Studio webhjemmeside eller kontakt deres kundeservice direkte.
