SERBILHOME B0F6NT1GWF

SERBILHOME Waterfall Fountain User Manual

Model: B0F6NT1GWF

Produkt overview

The SERBILHOME Waterfall Fountain is a modern outdoor and indoor water feature designed to enhance your living space with the soothing sounds of flowing water and integrated LED lighting. Crafted from durable resin, this 33.9-inch tall fountain features an elegant bowl and minimalist base design, creating a tranquil ambiance for courtyards, backyards, patios, porches, or even indoor meditation rooms.

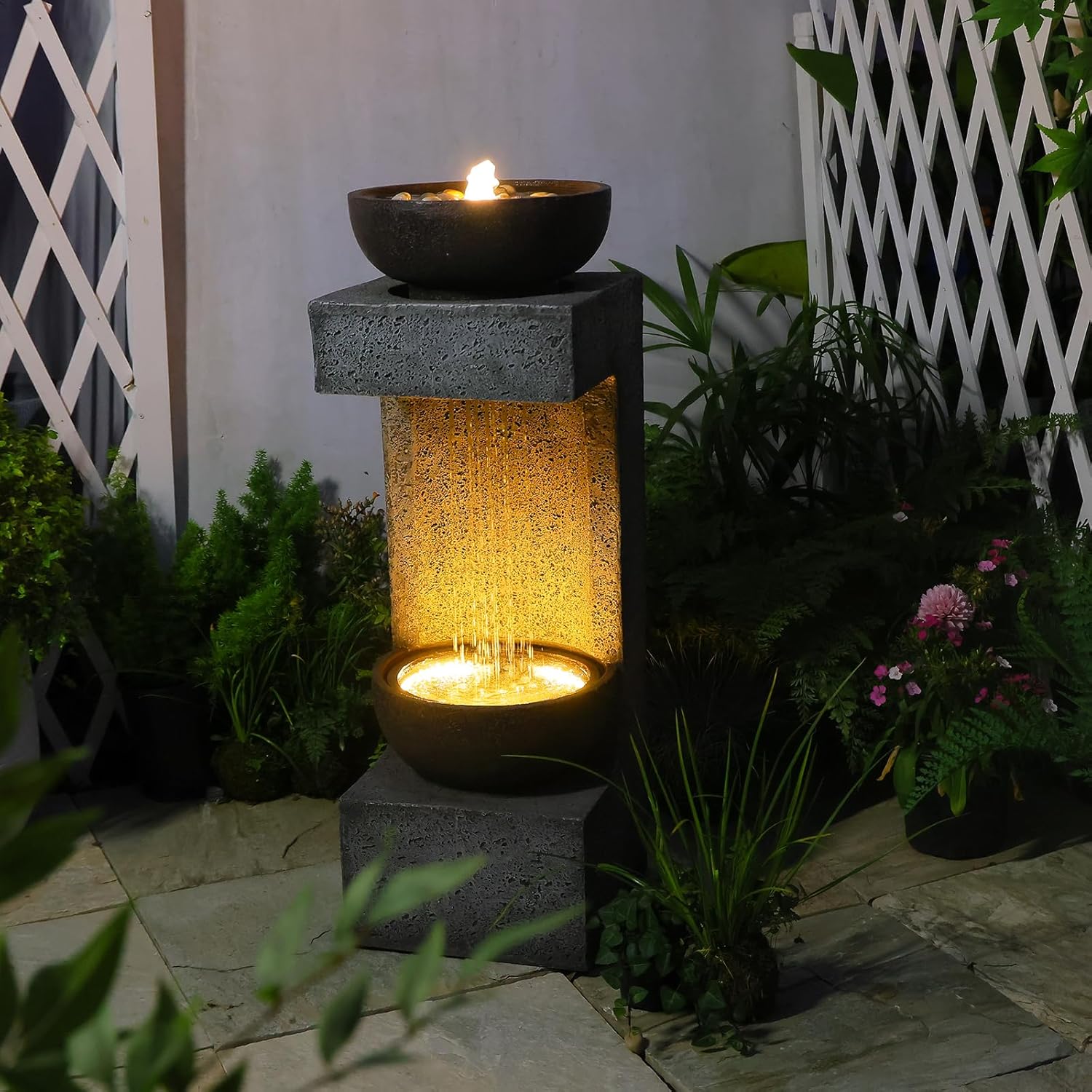

SERBILHOME Waterfall Fountain with LED lights at night

Image: The SERBILHOME Waterfall Fountain illuminated by LED lights in an outdoor setting at night, showcasing its elegant design and water flow.

Opsætning og installation

Follow these steps for quick and easy setup of your SERBILHOME Waterfall Fountain:

  1. Udpak komponenter: Carefully remove all parts from the packaging. Ensure all components are present: fountain body, water pump, and power cord.
  2. Placering: Choose a level surface for the fountain. The extra-long 118-inch power cord provides flexibility for placement in your desired outdoor or indoor area.
  3. Tilslut pumpe: Locate the water pump and connect its tubing to the fountain's internal water circulation system. Ensure a secure fit to prevent leaks.
  4. Connect Lighting Wires: If applicable, connect the wires for the integrated LED light fixtures. These are typically pre-installed but may require a simple connection to the main power line or pump.
  5. Fyld med vand: Fyld fontænens reservoir med destilleret vand, indtil pumpen er helt nedsænket. Overfyld ikke.
  6. Tænd: Plug the power cord into a suitable outdoor-rated electrical outlet (for outdoor use) or standard indoor outlet. The fountain should begin circulating water and the LED lights will illuminate.

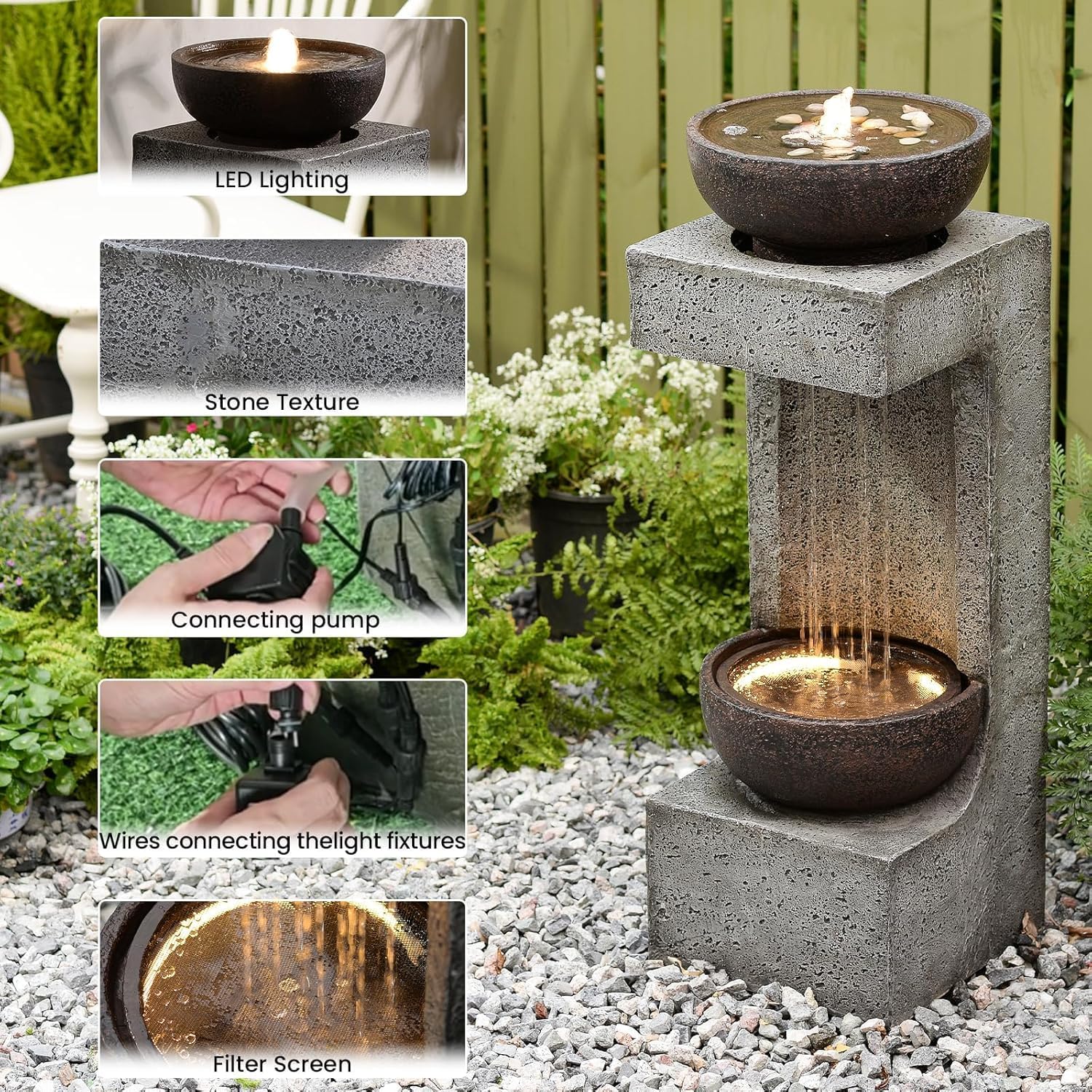

Close-up images showing pump connection and wire connections for LED lights

Billede: Detaljeret views illustrating the process of connecting the water pump and the wires for the LED light fixtures, essential steps for fountain setup.

Betjeningsvejledning

Once set up, operating your fountain is straightforward:

Opretholdelse

Proper maintenance ensures the longevity and optimal performance of your fountain:

Fejlfinding

ProblemMulig årsagLøsning
Ingen vandgennemstrømning eller svag vandgennemstrømning
  • Lav vandstand
  • Tilstoppet pumpe eller slange
  • Bøjet rør
  • Pump not plugged in or faulty
  • Add water to cover the pump
  • Clean pump and tubing
  • Ret slangen ud
  • Check power connection; replace pump if faulty
LED-lys virker ikke
  • Løs ledningsforbindelse
  • Defekt LED-komponent
  • No power to fountain
  • Check all light wire connections
  • Kontakt kundesupport for udskiftning
  • Ensure fountain is plugged in and receiving power
Overdreven sprøjt
  • Fontænen er ikke i vater
  • Vandstanden er for høj
  • Adjust fountain to be level
  • Remove some water

Specifikationer

FeatureDetalje
ModelB0F6NT1GWF
MærkeSERBILHJEM
FarveGrå
MaterialeHarpiks
Produktmål (L x B x H)11.6" x 11.6" x 33.9" (29.5 cm x 29.5 cm x 86 cm)
StrømkildeElektrisk med ledning
Særlige funktioner118" Extra Long Power Cord, Adjustable Pump, Weather Resistant, Integrated LED Lighting
Diagram showing the dimensions of the SERBILHOME Waterfall Fountain

Image: A visual representation of the fountain's dimensions (height, length, width) to aid in planning placement.

Garanti og support

SERBILHOME is committed to delivering exceptional quality products. This fountain is constructed from premium resin material, designed to resist weather elements and retain its elegant appearance over time.

For any questions, concerns, or assistance with your SERBILHOME Waterfall Fountain, our dedicated customer care team is ready to help. Please refer to your purchase documentation for specific warranty details or contact the seller directly through the platform where the product was purchased.

We aim to ensure your enjoyment is smooth and worry-free.
