1. Sikkerhedsoplysninger
Please read all instructions carefully before installation and operation to prevent injury and property damage. Keep this manual for future reference.
- Elektrisk sikkerhed: Sørg for, at strømforsyningen matcher voltage requirements (120 Volts, 1.8 Amps). Always disconnect power before servicing or cleaning.
- Installation: Installation must be performed by a qualified installer in accordance with all local codes and standards.
- Brandfare: Never leave surface cooking unattended. Clean grease filters regularly to prevent grease fires.
- Ventilation: Ensure proper ventilation for combustion gases from fuel-burning equipment to prevent back-drafting.
- Bevægelige dele: Keep hands and clothing away from moving parts during operation.
2. Produktet er slutview
The Hauslane WM-538SS is a 30-inch wall-mount range hood designed to enhance your kitchen's ventilation and aesthetics. It features a sleek stainless steel European-style design with modern touch controls and efficient LED lighting.
Nøglefunktioner:
- Professional Wall-Mounted Design: Crafted from premium stainless steel, maximizing wall space.
- 3-Speed Touch Controls: Intuitive touch panel for fan speed and lighting adjustments.
- Tilpasset LED-belysning: Energy-saving GU10 base LED lamps, easily replaceable.
- Dishwasher-Safe Baffle Filters: Stainless steel filters effectively trap grease and odors for easy cleaning.
- Ducted or Ductless Convertible: Versatile installation options (requires optional recirculation kit for ductless, sold separately).
- High Ceiling Compatibility: Designed for kitchens with up to 10-foot ceilings, with an optional extension kit available.
Komponenter inkluderet:
- Range Hood Main Unit
- Dishwasher-Safe Baffle Filters (2 for 30" model)
- Nederste skorstensdæksel (1)
- Øvre skorstensdæksel (1)
- Skorstensbeslag (1)
- Fedtkop (1)
- Top 6" Round Exhaust Adapter (1)
- Monteringshardware
- Instruktionsmanual

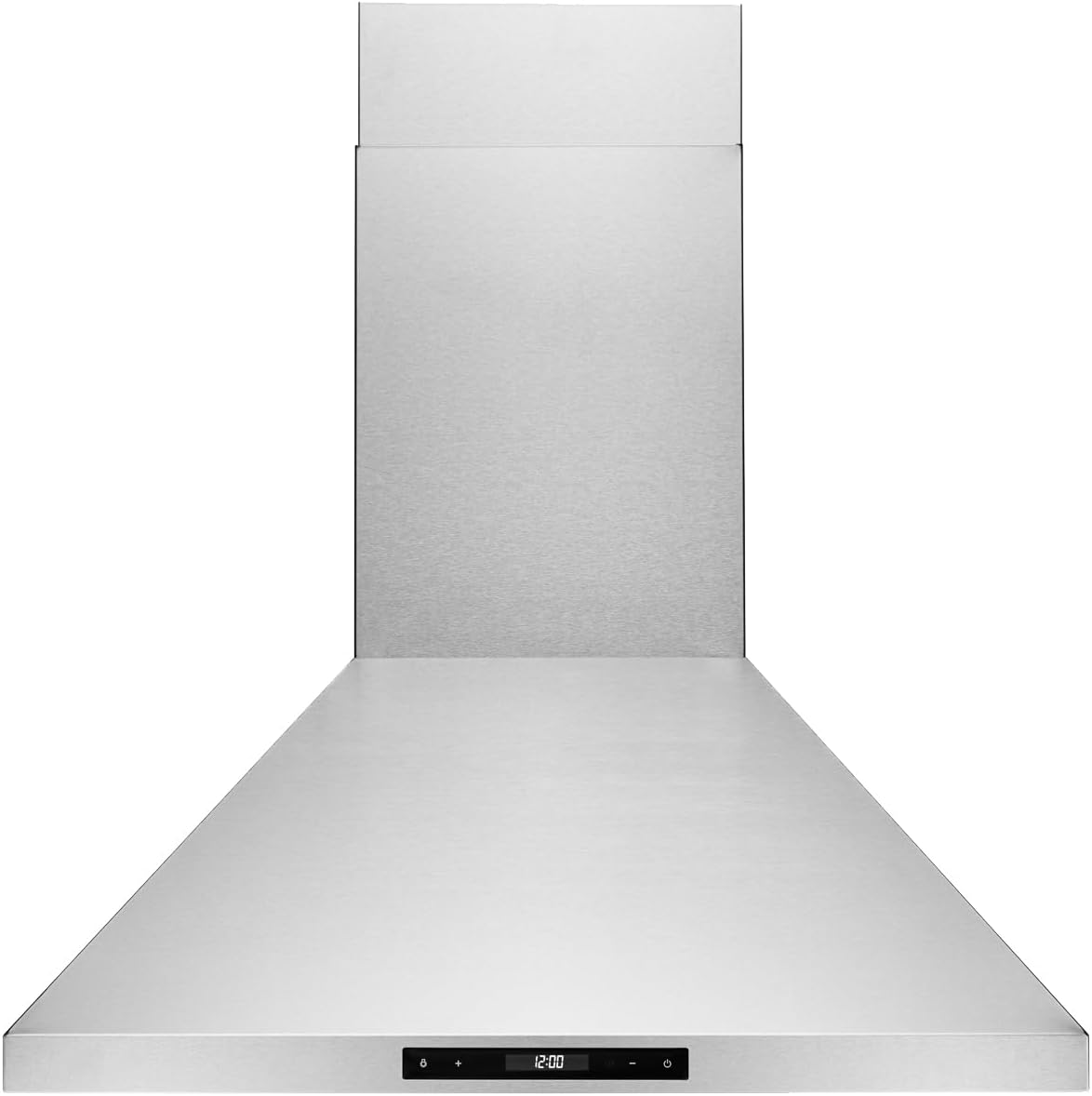

Figur 2.1: Forside view of the Hauslane Wall Mount Range Hood.
Figure 2.2: Diagram highlighting key features including ceiling height compatibility, touch controls, baffle filters, and changeable lights.
Figur 2.3: Alle komponenter inkluderet i produktpakken.
3. Opsætning og installation
This section provides general guidelines for installing your range hood. For detailed, step-by-step instructions, please refer to the dedicated installation manual included with your product.
Tjekliste før installation:
- Kontroller, at alle komponenter er til stede og ubeskadigede.
- Ensure adequate wall structure for mounting.
- Confirm electrical supply meets specifications.
- Determine if installation will be ducted (6" round duct system required) or ductless (requires optional recirculation kit).
Generelle installationstrin:
- Montering: Securely attach the mounting bracket to the wall studs at the appropriate height above your cooking surface.
- Ducting (Ducted Installation): Connect the 6-inch round exhaust adapter to your existing ductwork. Ensure all connections are sealed to prevent air leaks.
- Elektrisk tilslutning: Connect the range hood to a grounded electrical outlet or hardwire according to local electrical codes.
- Chimney Cover Installation: Install the upper and lower chimney covers, adjusting for ceiling height. An optional extension kit is available for ceilings up to 10 feet.
- Filterinstallation: Insert the baffle filters into their designated slots.
Figure 3.1: Product dimensions for the WM-538SS 30-inch model.
4. Betjeningsvejledning
The Hauslane WM-538SS range hood features an intuitive touch control panel for easy operation of its functions.
Kontrolpanelets funktioner:
- Tænd/sluk-knap (⏻): Press to turn the range hood on or off.
- Fan Speed Control (+/-): Adjusts the fan speed through three settings (Low, Medium, High). Press '+' to increase speed, '-' to decrease.
- Lysknap (💡): Toggles the LED lights on or off.
- Timer funktion: The display may show a timer or clock. Refer to the full installation manual for specific instructions on setting and using the timer.

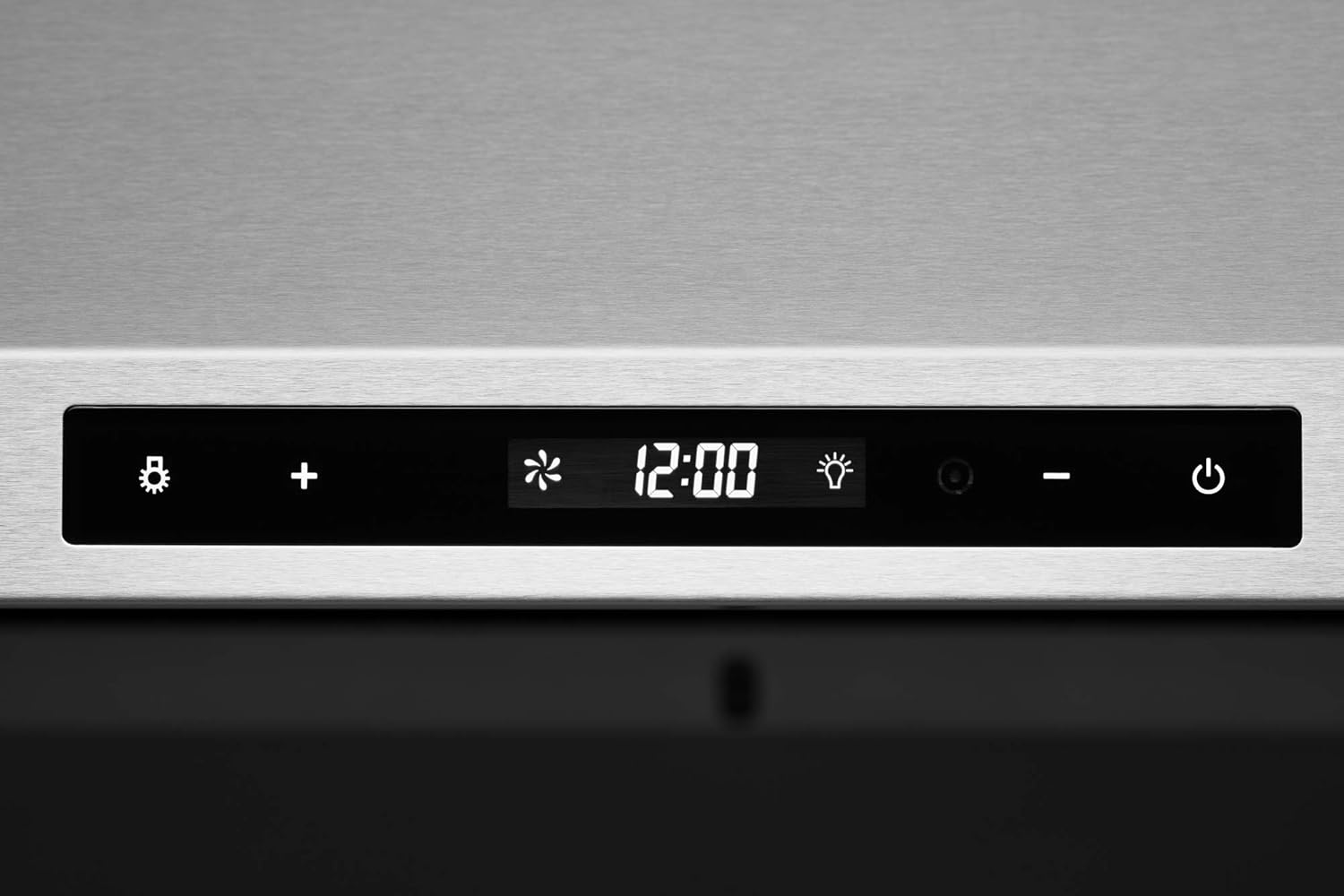

Figur 4.1: Detaljeret view af berøringskontrolpanelet.
5. Vedligeholdelse
Regular maintenance ensures optimal performance and longevity of your Hauslane range hood.
Cleaning Baffle Filters:
The stainless steel baffle filters are designed to be dishwasher-safe for easy cleaning.
- Turn off the range hood and disconnect power.
- Locate the filter release latches and carefully remove the baffle filters.
- Place the filters in a dishwasher for a thorough cleaning cycle. Alternatively, wash by hand with hot, soapy water.
- Sørg for, at filtrene er helt tørre, før de monteres igen.
- Re-insert the filters, ensuring they click securely into place.
Figur 5.1: Nærbillede view of the deep-groove baffle filters.
Figure 5.2: Demonstrating the ease of cleaning baffle filters in a dishwasher.
Rengøring af udvendige overflader:
Wipe stainless steel and tempered glass surfaces with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that could scratch the finish.
Udskiftning af LED-lys:
The range hood uses GU10 base LED bulbs, which are widely available at hardware stores.
- Turn off the range hood and disconnect power.
- Carefully twist and unlock the existing GU10 bulb from its socket.
- Insert the new GU10 LED bulb and twist to lock it into place.
- Reconnect power and test the lights.
Figure 5.3: Illustration of the changeable GU10 LED lights.
6. Fejlfinding
This section addresses common issues you might encounter with your range hood. For problems not listed here, please contact customer support.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Range hood does not turn on. | Ingen strømforsyning; afbryder udløst; løse ledninger. | Check power connection; reset circuit breaker; ensure all wiring is secure (consult a qualified electrician if unsure). |
| Lav sugeevne. | Clogged filters; improper ducting; external blockage. | Clean baffle filters; check ductwork for kinks or blockages; ensure external vent is clear. |
| Overdreven støj under drift. | Løse komponenter; motorproblem; forkert installation; kanalproblemer. | Ensure all parts are securely fastened; check for obstructions in the fan; verify ducting is properly sized and installed. Note: Higher fan speeds will naturally produce more noise. |
| Lys virker ikke. | Bulb burnt out; loose connection; electrical issue. | Replace LED bulb; check light switch and connections; consult electrician if problem persists. |
7. Specifikationer
Detailed technical specifications for the Hauslane WM-538SS 30-inch Wall Mount Range Hood.
| Attribut | Værdi |
|---|---|
| Modelnummer | WM-538SS |
| Produktdimensioner (BxDxH) | 29-3/8" x 19" x 31" - 46" (Adjustable Height) |
| Materiale | Rustfrit stål |
| Støjniveau | 7 soner |
| Monteringstype | Vægmontering |
| Ampslette | 1.8 Amps |
| Voltage | 120 volt |
| Antal hastigheder | 3 |
| Varens vægt | 24 pund |
| Wattage | 216 watt |
| Filtertype | Baffle (Dishwasher-Safe) |
| Luftstrømsforskydning | 860 kubikfod pr. minut (CFM) |
| Særlige funktioner | 6" Round or Ductless, LED Lighting, Touch Screen |
8. Garanti og support
Hauslane stands behind the quality of its products.
Garantioplysninger:
- Lifetime Motor Warranty: The range hood motor is covered by a lifetime warranty.
- 2-års begrænset garanti: The entire stove hood comes with a 2-year limited warranty covering defects in materials and workmanship.
For warranty claims, technical assistance, or to purchase optional accessories (e.g., extension kits, recirculation kits), please contact Hauslane customer support. Refer to the contact information provided in your product packaging or visit the official Hauslane webwebsted.
