Bonacell 2-pak 12V 3.5Ah udskiftningsbatteri M12 og hurtigopladersæt brugermanual

1. Introduktion

This manual provides essential instructions for the safe and efficient use of your Bonacell 2-Pack 12V 3.5Ah Replacement M12 Battery and Rapid Charger Kit. Please read this manual thoroughly before initial use and retain it for future reference. This kit is designed to be compatible with Milwaukee M12 series 12V cordless power tools.

2. Sikkerhedsinstruktioner

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af produktet.

• Batterihåndtering: Do not disassemble, crush, puncture, or short-circuit the battery. Avoid exposing batteries to extreme heat or fire.
• Opladningsmiljø: Charge batteries in a well-ventilated area, away from flammable materials. Do not charge batteries in damp eller våde forhold.
• Brug af oplader: Use only the provided charger or a compatible M12 charger. Do not attempt to charge non-rechargeable batteries.
• Overophedning: If the battery or charger becomes excessively hot during use or charging, discontinue use immediately and allow it to cool down.
• Opbevaring: Store batteries and charger in a cool, dry place, away from direct sunlight and moisture.
• Bortskaffelse: Dispose of batteries responsibly according to local regulations. Do not dispose of batteries in household waste.

3. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• 2 x Bonacell 12V 3.5Ah Lithium-ion Replacement Batteries
• 1 x Bonacell Rapid M12 Charger
• 1 x Power Cord for Charger

Image: The complete Bonacell 2-pack 12V 3.5Ah M12 battery and rapid charger kit.

4. Produktet er slutview

4.1. Battery Specifications and Features

The Bonacell 12V 3.5Ah Lithium-ion batteries are designed for compatibility with Milwaukee M12 series tools.

• Batteritype: Lithium-ion
• Voltage: 12V
• Kapacitet: 3500mAh (3.5Ah)
• Watt-hours: 42Wh
• Konstruktion: High-quality cells for extended life and durability. Features a premium PC+ABS case for protection.
• Kompatibilitet: Compatible with all Milwaukee M12 Series 150+ Cordless Power Tools, including models like 48-11-2450, 48-11-2425, 48-11-2440, 48-11-2402, 48-11-2412, 48-11-2420, 48-11-2401.

Image: Detailed specifications of the 12V, 3500mAh Lithium-ion battery.

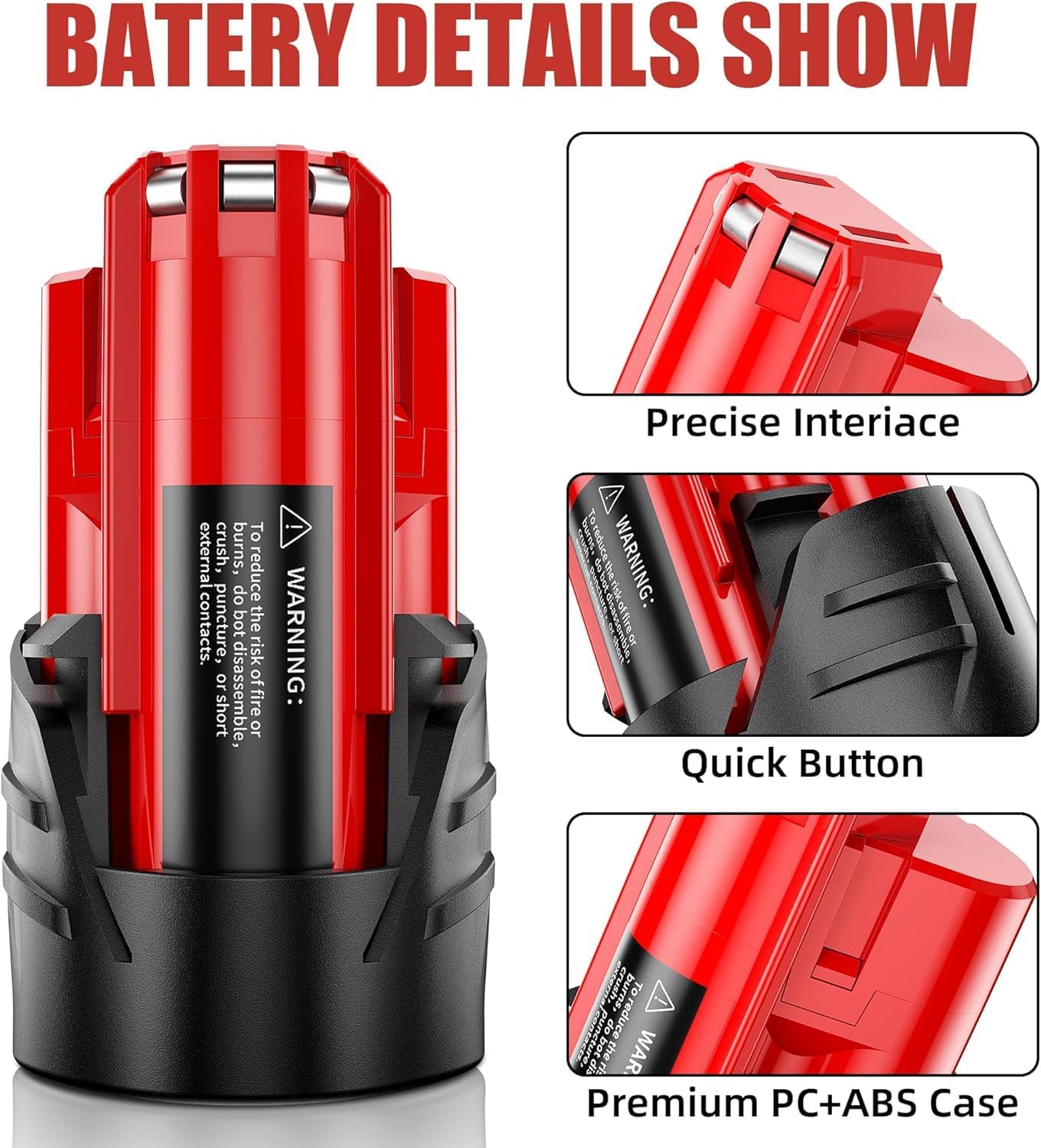

Billede: Nærbillede view of battery features including the precise interface, quick release button, and durable PC+ABS casing.

4.2. Charger Specifications and Features

The rapid charger is designed for efficient charging of Bonacell 12V batteries.

• Input bindtage: 100-240V AC, 50/60Hz
• Udgang Voltage: 10.8V-12V MAX DC 3.0A
• Opladningshastighed: Designed for fast and highly efficient charging.
• Kompatibilitet: Replaces charger part numbers such as 48-59-2401, 48-59-1812, 48-59-1201, 48-59-1807, 48-59-1204, 48-59-1810, 48-59-1808.

4.3. LED Indicator Guide (Charger)

The charger features LED indicators to communicate charging status:

• Grønt lys blinker: Standby mode, ready to charge.
• Grønt lys fast: Batteriet er fuldt opladet.
• Rødt lys blinker: Overheating detected (charger or battery).
• Rødt lys fast: Overheating condition, charging paused or stopped.

Image: Visual guide to the M12 charger's LED indicators and their meanings.

4.4. Multiple Safety Protections

The product incorporates multiple safety features to ensure reliable operation:

• Overopladningsbeskyttelse: Prevents battery from being overcharged.
• Opladningsbeskyttelse: Monitors and regulates the charging process.
• Over-bindtage Beskyttelse: Beskyttelse mod overdreven volumentage.
• Kortslutningsbeskyttelse: Beskytter mod kortslutninger.
• Overtemperaturbeskyttelse: Prevents damage from overheating.

Billede: Overview of the integrated safety protection features.

5. Opsætning og første brug

5.1. Tilslutning af opladeren

1. Connect the power cord to the rapid charger.
2. Plug the charger into a standard 100-240V AC electrical outlet. The green LED on the charger should flash, indicating standby mode.

5.2. Opladning af batteriet

1. Juster batteriet med opladningsåbningen på opladeren.
2. Slide the battery firmly into the charger until it clicks into place.
3. The charger's LED indicator will show the charging status (refer to Section 4.3).
4. Once the green LED becomes solid, the battery is fully charged. Remove the battery from the charger.

Note: For optimal battery life, avoid recharging immediately after a full discharge. Allow the battery to cool down before charging.

6. Betjeningsvejledning

6.1. Installing Battery into Power Tool

1. Sørg for, at elværktøjet er slukket.
2. Align the fully charged battery with the battery slot on your compatible Milwaukee M12 power tool.
3. Skub batteriet ind i værktøjet, indtil det klikker sikkert på plads.

6.2. Removing Battery from Power Tool

1. Sørg for, at elværktøjet er slukket.
2. Press the battery release button (if applicable on your tool).
3. Slide the battery out of the tool.

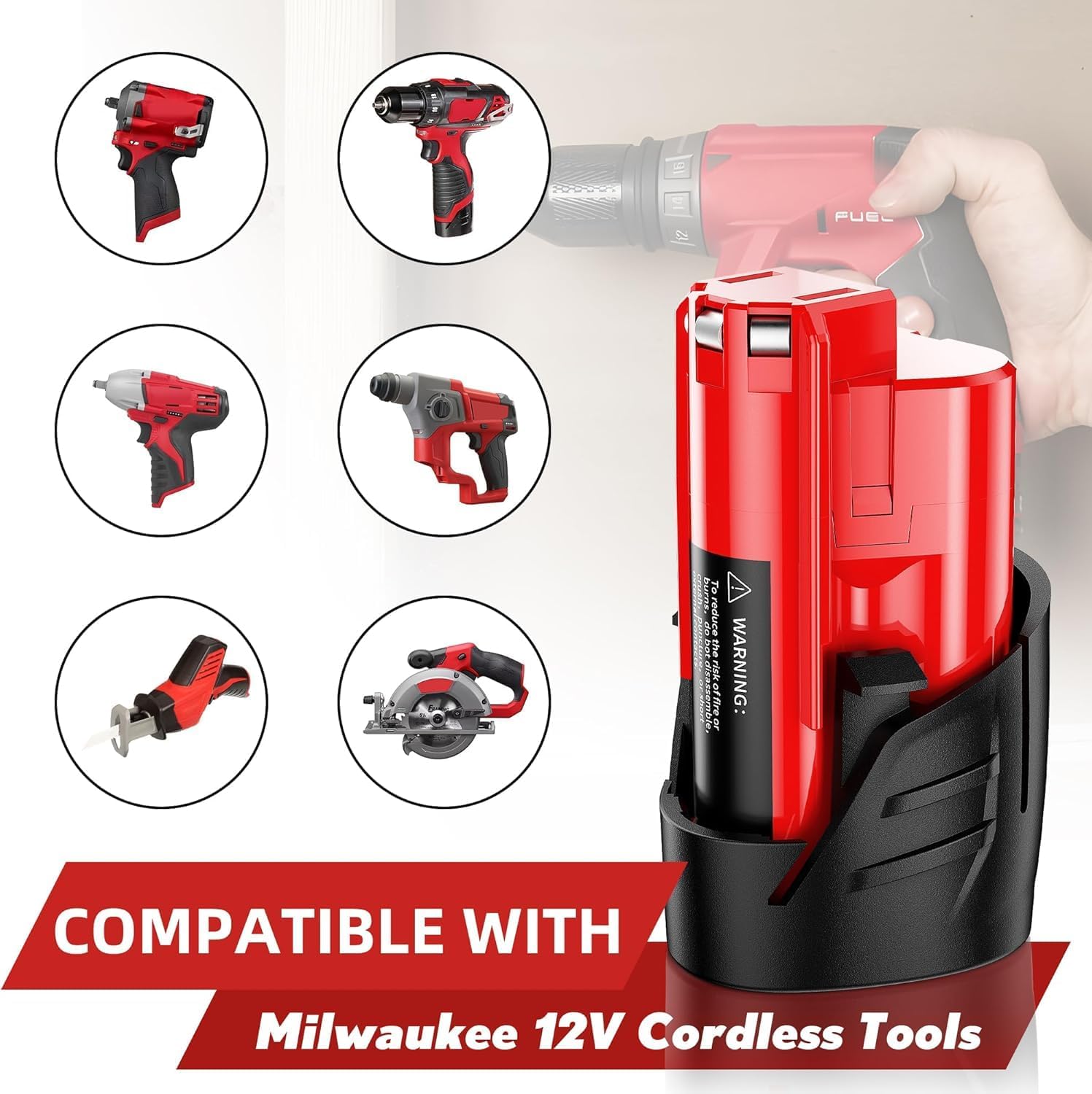

Billede: Eksamples of Milwaukee 12V cordless tools compatible with the Bonacell M12 battery.

Image: The Bonacell M12 battery powering different cordless tools during operation.

7. Vedligeholdelse

7.1. Rensning

• Keep battery terminals and charger contacts clean and free of debris. Use a dry cloth to wipe them.
• Do not use solvents or harsh chemicals to clean the battery or charger.

7.2. Opbevaring

• Store batteries in a cool, dry place, ideally between 5°C and 25°C (41°F and 77°F).
• Ved langtidsopbevaring skal batterierne oplades til cirka 50% kapacitet.
• Avoid storing batteries in direct sunlight or in areas with high humidity.

8. Fejlfinding

Hvis du støder på problemer, kan du se følgende almindelige fejlfindingstrin:

9. Specifikationer

10. Garanti og support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Bonacell webwebstedet. Behold din købskvittering som købsbevis.
