1. Produktet er slutview
This GT POWER AC Adapter (Model 307) is designed to provide reliable power to compatible Binary HDMI Splitters. It features a threaded locking power supply connector for secure attachment and a 48-inch heavy-duty power cable. The adapter supports a wide input voltage range of 100-240VAC, 50/60Hz, making it suitable for international use.
Key protective features include:
- OVP (Over Voltage beskyttelse): Safeguards connected devices from excessive voltage.
- OCP (Over Current Protection): Prevents damage from overcurrent conditions.
- SCP (Kortslutningsbeskyttelse): Protects against short circuits, ensuring safe operation.

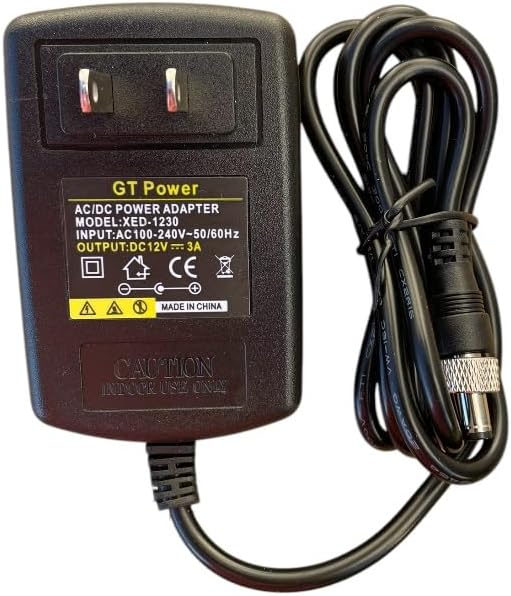

Image 1.1: The GT POWER AC Adapter, showing the main unit and the threaded locking DC output connector.
2. Sikkerhedsoplysninger
Læs og forstå alle sikkerhedsinstruktioner, før du bruger dette produkt. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller beskadigelse af produktet eller tilsluttede enheder.
- Use this adapter only with devices specified as compatible.
- Sørg for adapterens lydstyrketage- og nuværende klassificeringer matcher kravene til din enhed.
- Udsæt ikke adapteren for vand, fugt eller ekstreme temperaturer.
- Adapteren må ikke skilles ad eller repareres. Overlad service til kvalificeret personale.
- Hold adapteren væk fra børn.
- Tag adapteren ud af stikkontakten, når den ikke er i brug i længere perioder.
- Sørg for korrekt ventilation omkring adapteren under drift.
3. Pakkens indhold
Pakken indeholder:
- 1 x GT POWER AC/DC Power Adapter (Model 307) with integrated 48-inch heavy-duty power cable and threaded locking DC connector.
4. Opsætningsvejledning
- Bekræft kompatibilitet: Ensure your Binary HDMI Splitter (e.g., B-240-HDSWTCH-5x1, B-260-444-HDR-SP12SA, B-260-444-HDR-SP14, B-260-444-HDR-SP18) requires a 12V DC power input and is compatible with a threaded locking connector.
- Tilslut DC-udgang: Locate the DC power input port on your Binary HDMI Splitter. Insert the threaded locking DC connector from the GT POWER adapter into this port. Gently twist the threaded collar clockwise until it is finger-tight to secure the connection.
- Tilslut AC-indgang: Plug the AC prongs of the GT POWER adapter into a standard wall power outlet (100-240VAC, 50/60Hz).
- Tænd: Once both connections are secure, your Binary HDMI Splitter should receive power. Refer to your splitter's manual for specific power-on procedures.
Billede 4.1: Nærbillede view of the threaded locking DC connector, designed for a secure power connection.
Image 4.2: The GT POWER AC Adapter with its AC prongs ready for connection to a wall outlet.
5. Betjeningsvejledning
The GT POWER AC Adapter operates automatically once connected to a power source and a compatible device. It provides a stable 12V DC output. There are no user-adjustable settings on the adapter itself.
- Ensure the adapter is always connected to a properly grounded power outlet.
- Avoid placing the adapter in enclosed spaces where heat can build up.
- Do not pull the cable to disconnect the adapter from the wall outlet; always grasp the adapter body.
6. Vedligeholdelse
The GT POWER AC Adapter requires minimal maintenance.
- Rensning: Frakobl adapteren fra alle strømkilder før rengøring. Brug en blød, tør klud til at tørre ydersiden af. Brug ikke flydende rengøringsmidler eller opløsningsmidler.
- Opbevaring: Når adapteren ikke er i brug, skal den opbevares køligt og tørt, væk fra direkte sollys og fugt. Undgå at vikle kablet stramt op for at forhindre skader.
- Inspektion: Undersøg regelmæssigt strømkablet og adapterhuset for tegn på skader, såsom snit, flosning eller revner. Hvis der konstateres skader, skal brugen ophøre og adapteren udskiftes.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No power to device. | Adapteren er ikke tilsluttet. Loose DC connector. Fejlfunktion i stikkontakten. Damaged adapter. | Ensure AC adapter is fully plugged into a live wall outlet. Securely tighten the threaded DC connector to the device. Test stikkontakten med en anden enhed. Discontinue use and replace the adapter if damaged. |
| Device not functioning correctly after connecting adapter. | Forkert adapter anvendt. Enhedsfejl. | Verify the adapter's output voltage (12V DC) and connector type match your device's requirements. Consult your device's manual or manufacturer for further troubleshooting. |
| Adapteren føles for varm. | Dårlig ventilation. Overbelaste. Intern fejl. | Sørg for, at adapteren er i et godt ventileret område. Verify the connected device's power requirements do not exceed the adapter's capacity. Discontinue use immediately and replace the adapter. |
8. Specifikationer
| Mærke | GT POWER |
| Modelnummer | 307 |
| Input bindtage | 100-240VAC, 50/60Hz |
| Udgang Voltage | 12 volt (DC) |
| Connector Type | Threaded Locking DC Connector |
| Kabellængde | 48 tommer (ca. 1.2 meter) |
| Særlige funktioner | OVP, OCP, SCP Protection |
| Kompatible enheder | Binary B-240-HDSWTCH-5x1, B-260-444-HDR-SP12SA, B-260-444-HDR-SP14, B-260-444-HDR-SP18 HDMI Splitters |
| UPC | 800185029601 |
9. Garanti og support
Denne GT POWER AC-adapter leveres med en Et års garanti fra købsdatoen. Derudover en 30 dages pengene-tilbage-garanti tilbydes.
For technical support, warranty claims, or further assistance, please contact GT POWER customer service through your retailer or the official GT POWER support channels.
Gem venligst din købsbevis af garantihensyn.
