1. Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- Etui til S25 Ultra × 1
- Cage for S25 Ultra × 1
- T-Mount objektivbagplade × 1
- 17mm Lens Backplate × 1
- Attachable Filter Adapter × 1
- Betjeningsvejledning × 1
- Garantikort × 1
Billede: Overview of the SmallRig S25 Ultra Cage Kit package contents, showing the phone case, aluminum cage, various lens adapters, and instruction manual.
2. Funktioner overview
The SmallRig S25 Ultra Cage Kit is designed to enhance mobile filmmaking with robust protection and versatile mounting options.
2.1 Dual Protection System
The kit includes a rugged aluminum cage and a dedicated phone case. The aluminum cage absorbs shocks, while the case provides daily protection with raised bezels for screen and camera safety. Note: Use only the included or SmallRig-compatible cases. Third-party cases may cause damage.
Image: The aluminum cage separated from the phone case, illustrating the dual-layer protection system for the Samsung S25 Ultra.
2.2 External Lens Expansion
The kit supports external lenses with both T-mount and 17mm lens backplates. A 67mm magnetic filter adapter is also included for connecting compatible 67mm VND, CPL, or Black Mist filters (filters sold separately).
Image: A hand demonstrating the attachment of a T-mount lens backplate to the phone case, alongside images of a 67mm filter adapter and a 17mm threaded lens backplate.
2.3 Multiple Mounting Options
The cage features multiple 1/4"-20 anti-deflection threaded holes and cold shoe mounts. These allow for attaching accessories such as handles (e.g., 4402B), tripods (e.g., 3935), microphones (e.g., 3468), and video lights (e.g., 3286). Strap mounts (≤2mm) are also included for shoulder or wrist carrying.
Image: The SmallRig S25 Ultra Cage mounted on a tripod with side handles, highlighting the cold shoe mounts, threaded holes, strap slots, and quick release interfaces.
2.4 Quick Release Design
The HawkLock Quick Release system enables rapid phone mounting and dismounting without accidental ejection. The hollow design ensures full access to all buttons, ports, and the ultra-wide-angle lens for normal phone use.
Image: A two-panel image demonstrating the "Slide-in and Press to Lock" and "Toggle the Unlock Button to Release" actions of the quick release system.
2.5 Magnetic Mounting
Integrated N52 magnets provide an ultra-strong hold for stable mounting and charging with compatible magnetic accessories.

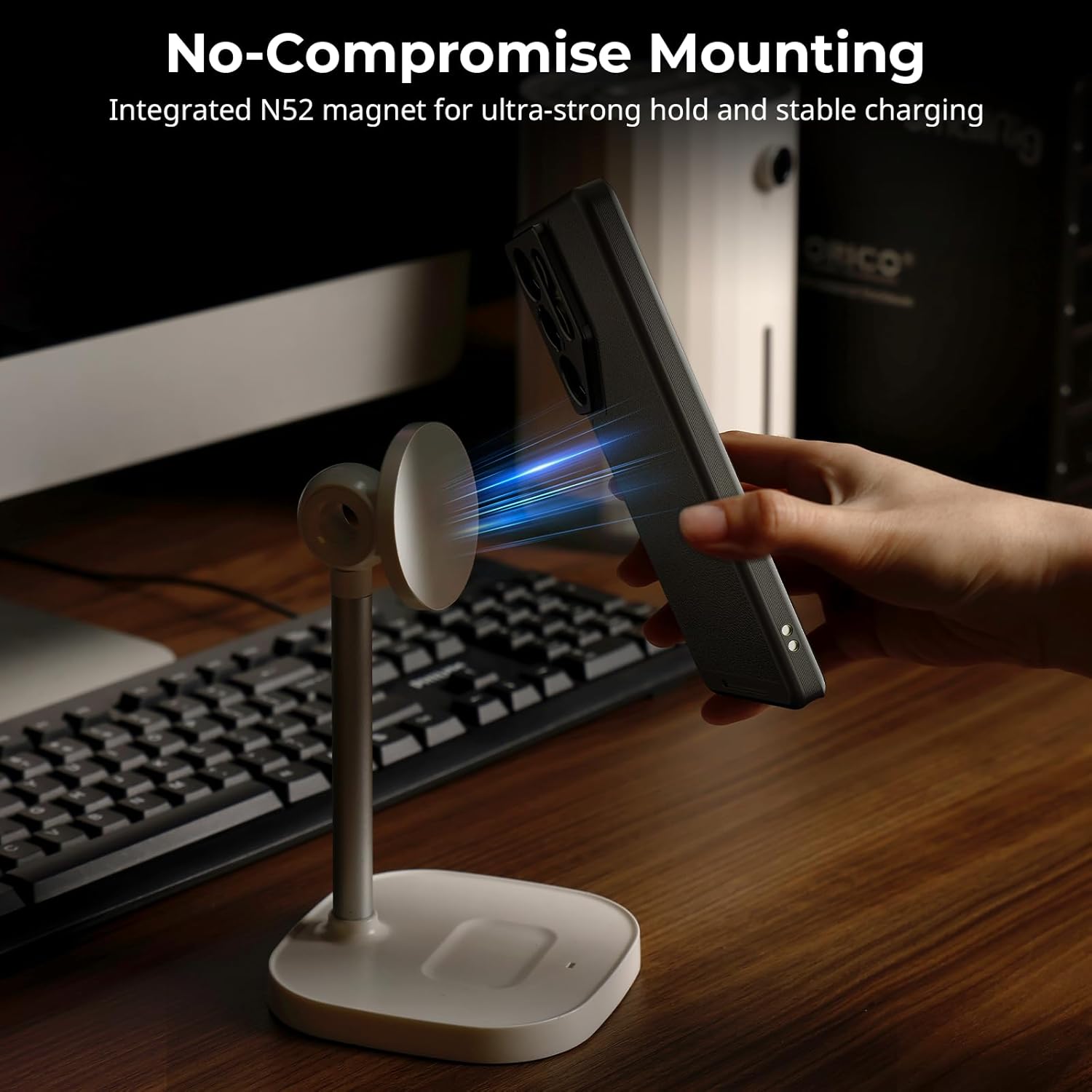

Image: A hand attaching a phone in the SmallRig S25 Ultra case to a magnetic charging stand, illustrating the "No-Compromise Mounting" feature with integrated N52 magnets.
2.6 Ergonomisk design
The cage features metal buttons for precise positioning and textured sides for a secure grip with a refined finish, ensuring zero signal interference.
Billede: Nærbillede views of the SmallRig S25 Ultra Cage highlighting features like "Zero Signal Interference," "Metal Buttons" for precise positioning, and "Textured Sides" for a secure grip.
3. Opsætningsvejledning
- Install the Phone Case: Carefully place your Samsung S25 Ultra into the provided rugged phone case. Ensure it fits snugly and all buttons and ports are accessible.
- Fastgør buret: Slide the phone (in its case) into the aluminum cage. Press firmly until you hear a click, indicating the HawkLock Quick Release system has engaged and the phone is securely locked in place.
- Select Lens Backplate: Choose either the T-Mount or 17mm Lens Backplate based on your external lens requirements. Align the backplate with the camera module on the phone case and press to attach.
- Attach Filter Adapter (Optional): If using 67mm magnetic filters, attach the 67mm Magnetic Filter Adapter to the selected lens backplate.
- Monteringstilbehør: Utilize the 1/4"-20 threaded holes and cold shoe mounts on the cage to attach handles, tripods, microphones, or lights as needed.
Video: A demonstration of assembling the SmallRig S25 Ultra Cage Kit, showing how to insert the phone, attach lens adapters, and mount accessories.
Video: En overview of the NEEWER S25 Ultra Phone Cage, demonstrating its quick installation and various features for mobile videography.
4. Betjeningsvejledning
4.1 Quick Release Operation
To release the phone from the cage, simply toggle the unlock button on the side of the cage. The phone can then be easily slid out. To re-mount, slide the phone back in and press until it locks.
4.2 Using External Lenses and Filters
Once the appropriate lens backplate is attached, screw your external T-mount or 17mm lens onto the adapter. For magnetic filters, simply align the 67mm filter with the magnetic adapter and it will snap into place.
4.3 Accessory Mounting
Accessories like handles, lights, and microphones can be attached to the cold shoe mounts or 1/4"-20 threaded holes. Ensure all accessories are tightened securely to prevent movement during use.
Video: En kort optaktview demonstrating the quick release side handle feature, showing how it attaches and detaches from the cage.
4.4 Magnetisk opladning
The integrated N52 magnets provide an ultra-strong hold for stable magnetic charging with compatible wireless chargers or power banks. Simply align your device with the magnetic charging surface.
Image: A collage of images showing different ways to use the SmallRig S25 Ultra Cage Kit, including handheld vlogging, using external lenses, and carrying with a strap.
5. Vedligeholdelse
- Rensning: Use a soft, dry cloth to clean the aluminum cage and phone case. Avoid abrasive cleaners or solvents.
- Opbevaring: Store the kit in a dry, dust-free environment when not in use.
- Inspektion: Regularly inspect all screws and connections to ensure they are tight and secure.
6. Fejlfinding
- Phone not fitting securely: Ensure you are using the provided SmallRig phone case. Third-party cases may not be compatible. Check that the quick release mechanism is fully engaged.
- Accessories loose: Tighten all 1/4"-20 screws and cold shoe mounts firmly.
- Signalinterferens: The cage is designed to prevent signal interference. If issues occur, ensure the phone is correctly seated and no external accessories are blocking antennas.
7. Specifikationer
| Attribut | Værdi |
|---|---|
| Produktdimensioner | 7.17 x 3.81 x 0.49 tommer |
| Varens vægt | 5.5 ounces (155 gram) |
| Varemodelnummer | 5254 |
| Mærke | SMALLRIG |
| Kompatible enheder | for Samsung Galaxy S25 Ultra |
| Materialer | PC, TPU, læder, aluminiumslegering |
8. Garanti og support
For warranty information and customer support, please refer to the Guarantee Card included in your package or visit the official SMALLRIG webwebsted. Gem din købsbevis i tilfælde af garantikrav.
